Description
Description
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
The Cloud Gateway Ultra (UCG-Ultra) offers unprecedented control and scalability for enterprise networks. This device is specifically designed to cater to the needs of businesses requiring robust, secure, and efficient network management. Its ability to manage extensive UniFi networks (over 30 devices and 300+ clients) makes it an ideal choice for growing enterprises.
The UCG-Ultra's 1 Gbps routing capability ensures fast, reliable data transfer, which is critical for operations requiring high bandwidth. The inclusion of IDS/IPS provides an added layer of security, safeguarding your network from intrusion and malicious attacks. The multi-WAN load balancing feature enhances connection reliability, optimizing internet traffic distribution to prevent downtime and ensure continuous network performance.
UCG-Ultra's compact design is complemented by a 0.96" LCM status display, offering a sleek, informative interface for real-time monitoring and quick status checks, all while maintaining a minimal footprint. The device's USB-C powered functionality ensures ease of use and compatibility with contemporary power standards.
Features:
Runs UniFi Network for full-stack network management
Manages 30+ UniFi Network devices and 300+ clients
1 Gbps routing with IDS/IPS
Multi-WAN load balancing

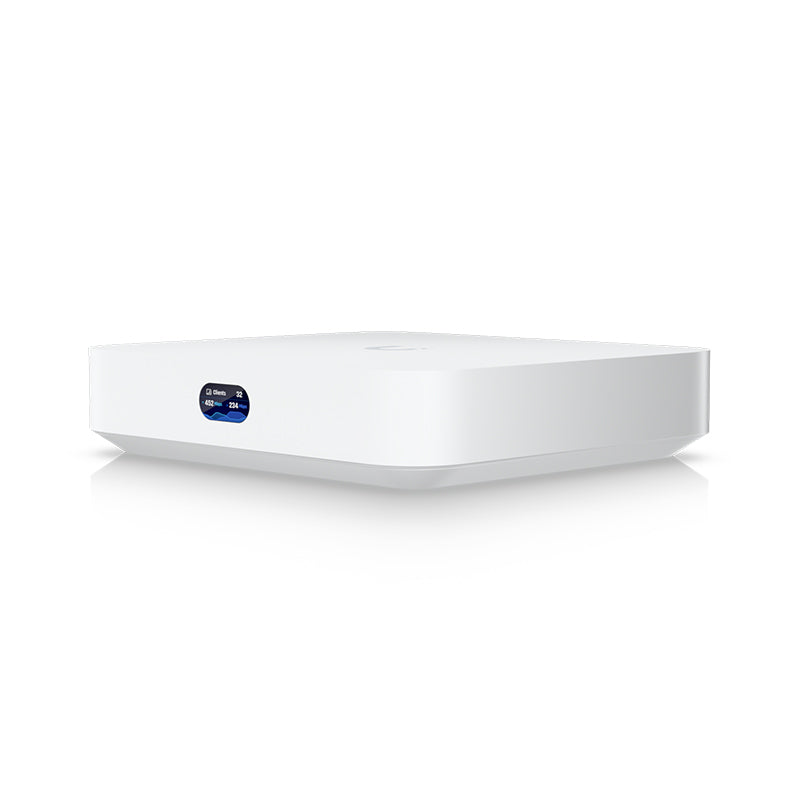

0.96" LCM status display

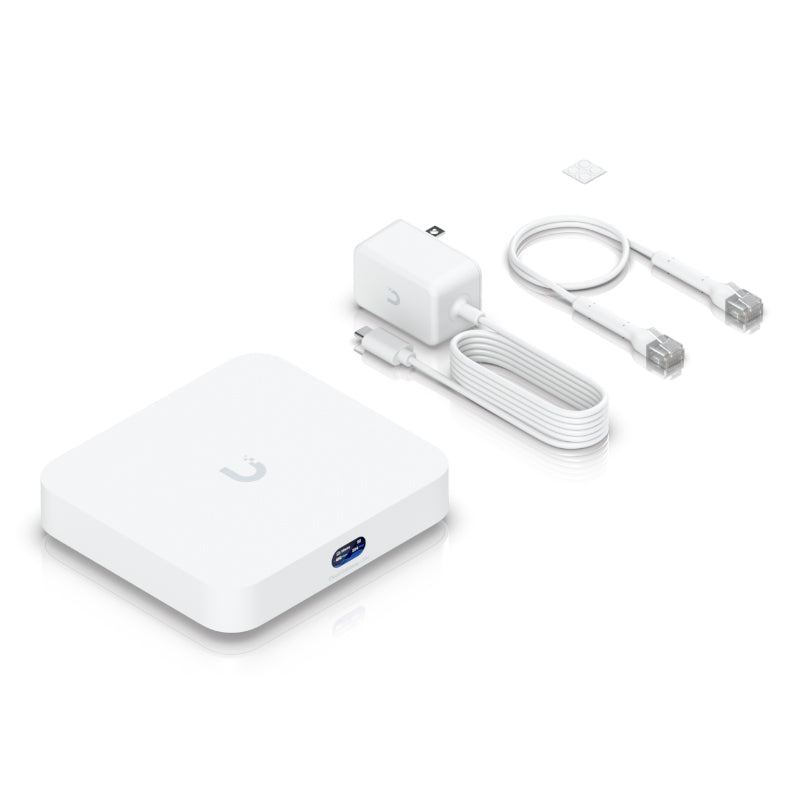

USB-C powered (adapter included)
Frequently asked questions5 questions
What is the UCG-Ultra used for?
How many devices and clients can it manage?
What ports does the UCG-Ultra have?
How is the UCG-Ultra powered?
What security features does it include?
Customer reviews
4.9
· 28 reviews
Exactly what I was hoping for. The service is exceptional, along with fast delivery. I will be using you guys for a long time!!
BeauWe have 3 of these units. Unifi gear works great. It takes the IT out of IT! Super fast delivery as always
ScottThis device is very good. Security Gateway and CloudKey in one device.
SteveEasy to set up and works well. Was able to get it up and running quickly.
JeffreySpecifications28 specifications · 5 sections
| Overview | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm / (5.6 x 5 x 1.2") |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |

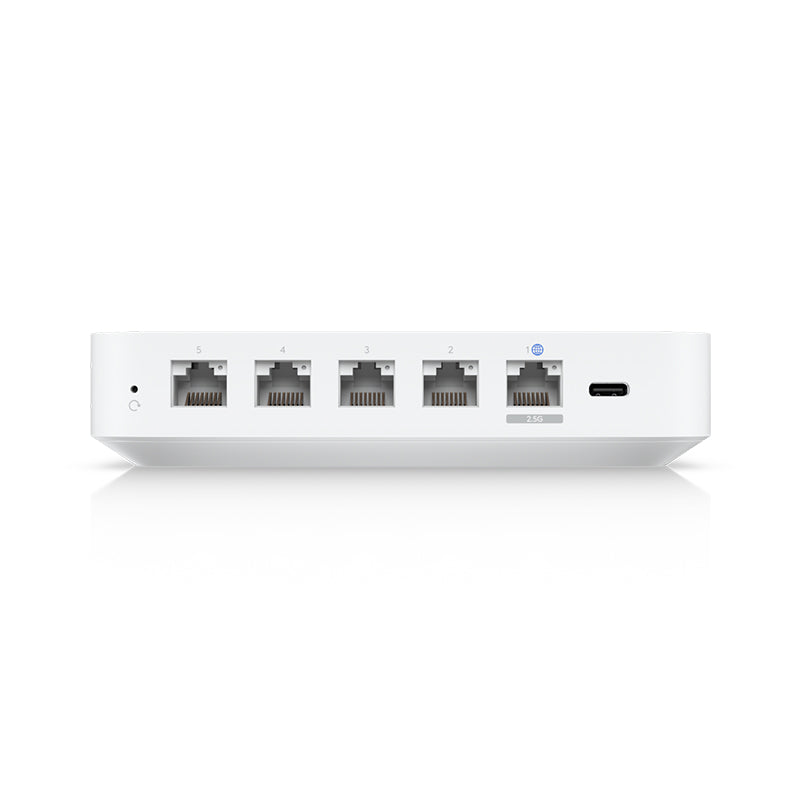

| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 4 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 1 / (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
| Security | |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| Networking | |
| MAC Address Table Size | 2,000 |
| Hardware | |
| Max. Power Consumption | 6.2W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 21 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| On-board Storage | 16 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04653-24-08356, SRRC |
| Software | |
| Application Requirements · Mobile App | UniFi iOS™: Version 10.12.0 and later / UniFi Android™: Version 10.11.2 and later |
