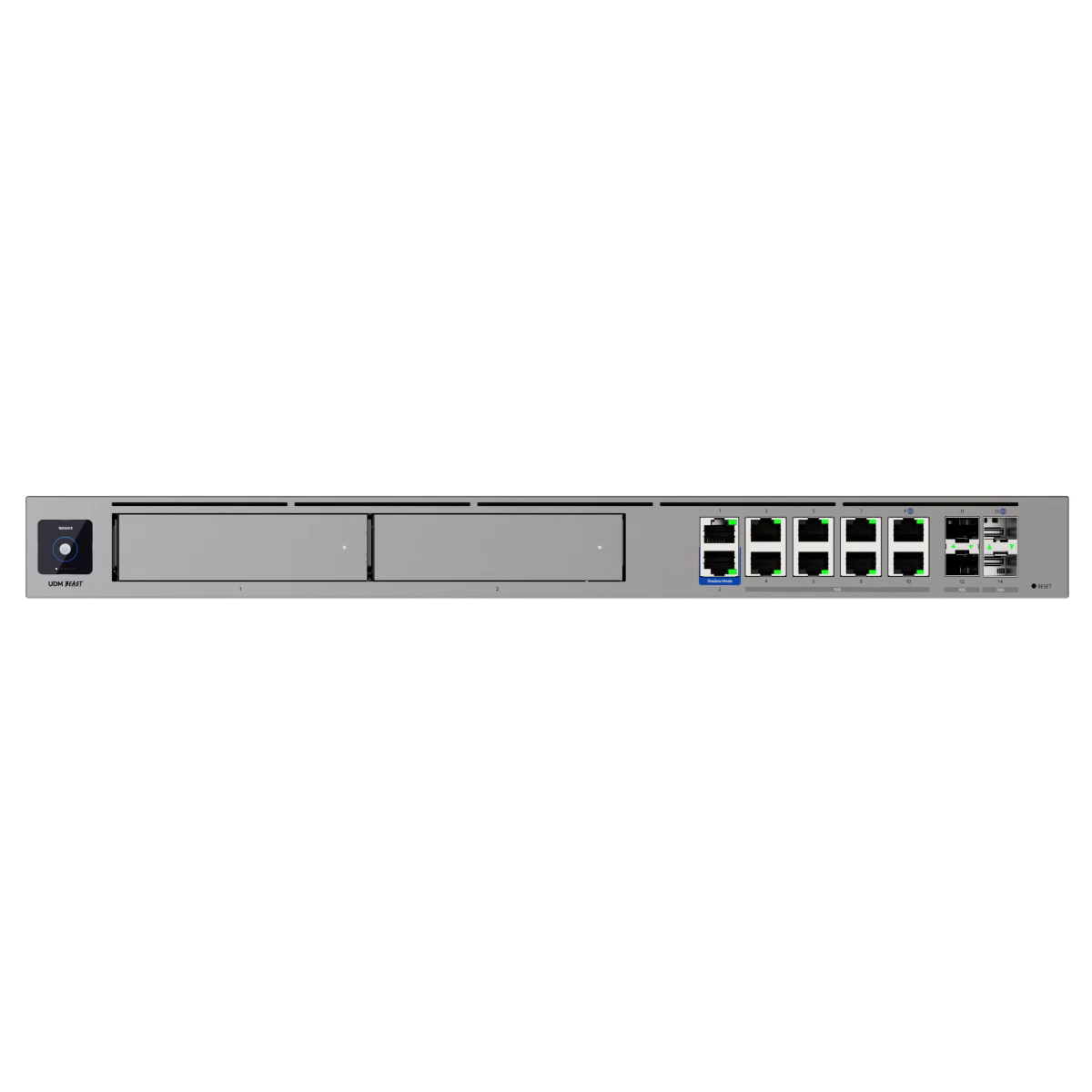

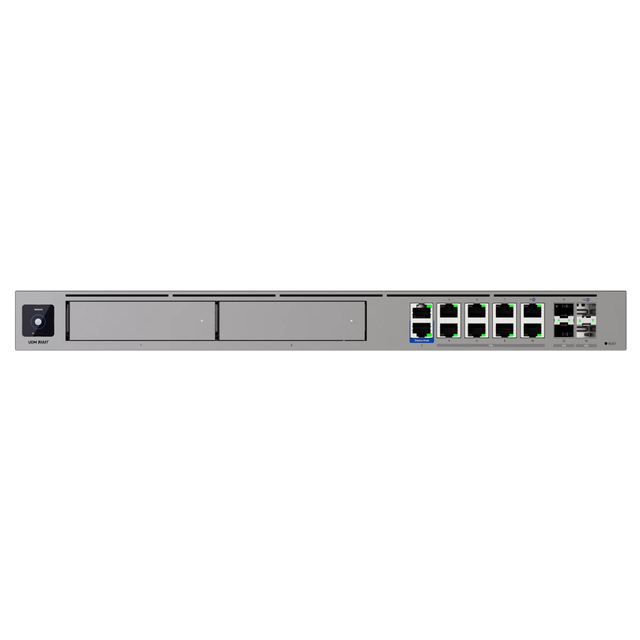

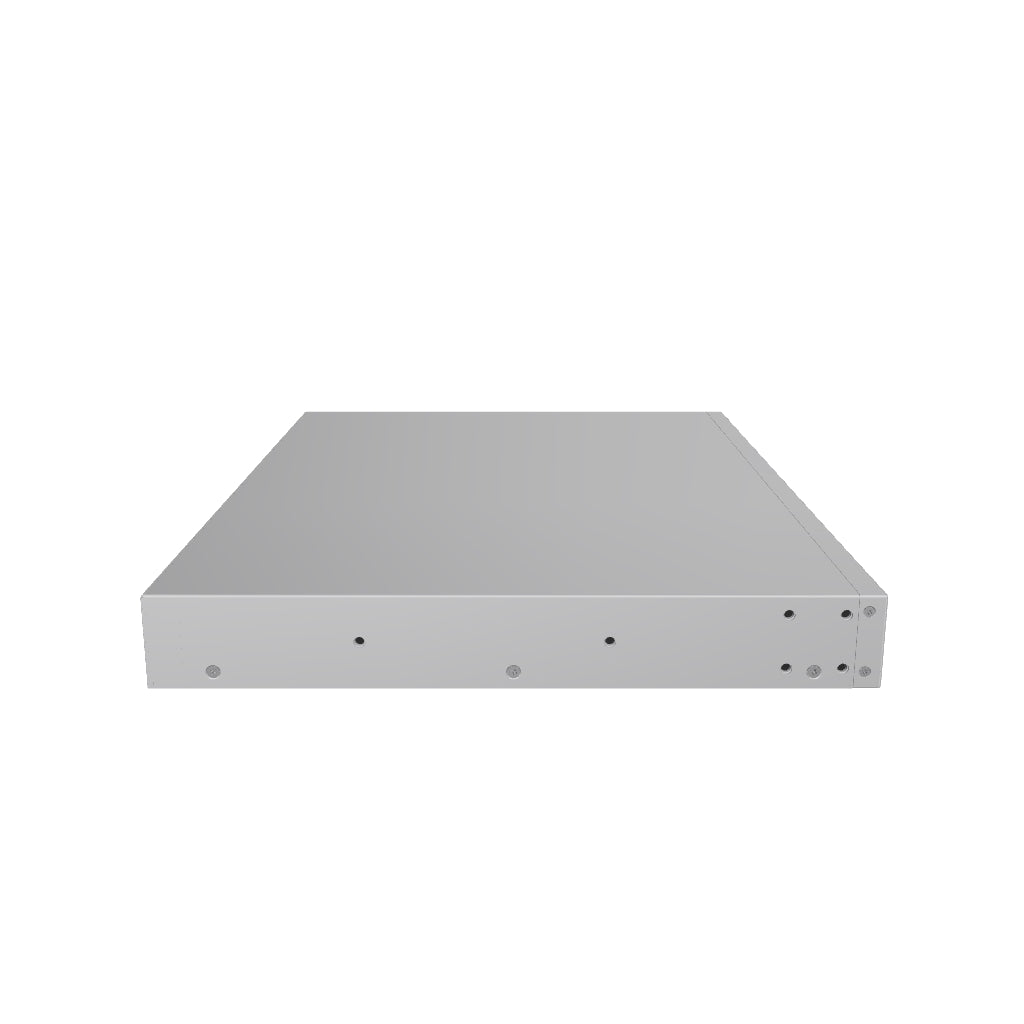

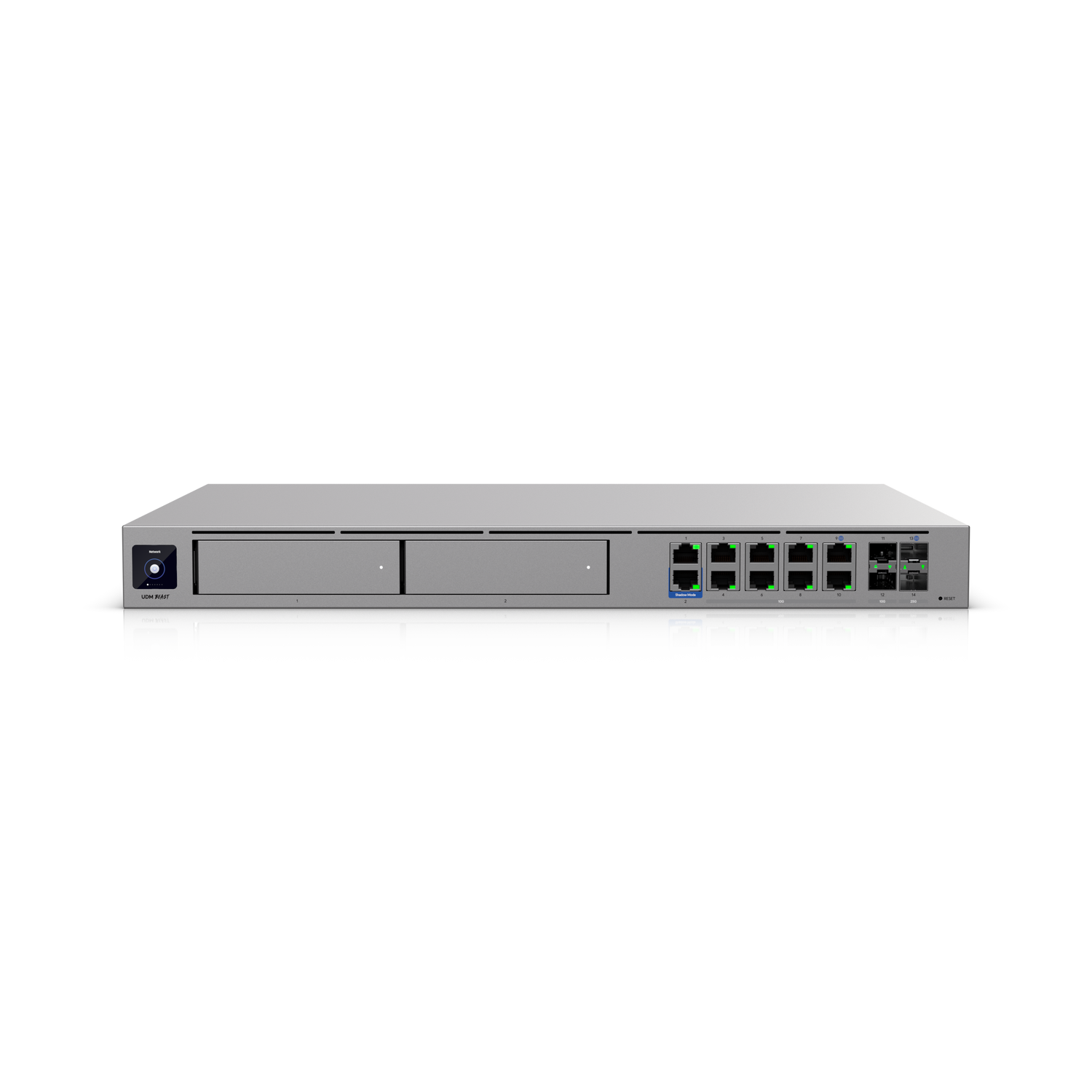

UDM‑Beast – Ubiquiti UniFi Dream Machine Beast Cloud Gateway
Description
Description
The Ubiquiti UDM‑Beast is Ubiquiti’s flagship hyperscale UniFi Cloud Gateway, designed for large and demanding network environments. Built on a powerful octa‑core ARM v9 platform, the UDM‑Beast delivers exceptional routing, security and application performance while running the full UniFi application suite from a single, licence‑free device.
With up to 25 Gbps IDS/IPS throughput, extensive 10GbE and 25GbE connectivity, and support for 7,500+ connected clients, this gateway is engineered for enterprises, MSPs and multi‑site deployments. Integrated support for UniFi Network, Protect, Access, Talk and Connect enables centralised management of networking, security and surveillance without recurring licence costs.
Key Features:
- 25 Gbps IDS/IPS firewall performance with advanced Layer‑7 inspection
- Octa‑core ARM v9 processor with 16 GB system memory
- 10GbE RJ45, 10G SFP+ and 25G SFP28 ports
- Shadow Mode (VRRP) for high availability gateway failover
- Dual 3.5” HDD bays and built‑in 128 GB SSD for UniFi Protect
- Licence‑free SD‑WAN and VPN capabilities
Ideal for:
Enterprise networks, managed service providers, high‑density office environments, multi‑site organisations and large UniFi Protect camera deployments.

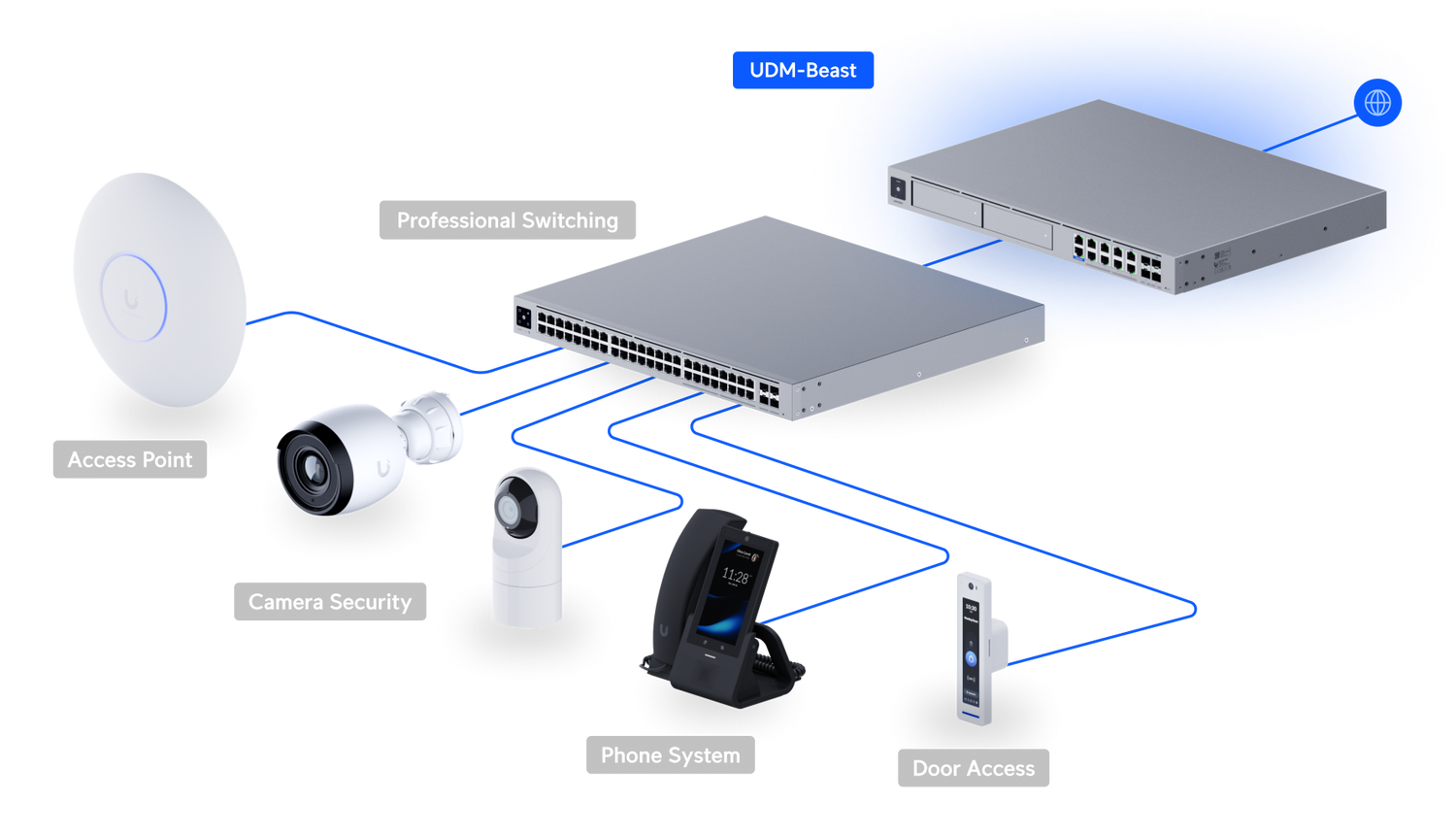

Compatible Products:
UniFi Access Points – UniFi U6 Series, UniFi U7 Series
UniFi Switching – UniFi Enterprise Switches, UniFi Pro Switches
UniFi Protect – UniFi G5 Cameras, UniFi G4 Series
Power & Redundancy – UniFi USP‑RPS
FAQs:
Does the UDM‑Beast include PoE?
No, PoE is not built in. UniFi PoE switches are recommended.
Are licences required for security features?
No, firewall, IDS/IPS and SD‑WAN features are included with no recurring licence fees.
Specifications37 specifications · 5 sections
| Overview | |
|---|---|

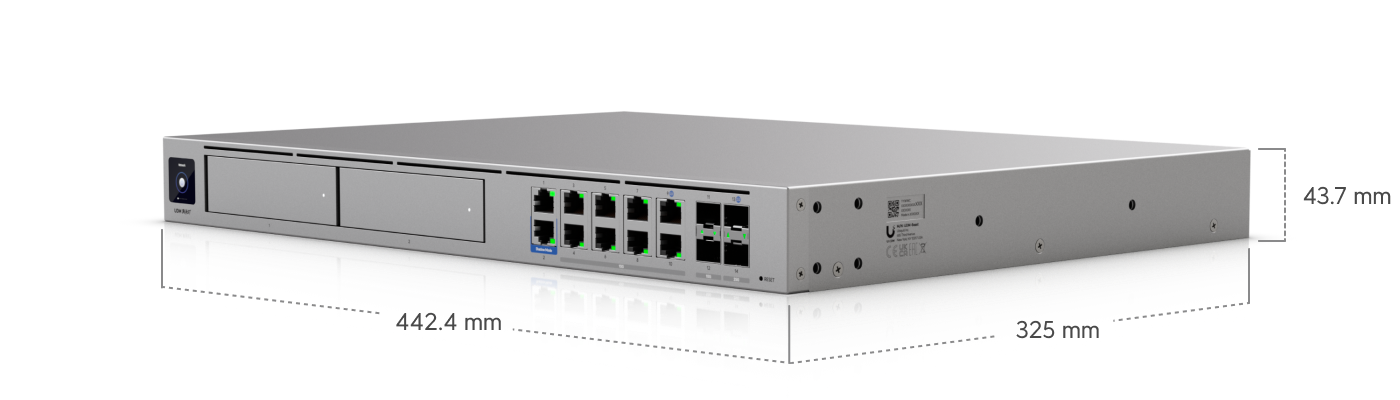

| Dimensions | 442.4 x 43.7 x 325 mm / (17.4 x 1.7 x 12.8") |
| Managed UniFi Devices | 750+ |
| Managed Cameras | (100) HD / (60) 2K / (40) 4K |
| Managed Access Hubs | 200 |
| Simultaneous Users Connected | 7,500+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 25G SFP28 / (1) 10 GbE RJ45 |

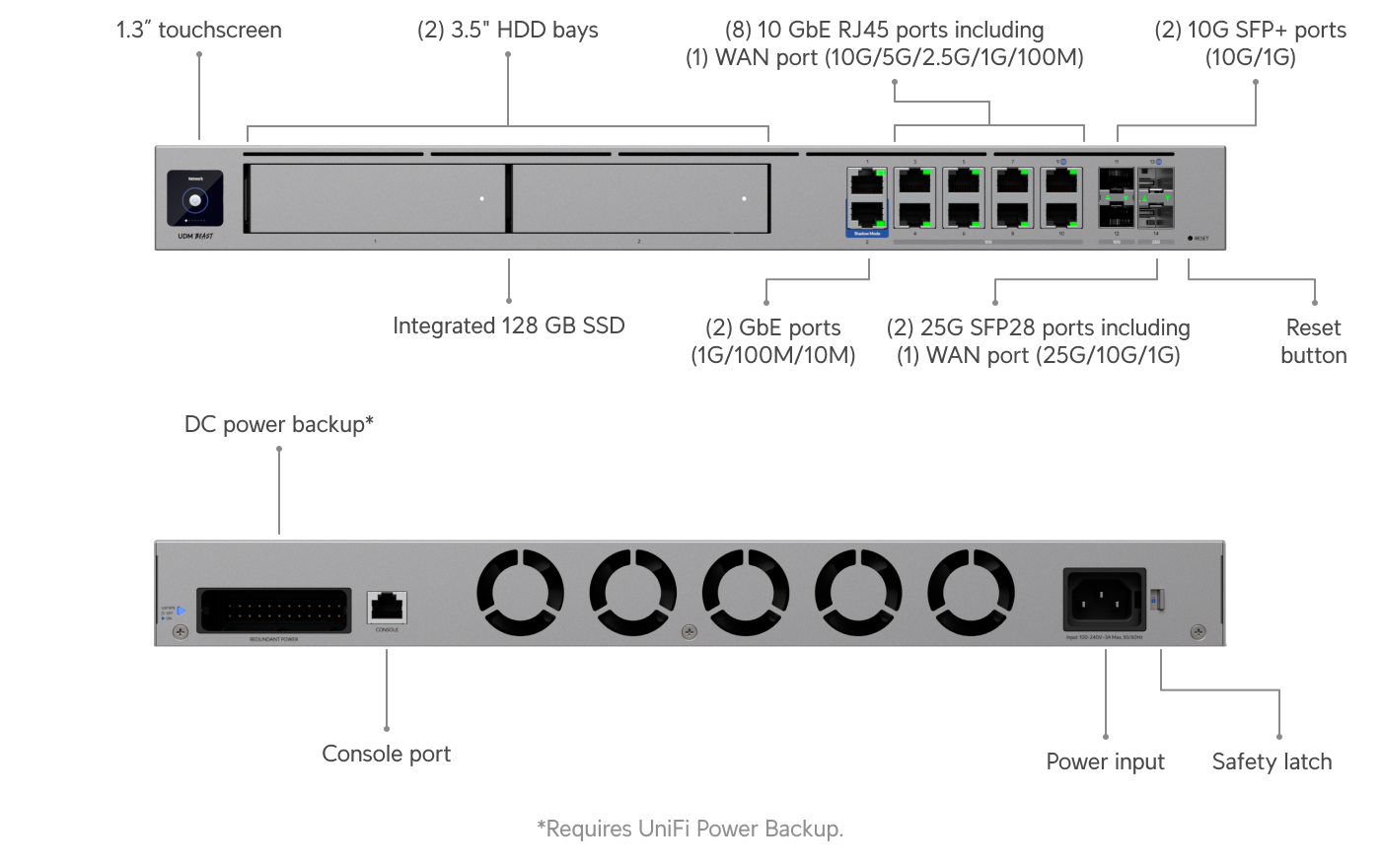

| Port Layout · 1 GbE RJ45 | 2 / (1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 8 / (10G/5G/2.5G/1G/100M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| Port Layout · Console | 1 |
| IDS/IPS Throughput | 25 Gbps |

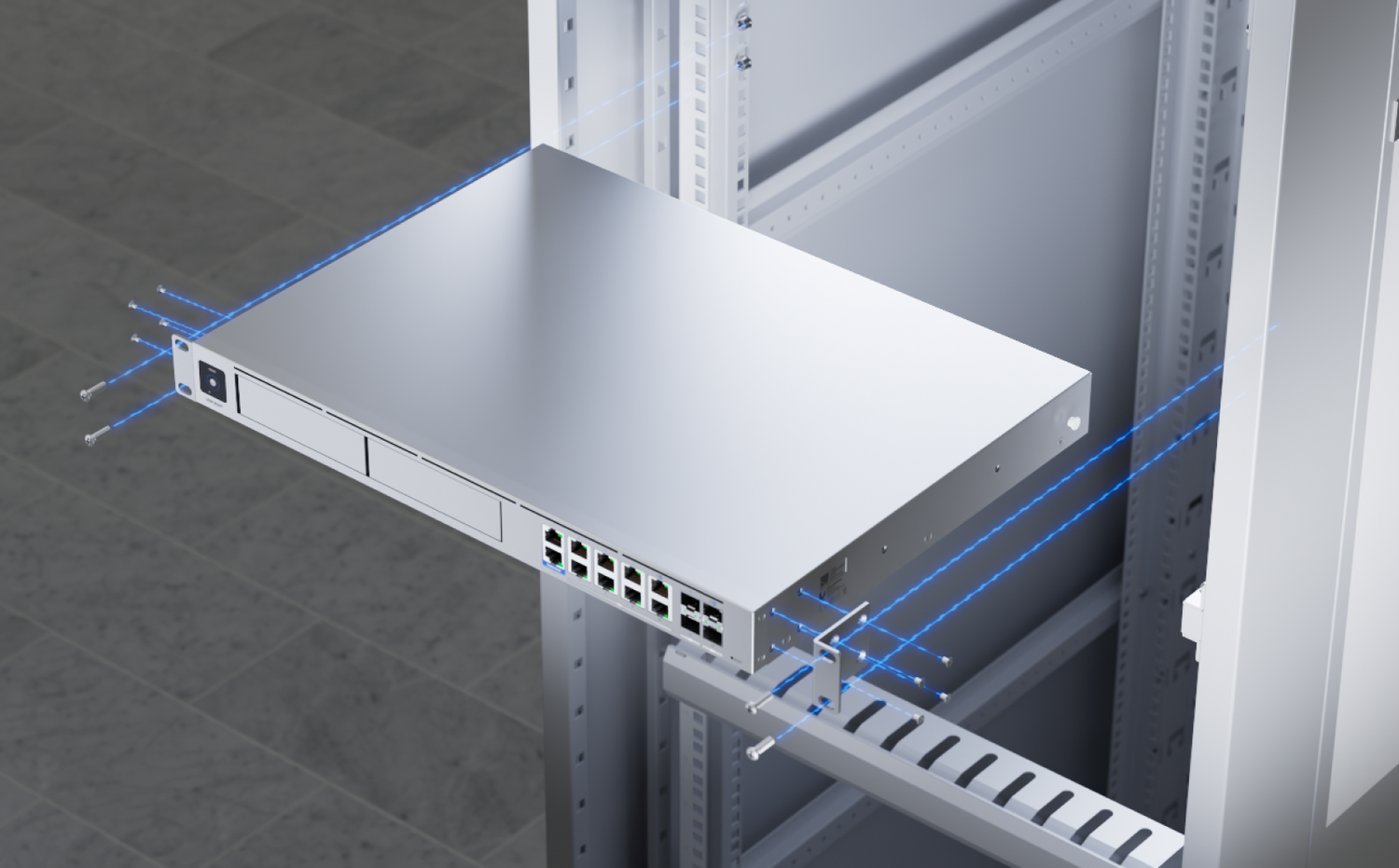

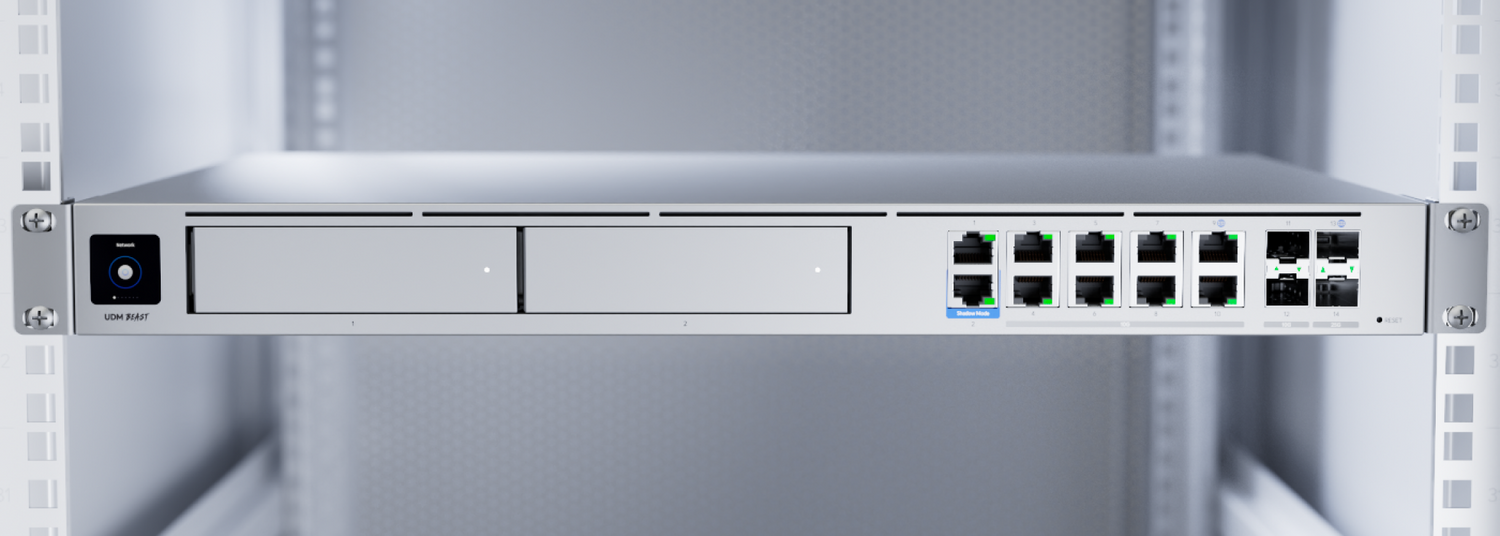

| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| Networking | |
| MAC Address Table Size | 32,000 |
| Hardware | |
| NVR Storage | (2) 3.5" NVR HDD bays / Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption | 100W |

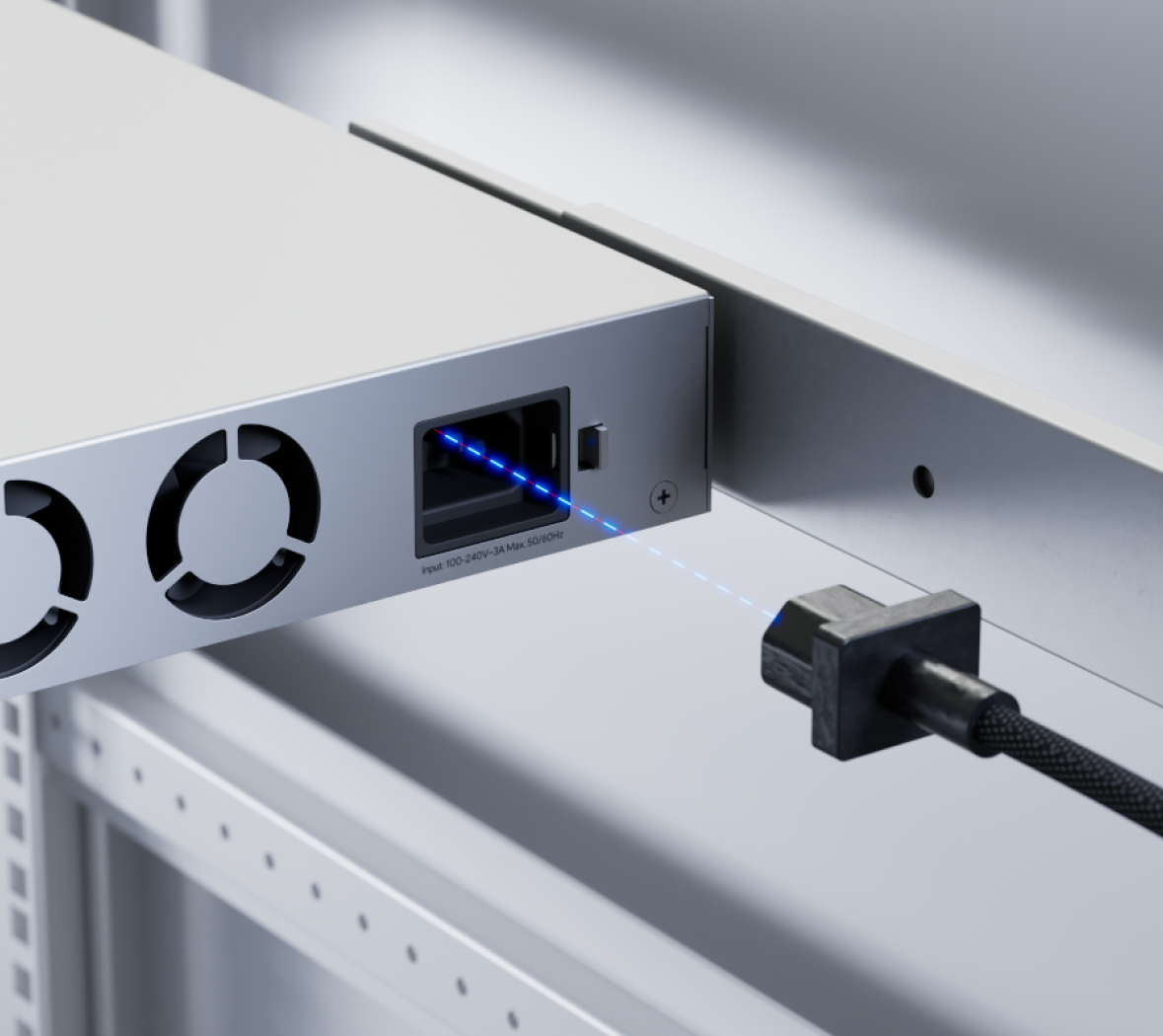

| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 13.05A |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 342 BTU/hr |
| Processor | Octa-core ARM® v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg (12.13 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · Mobile App | UniFi iOS™: Version 10.34.0 and later / UniFi Android™: Version 10.37.1 and later |
