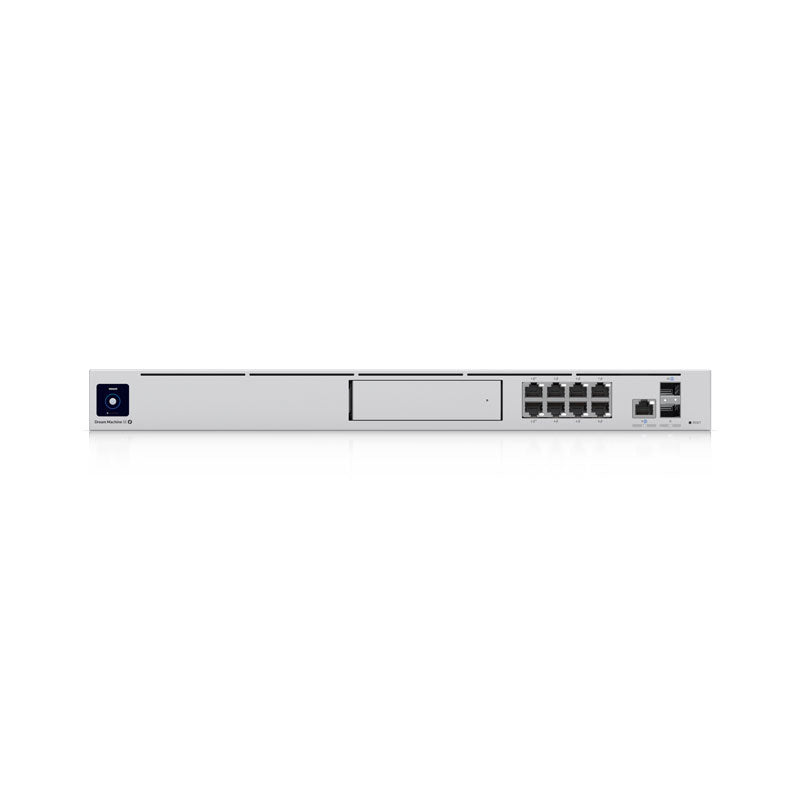

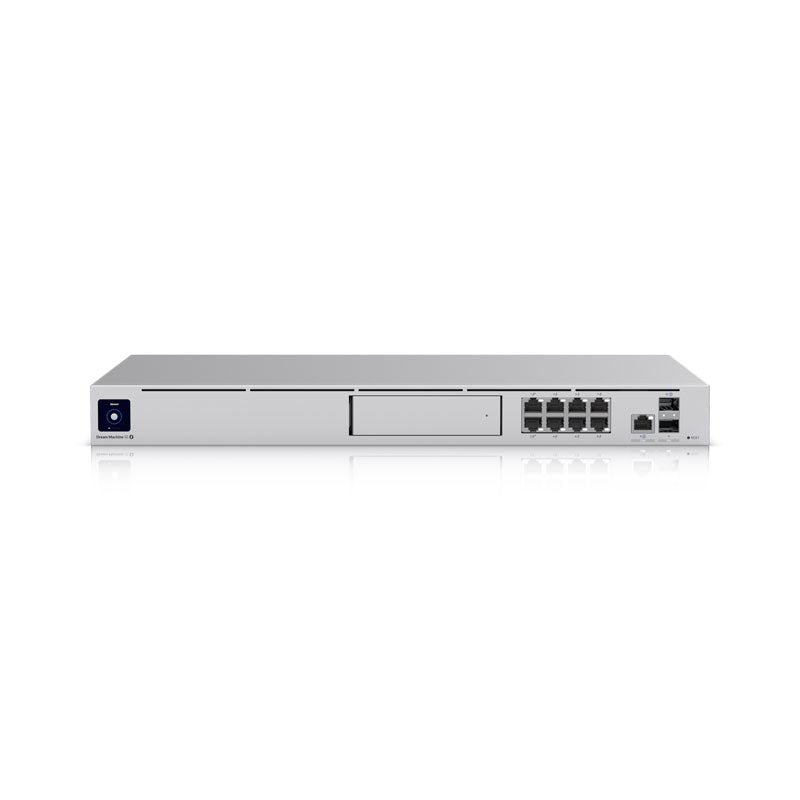

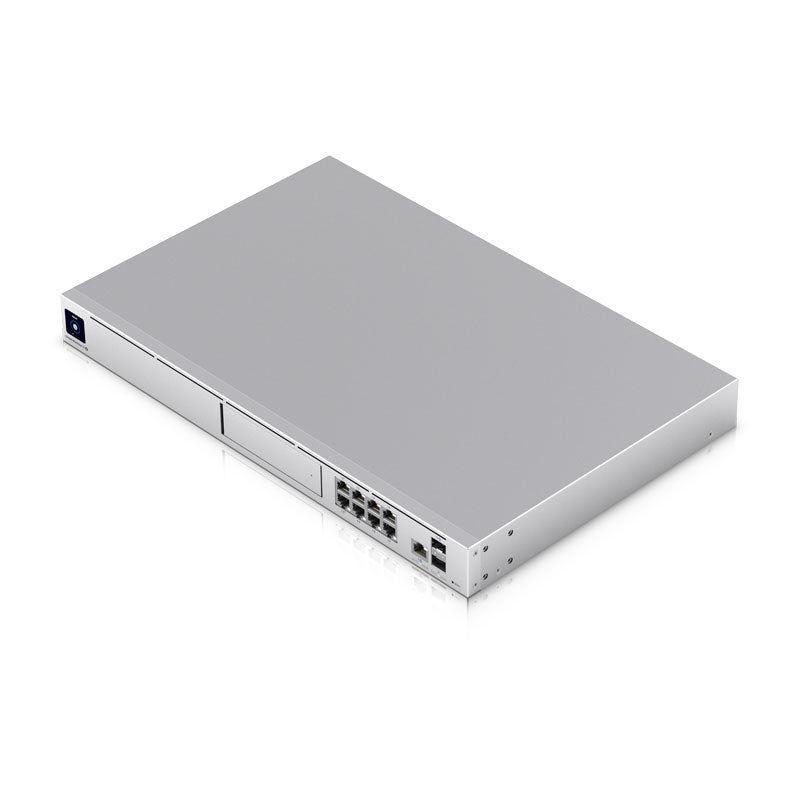

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UDM-SE
UDM-SE Ubiquiti UniFi Dream Machine Special Edition
$1,046.01 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.
Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications.
Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Features:
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3' LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Compatible with the SmartPower Redundant Power Supply system (sold separately)
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5' HDDs
128 GB integrated storage for full UniFi OS Application experience
Frequently asked questions5 questions
What is the UniFi Dream Machine Special Edition used for?
It is an enterprise-grade UniFi OS Console that combines a security gateway, a PoE switch and a UniFi Protect-ready network video recorder. It manages UniFi access points, Protect cameras, Talk phones and Access readers from one device.
What ports does the UDM SE have?
It has dual WAN ports (10G SFP+ and 2.5GbE RJ45), eight GbE RJ45 LAN ports and one 10G SFP+ LAN port. Of the eight GbE ports, six are 802.3af PoE and two are 802.3at PoE+.
How much PoE power can it supply?
The total PoE budget is 180W. Each 802.3af PoE port provides up to 15.4W and each 802.3at PoE+ port provides up to 30W.
Can it record from UniFi Protect cameras?
Yes. It includes a UniFi Protect-ready NVR with a 3.5-inch HDD bay for compatible drives, plus 128 GB of integrated storage. It can manage up to 24 HD, 14 2K or 8 4K cameras.
Is the UDM SE rack-mountable and how is it set up?
It is a 1U rack-mount device measuring 442.4 x 43.7 x 285.6 mm. Setup uses the built-in Bluetooth radio with the UniFi Network web application or mobile app, and can be completed in minutes.
Customer reviews
5.0
· 4 reviews
★★★★★Collected by reviews.io · May 2024
Very easy to use pretty much zero knowledge required to setup. Love the control and the information the systems shows.
Dave
★★★★★Collected by reviews.io · Jan 2024
Fantastic device easy to setup excellent performance must buy
Anonymous
★★★★★Collected by reviews.io · Jan 2025
SeanSpecifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD / (14) 2K / (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 10G SFP+ / (1) 2.5 GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 8 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 1 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover / DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Hardware | |
| NVR Storage | (1) 3.5" NVR HDD bay / Built-in 128 GB SSD for Faster Experience |
| PoE Budget | 180W |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Voltage Range PoE Mode | PoE: 44-57V / PoE+: 50-57V |
| Max. Power Consumption | 50W (Excluding PoE Output) |
| Power Method | (1) Universal AC input, 100–240V AC, 4.4A Max., 50/60 Hz / (1) USP-RPS DC input, 52V DC, 3.94A |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 170 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC / 128 GB SSD (Integrated) |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 07309-22-08356, SRRC |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UDM-SE · Ubiquiti's spec sheet
