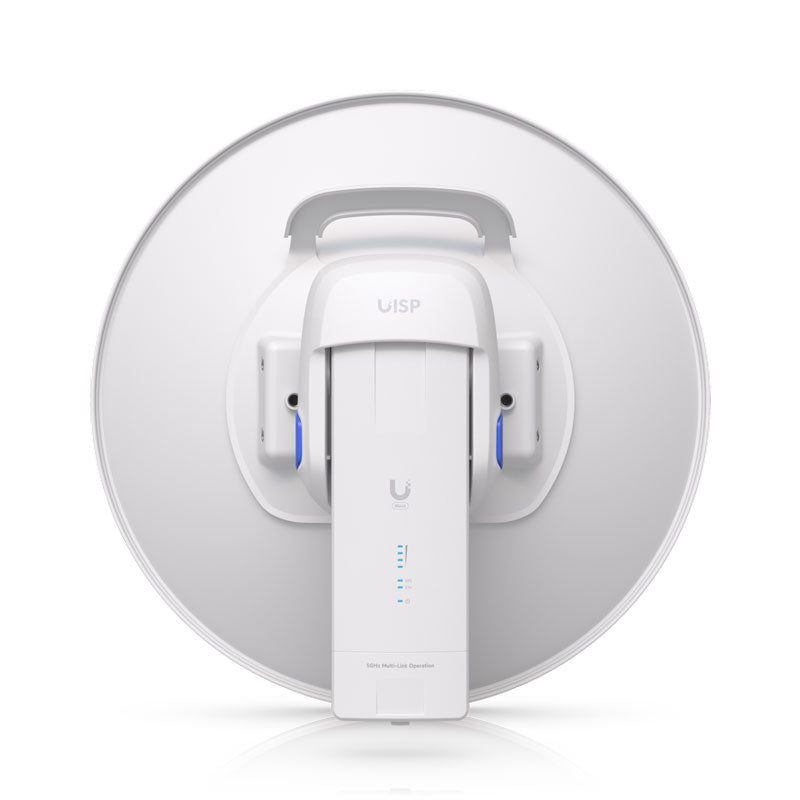

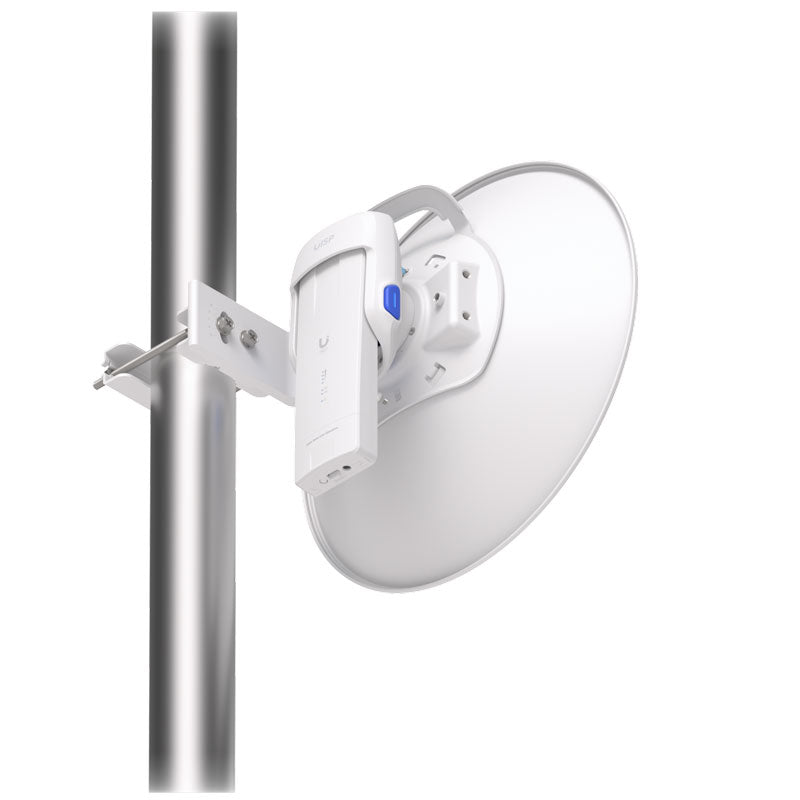

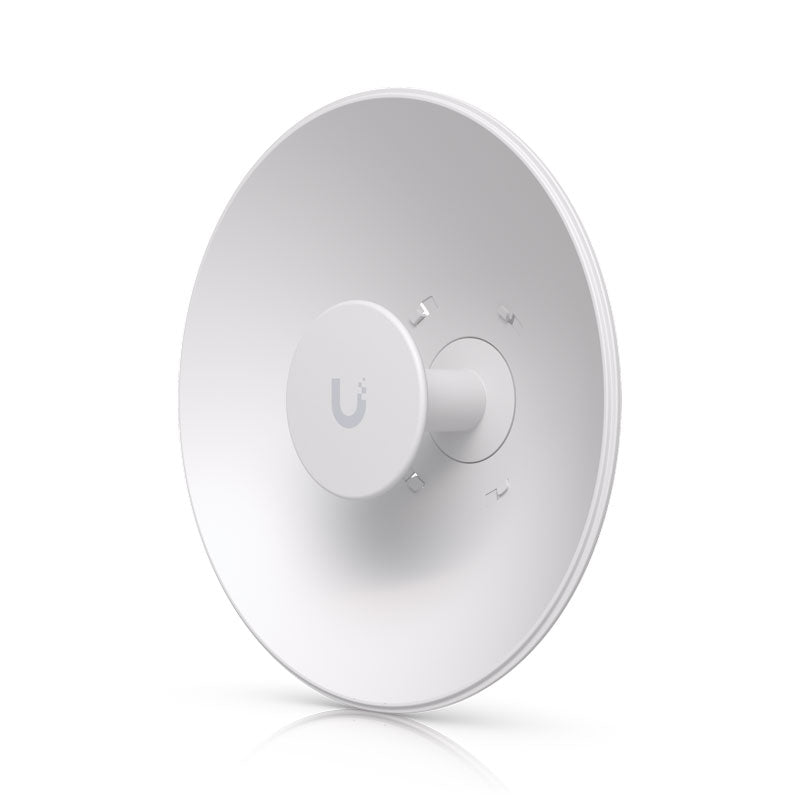

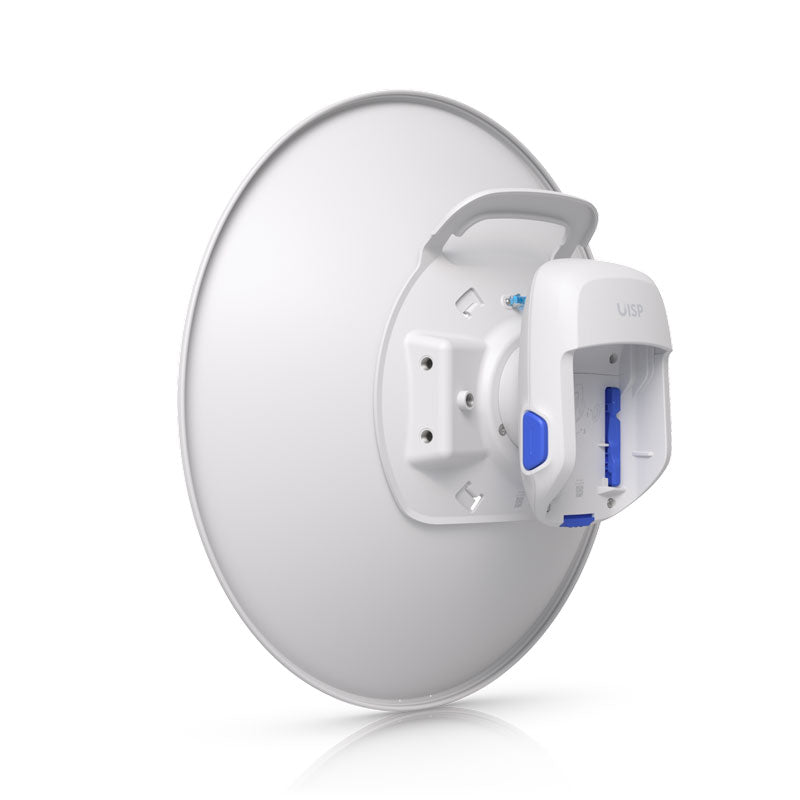

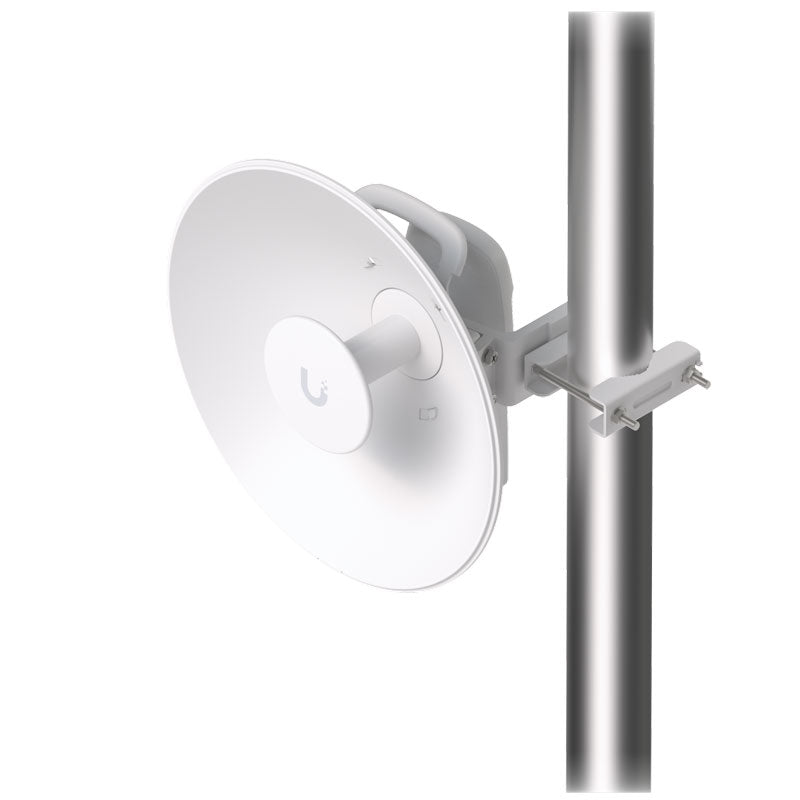

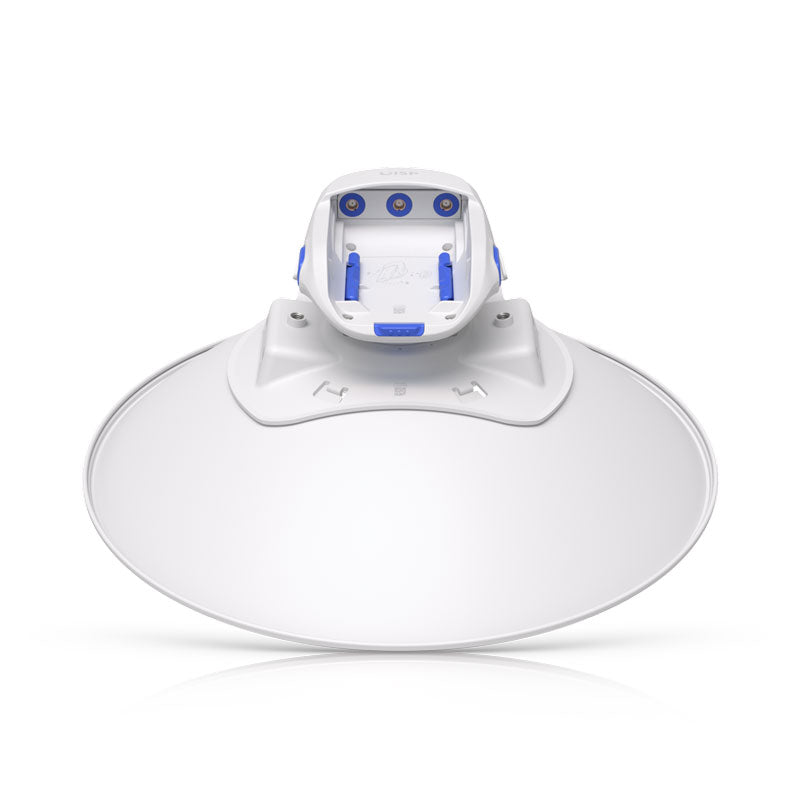

UISP-Dish-Mini Ubiquiti 5-7 GHz compact dish antenna
- Order today · 30 OctAdded to our next Ubiquiti order
- Ship date confirmedBy email once Ubiquiti allocates stock
- Delivered · by 19 – 30 NovOur aim: 14–21 working days from your order
Confirmation now, tracking the moment it ships.
How pre-orders work
How pre-orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description
The Ubiquiti UISP Dish Mini is a compact, high‑gain directional antenna engineered for long‑range wireless links in the 5–7 GHz spectrum. Designed for seamless radio integration and reliable outdoor performance, it delivers exceptional signal strength in a lightweight, installer‑friendly form factor.
Features:
• 26 dBi high‑gain dish for focused, long‑distance point‑to‑point connectivity
• 5–7 GHz wideband support for flexible deployment across various wireless environments
• Direct radio‑mount design enabling quick, secure attachment to compatible UISP radios
• Compact, low‑wind‑load form factor ideal for rooftops, towers, and constrained mounting locations
• Durable outdoor construction built to withstand harsh weather conditions
• Optimised beam pattern for improved noise immunity and stable throughput
Specifications16 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | Antenna dish: ⌀420 x 140 mm (⌀16.5 x 5.5") / Antenna dish with Waveguide: ⌀420 x 211.3 mm (⌀16.5 x 8.3") |
| Weight | Antenna dish: 1.95 kg (4.3 lb) / Mount: 1 kg (2.2 lb) / Waveguide: 0.45 kg (1 lb) |
| Enclosure Material | Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate / Waveguide: Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h (78 lbf at 124 mph) |
| Mounting | Pole mount / Alignment mounting kit (Included) / Mechanical adjustment: ±20° elevation |
| Pole Mount Diameter | ⌀32–76 mm (⌀1.25–3") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 26 dBi |
| Beamwidth | Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) / Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 15 dB |
