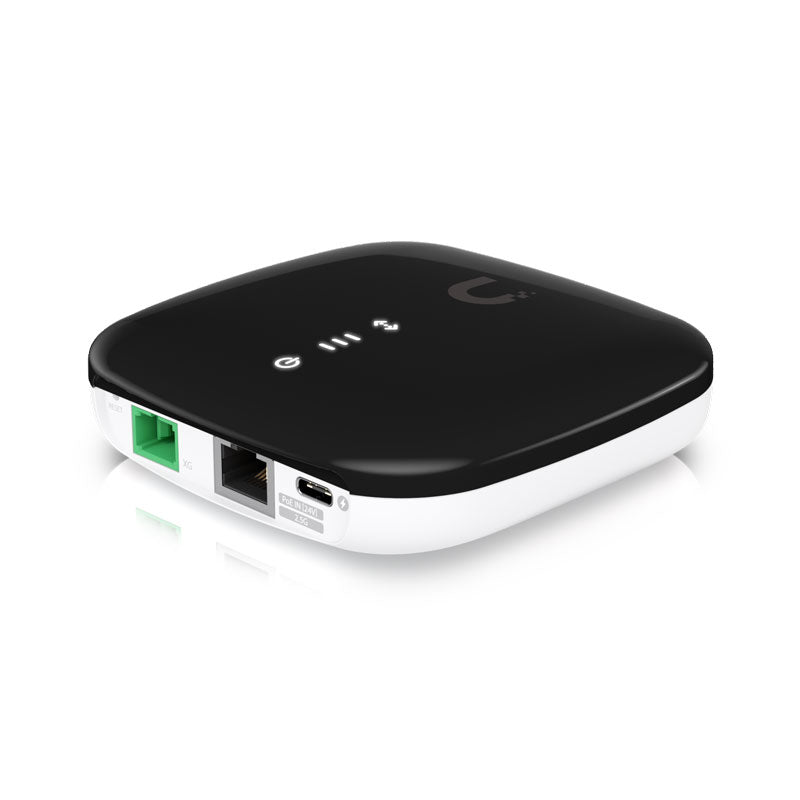

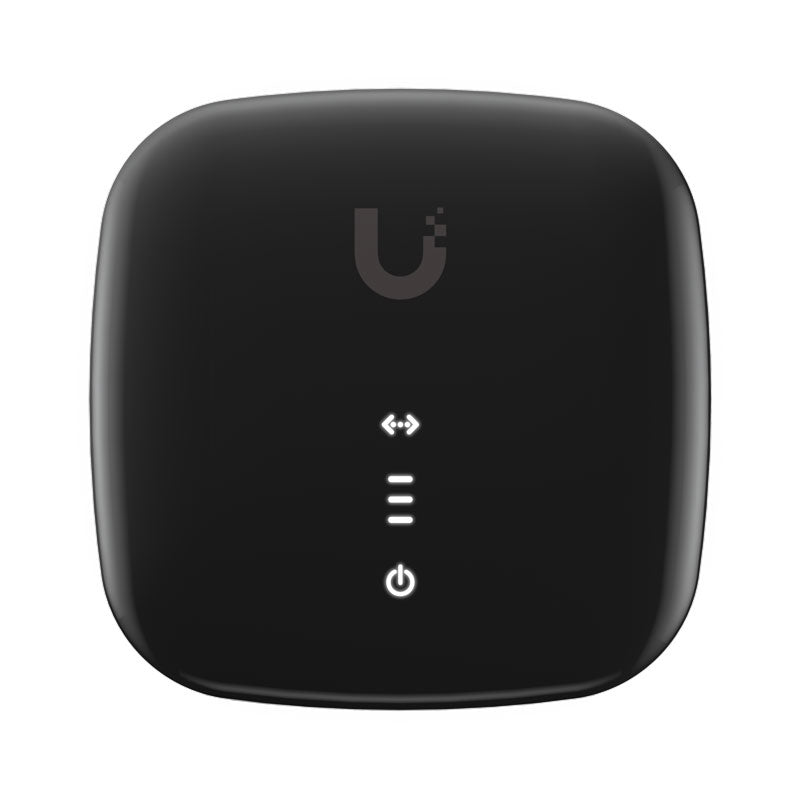

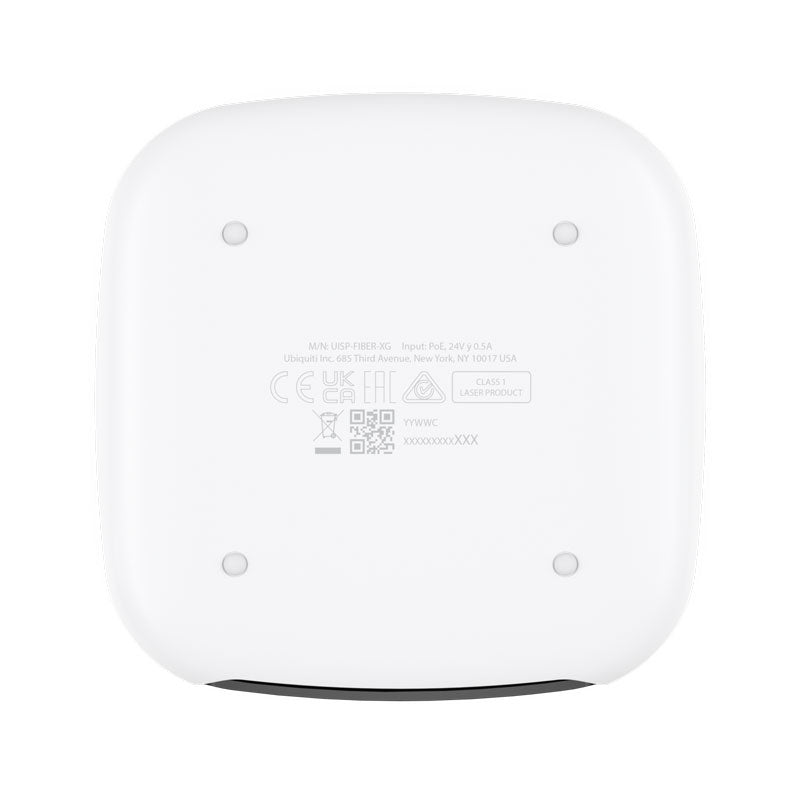

UISP-FIBER-XG Ubiquiti XG‑PON optical network unit

Q: What ports does the UISP-FIBER-XG have?

It has one SC\/APC XG-PON WAN port (ITU-G.987) for the fibre connection and one 2.5 GbE RJ45 LAN port.

$210.52 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The UISP‑FIBER‑XG is Ubiquiti’s XG‑PON optical network unit (ONU) designed to bring high‑speed fiber service into a home or business. It connects to an ISP’s fiber line using an SC/APC XG‑PON port and outputs that connection through a 2.5 GbE LAN port, making it the customer‑side endpoint of an XG‑PON network.

The UISP‑FIBER‑XG converts the optical signal from an XG‑PON OLT into Ethernet so you can connect a router, gateway, or switch. It supports up to 10 Gbps downstream and 2.5 Gbps upstream, with a reach of up to 20 km, making it suitable for long‑distance fiber deployments.

Features:

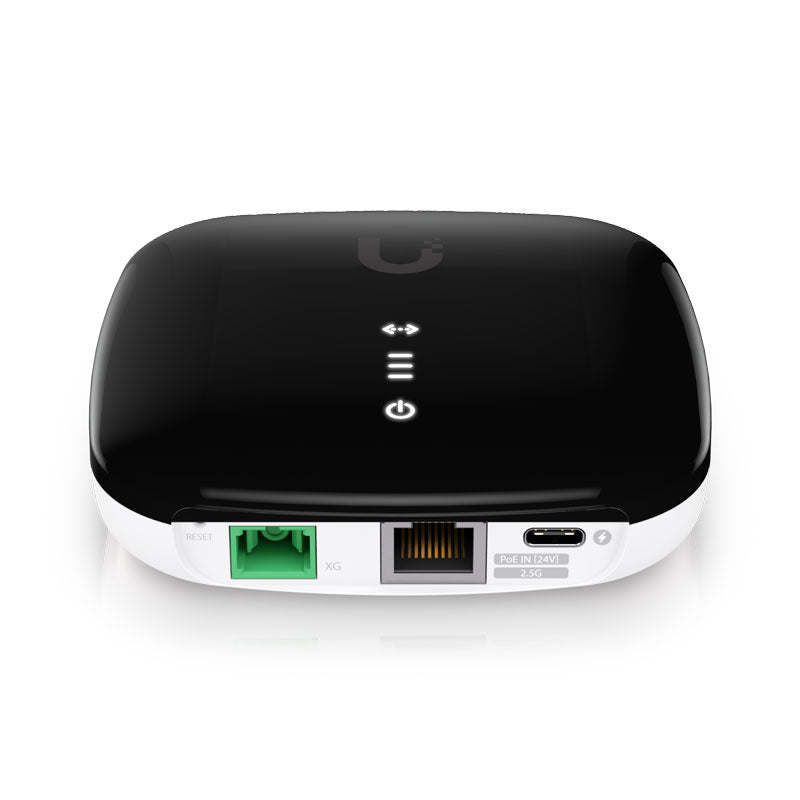

• 1× SC/APC XG‑PON WAN port (ITU‑G.987)
• 1× 2.5 GbE RJ45 LAN port
• USB‑C or 24V passive PoE power
• Compact 100 × 100 × 27 mm enclosure
• Low 6W power consumption

Compatibility:

Frequently asked questions5 questions

What does the UISP-FIBER-XG do?

It is an XG-PON optical network unit (ONU) that acts as the customer-side endpoint of an XG-PON network. It converts the optical signal from an XG-PON OLT into Ethernet so you can connect a router, gateway or switch.

What speeds and range does it support?

It supports up to 10 Gbps downstream and 2.5 Gbps upstream, with a reach of up to 20 km. The LAN output is a single 2.5 GbE RJ45 port.

What ports does the UISP-FIBER-XG have?

It has one SC/APC XG-PON WAN port (ITU-G.987) for the fibre connection and one 2.5 GbE RJ45 LAN port.

How is the UISP-FIBER-XG powered?

It can be powered via USB-C or 24V passive PoE. Power consumption is low, at 6W.

How big is the UISP-FIBER-XG?

It has a compact enclosure measuring 100 × 100 × 27 mm.
