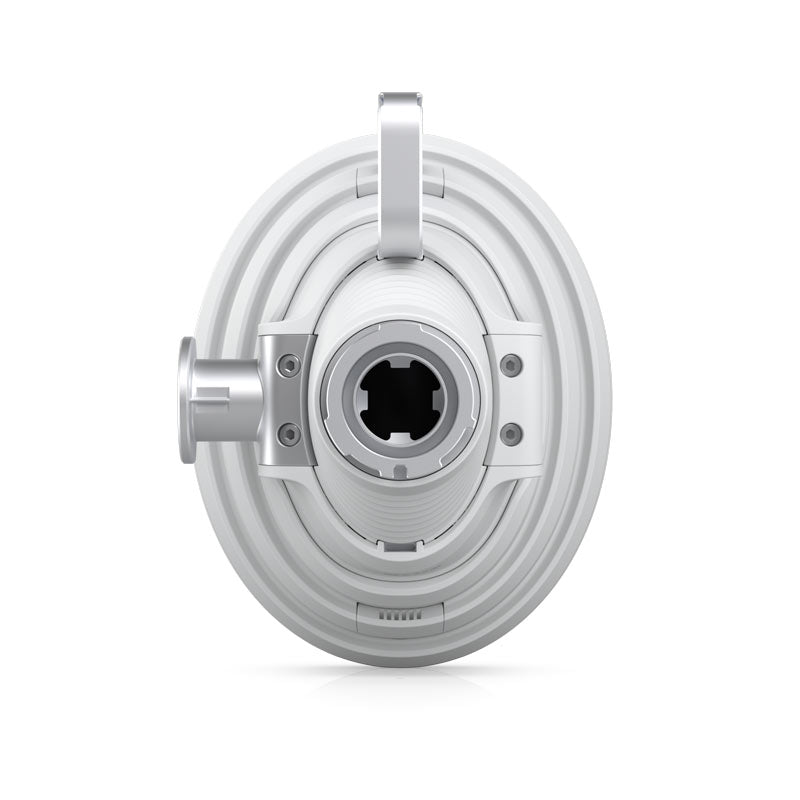

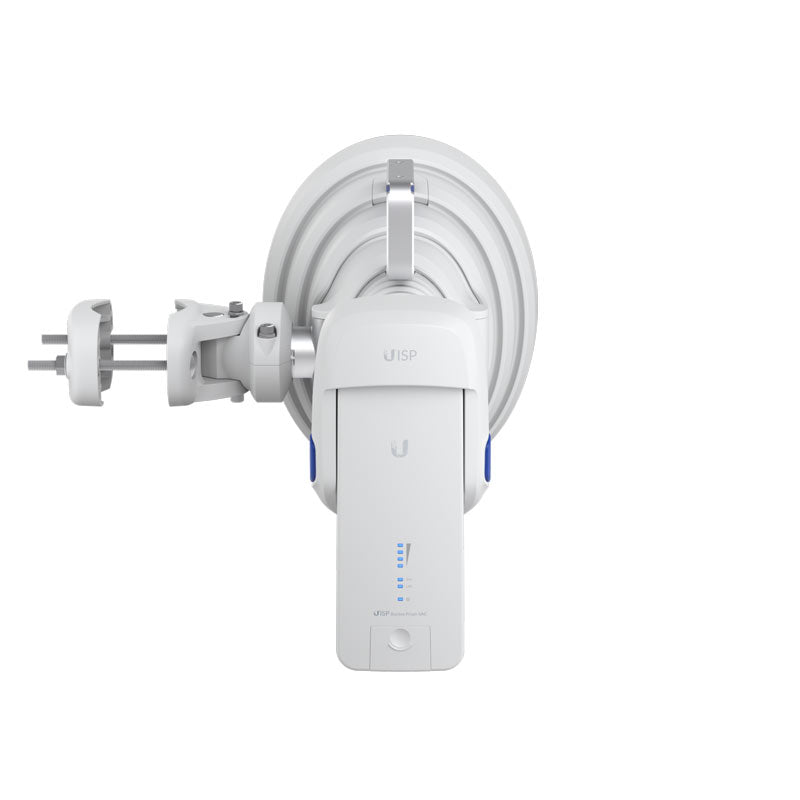

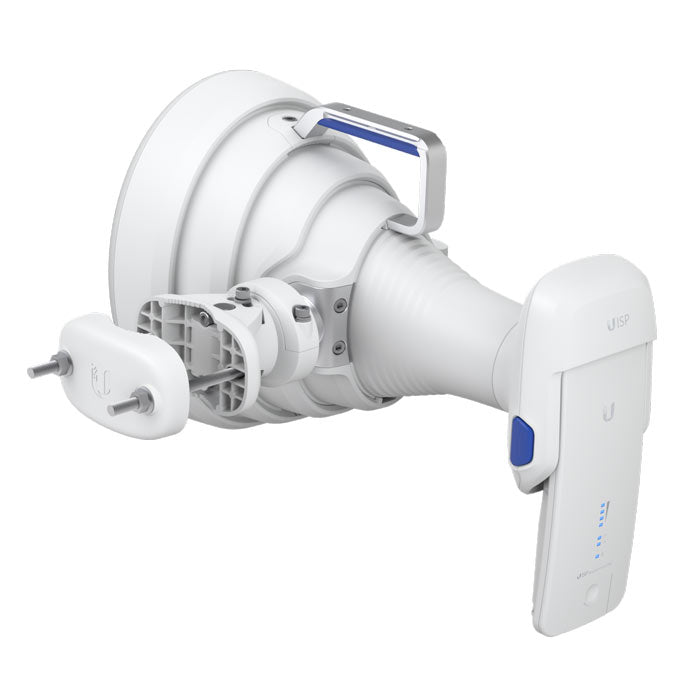

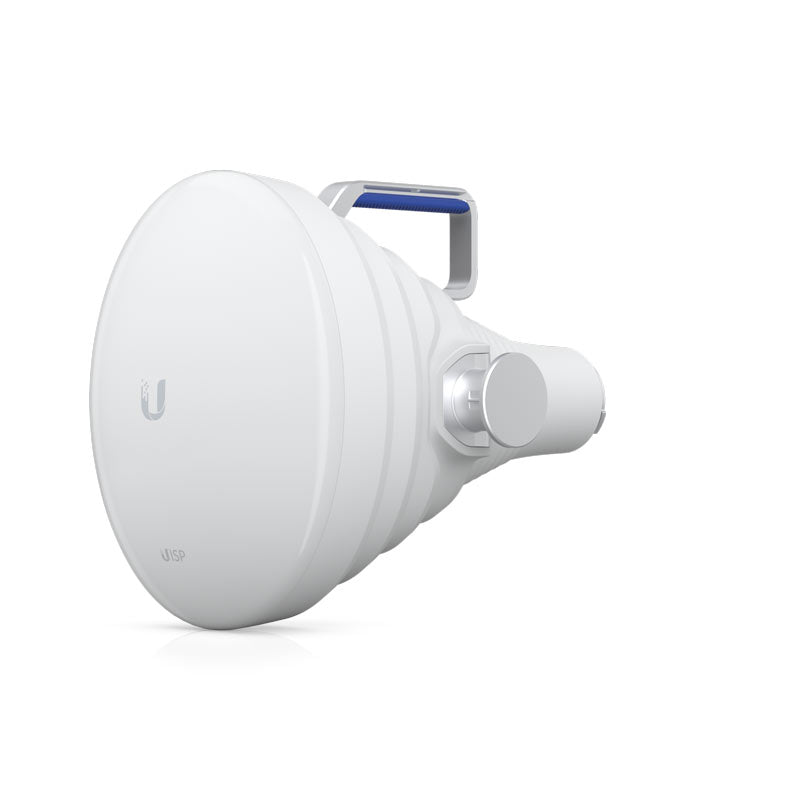

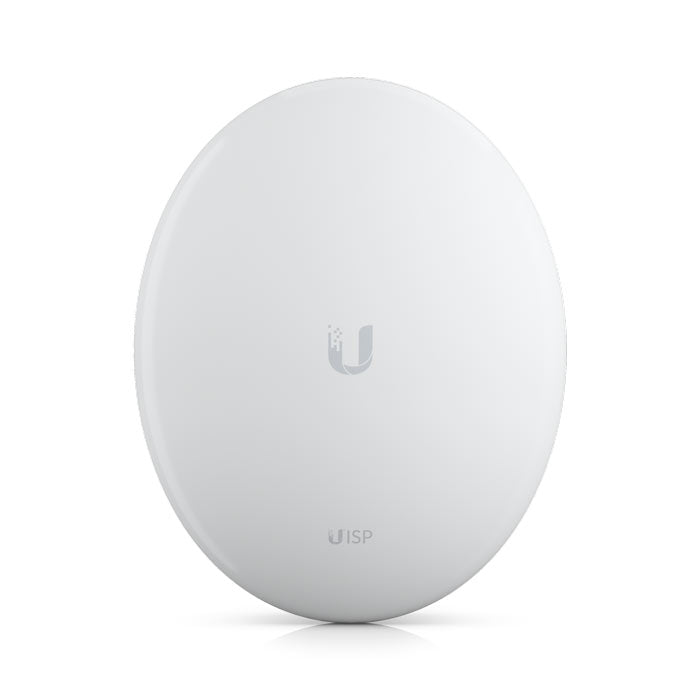

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UISP-Horn
UISP-Horn Ubiquiti UISP Horn, High-isolation 30°, Point-to-multipoint (PtMP)
$405.91 AUD
Unit price
/
Unavailable
11 in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).
Compatibility:
Wave-MLO5
RP-5AC-Gen2LTU-Rocket
AF-5XHDFrequently asked questions5 questions
What is the UISP Horn designed for?
It is a high-isolation, point-to-multipoint (PtMP) horn antenna with a 30° azimuth beamwidth. It covers a wide operating frequency range of 5.15 to 6.875 GHz.
Which Ubiquiti devices is it compatible with?
It is compatible with the Wave-MLO5, RP-5AC-Gen2, LTU-Rocket and AF-5XHD.
What are the beamwidth and front-to-back ratio?
Beamwidth is 30° in azimuth and 25° in elevation (both at 6 dB), with 0° electrical downtilt. The front-to-back ratio is typically 45 to 50 dB, with a minimum of 40 dB.
How is the horn mounted and how much can it be adjusted?

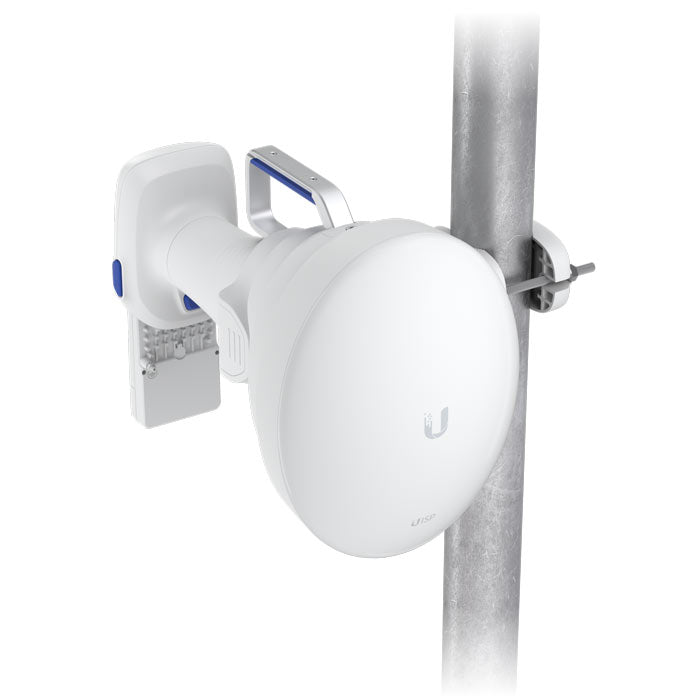

It pole-mounts on poles from 25 to 70 mm (1 to 3 inches) in diameter, and an alignment mount is included. Mechanical adjustment is ±20° in elevation and ±25° in azimuth.
Is it suitable for outdoor use and windy sites?
The enclosure is UV-stabilised polycarbonate and aluminium alloy with IPX6 weatherproofing. It survives winds up to 200 km/h, with a wind load of 90 N at that speed.
Specifications13 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15") |
| Weight | Device: 3.06 kg (6.75 lb) / Mount: 925 g (2.04 lb) |
| Enclosure Material | UV stabilized polycarbonate, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) |
| Mounting | Pole mount / Alignment Mount (Included) / Mechanical adjustment: ±20° elevation, ±25° azimuth |
| Pole Mount Diameter | ⌀1 to 3" (⌀25 to 70 mm) |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency Range | 5.15 to 6.875 GHz |
| Beamwidth | Azimuth: 30° (6 dB) / Elevation: 25° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| F/B Ratio | Typical: 45 to 50 dB / Min.: 40 dB |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UISP-Horn · Ubiquiti's spec sheet
