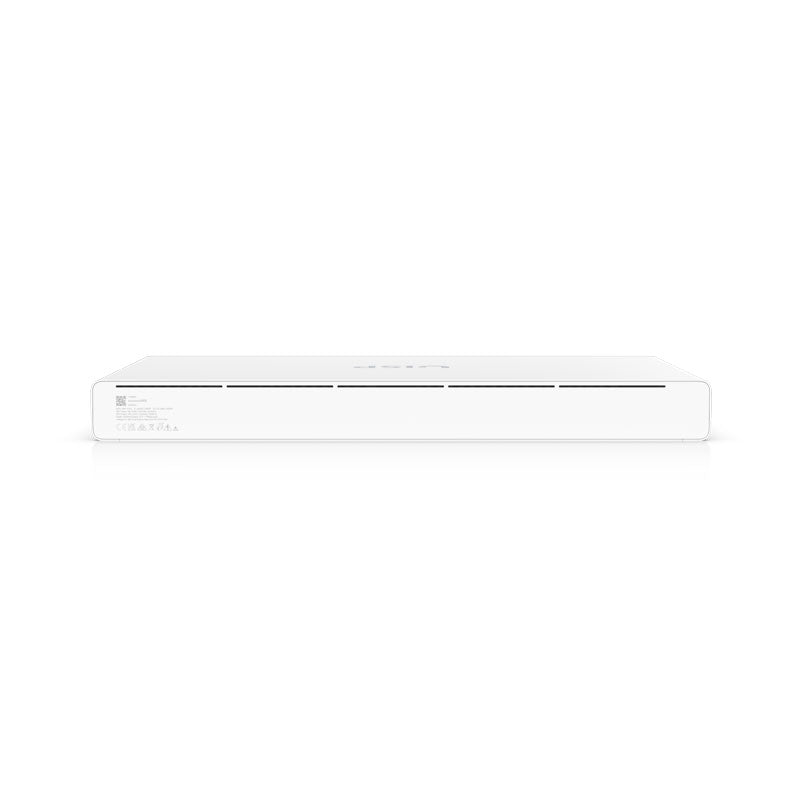

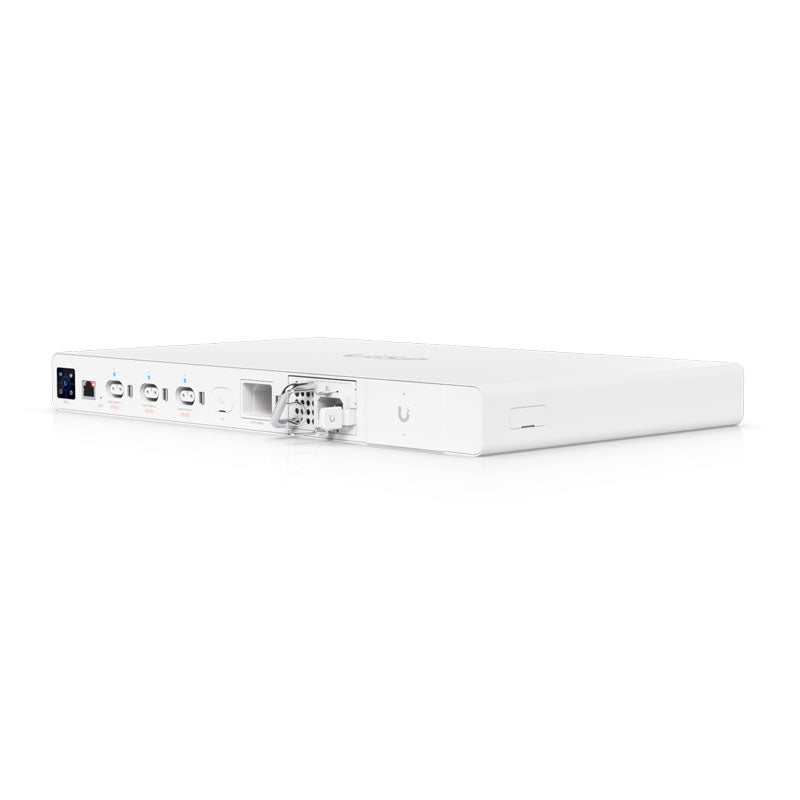

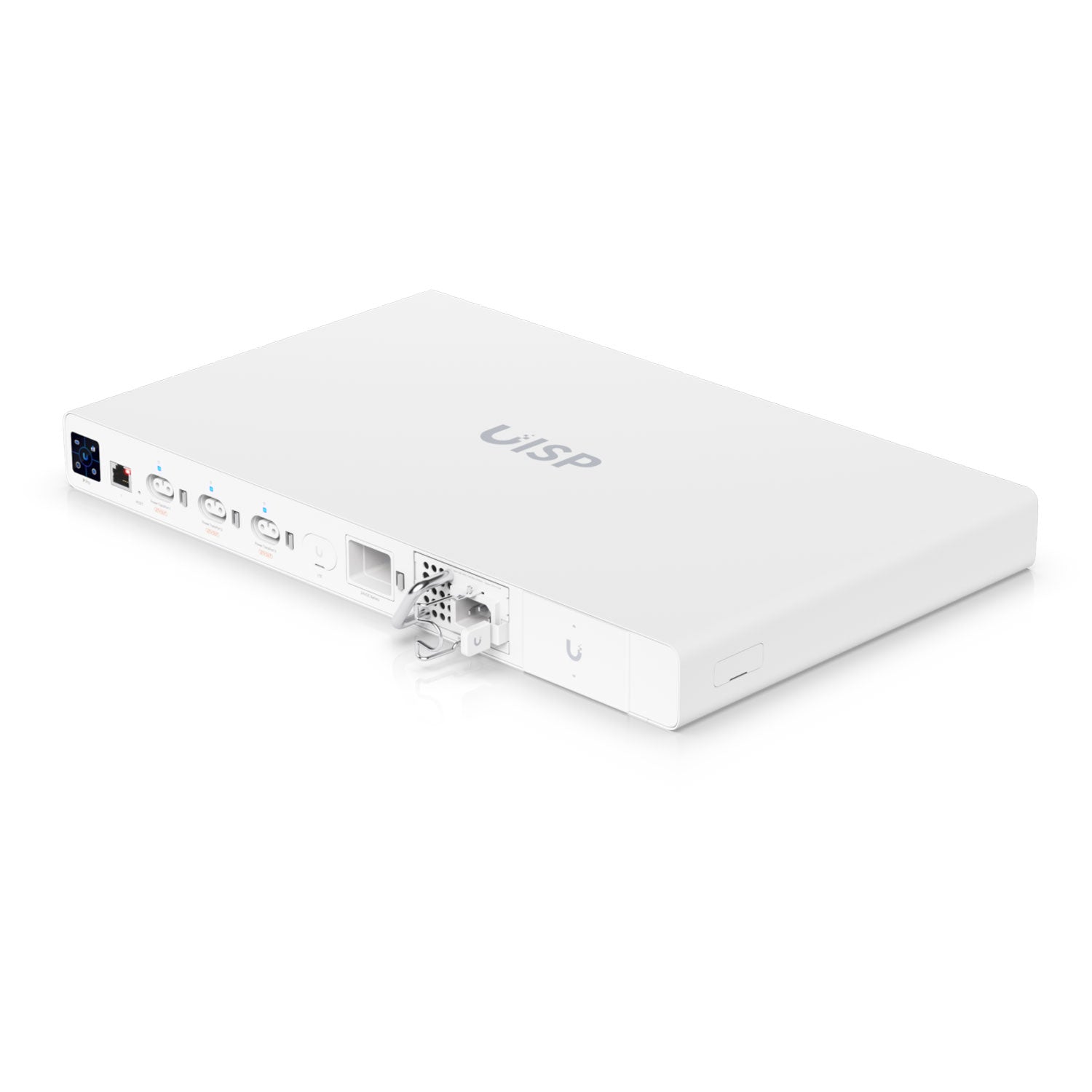

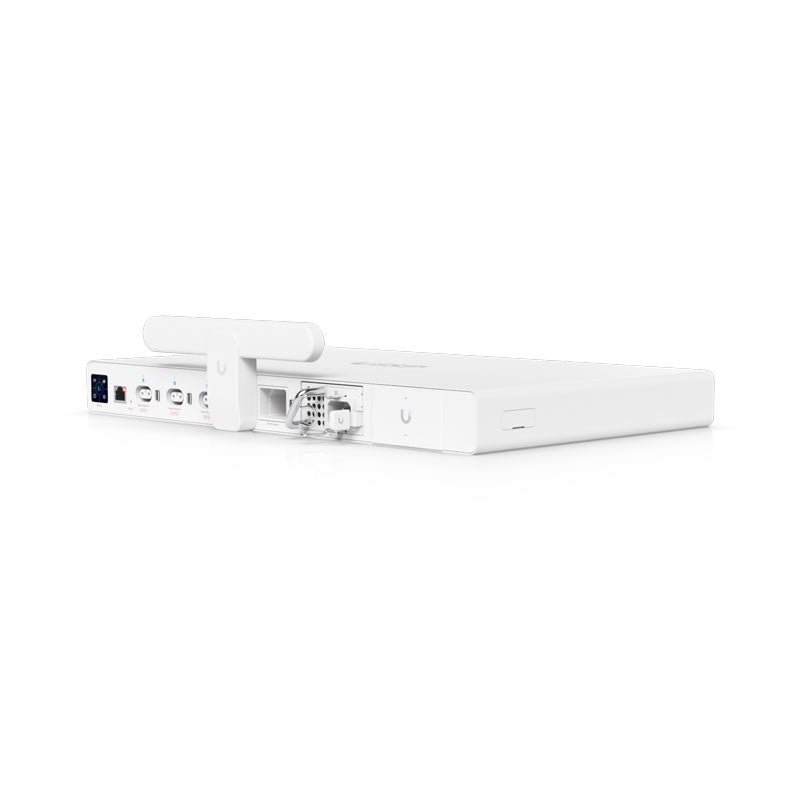

UISP-P-Pro Ubiquiti UISP Power Pro Uninterruptible Power Management System

Q: What are the AC inputs and PSU arrangement?

It has two universal AC inputs (100–240V AC, 3.5A max., 50\/60Hz) and one PSU is included. The unit measures 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7").

$523.60 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The UISP Power Pro is an uninterruptible power management system. Compatible with a range of UISP routers and switches, it is designed to support high-capacity WISP deployment sites. The enclosure is made of robust SGCC steel, polycarbonate/ABS.

Features:

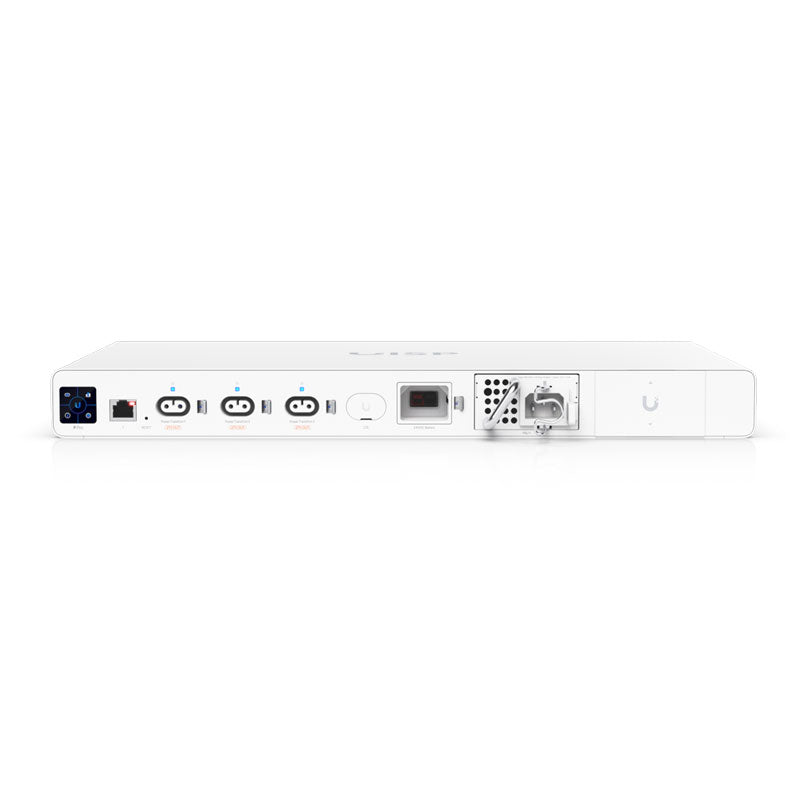

Power TransPort interface:

(3) Power TransPort ports [up to 250W (27V DC) output each]
Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs

Primary power:

(2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz)

(1) PSU included (Additional modules sold separately.)

Backup power: (1) 24V DC, 20.83A lead-acid battery input* (Battery not included.)
*Connect to a lead-acid battery only. Using another battery type could be hazardous.

Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")

Compatibility:

Compatible Accessories:

UACC-Dual-Power-Injector

Frequently asked questions5 questions

What is the UISP Power Pro used for?

It is an uninterruptible power management system designed to support high-capacity WISP deployment sites. It works with a range of UISP routers and switches.

How many ports does it have and what is the output?

It has three Power TransPort ports, each providing up to 250W (27V DC). Total output is 240W (27V DC) with one PSU and 480W (27V DC) with two PSUs.

Which UISP devices is it compatible with?

It is compatible with the UISP-Console, UISP-R, UISP-R-Pro, UISP-S and UISP-S-Pro. The UACC-Dual-Power-Injector is listed as a compatible accessory.

What type of backup battery does it use?

It has one 24V DC, 20.83A lead-acid battery input. Connect to a lead-acid battery only, as using another battery type could be hazardous. A battery is not included.

What are the AC inputs and PSU arrangement?

It has two universal AC inputs (100–240V AC, 3.5A max., 50/60Hz) and one PSU is included. The unit measures 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7").
