Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UNAS-Pro-8
UNAS-Pro-8 Ubiquiti UniFi UNAS Pro 8
$1,537.78 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

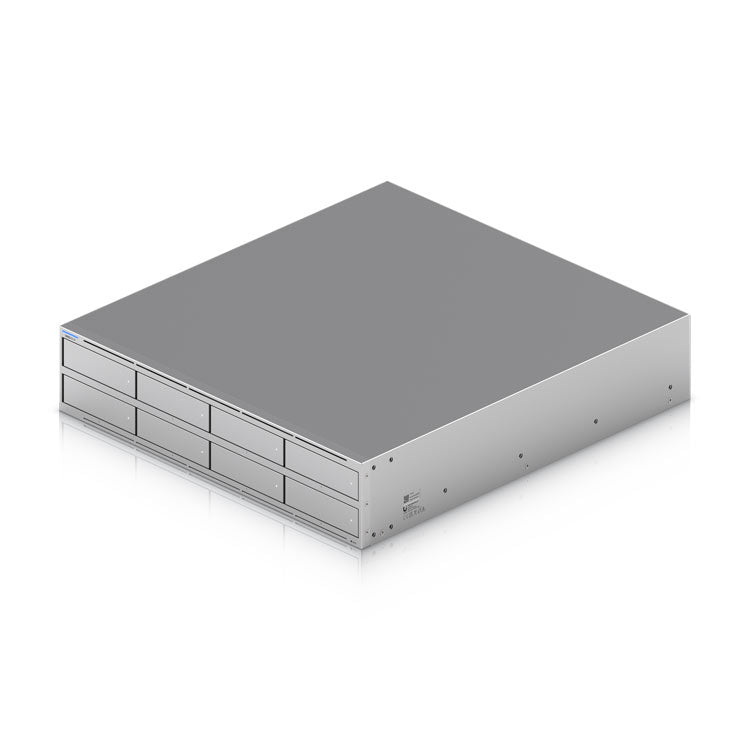

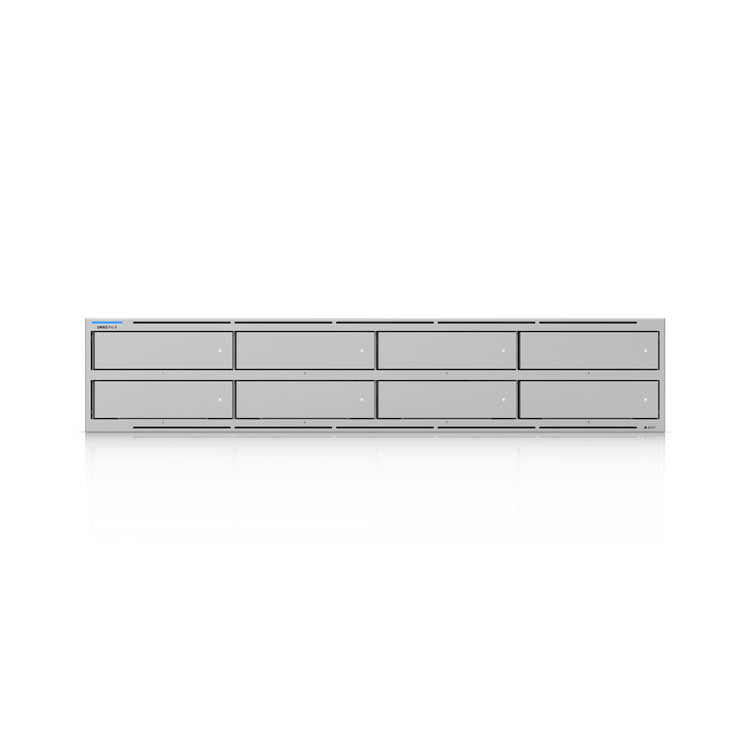

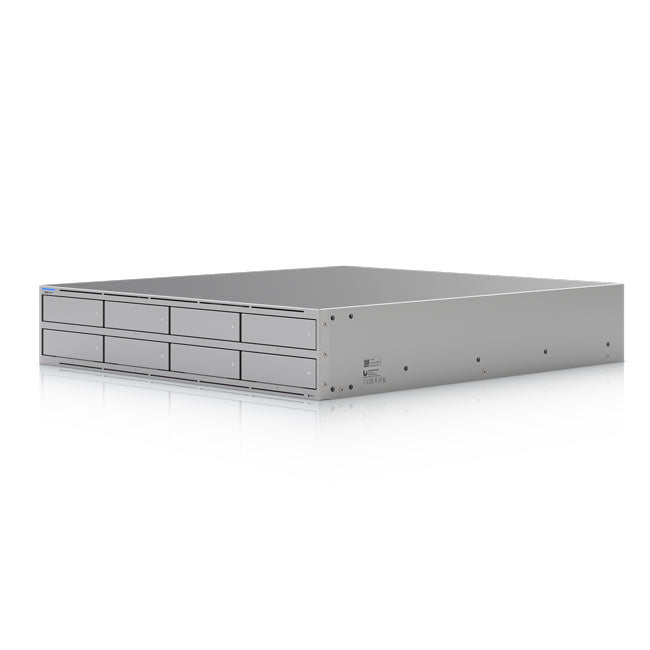

2U rack-mount NAS with (8) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.
Frequently asked questions5 questions
How many drives can the UNAS-Pro-8 hold?
It has eight 2.5/3.5" bays that accept HDDs or SSDs, plus two M.2 NVMe SSD slots for cache. Maximum supported NVMe SSD capacity is 4 TiB.
What network ports does it have?

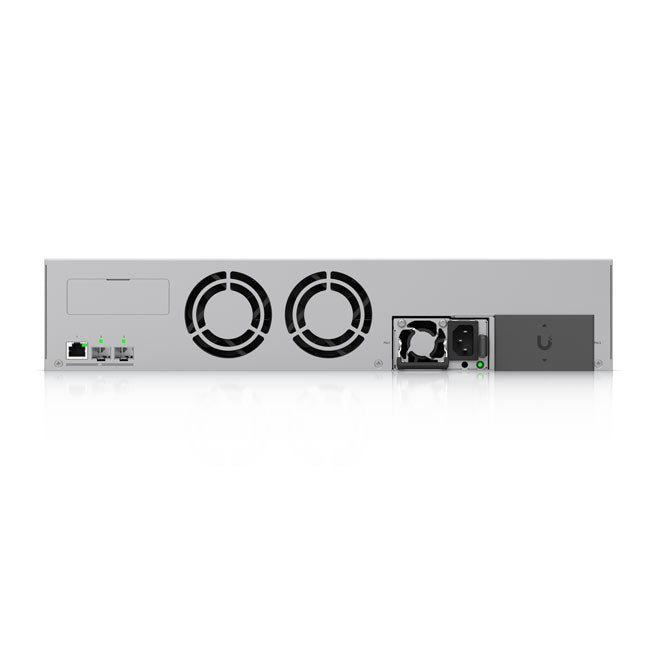

It has two 10G SFP+ ports (10G only) and one 10 GbE RJ45 port that also runs at 5G, 2.5G, 1G and 100M. Management is over Ethernet.
Which RAID levels are supported?
It supports RAID 5, RAID 6 and RAID 10, and multiple RAID groups can be created.
How is the UNAS-Pro-8 powered?
It uses two hot-swappable 550W AC/DC power modules, each with its own AC input. Maximum power consumption is 250W, with a 225W maximum power budget for drives.
What rack does it fit?

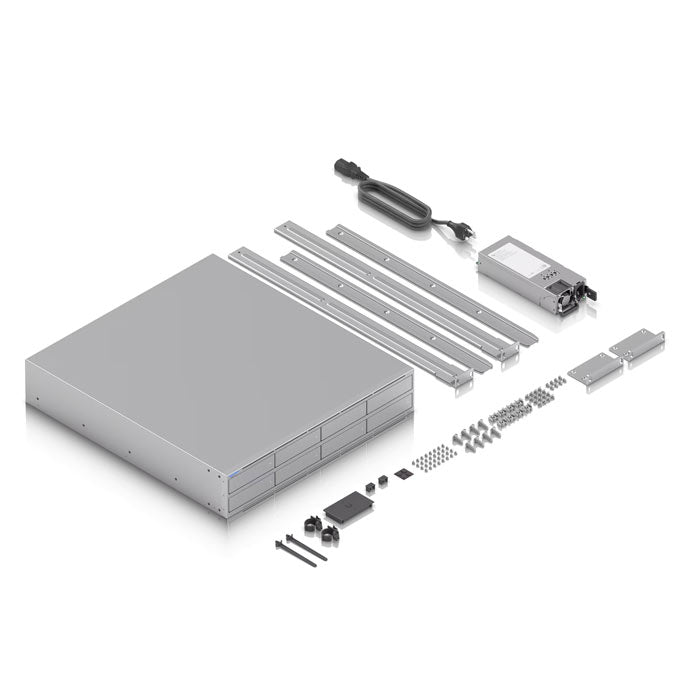

It is a 2U rack-mount unit. The rails suit four-post racks with square holes (9.5 x 9.5 mm) and post depths from 600 to 1066 mm (23.6 to 42").
Specifications23 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 480 x 87.4 mm / (17.4 × 18.9 × 3.4") |
| Storage Capacity | (8) 2.5/3.5" drive bays / (2) M.2 NVMe bays |
| Networking Interface | (2) 10G SFP+ (10G Only) / (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Form Factor | Rack mount (2U) |
| Hardware | |
| Hard Drive Capacity | (8) 2.5/3.5" HDD / SSD support / (2) M.2 NVMe SSD support |
| Max. Power Budget for Drives | 225W |
| Max. Power Consumption | 250W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Processor | Quad-Core ARM® Cortex®-A57 at 2.0 GHz |
| Memory | 16 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 11.5 kg (25.35 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) / Posts depths ranging from 600–1066 mm (23.6–42") |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC, SRRC |
| Software | |
| Supported features on unifi.ui.com · RAID Type | RAID 5 / RAID 6 / RAID 10 |
| Supported features on unifi.ui.com · RAID Group | Multiple |
| Supported features on unifi.ui.com · Max. NVMe SSD Capacity Supported | 4 TiB |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UNAS-Pro-8 · Ubiquiti's spec sheet
