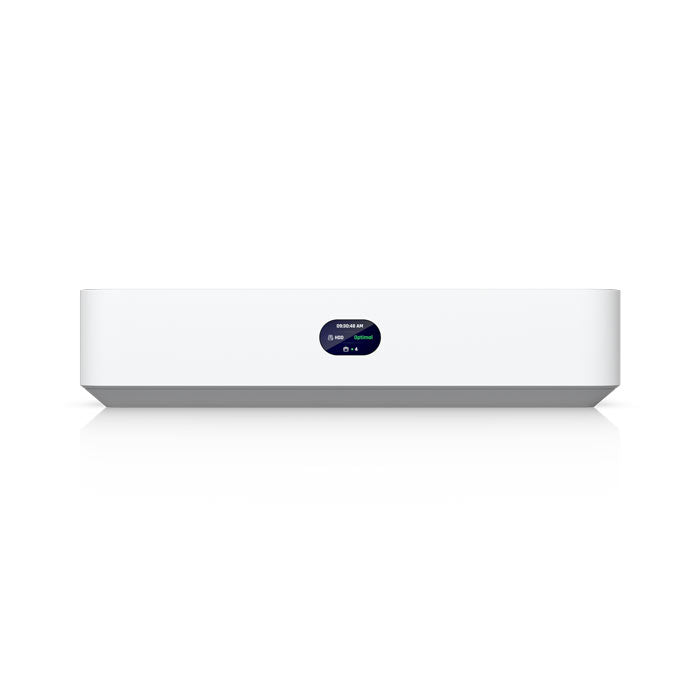

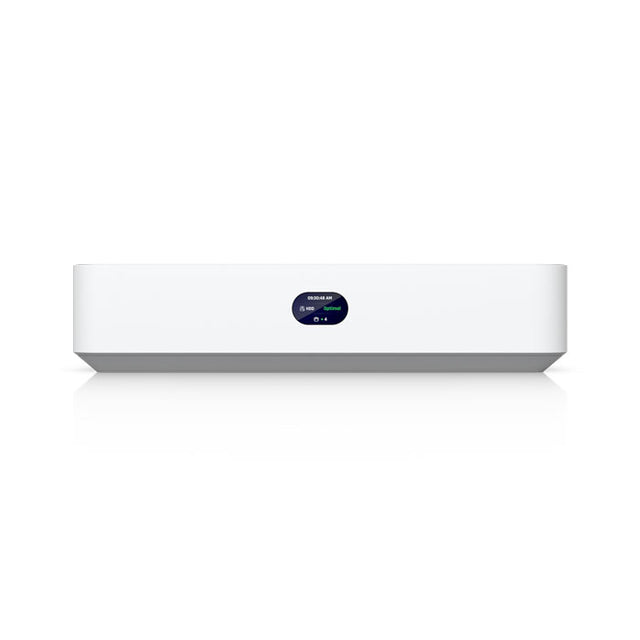

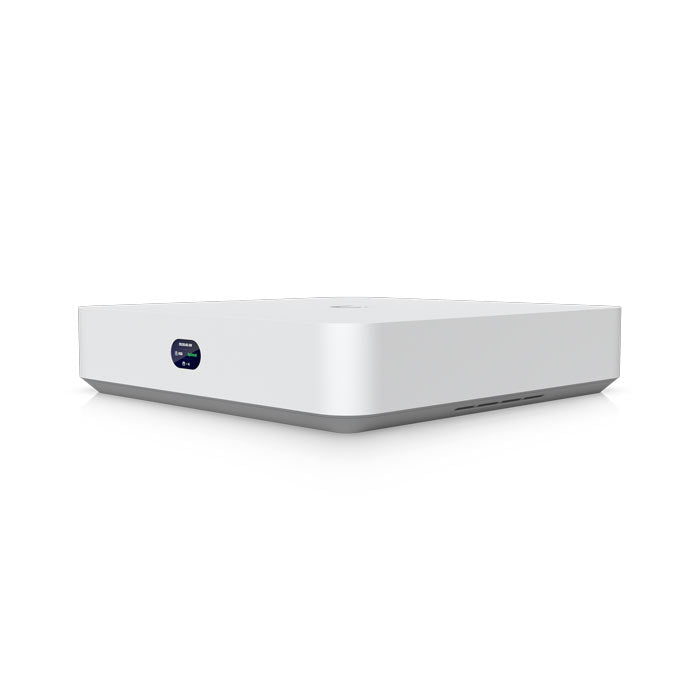

UNVR-Instant Ubiquiti UniFi Protect Network Video Recorder Instant

$387.18 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.

Highlights:

Supports all UniFi Protect features and devices including AI Key, AI Port and SuperLink.

Supports UniFi Access, allowing you to manage cameras and physical door access from a single device.

Integration with ONVIF-compliant third-party cameras, allowing smooth and easy migration of existing security systems to UniFi Protect.

Includes an integrated Viewport via its HDMI port. You can configure a multi-view in Protect and assign it to the Viewport for live monitoring of selected cameras.

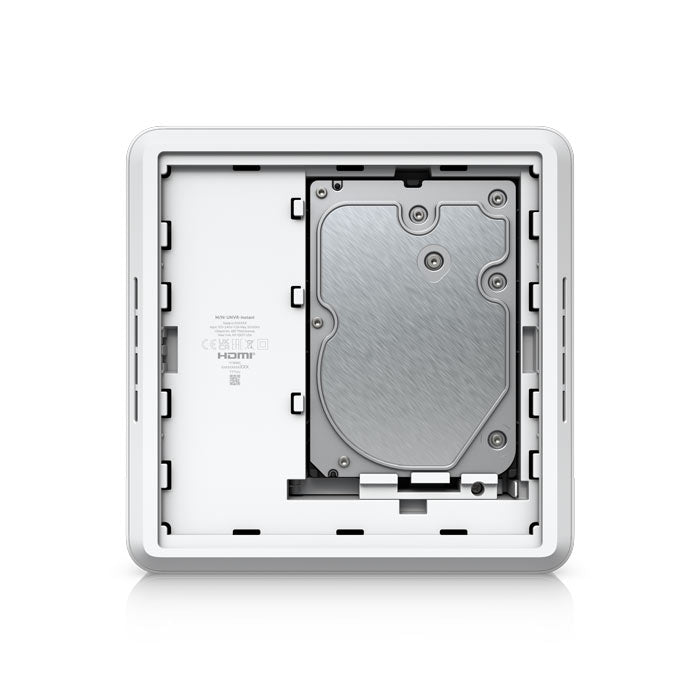

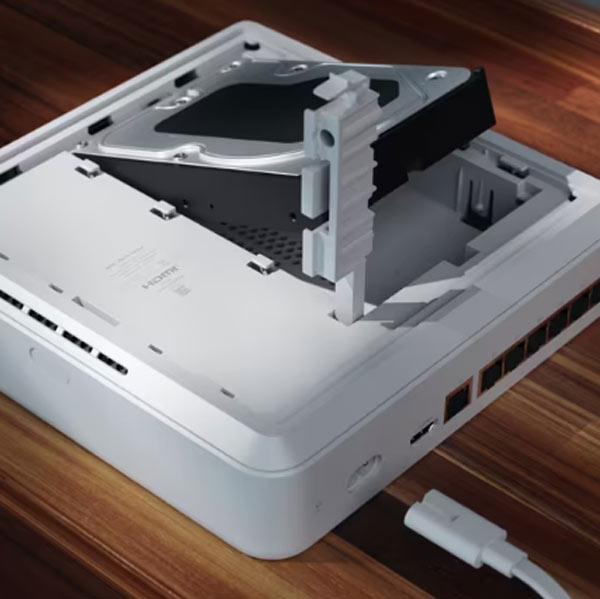

Supports a single drive (HDD or SSD) in either 2.5” or 3.5” format, with the following requirements:

Minimum capacity: 1 TB
Must be CMR (Conventional Magnetic Recording)
7200 RPM suggested for greater performance

_{Note. Requires connection to a Gateway or Layer 3 switch.}

Frequently asked questions5 questions

How many cameras can the UNVR-Instant manage?

It manages up to 15 HD cameras, 8 2K cameras or 6 4K cameras. It can also manage up to 50 access hubs through UniFi Access.

What kind of storage does it support?

It has one drive bay that takes a single HDD or SSD in 2.5" or 3.5" format. The drive must be at least 1 TB and CMR (Conventional Magnetic Recording), and 7200 RPM is suggested for better performance.

Does it have built-in PoE for cameras?

Yes. It has six GbE PoE RJ45 downlink ports with a 40W PoE budget, plus one GbE RJ45 uplink port. It must be connected to a Gateway or Layer 3 switch.

Can I connect a monitor to view cameras live?

Yes. The HDMI port works as an integrated Viewport, so you can set up a multi-view in UniFi Protect and assign it to the Viewport. It supports up to 6 simultaneous 4K camera streams.

Can it work with third-party cameras?

Yes. It integrates with ONVIF-compliant third-party cameras, which helps when migrating an existing security system to UniFi Protect. It also supports UniFi Protect devices including AI Key, AI Port and SuperLink.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications27 specifications · 2 sections

Overview
Dimensions	220 x 220 x 47 mm / (8.7 x 8.7 x 1.9")
Managed Cameras	(15) HD / (8) 2K / (6) 4K
Max. Simultaneous Viewport Streams	6 4K cameras
Managed Access Hubs	50

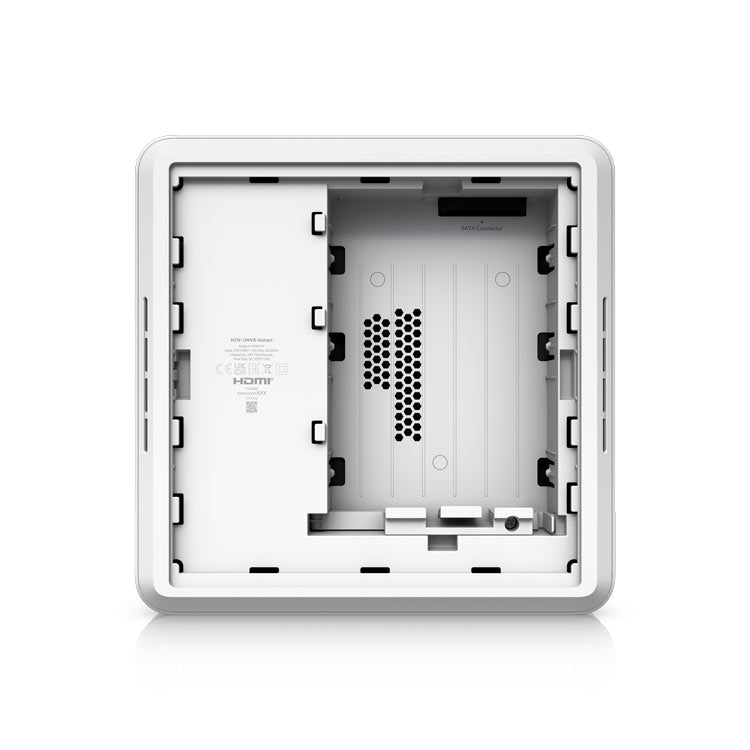

Storage Capacity	(1) 3.5" drive bay

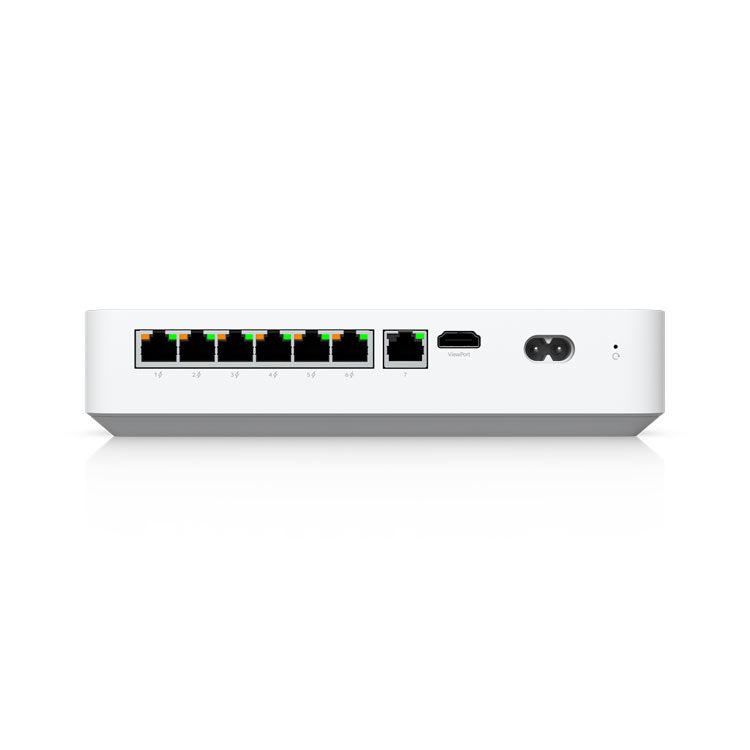

Networking Interface	(1) GbE RJ45 uplink port / (6) GbE PoE RJ45 downlink ports / (1) HDMI port (Viewport)
Form Factor	Compact Desktop

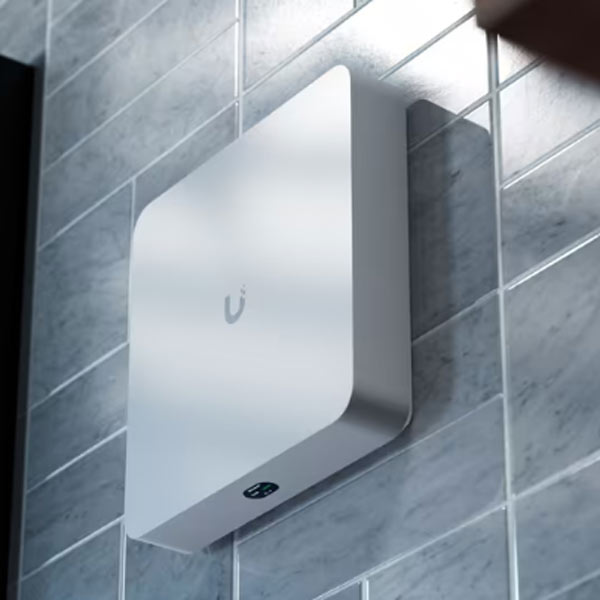

Mounting	Wall, Din rail mount (Included)
Management Application	UniFi Protect / UniFi Access / UniFi Connect
Hardware
Hard Drive Capacity	(1) 3.5" HDD support
Max. Power Budget for Drives	11W
Max. Power Consumption	9W
Power Method	Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply	AC/DC, Internal, 60W
PoE Budget	40W
Max. PoE Wattage per Port by PSE · PoE	15.4W
Voltage Range PoE Mode	44–57V
Processor	Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory	4 GB
Management	Ethernet / Bluetooth
Display	1.14" screen
Weight	1.04 kg (2.3 lb)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356
