UNVR-Instant-Kit - Ubiquiti UniFi Protect Network Video Recorder Instant Kit
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti UniFi Protect Network Video Recorder Instant Kit (SKU: UNVR-Instant-Kit) is a compact, all-in-one IP camera security system built for fast and effortless setup. The kit combines a UniFi Protect NVR Instant with four G5 Turret Ultra cameras and a 1TB hard drive, so you have everything needed to start recording out of the box.

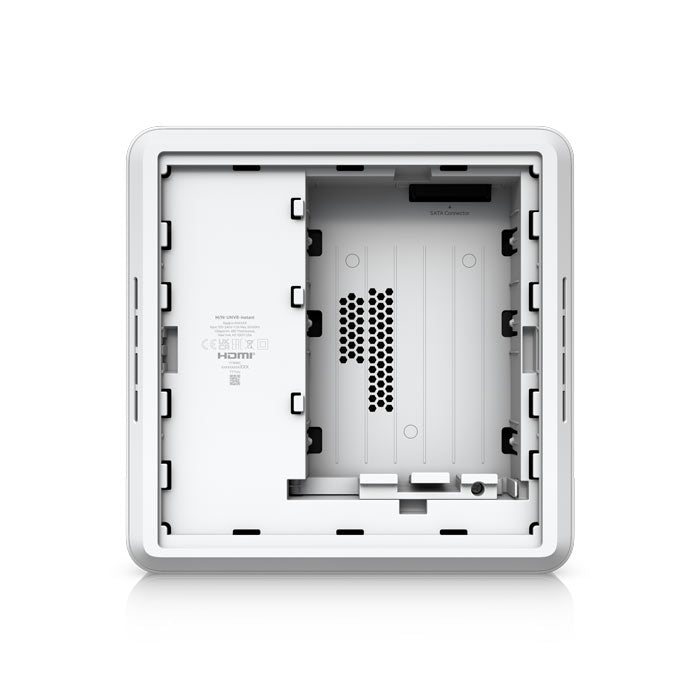

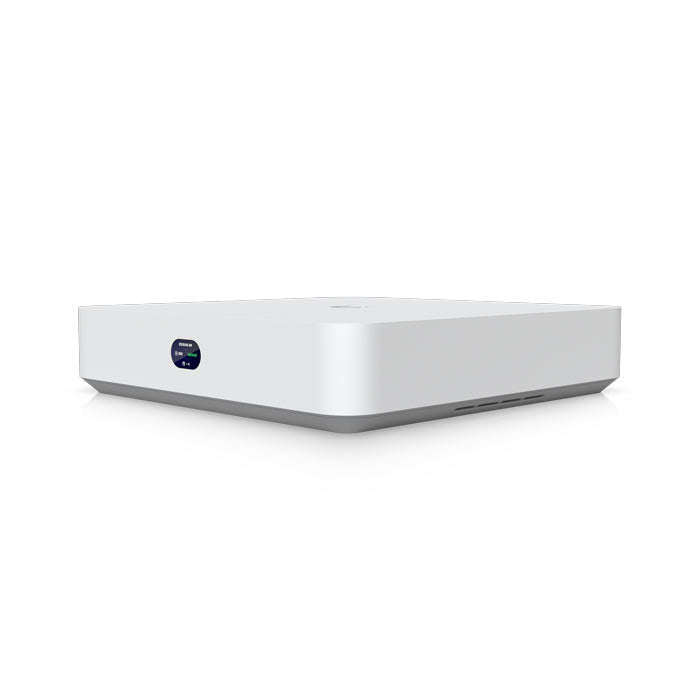

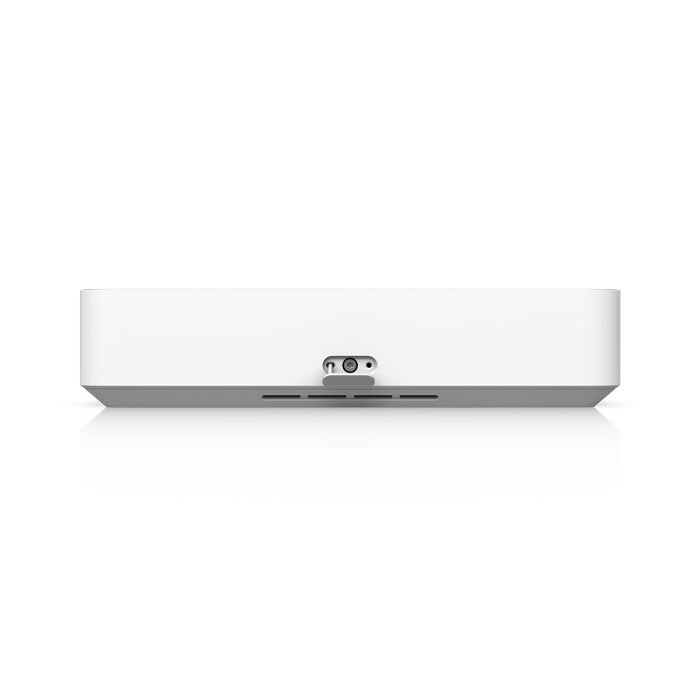

The NVR Instant has an integrated 6-port PoE switch that powers and connects supported cameras directly, with no extra switching hardware needed for a direct-to-NVR deployment. An integrated HDMI Viewport allows live viewing on a connected display, while the 3.5" drive bay provides local video storage. The compact desktop unit can be mounted on a wall or DIN rail, with mounting included.
Key Features

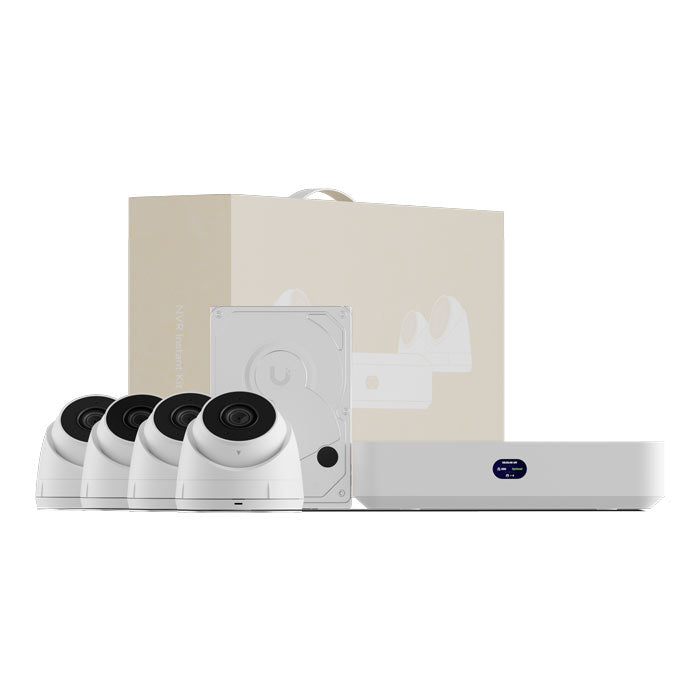

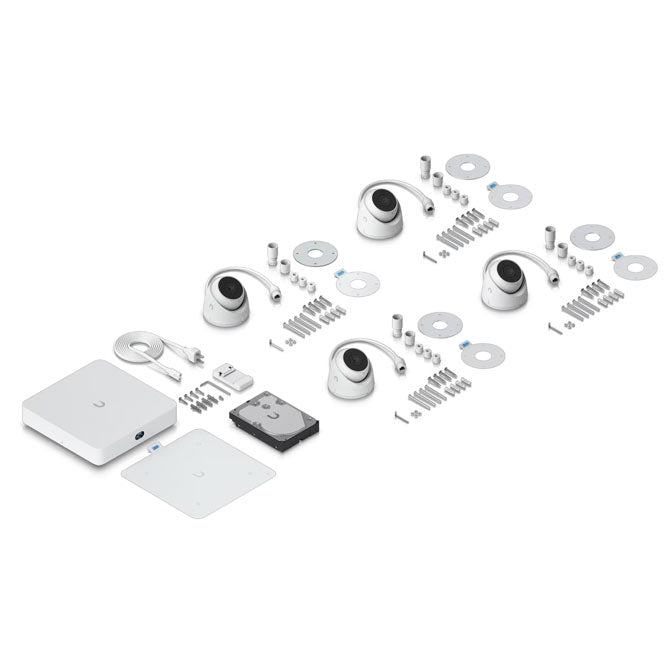

- Complete kit: 1 x UniFi Protect NVR Instant, 4 x G5 Turret Ultra cameras and 1 x 1TB HDD

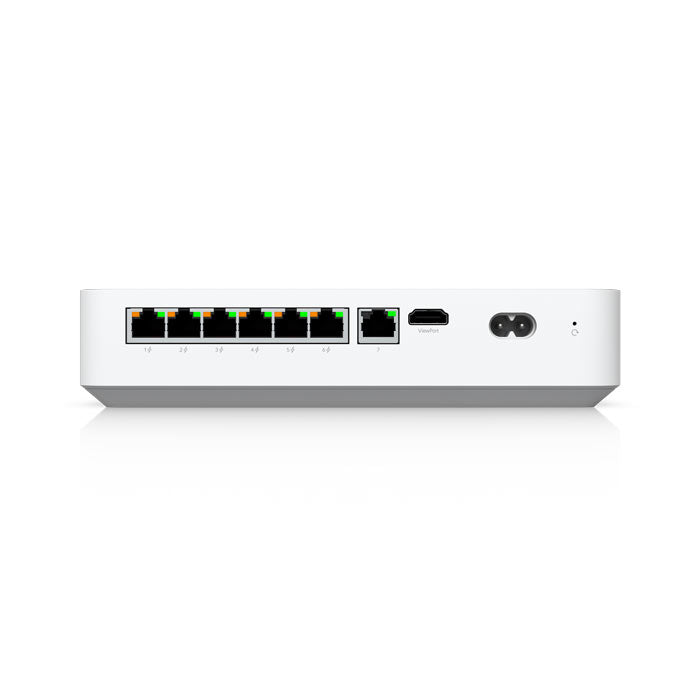

- Integrated 6-port PoE switch: six GbE PoE RJ45 downlink ports with a 40W PoE budget, plus one GbE RJ45 uplink port
- Camera capacity: manages up to 15 Full HD, 8 2K or 6 4K cameras
- HDMI Viewport output: supports live monitoring on a connected display

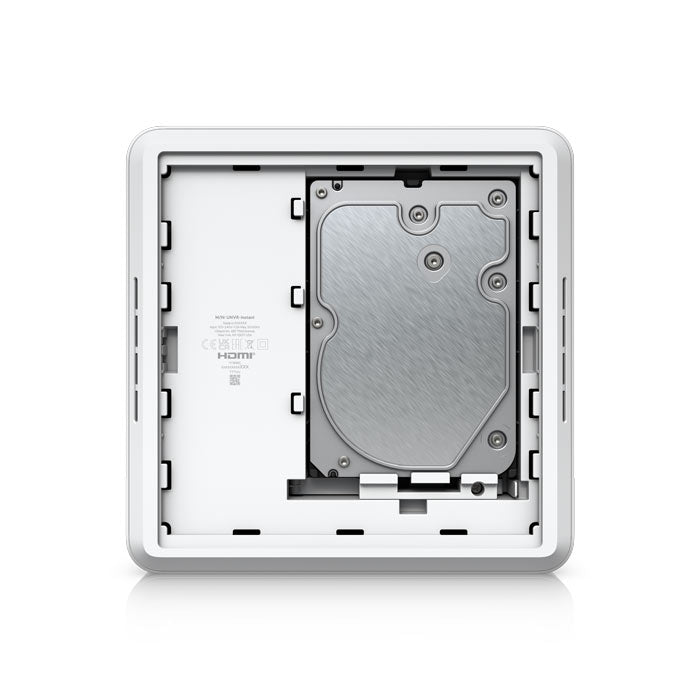

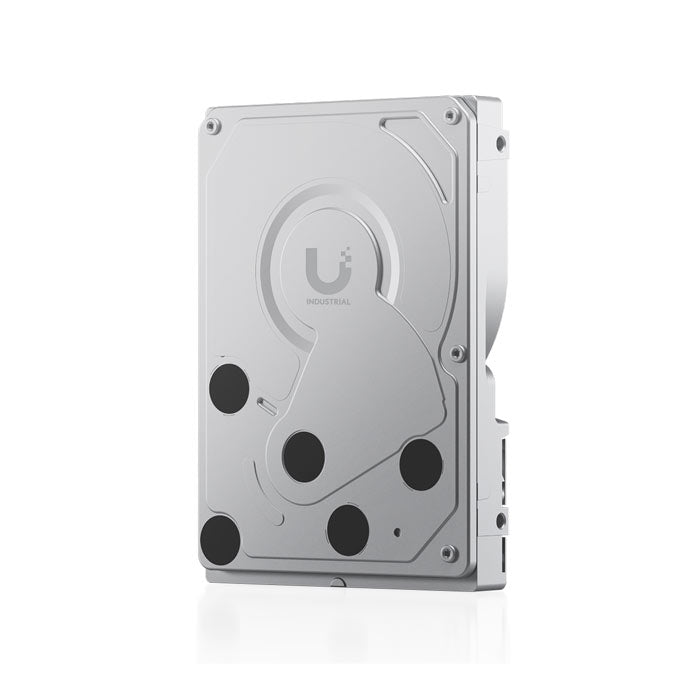

- 3.5" HDD bay: the supplied 1TB, 5400 RPM SATA drive is rated at 180 TB/year workload
- Powerful hardware: quad-core ARM Cortex-A55 processor at 1.7 GHz with 4 GB memory
- Multi-application support: works with UniFi Protect, UniFi Access and UniFi Connect, and manages up to 50 access hubs
- Compact and easy to manage: 1.14" display, Ethernet and Bluetooth management, and wall or DIN rail mounting included
- NDAA compliant

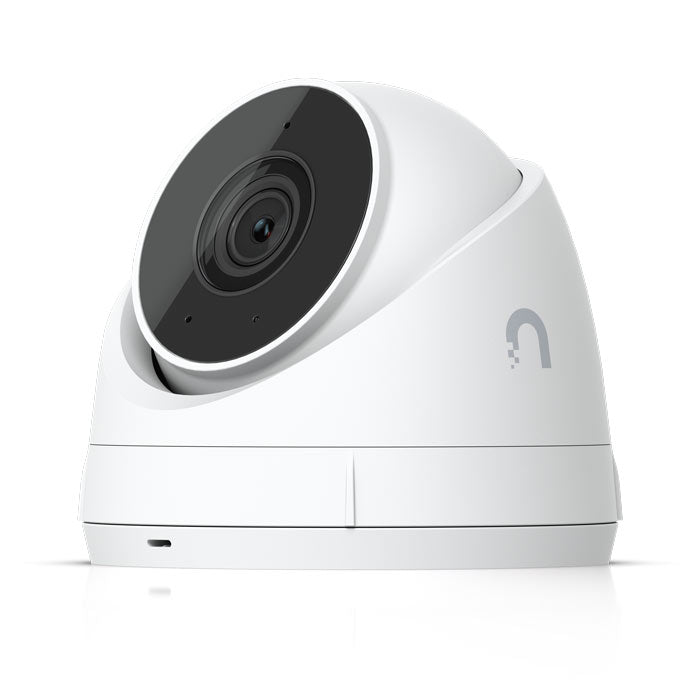

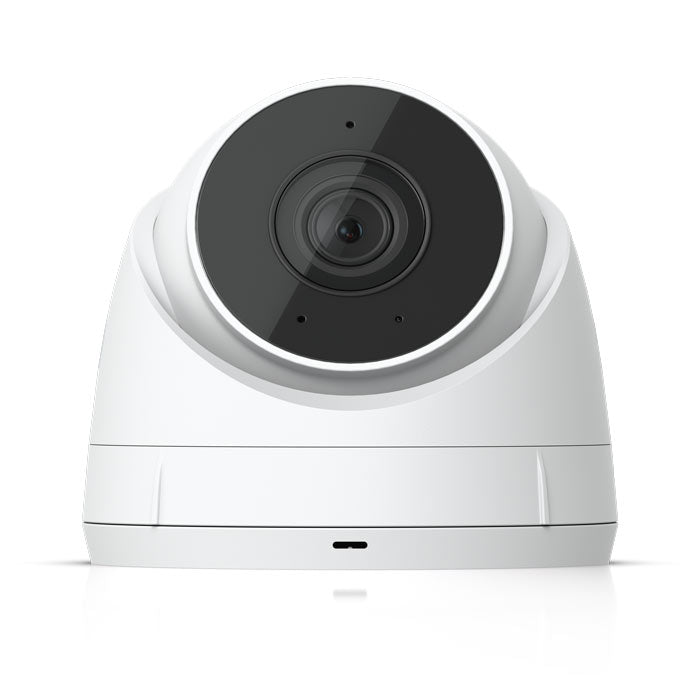

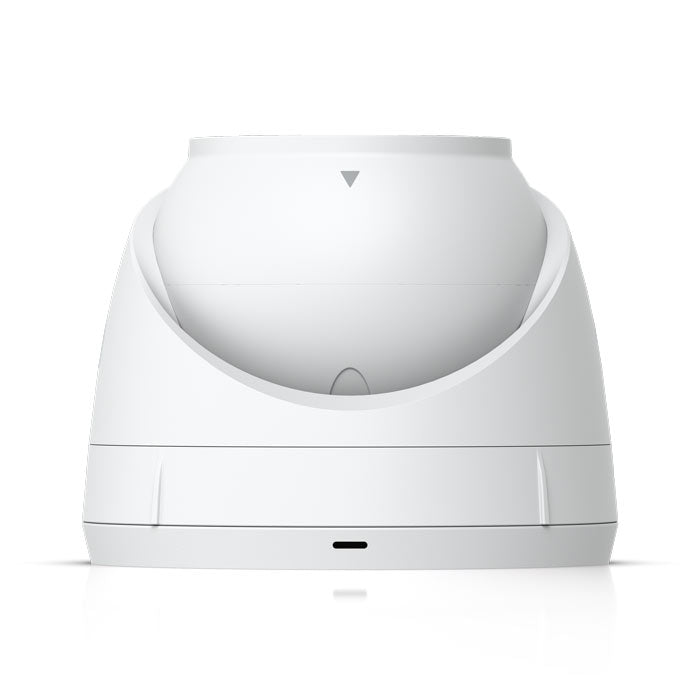

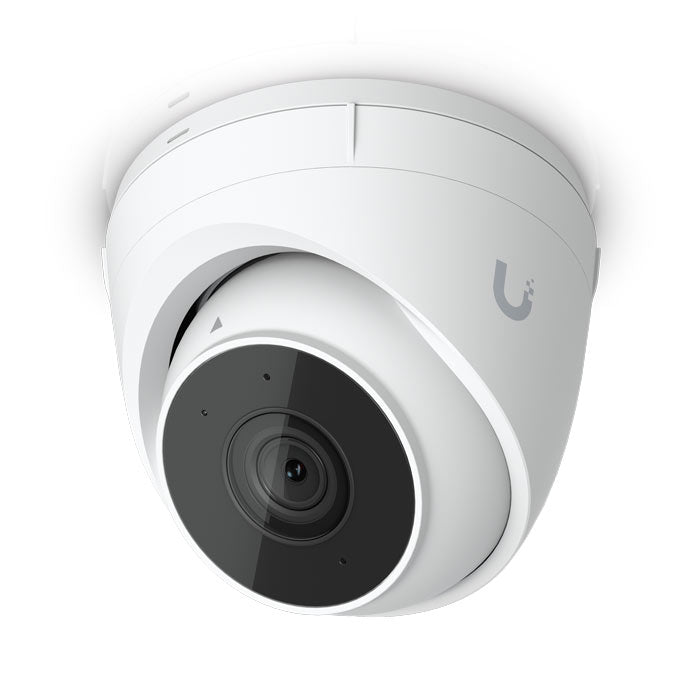

G5 Turret Ultra Cameras (x4)
- 2K (4MP) video at up to 30 FPS with a 102.4° horizontal field of view
- 30 m (98 ft) IR night vision with built-in IR LED and IR cut filter
- Smart detections for people, vehicles and animals
- Integrated microphone for audio recording
- IP66 weatherproofing and IK04 tamper resistance for outdoor use

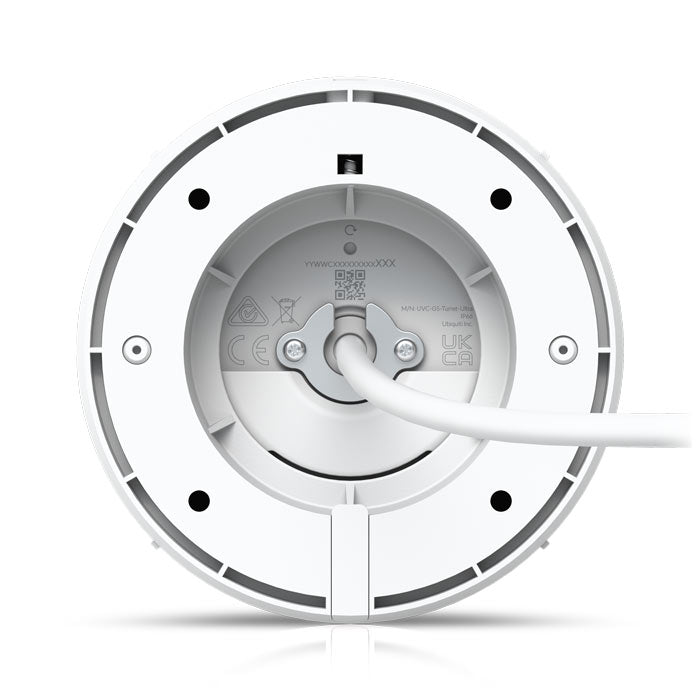

- PoE powered through a single Ethernet cable, with wall and ceiling mounts included
Ideal for: homes, small businesses, shops, offices and anyone who wants a professional, locally stored CCTV surveillance system that is quick to deploy and easy to manage.
Compatible Products
UniFi Gateways and Layer 3 Switches
The NVR Instant must be connected to a UniFi Gateway or Layer 3 switch.
UniFi Protect Ecosystem
Managed through UniFi Protect, with UniFi Access and UniFi Connect also supported.
Additional UniFi Cameras
Supports up to 15 Full HD, 8 2K or 6 4K cameras in total, so you can expand beyond the four included cameras.
Frequently asked questions5 questions
Does this kit require a gateway?
What is included in the kit?
How many cameras can the NVR manage?
Can I view live footage directly from the NVR?
How are the cameras powered?
Specifications71 specifications · 3 sections
| Network Video Recorder Instant | |
|---|---|
| Dimensions | 220 x 220 x 47 mm / (8.7 x 8.7 x 1.9") |
| Managed Cameras | (15) HD / (8) 2K / (6) 4K |
| Max. Simultaneous Viewport Streams | 6 4K cameras |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Networking Interface | (1) GbE RJ45 uplink port / (6) GbE PoE RJ45 downlink ports / (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Management Application | UniFi Protect / UniFi Access / UniFi Connect |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet / Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, Electrical Safety |
| G5 Turret Ultra | |
| Dimensions | ⌀90 x 71.2 mm / (⌀3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) / Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 4MP 2688 x 1512 (16:9) |
| Optics · Sensor | 1/2.4" CMOS |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Cable · Cable Connector Type | RJ45 |
| Cable · Cable Diameter | 5 mm (0.2") |
| Cable · Cable Length | 30 cm (1 ft) |
| Cable · Jacket Material | Polycarbonate |
| Cable · Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Cable · Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| HDD | |
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
