Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

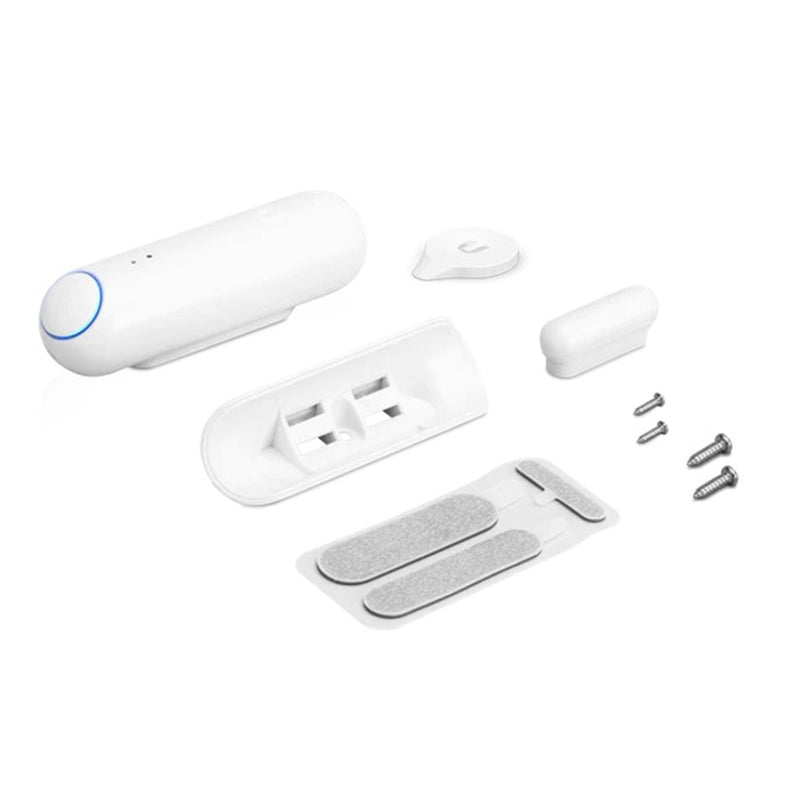

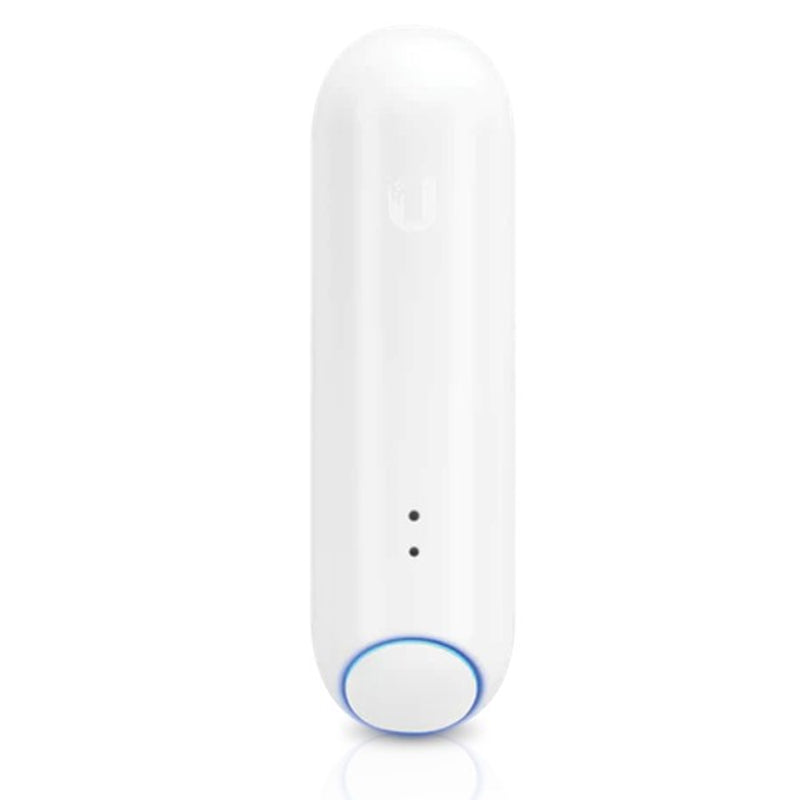

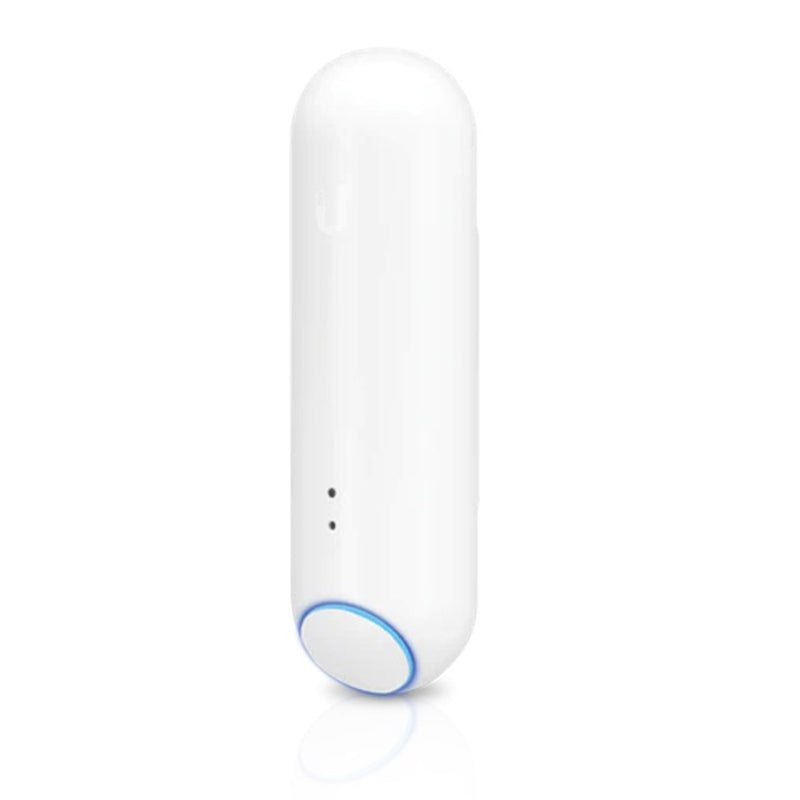

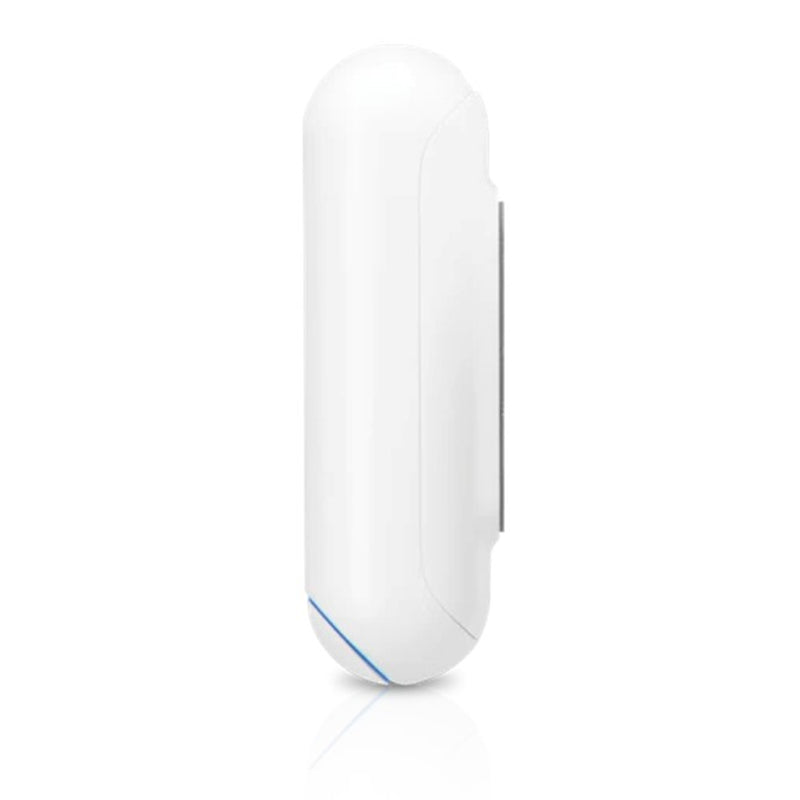

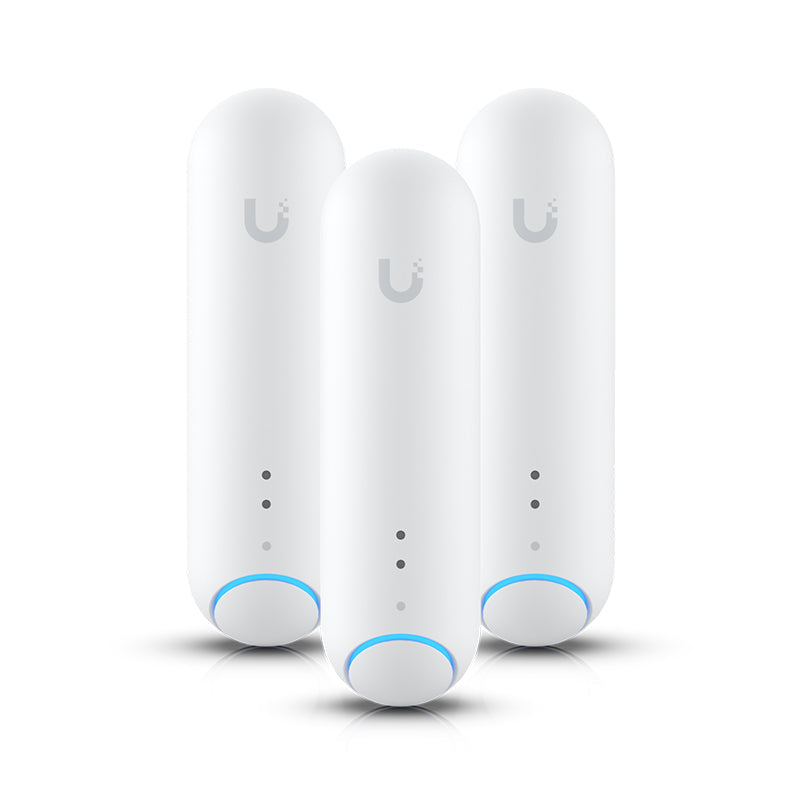

UP-SENSE Ubiquiti UniFi Protect Sensor
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
The Ubiquiti UP-Sense UniFi Protect Smart Sensor is a battery-operated smart multi-sensor that detects motion and environmental conditions.
The Sensor transmits sensory data and alerts over Bluetooth to the UniFi Protect ecosystem.
Features:
Motion sensor (5 m / 16 ft maximum range)
Magnetic entry sensor for door or window open/close
Accelerometer for garage door open/close
Temperature sensor
Humidity sensor
Ambient light sensor
Alarm sound sensor (detects UL217 and UL2034 alarm patterns)
Water sensor for detecting leaks and floods (requires water sensor adapter accessory, only available in 3-pack at general release)
BLE connectivity from Access Point in indoor setting (recommended range 15 m / 49 ft, performance will vary based on environment)
Note: One of the following UniFi 6 access points is required to adopt and operate the smart sensor:
UniFi6 Long-Range (U6-LR) - Only GA models updated to Version 5.60.23 and later
UniFi6 Lite (U6-LITE) - Only GA models updated to Version 5.60.23 and later
UniFi6 Pro (U6-PRO) - Only GA models updated to Version 6.0.4 and later
Frequently asked questions5 questions
What does the UP-SENSE detect?
What do I need to use the UP-SENSE with UniFi Protect?
Can the UP-SENSE detect water leaks?
How is the UP-SENSE powered and how does it connect?
What are the size and operating conditions of the UP-SENSE?
Specifications16 specifications · 3 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀24 x 83.5 mm (⌀0.9 x 3.3") |
| Weight | 50.2 g (1.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Flat wall mount: polycarbonate, adhesive / Corner mount: polycarbonate, adhesive |
| Additional Gear | Magnet / (1) Water sensor adapter (Only available in the 3-pack.) |
| Hardware | |
| Networking Interface | Bluetooth 5.0, BLE |
| Sensor Features · BLE Connectivity from SuperLink or a UniFi Access Point in an Indoor Setting | Must be connected to an up-to-date Bluetooth-supported UniFi access point. / <a href="https://help.ui.com/hc/en-us/articles/10000263945111-Bluetooth-APs-in-UniFi-Network" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Power Method | Lithium battery CR123A |
| Antennas | (1) 2.4GHz |
| LEDs | R/B/W |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 45° C (32 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 08492-22-08356 |
| Software | |
| Application Requirements · Web Application | UniFi Protect |
| Application Requirements · Mobile App | UniFi Protect iOS™ and Android™ |
