USL-G2-Gateway-HA - Ubiquiti Protect SuperLink Gateway HA (EU Version)

Please note this is the European version and so will only work with SuperLink devices that have the UK or CA notations on them. The recommended version for Australia and New Zealand is the US model.

The Ubiquiti Protect SuperLink Gateway HA (model USL-G2-Gateway-HA) is a high-availability wireless gateway and Thread border router engineered for mission-critical UniFi Protect deployments. Designed for long-range sensor connectivity, this EU version features LTE connectivity and a built-in battery backup, ensuring continuous operation even during network or power outages.

Utilising proprietary SuperLink technology, the USL-G2-Gateway-HA delivers ultra-long-range, low-latency communication with SuperLink sensors up to 2 km line-of-sight. It also functions as a Thread border router (IEEE 802.15.4) for seamless integration with Thread-enabled smart home devices. Managed through UniFi OS, this gateway offers flexible installation options with wall and DIN rail mounting, a compact form factor (206 × 85 × 25.6 mm with antenna), and a single 10/100 Mbps Ethernet port for network connectivity.

The SuperLink Gateway HA operates on EU frequencies (865.1–869.5 MHz for SuperLink and 2400–2480 MHz for Thread), with a powerful 27 dBm TX power for SuperLink and 10 dBm for Thread, providing robust coverage across demanding commercial, industrial, and residential security applications.

Key Features:

• High-availability design with LTE connectivity and built-in battery backup for uninterrupted operation
• Dual-protocol support: SuperLink (proprietary) and Thread (IEEE 802.15.4) border router
• Ultra-long-range connectivity: up to 2 km line-of-sight for SuperLink sensors
• EU frequency bands: 865.1–869.5 MHz (SuperLink), 2400–2480 MHz (Thread)
• Powerful transmission: 27 dBm (SuperLink), 10 dBm (Thread)

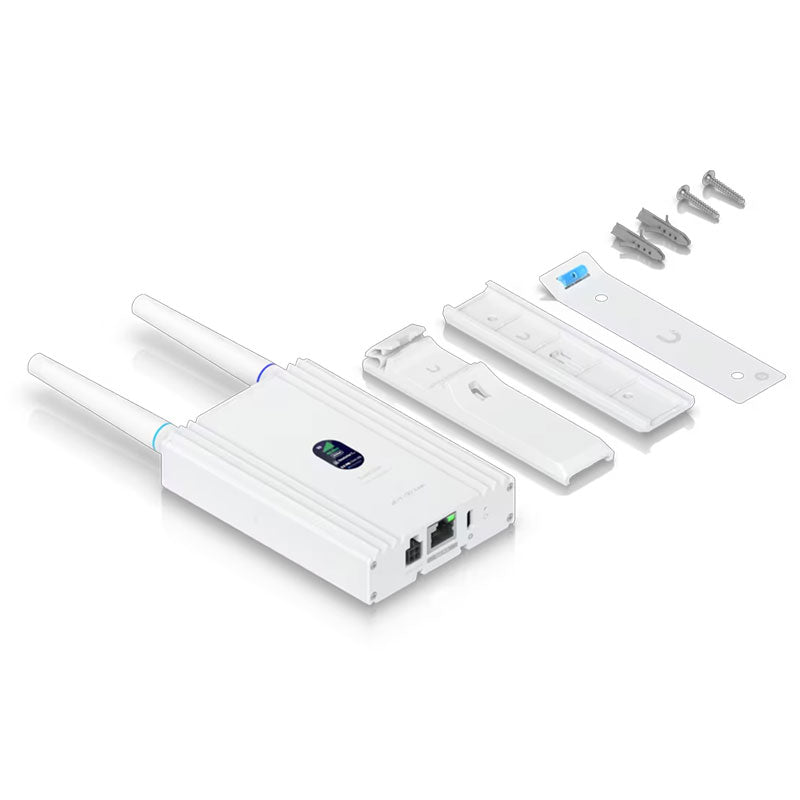

• Flexible mounting: wall and DIN rail options included
• Compact dimensions: 206 × 85 × 25.6 mm (with antenna)

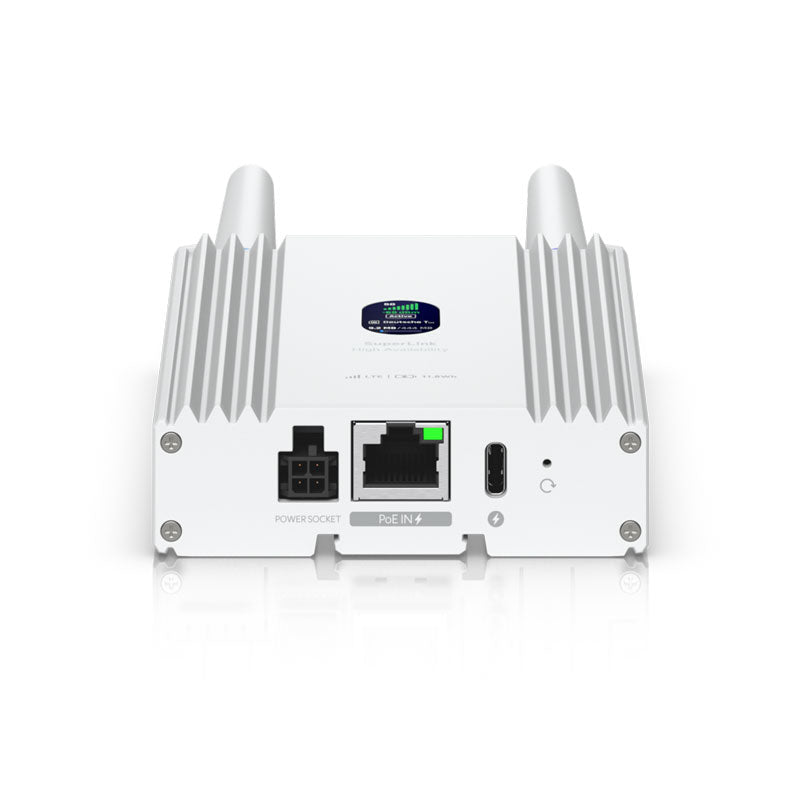

• Single 10/100 Mbps Ethernet port for network connectivity
• Managed through UniFi Protect application suite

Ideal for: Security installers, system integrators, and organisations requiring high-availability sensor monitoring with failover protection across large commercial, industrial, or campus environments.

Compatible Products:

SuperLink Sensors: Works with the complete range of UniFi Protect SuperLink sensors, including Entry Sensor (USL-Entry), Motion Sensor (USL-Motion), Glass Break Sensor (USL-GlassBreak), Environmental Sensor (USL-Environmental), Smoke and CO Alarm (USL-Smoke), and Relay (USL-Relay). Supports up to 96 SuperLink sensors per gateway.

Thread Devices: Functions as a Thread border router, enabling connectivity for Thread-enabled smart home and IoT devices compliant with IEEE 802.15.4 standard, with Thread coverage up to 100 metres.

SuperLink High-Gain Antenna: Expand SuperLink range up to 5 km with the optional UACC-USL-ANT-HG high-gain antenna for extreme long-range deployments in outdoor or challenging RF environments.

UniFi Protect Ecosystem: Integrates seamlessly with UniFi NVRs, UniFi cameras, alarm hubs, sirens, and AI speakers for a unified security and automation platform managed through UniFi OS.
