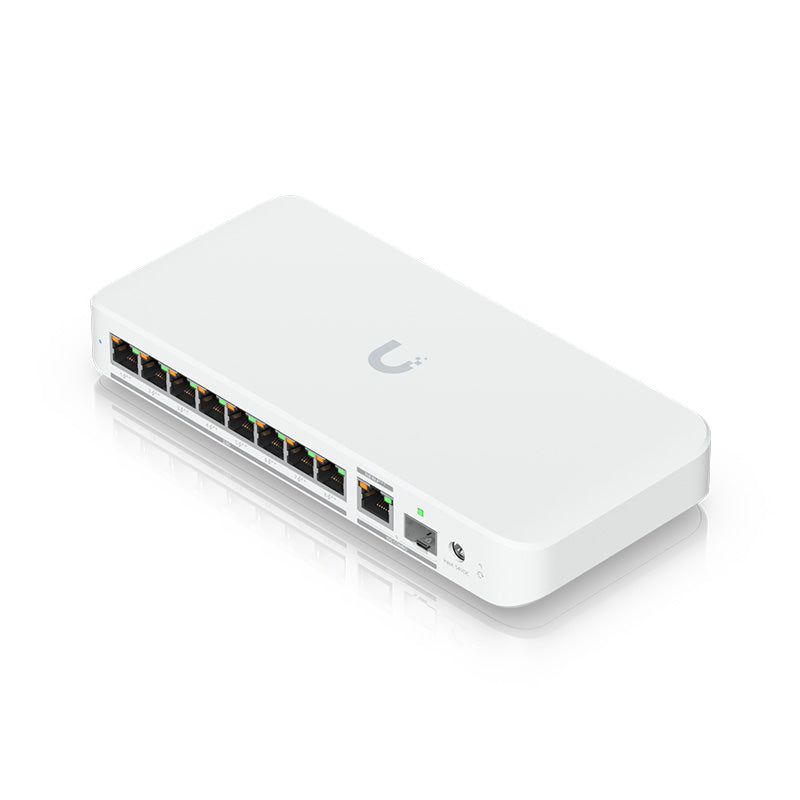

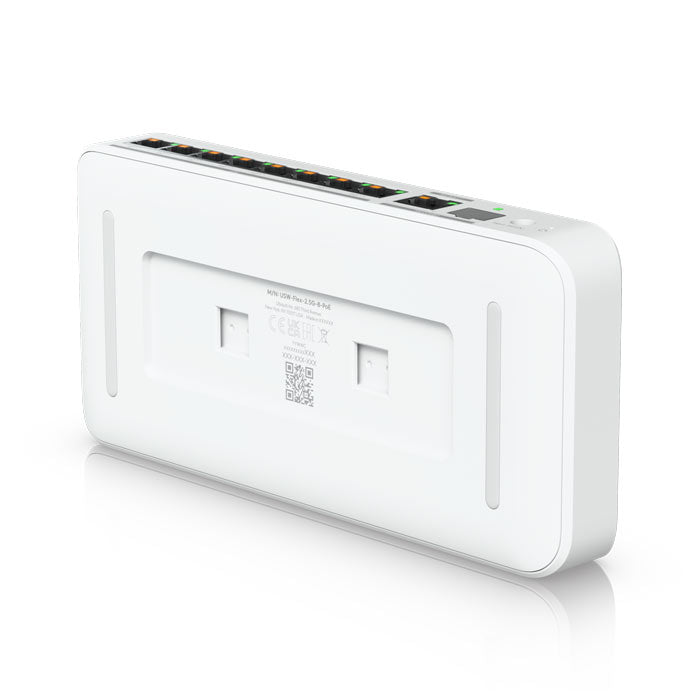

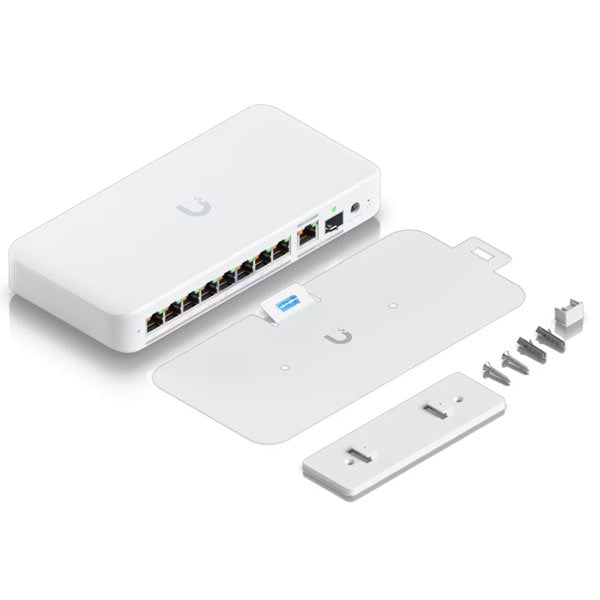

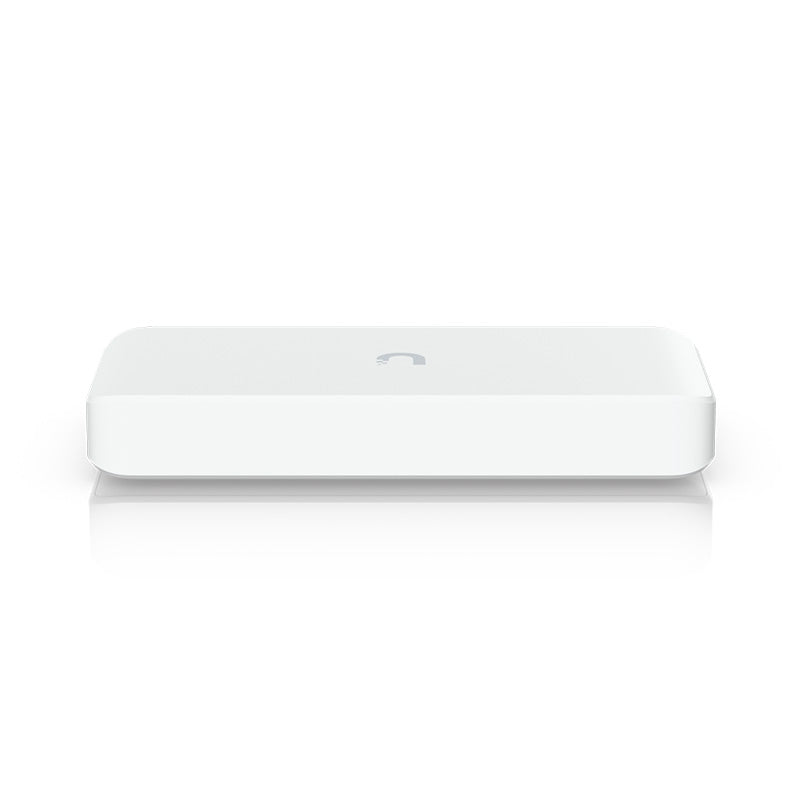

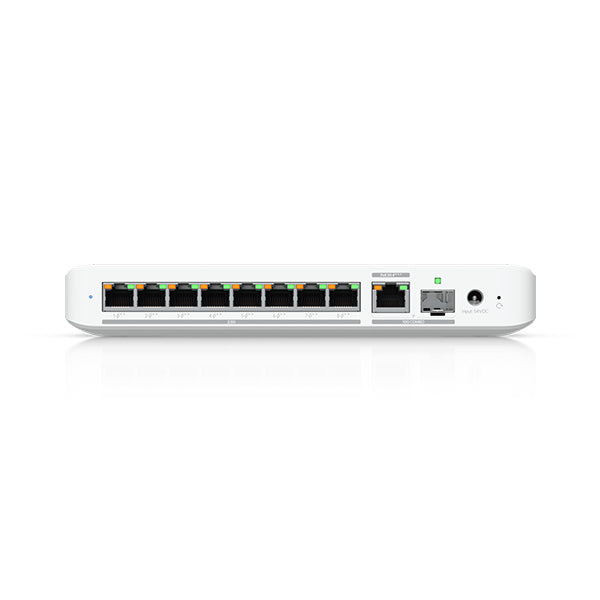

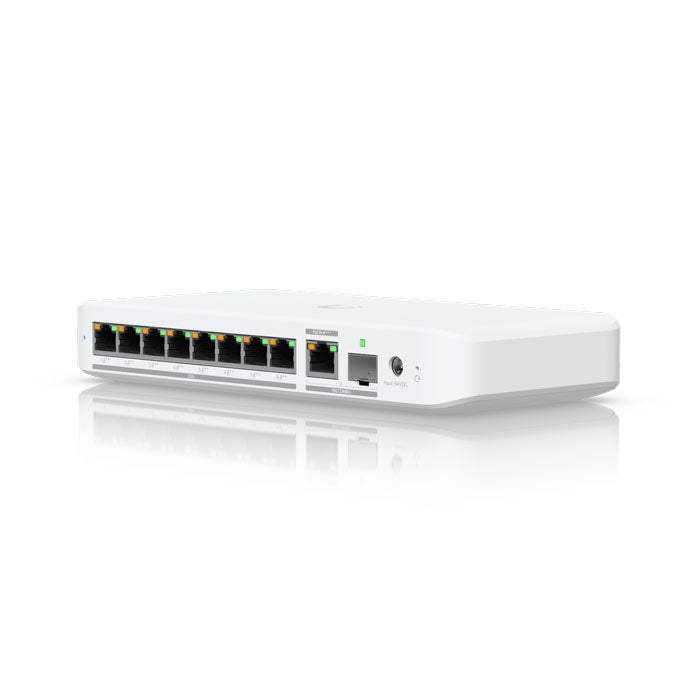

USW-Flex-2.5G-8-PoE Ubiquiti UniFi Switch Flex 8 Port, 2.5GbE PoE Switch (no PSU)
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
(8) 2.5 GbE PoE++ output ports
(1) 10 GbE PoE+++ input port for power / SFP+ port combo
— 57W PoE availability with PoE+++ input
— 37W PoE availability with PoE++ input
— 12W PoE availability with PoE+ input
196W PoE availability with optional AC power adapter*
*AC power adapter sold separately.
Frequently asked questions5 questions
Does this switch come with a power supply?
What ports does the USW-Flex-2.5G-8-PoE have?
How much PoE power is available to connected devices?
What is the maximum PoE output per port?
Can I place this switch outdoors or in a warm environment?
Specifications28 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 212.9 x 99.4 x 33.5 mm / (8.4 x 3.9 x 1.3") |
| Port Layout · 2.5 GbE RJ45 | 8 (All PoE++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 1 (PoE+++) / (10G/5G/2.5G/1G/100M) |
| Port Layout · 10G SFP+ | 1 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | PoE+++ input: 76W / PoE++ input: 46W / PoE+ input: 16W / 210W AC adapter input: 196W |
| Form Factor | Compact Desktop |
| Performance | |
| Switching Capacity | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Hardware | |
| PoE Ports · PoE++ | 8 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 64W |
| Max. Power Consumption | 14W (Excluding PoE output) with PoE input / 17W (Excluding PoE output) with AC adapter input / 210W (Including PoE Output) |
| Power Method | (1) AC/DC adapter (Excluded) / (1) PoE+++ |
| Power Input Method | DC Input / PoE |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
