Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Lite-8-PoE

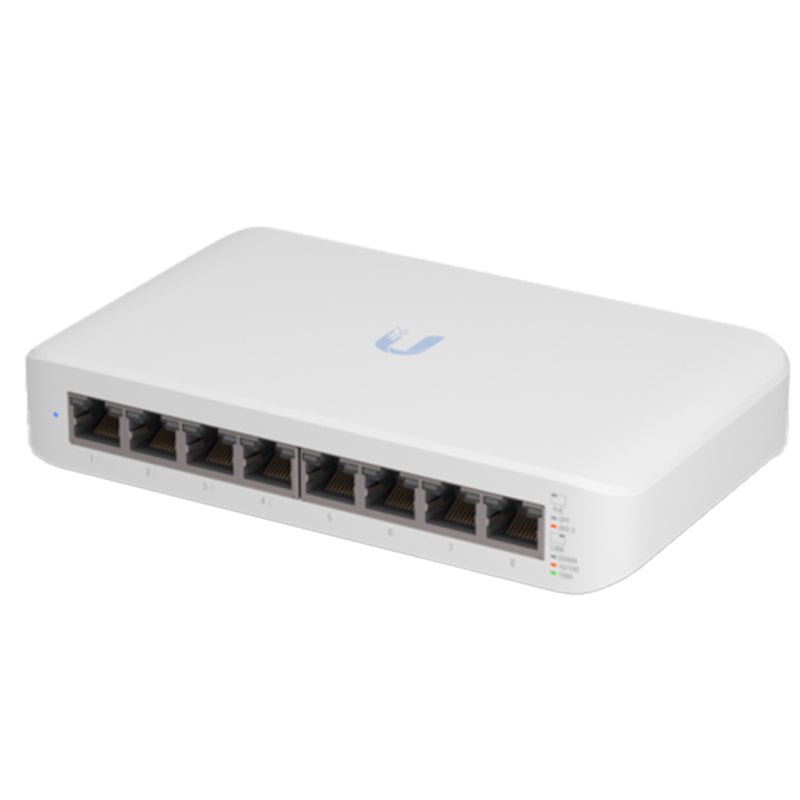

USW-Lite-8-PoE Ubiquiti UniFi Switch Lite 8 PoE
$221.69 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 2, PoE switch with (8) GbE RJ45 ports, including (4) PoE+ ports.
The Ubiquiti USW-Lite-8-PoE 8-Port Cloud Managed Desktop Gigabit PoE+ Switch is a fully managed Layer 2 switch with eight (8) Gigabit Ethernet ports for your RJ45 Ethernet devices.
Four (4) ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices (sold separately).
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
Eight (8) Gigabit RJ45 ports, including four (4) 802.3at PoE+ ports
52W total PoE supply with an External 60W power adapter

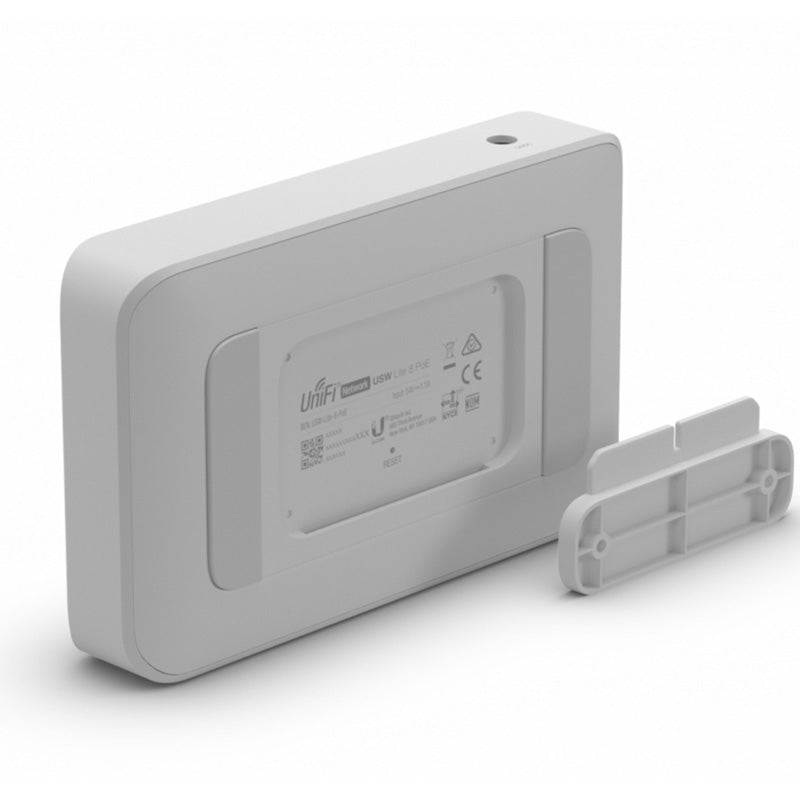

Wall-mountable (kit included)
Managed with the UniFi Network application: Version 5.13.5 and later
Frequently asked questions5 questions
How many ports does the USW-Lite-8-PoE have, and how many support PoE?
It has eight Gigabit RJ45 ports that run at 1G, 100M or 10M. Four of these are auto-sensing 802.3at PoE+ ports, each providing up to 30W.
How much total PoE power is available?
The switch provides 52W of total PoE across its four PoE+ ports. It is powered by the included external 60W AC/DC adapter.
How is the switch managed?
It is a fully managed Layer 2 switch controlled through the UniFi Network application and the UniFi mobile app. Admins can configure and monitor most features from a graphical interface, from anywhere.
Can the USW-Lite-8-PoE be wall mounted?
Yes, it has a compact desktop and wall form factor, and a wall-mount kit is included. It measures 99.6 x 163.7 x 31.7 mm and weighs 295 g.
What are the switching performance figures?
It offers 16 Gbps switching capacity, 8 Gbps total non-blocking throughput and a 12 Mpps forwarding rate. It supports up to 1,000 VLANs and an 8,000-entry MAC address table.
Customer reviews
5.0
· 5 reviews
★★★★★Collected by reviews.io · Aug 2024
Set and forget
Anonymous
★★★★★Collected by reviews.io · Jul 2024
This switch was purchased to supply POE to two new Wifi APs which it has done well, bonus points for the visibility it has given of the entire network in the controller.
Anonymous
★★★★★Collected by reviews.io · Apr 2024
Great piece of kit, simple to use with the Ubiquiti app. Love Ubiquiti gear simple, elegent design and easy to use.
Mark
★★★★★Collected by reviews.io · Dec 2023
Great little switch for home that gives you all the control you come to expect from UniFi.
NicholasSpecifications29 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 99.6 x 163.7 x 31.7 mm / (4 x 6.4 x 1.3") |
| Port Layout · 1 GbE RJ45 | 8 (4 PoE+) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 52W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 4 |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. Power Consumption | 8W (Excluding PoE Output) / 60W (Including PoE Output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Heat Dissipation | 27.3 BTU/hr (Excluding PoE Output) |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Lite-8-PoE · Ubiquiti's spec sheet
