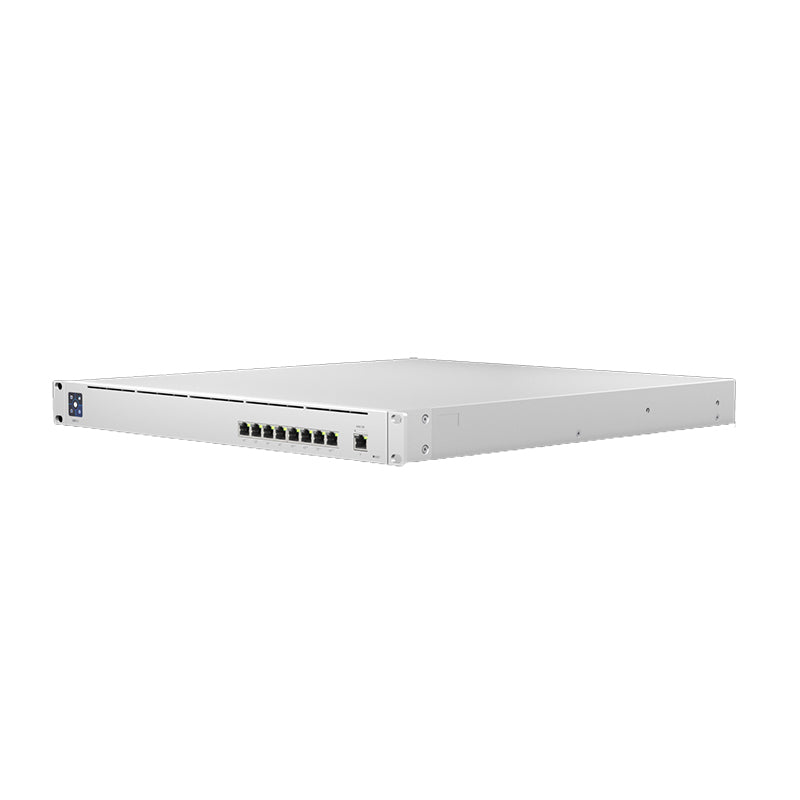

USW-Mission-Critical Ubiquiti Mission Critical Switch
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

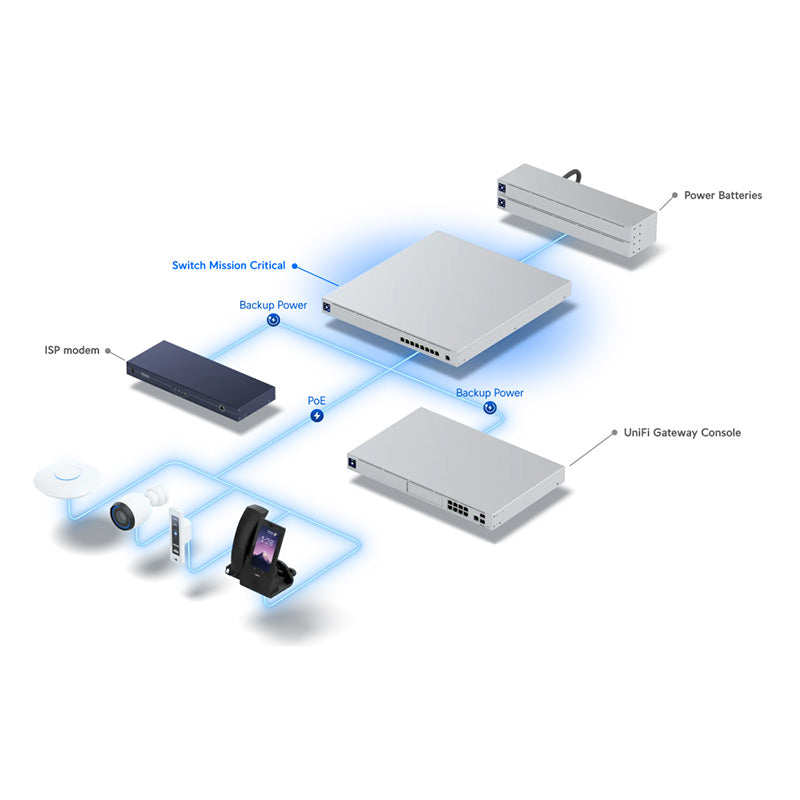

UniFi Mission-Critical Switch delivers power to vital network devices while maintaining high reliability via multiple powering options: internal battery backup, AC power, and external 48VDC battery (not included).

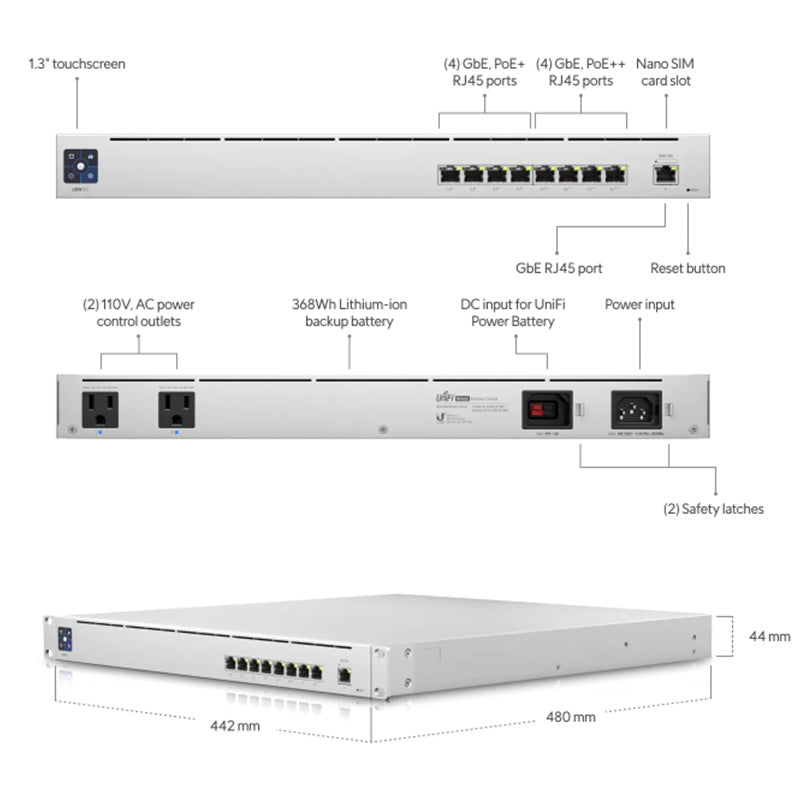

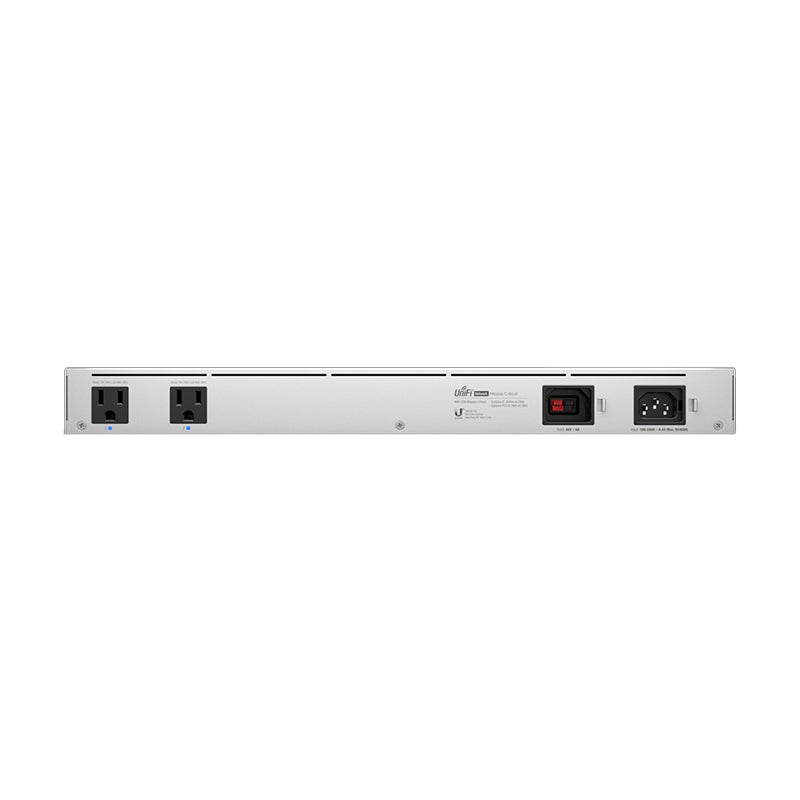

The managed Layer 2 switch offers nine Gigabit RJ45 ports: four with 802.3bt PoE++ to power UniFi Access devices, four with 802.3af/at PoE to power UniFi APs, switches, or cameras, and one for uplink to the gateway. Two AC outputs power 100-120V devices, including the modem and gateway.
The 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis. AR (Augmented Reality) switch management simplifies network changes.
The UniFi Network Controller and UniFi Network mobile app allows admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(4) GbE PoE+, (4) GbE PoE++ ports
(1) GbE port
(2) 110V AC outputs; 120W total PoE available
Battery backup power system
Internal battery 368Wh
Frequently asked questions5 questions
What is the USW-Mission-Critical switch designed for?
What ports and PoE does it offer?
How can the switch be powered?
How is the switch managed?
Is it rack mountable, and what rack depth does it need?
Specifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 480 x 44 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 1 GbE RJ45 | 9 (4 PoE+; 4 PoE++) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| Redundancy | Battery Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 18 Gbps |
| Total Non-Blocking Throughput | 9 Gbps |
| Forwarding Rate | 13 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 4 |
| PoE Ports · PoE++ | 4 |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 50W (Excluding PoE Output) / 240W (Including PoE Output and AC Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz / External battery input, 48V DC |
| Power Input Method | AC input / DC input (Backup) |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| Weight | Without mount: 9 kg (19.9 lb) / With mount: 9.2 kg (20.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 700 to 1,000 mm (27.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air/contact: ± 24kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06679-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.2.26 and later |
