★★★★★Collected by reviews.io · Nov 2023
Compact unit and works well within the Unifi system
Dion
Loading...
Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-8-PoE

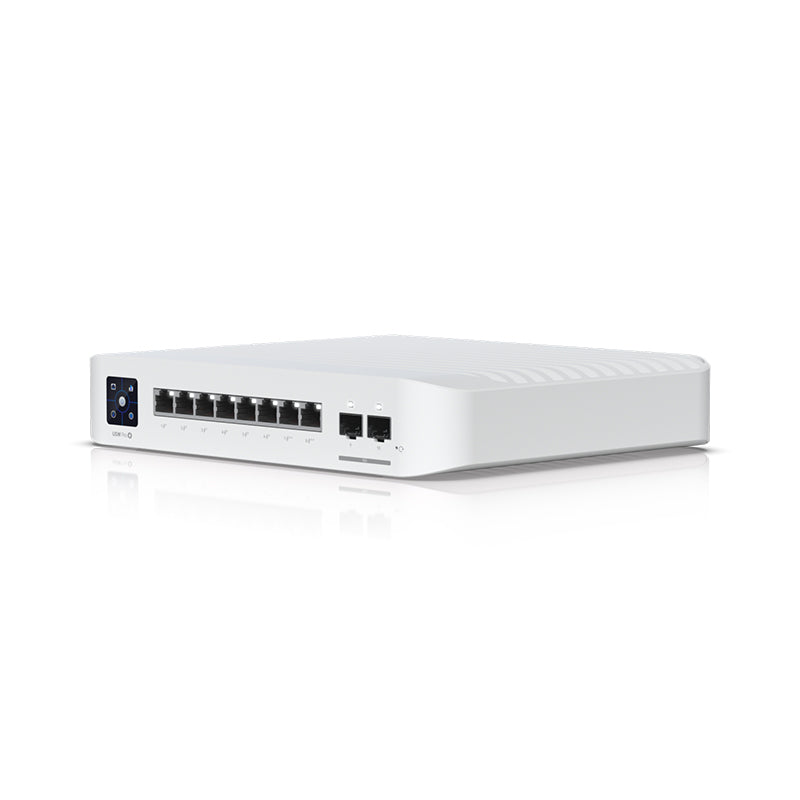

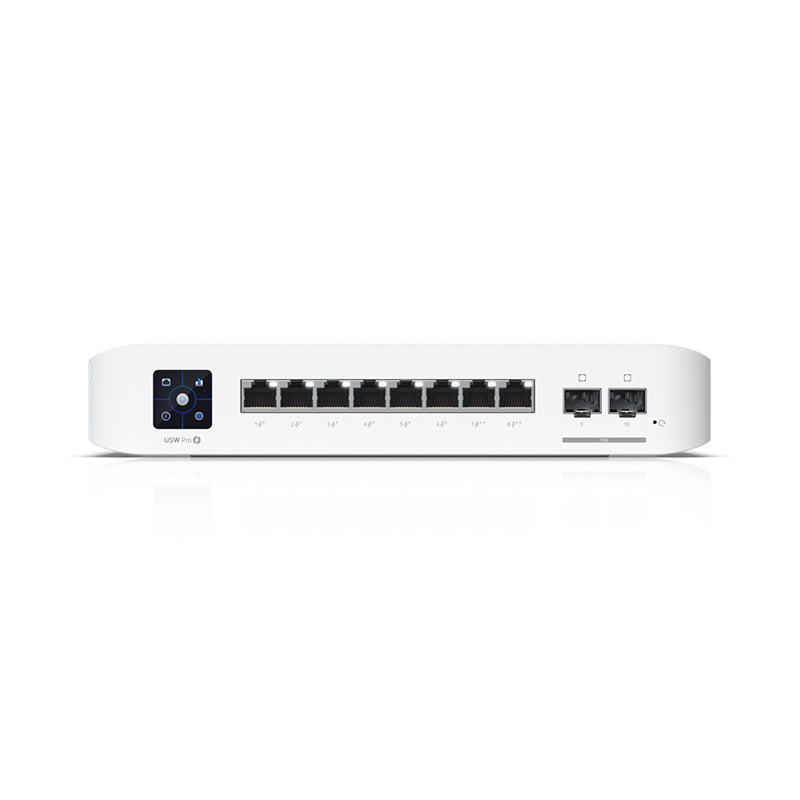

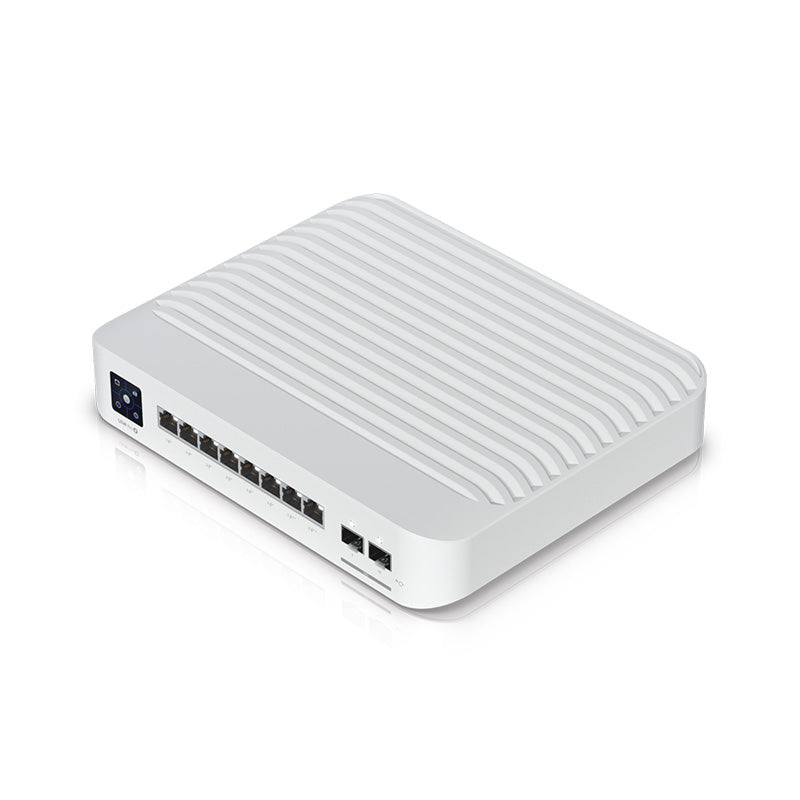

USW-Pro-8-PoE Ubiquiti UniFi Switch Professional 8 PoE
$577.65 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

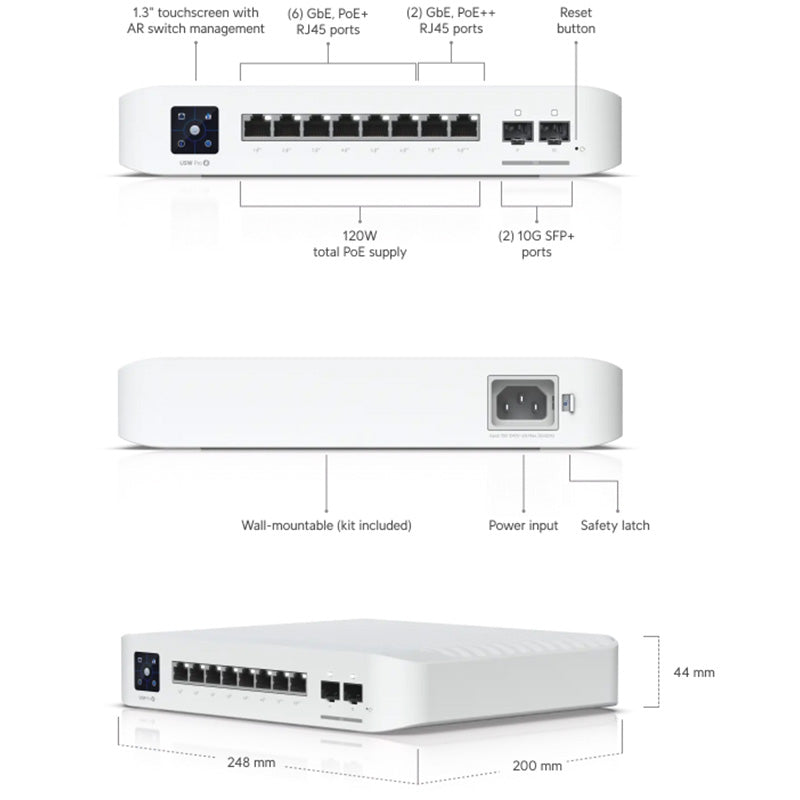

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
Features:
(6) GbE PoE+ ports
(2) GbE PoE++ ports
(2) 10G SFP+ ports
120W total PoE availability
Frequently asked questions5 questions
How many ports does the USW-Pro-8-PoE have, and what types are they?
It has eight Gigabit RJ45 ports (six PoE+ and two PoE++) that run at 1G, 100M or 10M. There are also two 10G SFP+ ports that support 10G or 1G.
How much PoE power can this switch supply?
Total PoE availability is 120W. Each PoE+ port delivers up to 32W and each PoE++ port up to 64W.
Is this a Layer 3 switch, and what routing and VLAN capacity does it have?
Yes, it is a Layer 3 switch. It supports up to 1,000 VLANs and 256 IPv4 static routes, with a 16,000-entry MAC address table.
What are the switching performance figures?
It offers 56 Gbps switching capacity, 28 Gbps total non-blocking throughput and a 42 Mpps forwarding rate. The packet buffer is 1.5 MB.
How can it be mounted, and what are its dimensions?

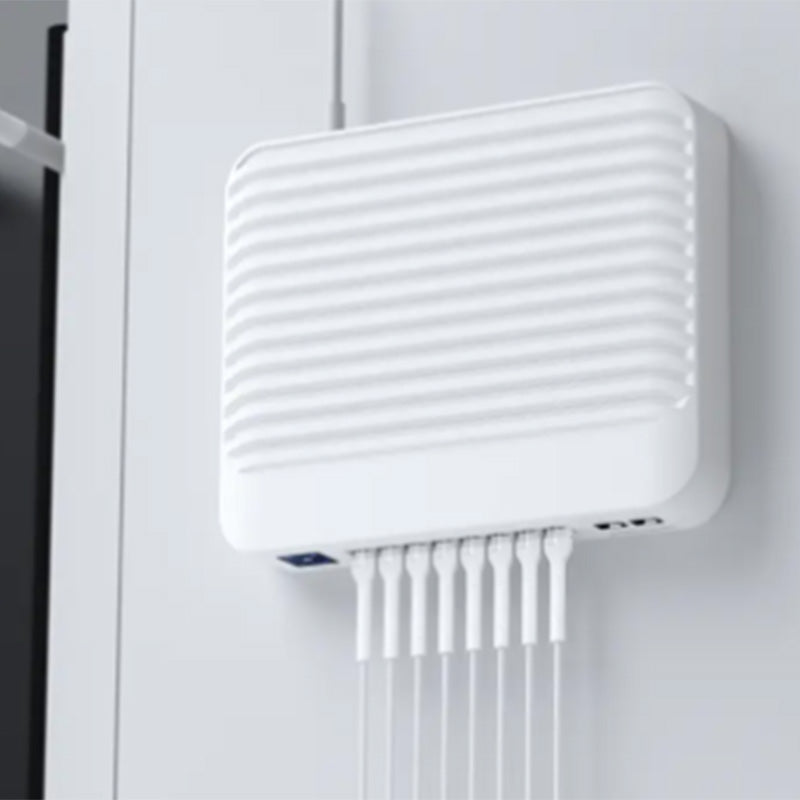

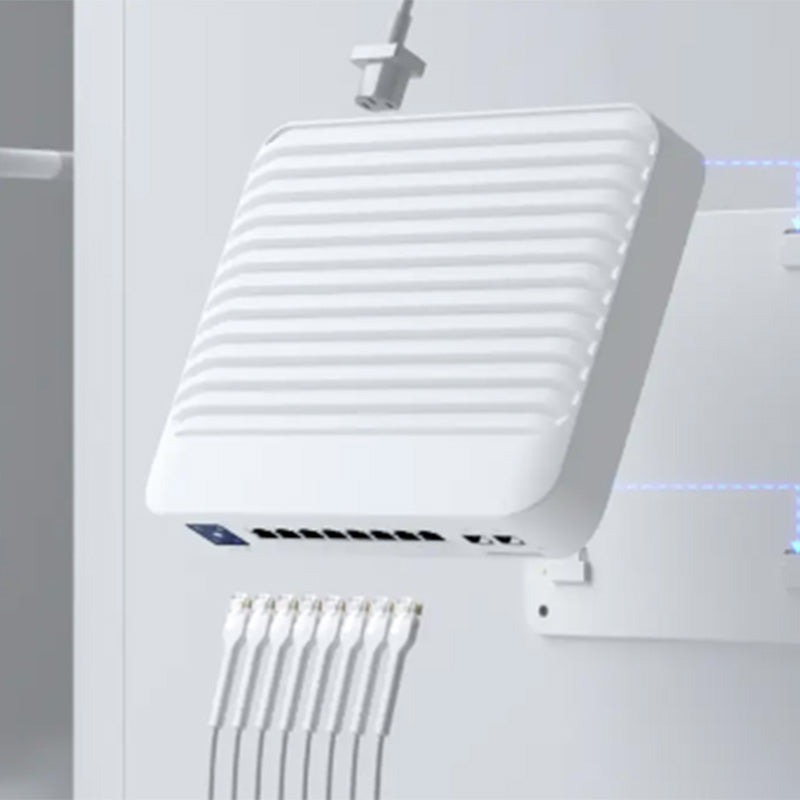

It is a compact unit for desktop or wall mounting, measuring 200 x 248 x 44 mm and weighing 2.1 kg. It also has a 1.3" touchscreen display and runs from 100-240V AC mains power.
Customer reviews
5.0
· 1 review
Click HERE to access the Installation Guide
Specifications36 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 200 x 248 x 44 mm / (7.9 x 9.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 8 (6 PoE+; 2 PoE++) / (1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 56 Gbps |
| Total Non-Blocking Throughput | 28 Gbps |
| Forwarding Rate | 42 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 6 |
| PoE Ports · PoE++ | 2 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 64W |
| Max. Power Consumption | 30W (Excluding PoE Output) / 150W (Including PoE Output) |

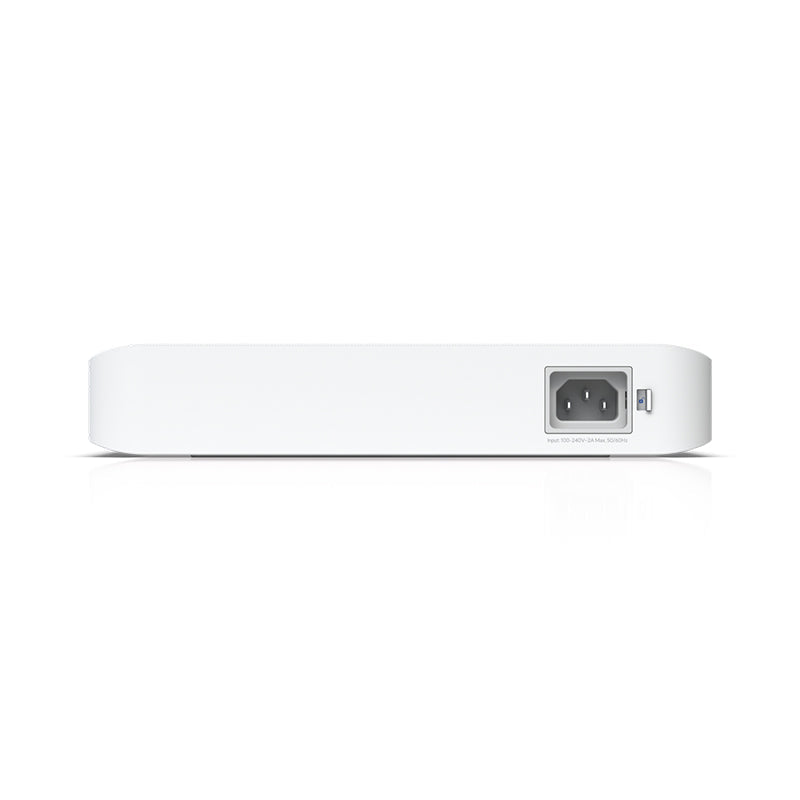

| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 102.4 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Polycarbonate |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05214-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.5.176 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-8-PoE · Ubiquiti's spec sheet
