USW-Pro-HD-24-PoE Ubiquiti UniFi Switch Pro HD 24 PoE

Q: What are the Etherlighting ports and do they need special cables?

Etherlighting ports illuminate to show port location, speed\/link and native VLAN\/network. For optimal brightness, pair them with UniFi Etherlighting Patch Cables.

$1,795.38 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

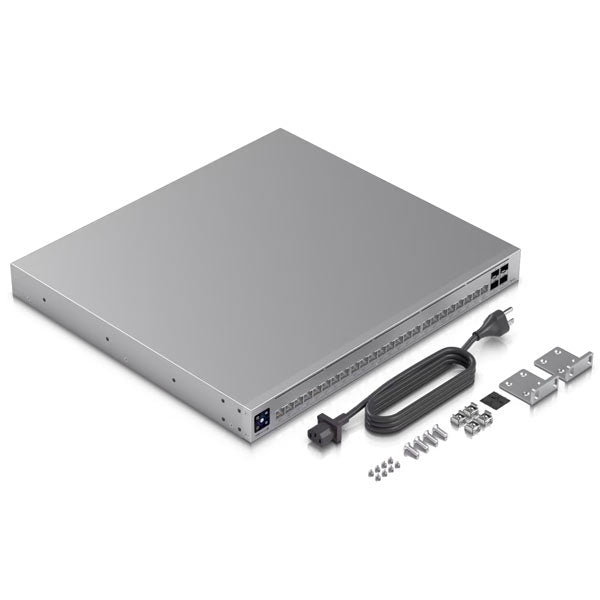

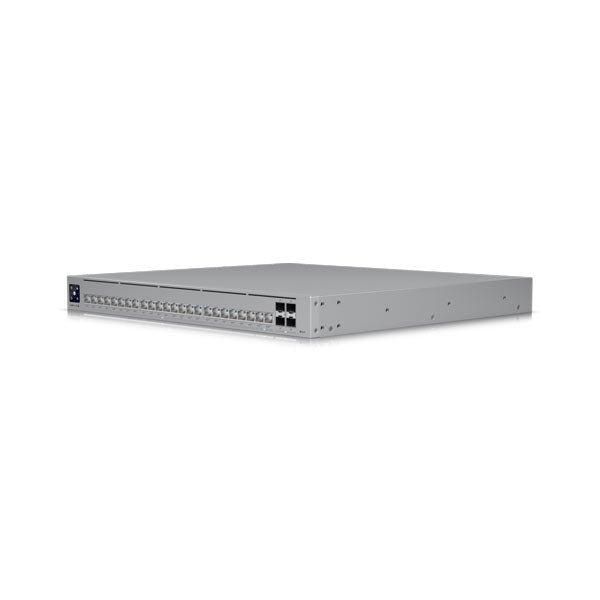

The Ubiquiti Pro HD 24 PoE is a professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Features:

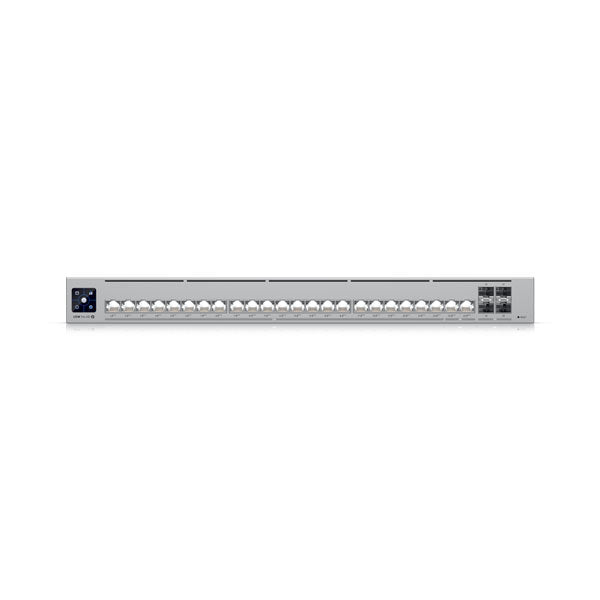

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(22) 2.5 GbE, (2) 10 GbE PoE++ ports

(4) 10G SFP+ ports

DC power backup ready**

600W total PoE availability

_{*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi SmartPower Redundant Power System}

Frequently asked questions5 questions

What ports does the USW-Pro-HD-24-PoE have?

It has 22 x 2.5 GbE PoE++ RJ45 ports, 2 x 10 GbE PoE++ RJ45 ports and 4 x 10G SFP+ ports. All 24 RJ45 ports support PoE++.

How much PoE power can this switch supply?

Total PoE availability is 600W across the switch. Each port supports up to PoE++, with 15.4W for PoE, 30W for PoE+ and 64W for PoE++ per port.

Can this switch run from a backup power supply?

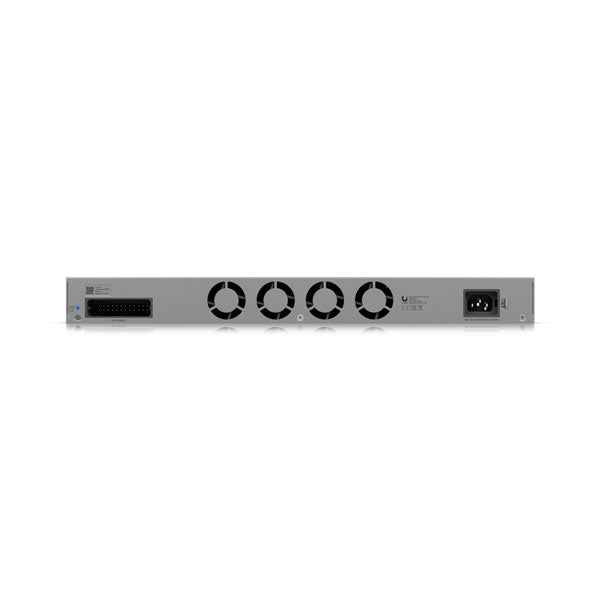

Yes, it is DC power backup ready and has a USP RPS DC input alongside its internal 100–240V AC power supply. Backup power requires a UniFi SmartPower Redundant Power System.

What are the Etherlighting ports and do they need special cables?

Etherlighting ports illuminate to show port location, speed/link and native VLAN/network. For optimal brightness, pair them with UniFi Etherlighting Patch Cables.

Is this switch rack mountable and what size is it?

Yes, it is a 1U rack-mount switch measuring 442 x 400 x 44 mm. It supports rack depths of 600–1,200 mm and weighs 6.3 kg with the mounting brackets.

Customer reviews

5.0 · 1 review

Write a review

5 ★ 14 ★ 03 ★ 02 ★ 01 ★ 0

★★★★★Collected by reviews.io · Nov 2025

Excellent service

Shane

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications36 specifications · 4 sections

Overview
Dimensions	442 x 400 x 44 mm / (17.4 x 15.7 x 1.7")
Port Layout · 2.5 GbE RJ45	22 (All PoE++) / (2.5G/1G/100M/10M)
Port Layout · 10 GbE RJ45	2 (All PoE++) / (10G/5G/2.5G/1G/100M)
Port Layout · 10G SFP+	4 / (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Form Factor	Rack mount (1U)
Performance
Switching Capacity	230 Gbps
Total Non-Blocking Throughput	115 Gbps
Forwarding Rate	171 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
Access Lists · IPv4	128
Access Lists · MAC	128
Hardware
PoE Ports · PoE++	24
Max. PoE Wattage per Port by PSE · PoE	15.4W
Max. PoE Wattage per Port by PSE · PoE+	30W
Max. PoE Wattage per Port by PSE · PoE++	64W
Max. Power Consumption	60W (Excluding PoE Output) / 660W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100–240V AC
Management	Ethernet / AR
Weight	Without mounting brackets: 6.2 kg (13.7 lb) / With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	600 - 1,200 mm / (23.6- 47.2" )
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC, Anatel: 03853-25-08356
Software
Application Requirements · UniFi Network	Version 9.0.114 and later
