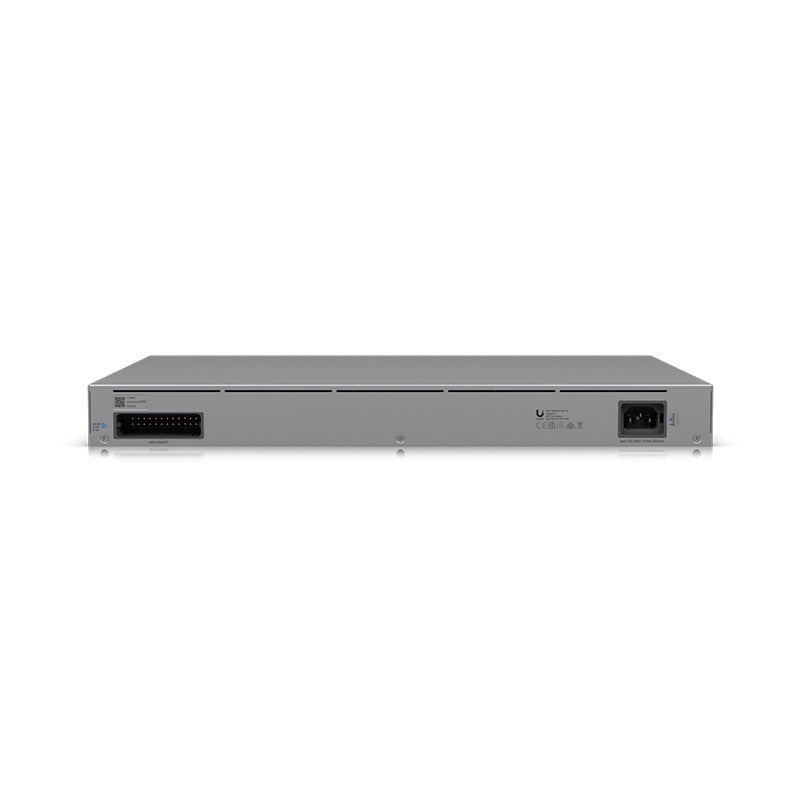

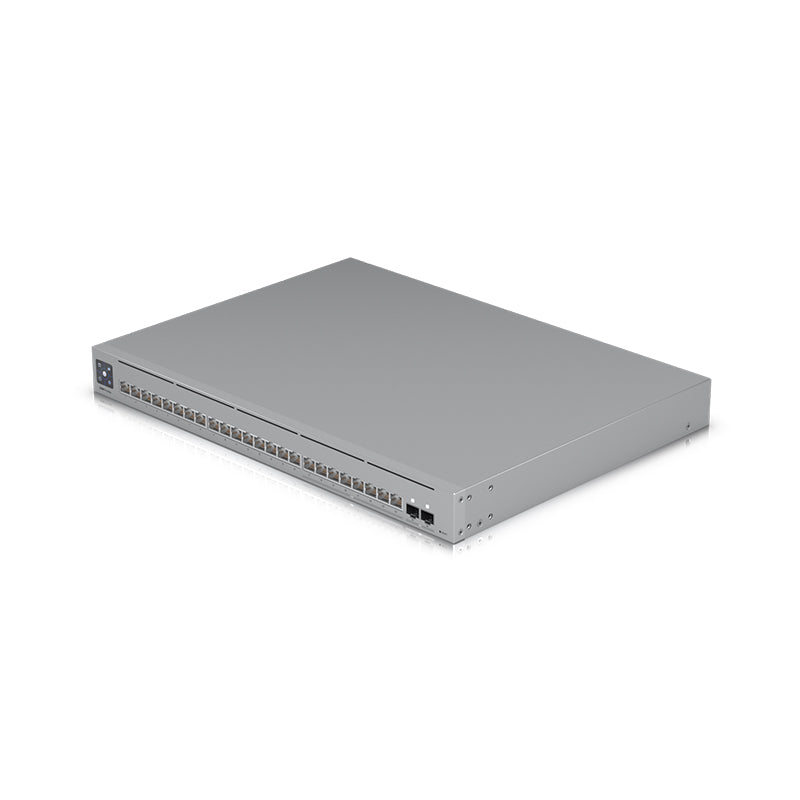

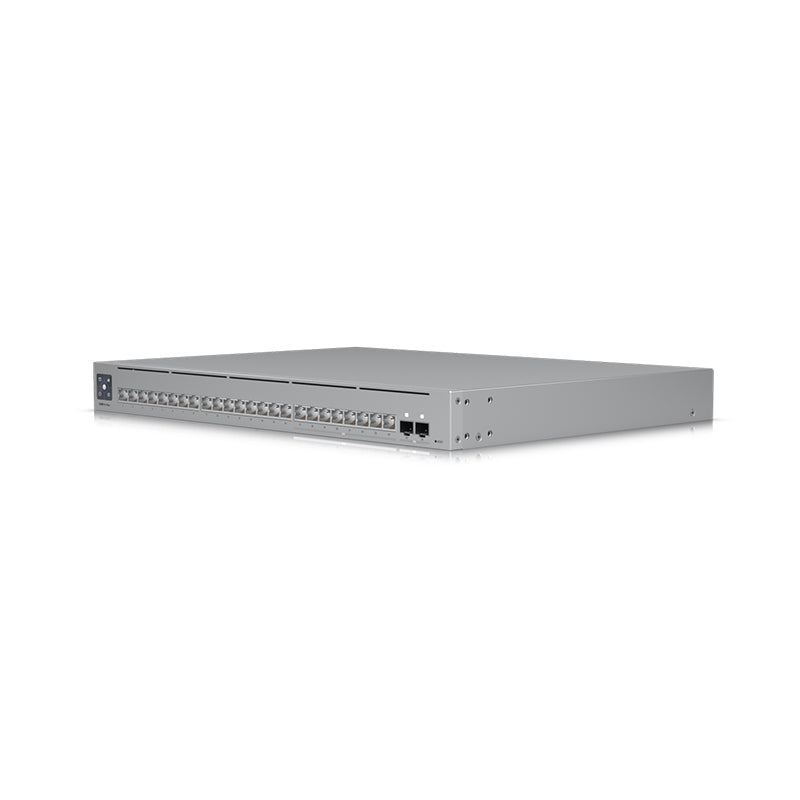

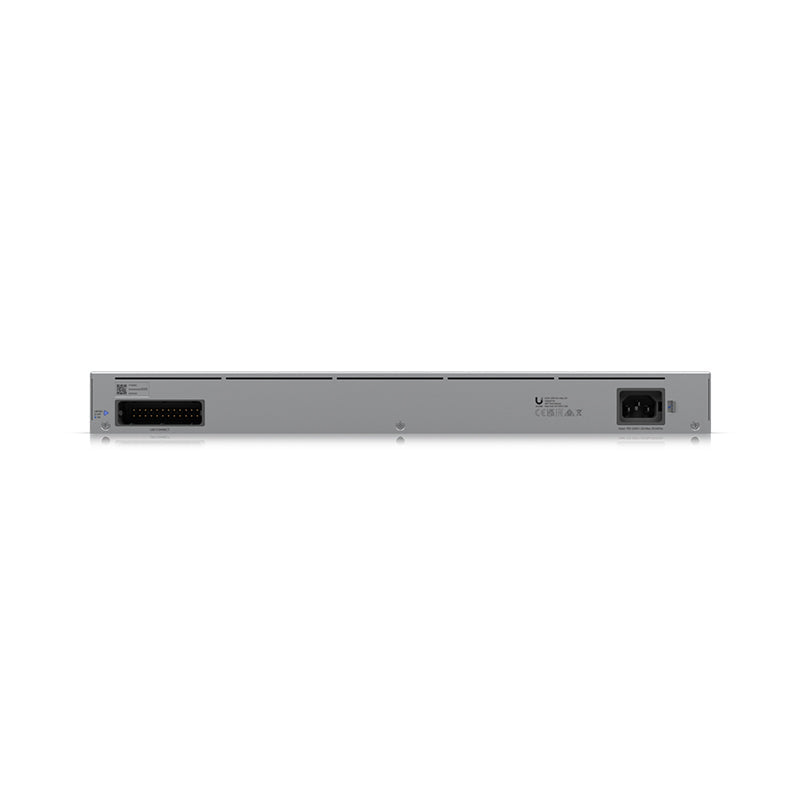

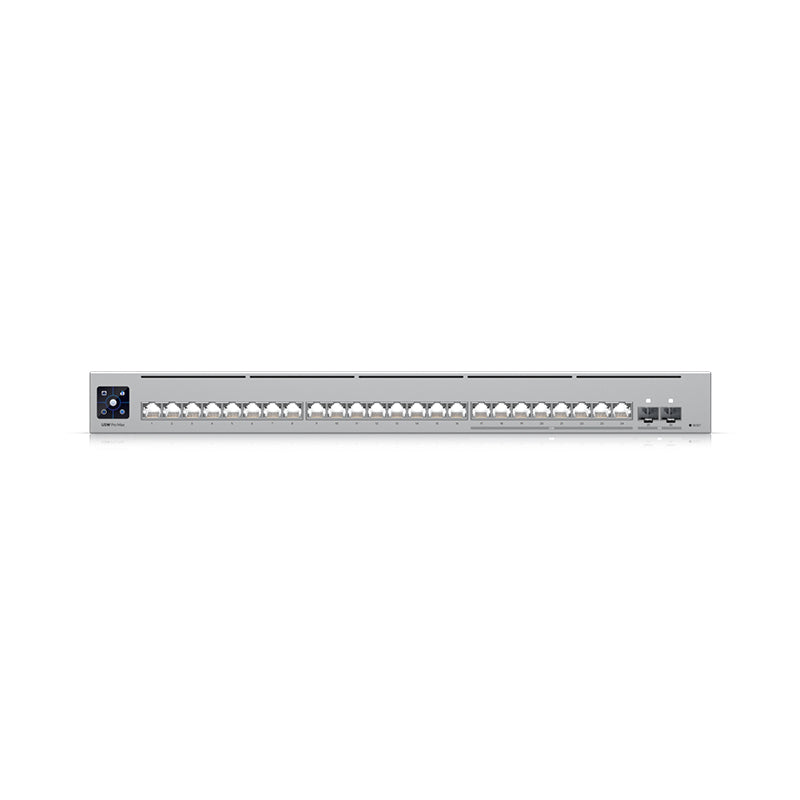

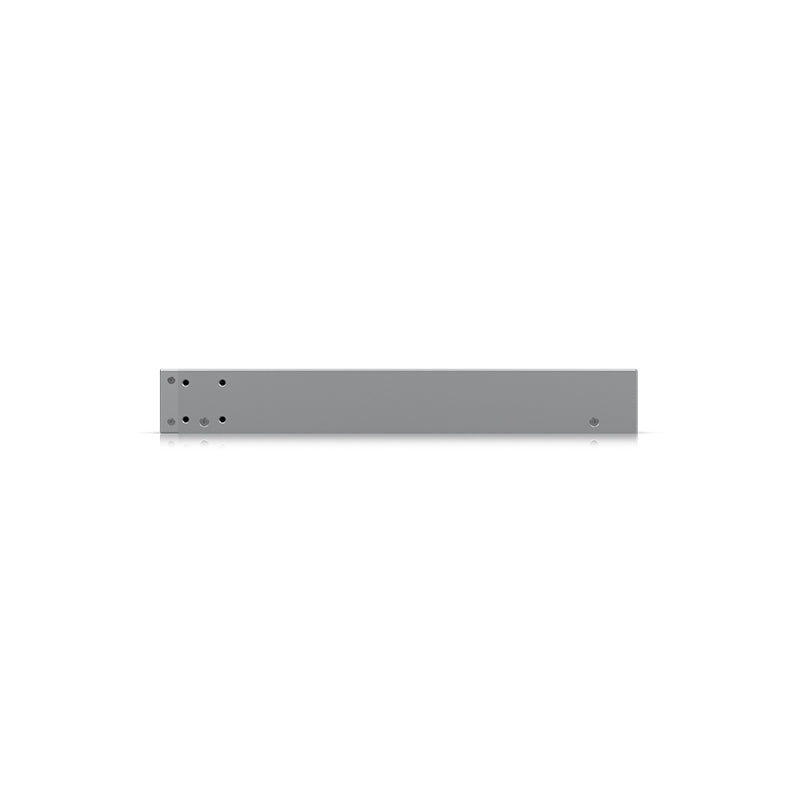

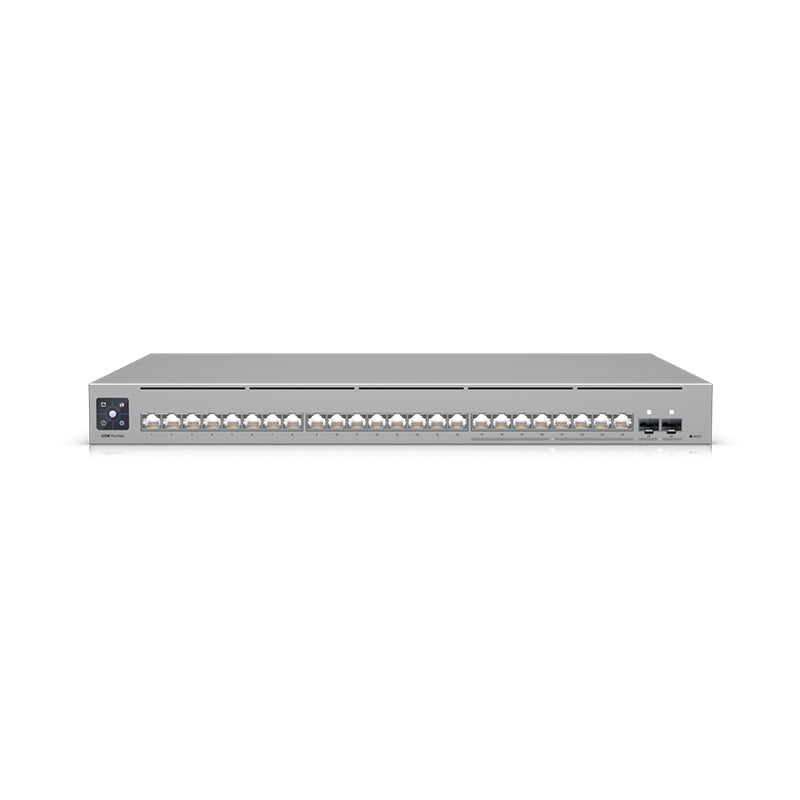

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-Max-24
USW-Pro-Max-24 Ubiquiti UniFi Switch Pro Max 24 Port Non PoE
$921.11 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

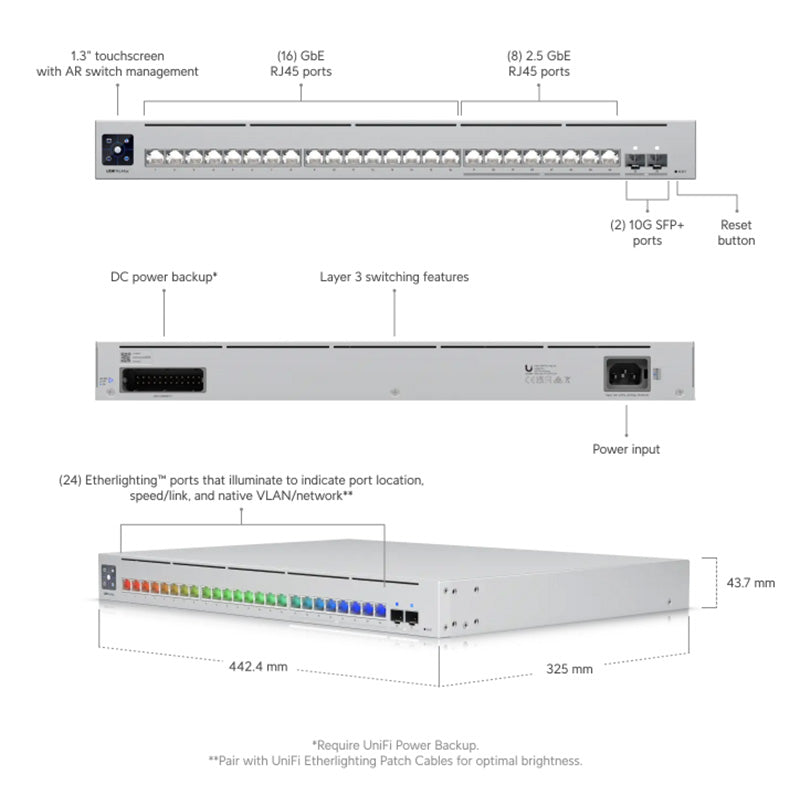

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Features:

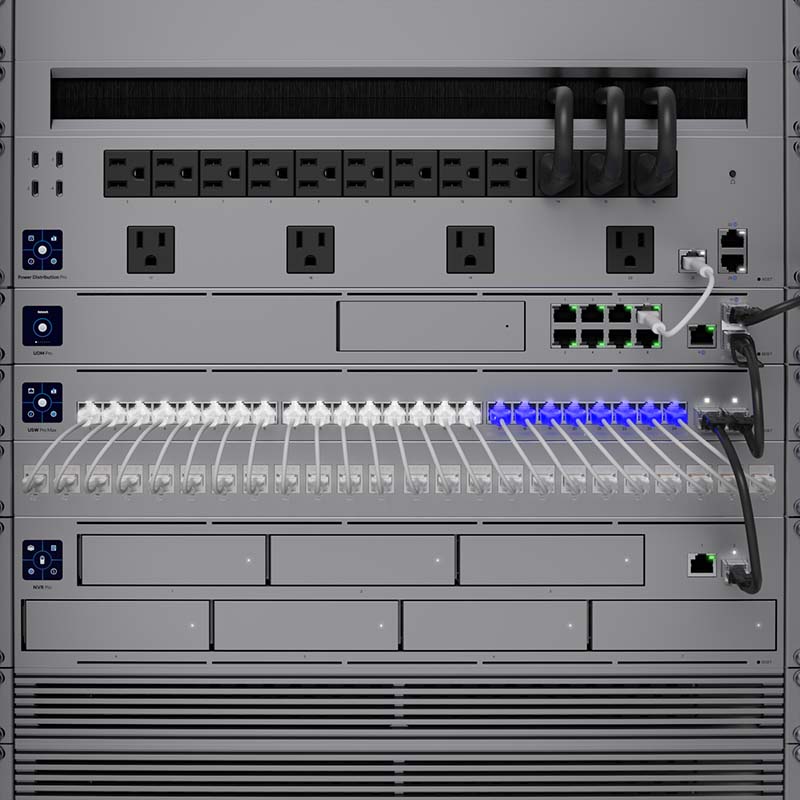

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE RJ45 ports
(16) GbE RJ45 ports
(2) 10G SFP+ ports
DC power backup ready
Managed with UniFi Network 8.0.24 and later

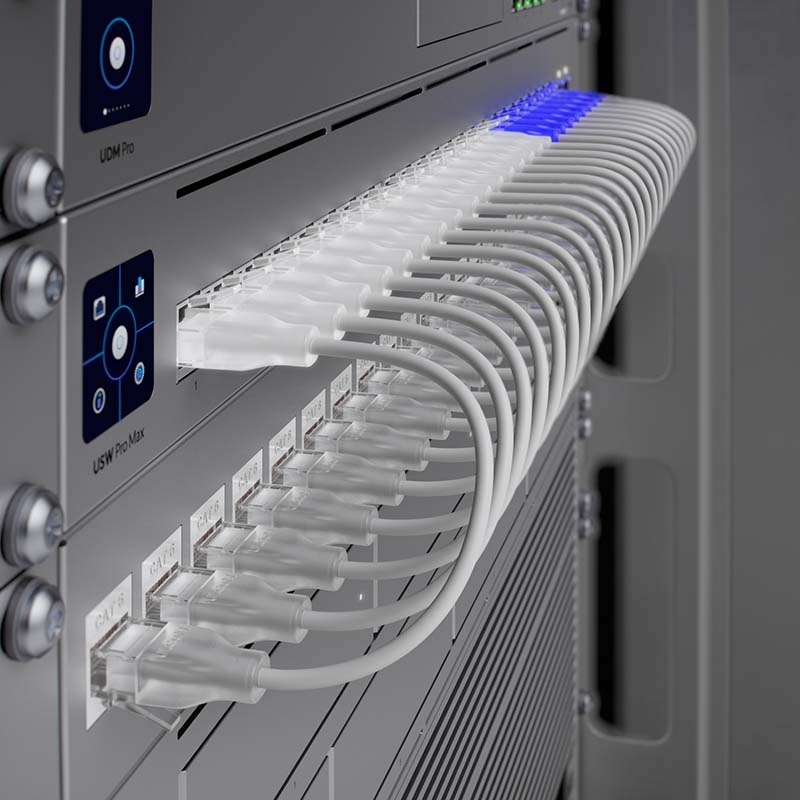

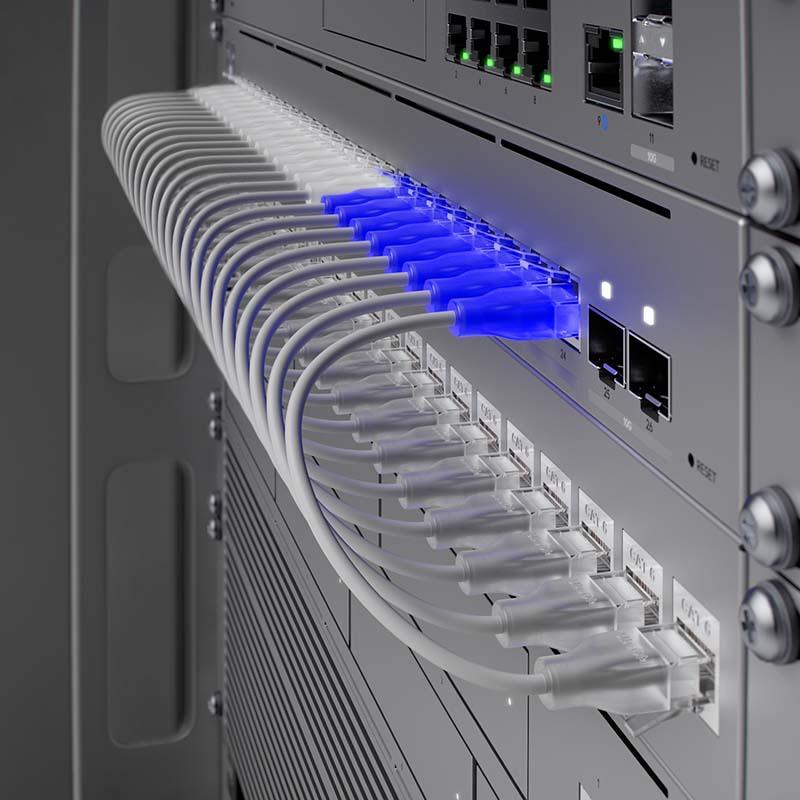

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Frequently asked questions5 questions
What ports does the USW-Pro-Max-24 have?
It has 16 GbE RJ45 ports, 8 2.5 GbE RJ45 ports and 2 10G SFP+ ports. The RJ45 ports support speeds down to 10M, and the SFP+ ports support 10G and 1G.
Does this switch provide PoE?
No, this is the Non PoE model. It has no PoE output on its ports, and it is powered by a universal 100–240V AC input.
What are Etherlighting ports?
Etherlighting ports illuminate to indicate port location, speed/link, and native VLAN/network. Pairing the switch with UniFi Etherlighting Patch Cables gives optimal brightness.
Is the USW-Pro-Max-24 a Layer 3 switch, and what does it support?
Yes, it is a Layer 3 switch with 256 IPv4 static routes, 1,000 supported VLANs and a 16,000-entry MAC address table. It is managed with UniFi Network 8.0.24 and later.
Can it be rack mounted, and does it support power backup?
Yes, it is a 1U rack-mount switch (442 x 325 x 44 mm) that supports rack depths of 400–1200 mm. It is DC power backup ready via a USP RPS DC input.
Specifications32 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 8 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 112 Gbps |
| Total Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 50W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 170.6 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.3 lb) / With mounting brackets: 4.3 kg (9.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.24 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-Max-24 · Ubiquiti's spec sheet
