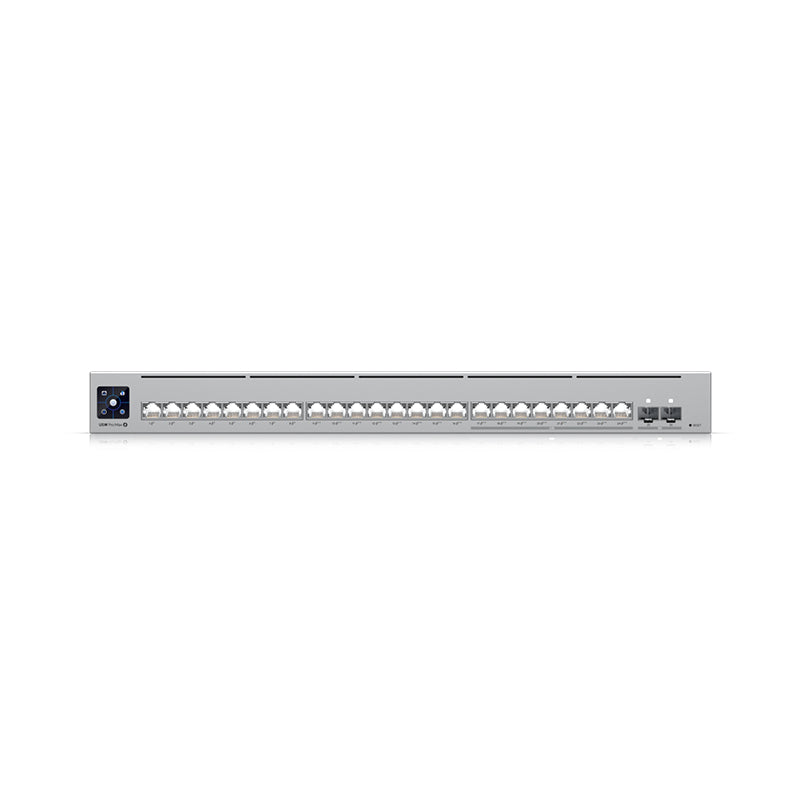

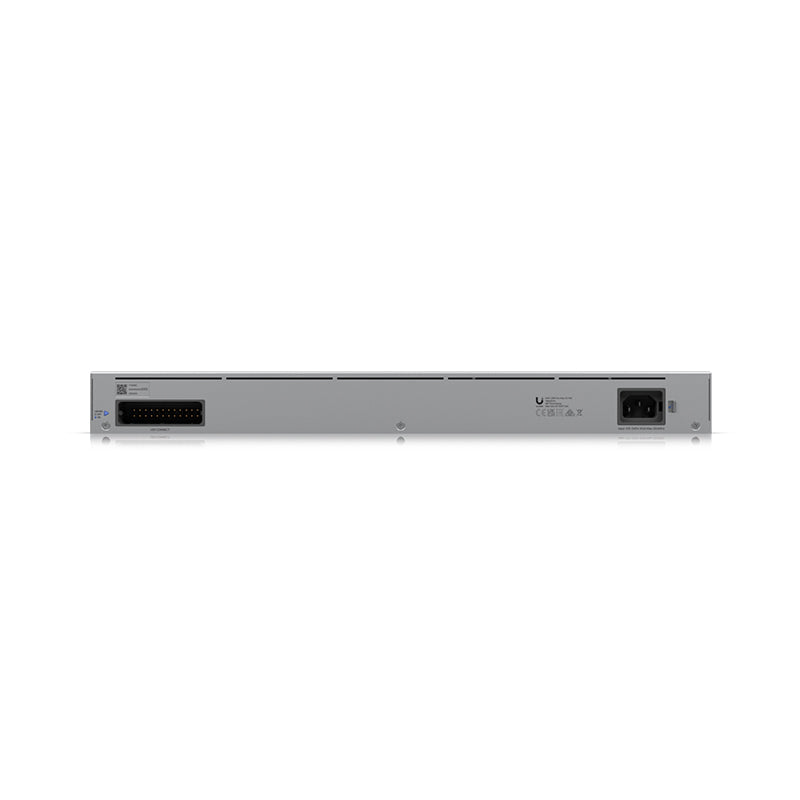

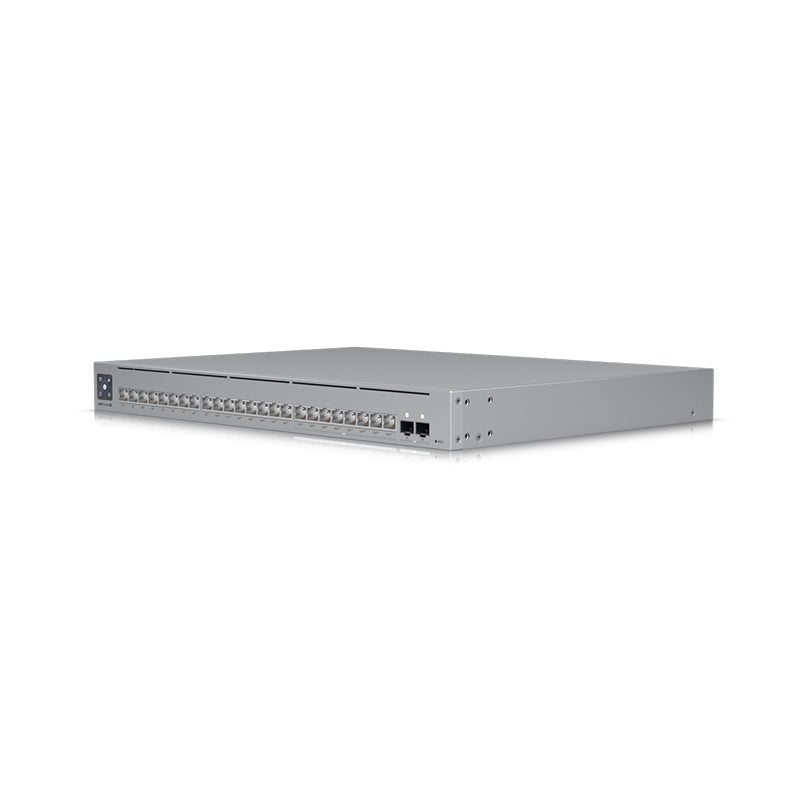

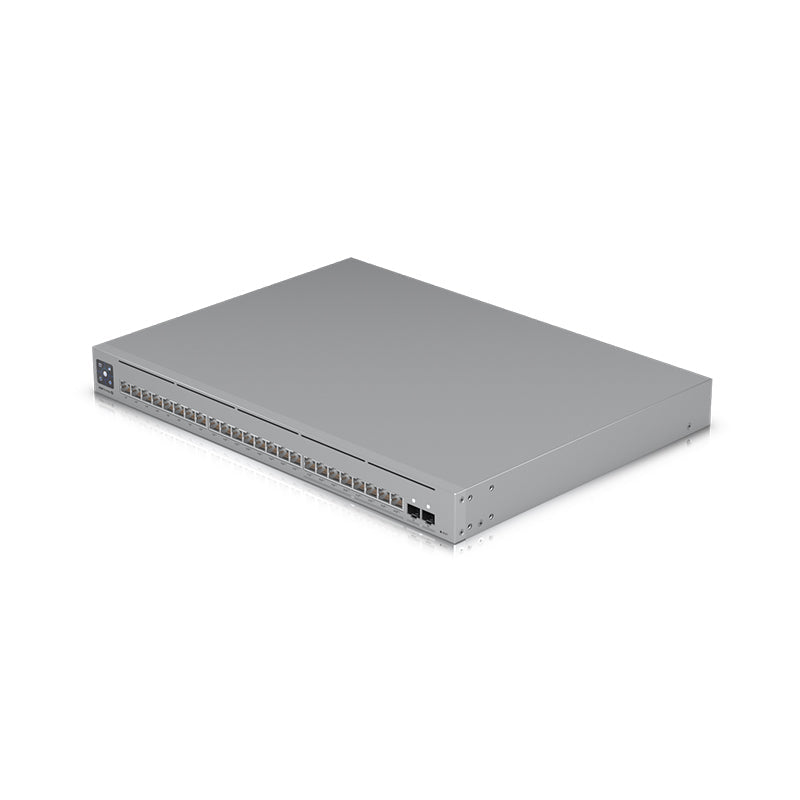

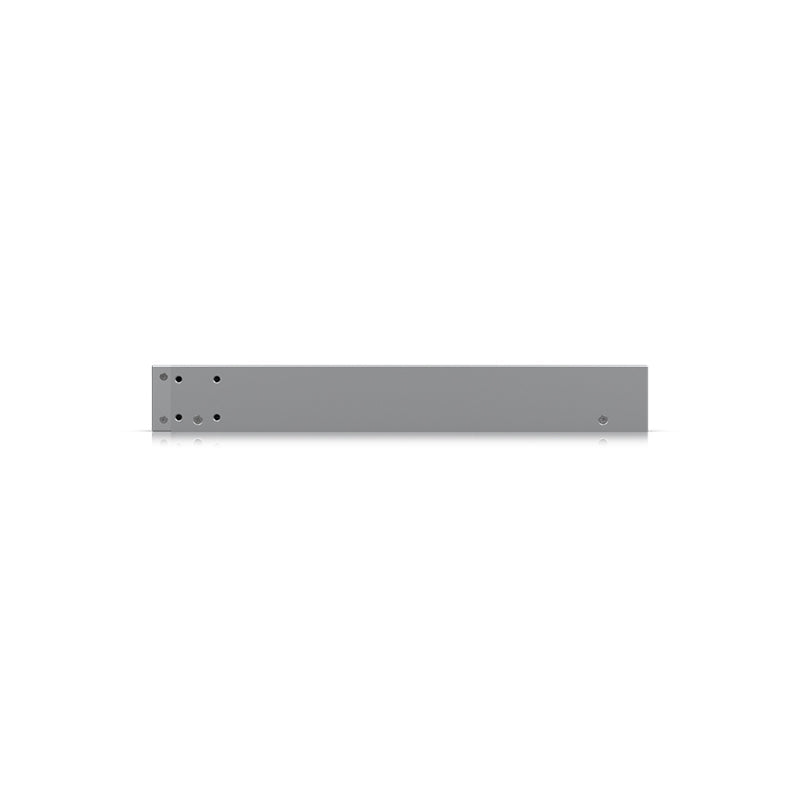

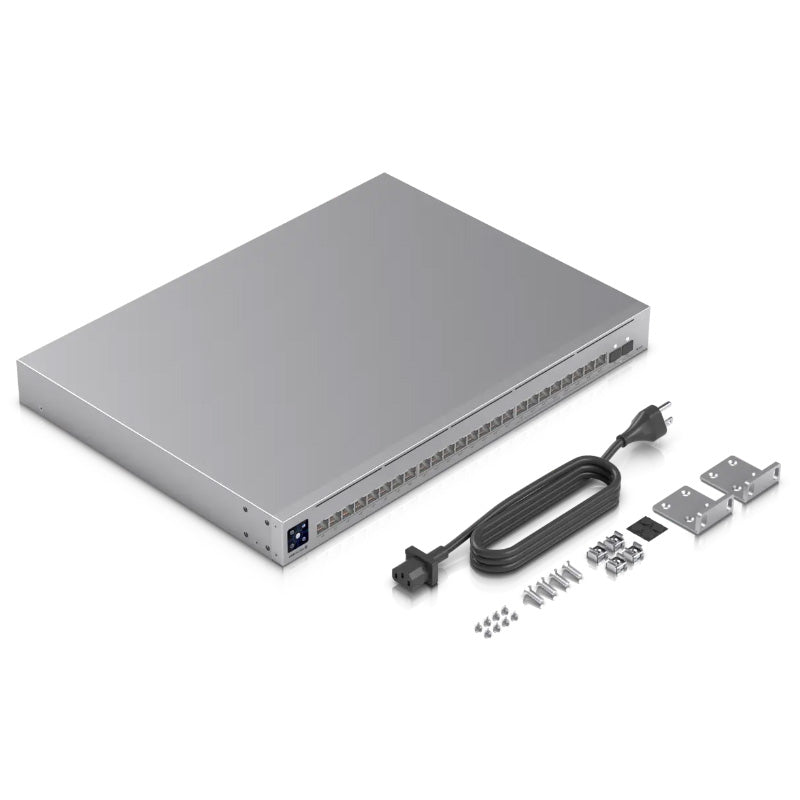

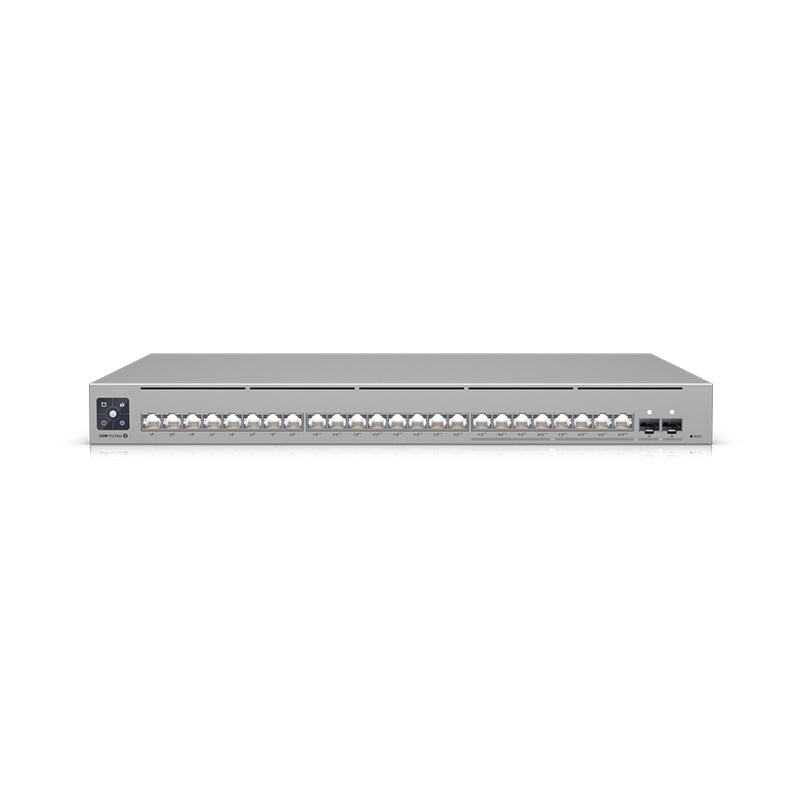

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-Max-24-PoE
USW-Pro-Max-24-PoE Ubiquiti UniFi Switch Pro Max 24 Port PoE (400w)
$1,592.43 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)SydneyMelbourneAdelaide (none in stock)PerthNorth Lakes (none in stock)
Pickup may be possible in Sydney and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

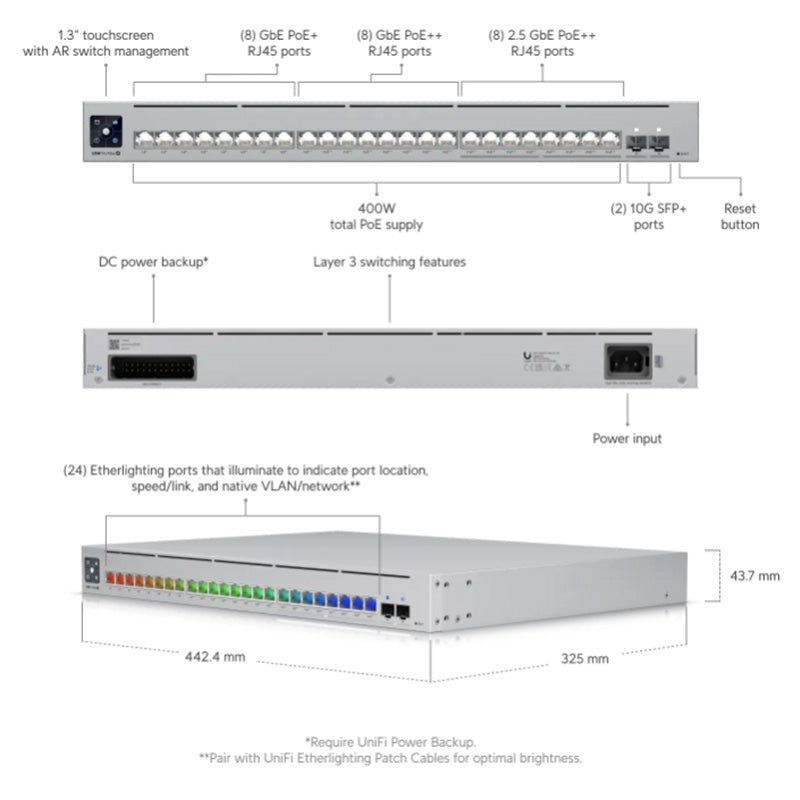

Features:

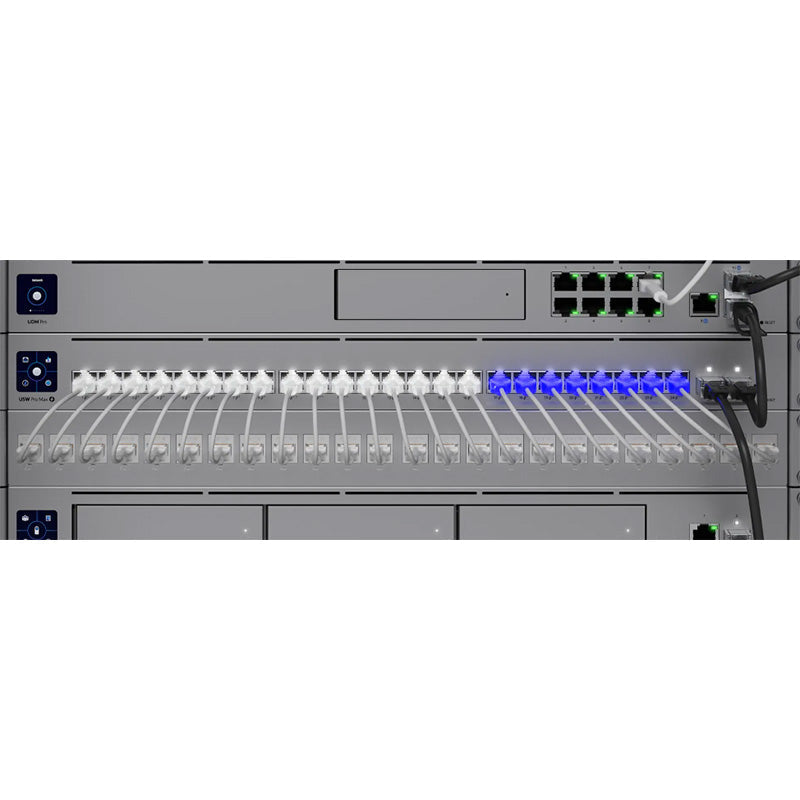

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Frequently asked questions5 questions
How many ports does this switch have and what speeds do they support?
It has 24 RJ45 ports: 16 at 1 GbE (1G/100M/10M) and 8 at 2.5 GbE (2.5G/1G/100M/10M). There are also 2 SFP+ ports supporting 10G/1G.
How much PoE power does it provide?
Total PoE availability is 400W, up to PoE++. Of the 24 RJ45 ports, 16 are PoE++ (60W per port) and 8 are PoE+ (32W per port).
Which ports provide PoE++?
All eight 2.5 GbE ports are PoE++, along with eight of the 1 GbE ports. The remaining eight 1 GbE ports are PoE+.

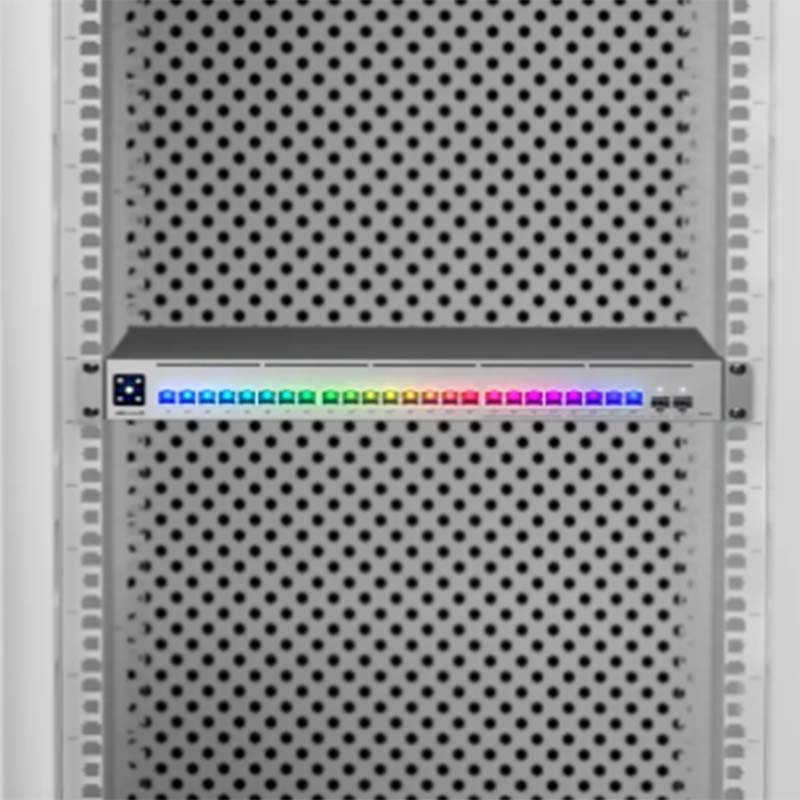

What do the Etherlighting ports do?
The ports illuminate to indicate port location, speed/link and native VLAN/network. For optimal brightness, pair the switch with UniFi Etherlighting Patch Cables.
Can it be rack mounted, and does it support backup power?

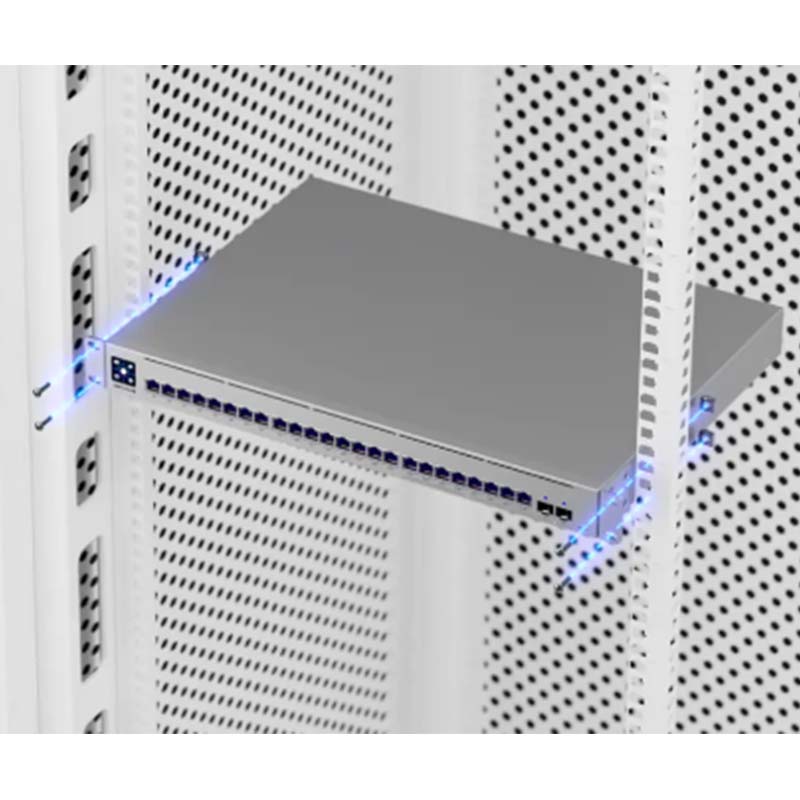

Yes, it is a 1U rack-mount switch supporting rack depths of 400 to 1200 mm. It is DC power backup ready, with an RPS DC input alongside the AC input (100–240V AC, 50/60 Hz).
Customer reviews
5.0
· 1 review
Specifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 (8 PoE+; 8 PoE++) / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 8 (All PoE++) / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 112 Gbps |
| Total Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 8 |
| PoE Ports · PoE++ | 16 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 50W (Excluding PoE Output) / 450W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 119 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) / With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.24 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-Max-24-PoE · Ubiquiti's spec sheet
