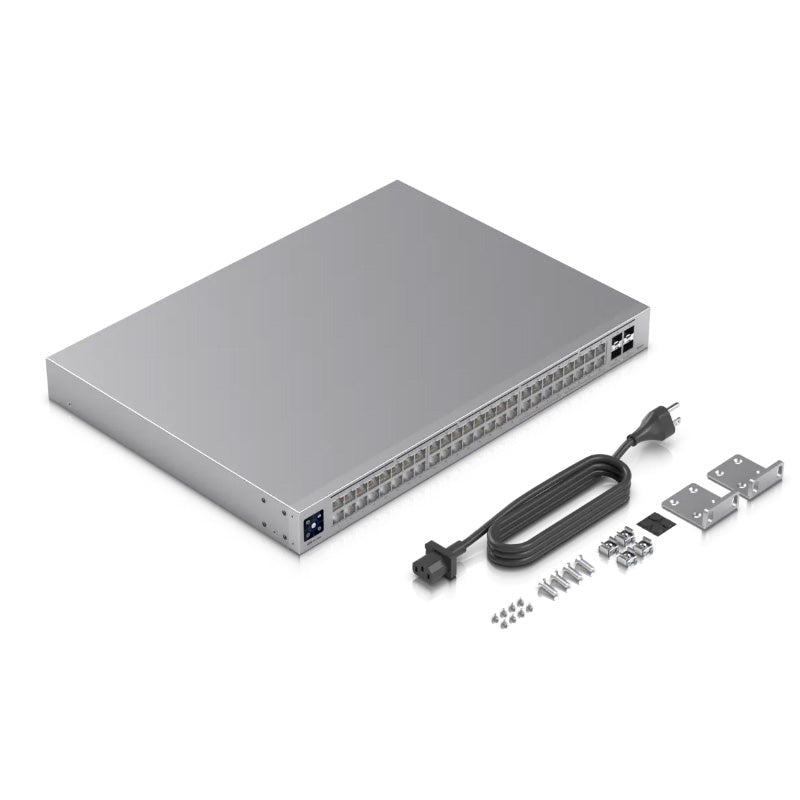

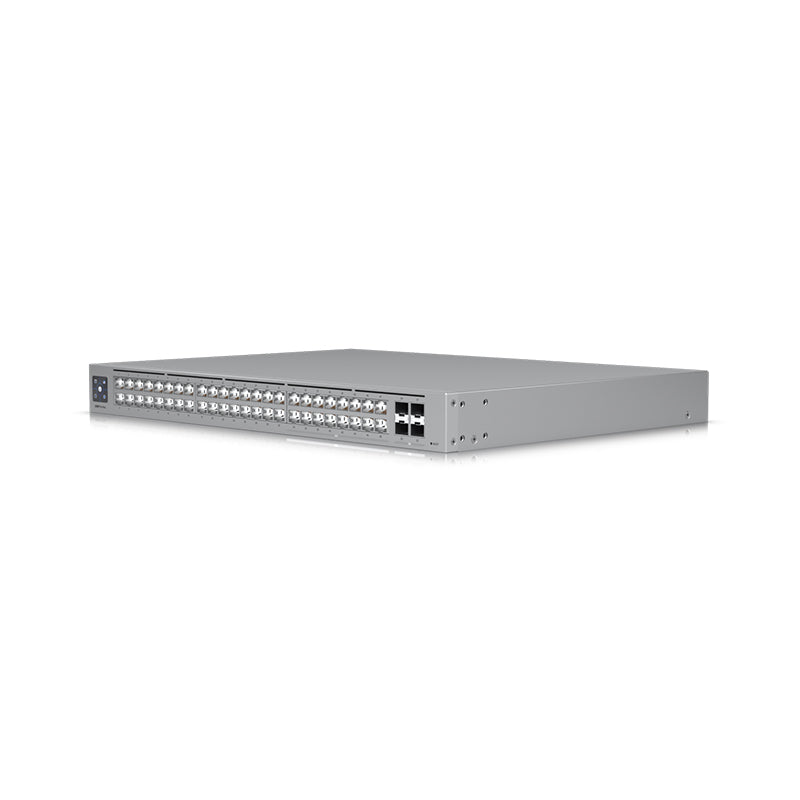

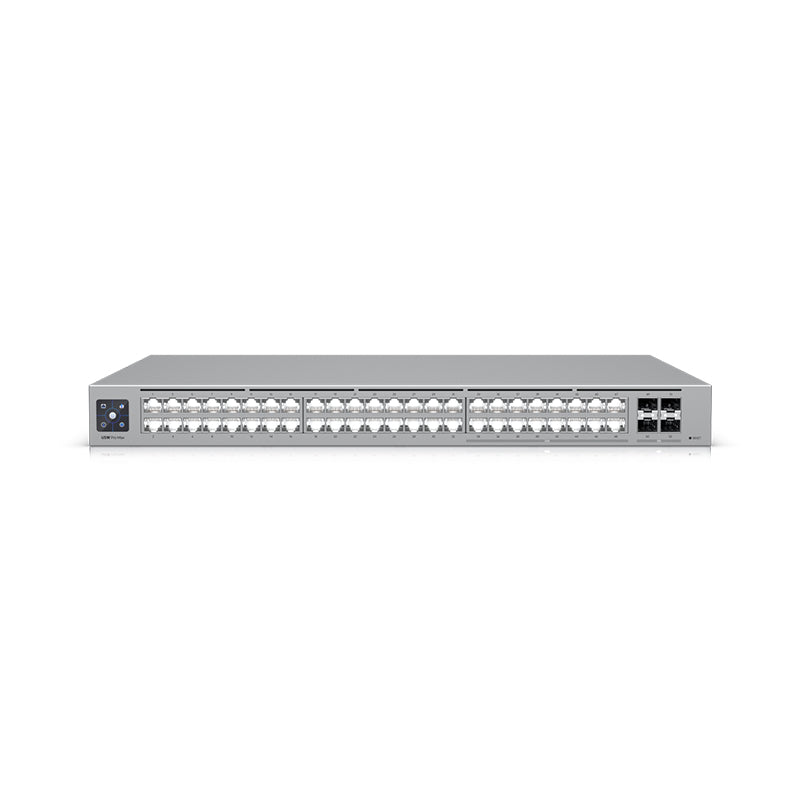

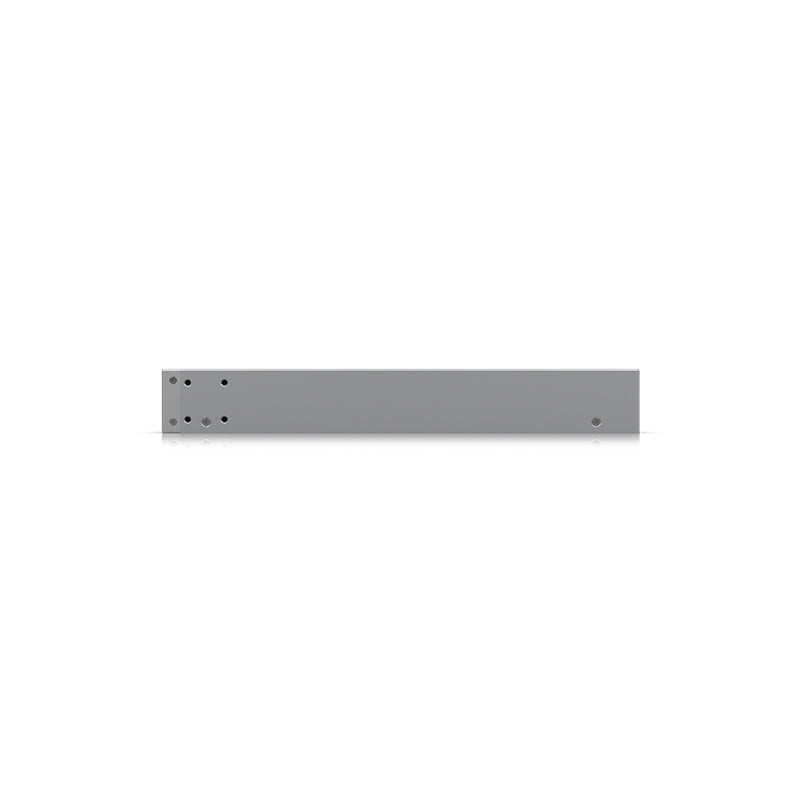

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-Max-48
USW-Pro-Max-48 Ubiquiti UniFi Switch Pro Max 48 Port Non PoE
$1,435.28 AUD
Unit price
/
Unavailable
Not in stock locally
In stock inNew ZealandUnited Kingdom
Contact us for options
We do not hold this locally right now, but it is in stock in New Zealand and the UK. Contact us and we will tell you what is possible.
Description
Description

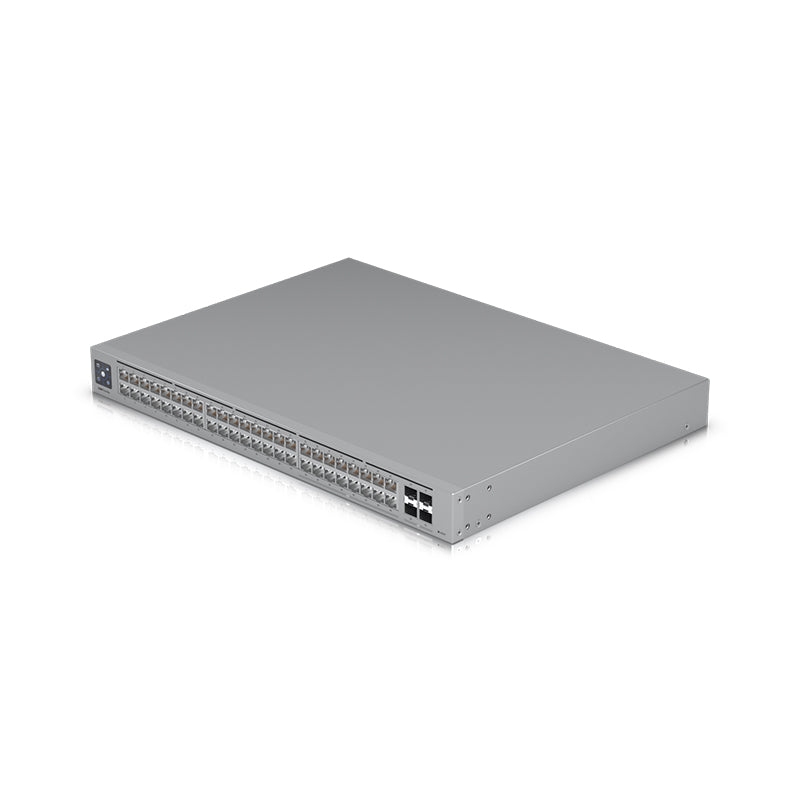

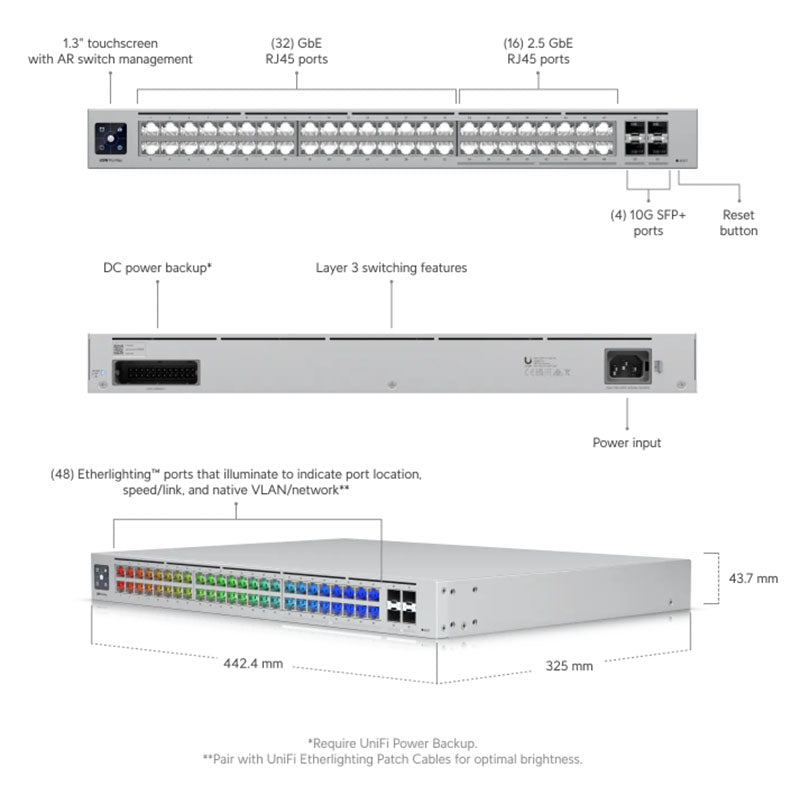

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Features:

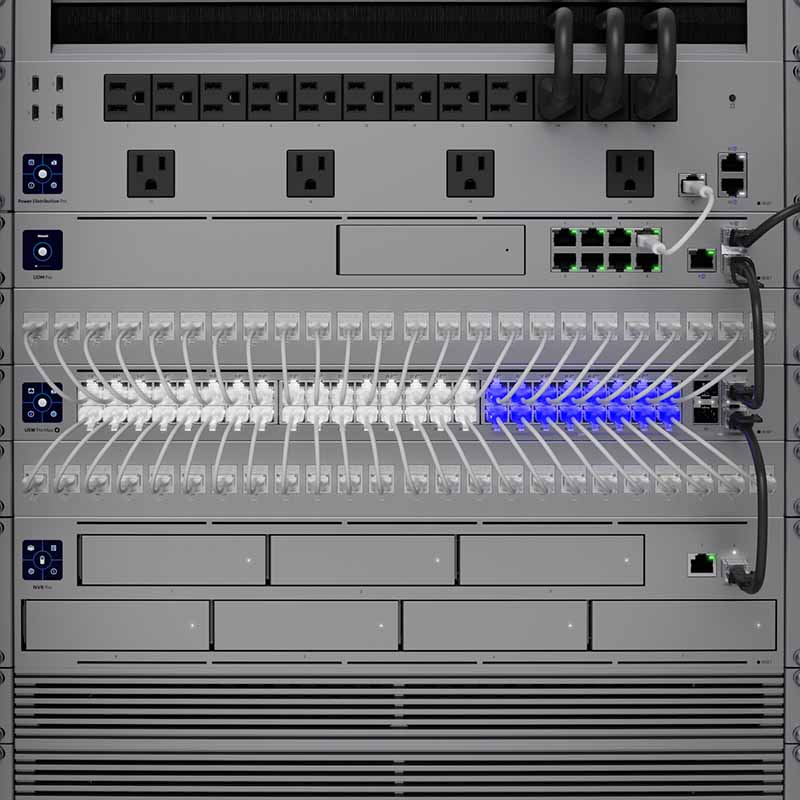

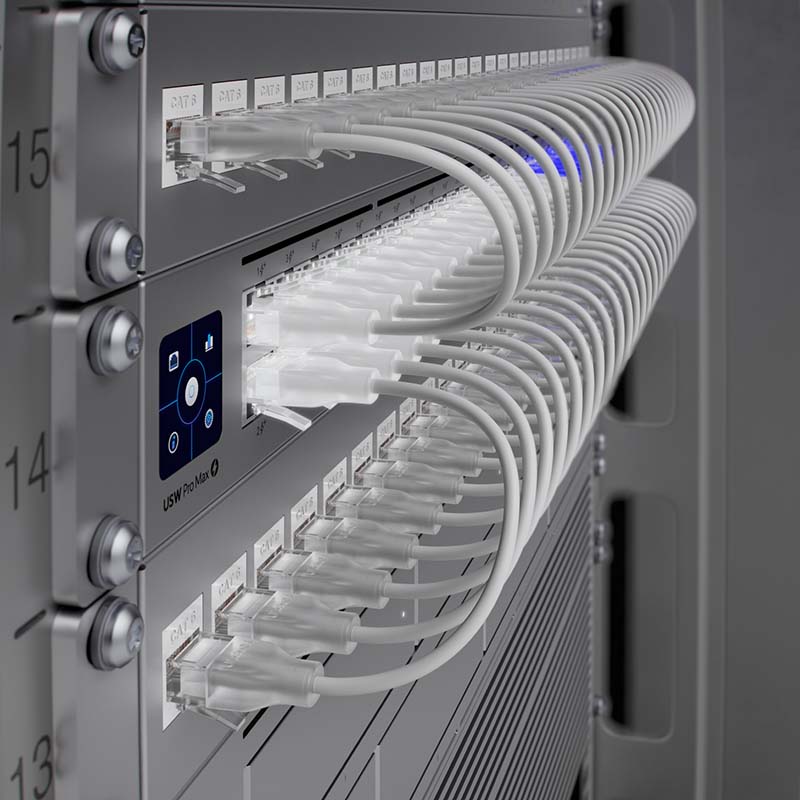

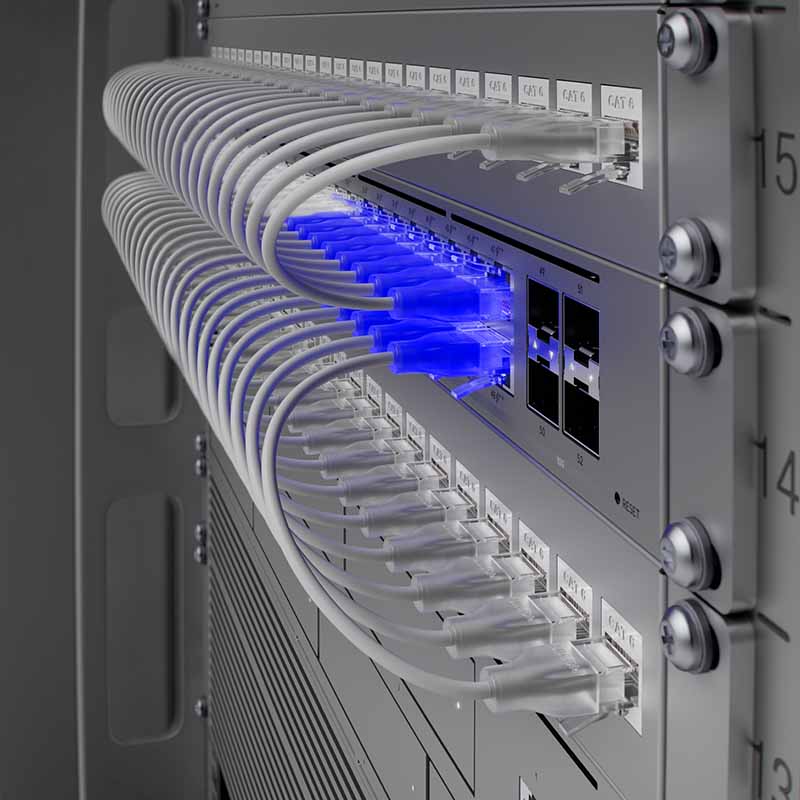

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

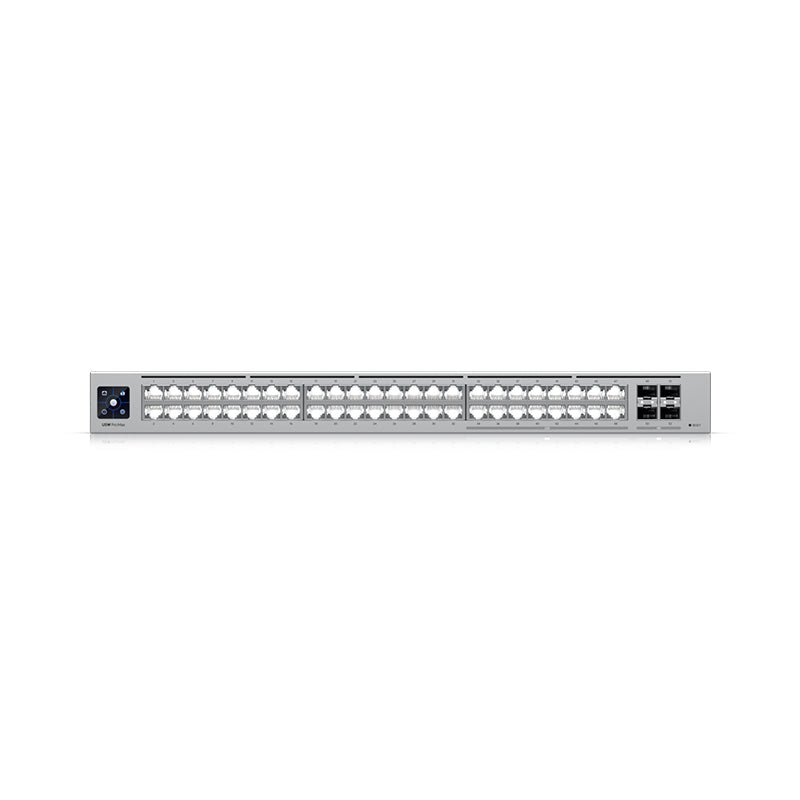

(16) 2.5 GbE RJ45 ports
(32) GbE RJ45 ports
(4) 10G SFP+ ports
DC power backup ready
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Frequently asked questions5 questions
What ports does the USW-Pro-Max-48 have?
It has 48 RJ45 ports: 16 at 2.5 GbE (supporting 2.5G/1G/100M/10M) and 32 at GbE (1G/100M/10M). There are also 4 10G SFP+ ports supporting 10G/1G.
Does this switch provide PoE?
No, this is the Non PoE model, so its ports do not supply power to connected devices. It is powered by a built-in 100W AC/DC supply with 100–240V AC universal input.
Can it be connected to a backup power source?

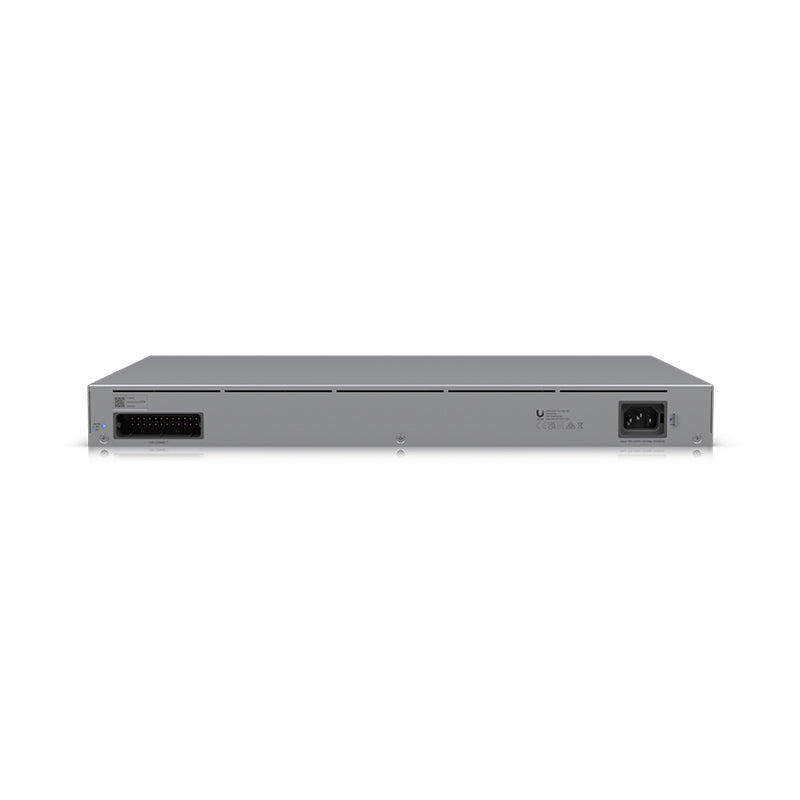

Yes, it is DC power backup ready and has a USP RPS DC input alongside the AC input. Maximum power consumption is 100W.
What are the switching and routing capabilities?
It is a Layer 3 switch with 224 Gbps switching capacity, 112 Gbps total non-blocking throughput and a 167 Mpps forwarding rate. It supports 1,000 VLANs, a 32,000-entry MAC address table and 256 IPv4 static routes.
What are Etherlighting ports and how is the switch managed?
Etherlighting ports illuminate to show port location, speed/link and native VLAN/network, with brightest results when paired with UniFi Etherlighting Patch Cables. It is managed with UniFi Network 8.0.24 and later, and has a 1.3" touchscreen display.
Specifications32 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 32 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 16 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 4 / (10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 100W |

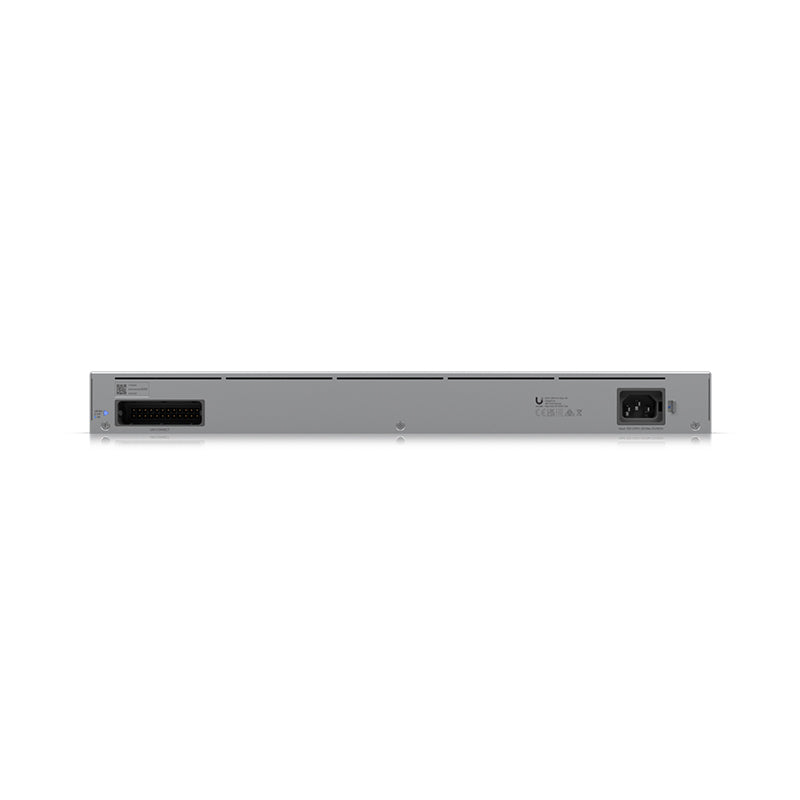

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 341.2 BTU/hr |
| Weight | Without mounting brackets: 4.8 kg (10.6 lb) / With mounting brackets: 4.9 kg (10.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06373-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.24 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-Max-48 · Ubiquiti's spec sheet
