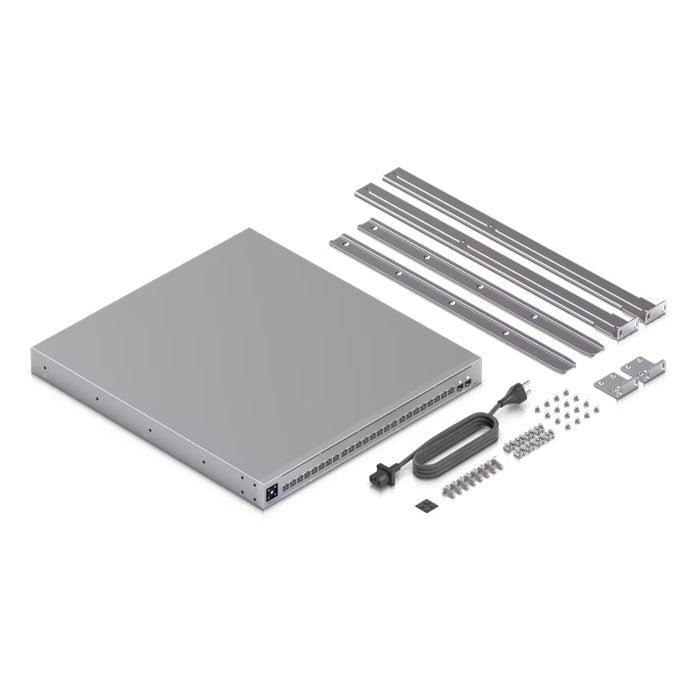

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-XG-24

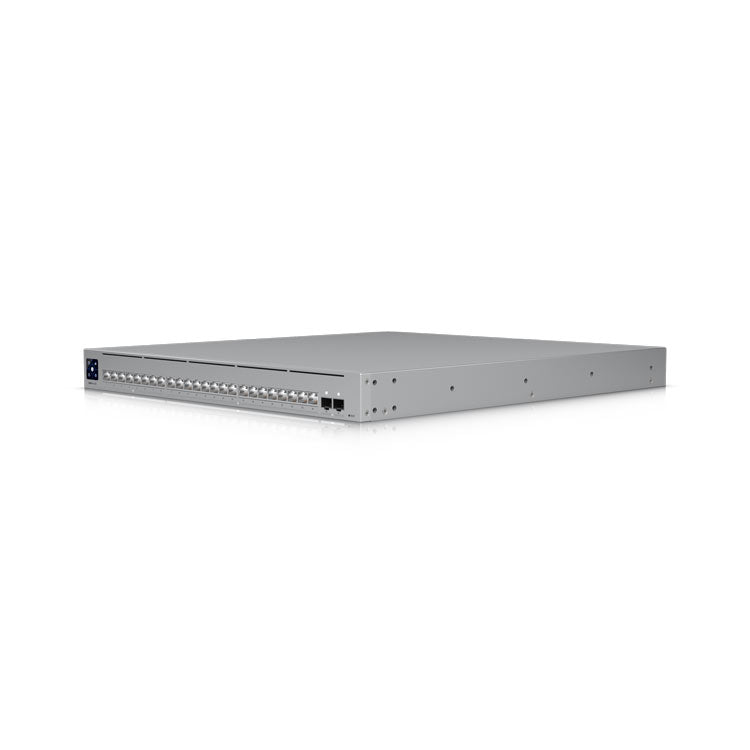

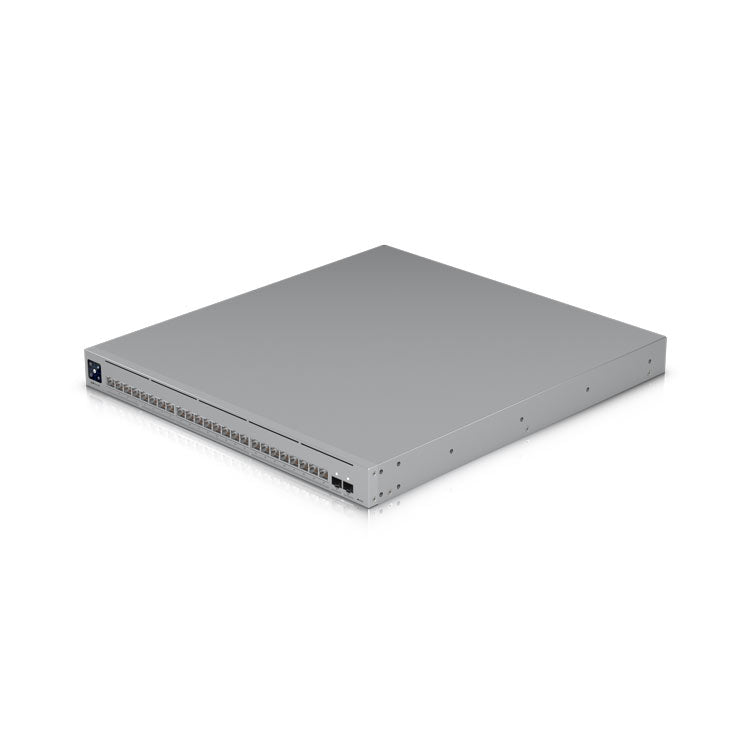

USW-Pro-XG-24 Ubiquiti UniFi Switch Pro XG 24 (Non PoE)
$2,232.52 AUD
Unit price
/
Unavailable
17 in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Part of the new Pro XG Switching Family, the Pro XG 24 PoE is a professional-grade, 24-port, Layer 3 Etherlighting™ switch. Offering (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Features:
Port Count: 24 + 2 SFP28
Downlink Speed: Up to 10 Gbps
Uplink Speed: 25 Gbps
Pro A/V Support
Frequently asked questions5 questions

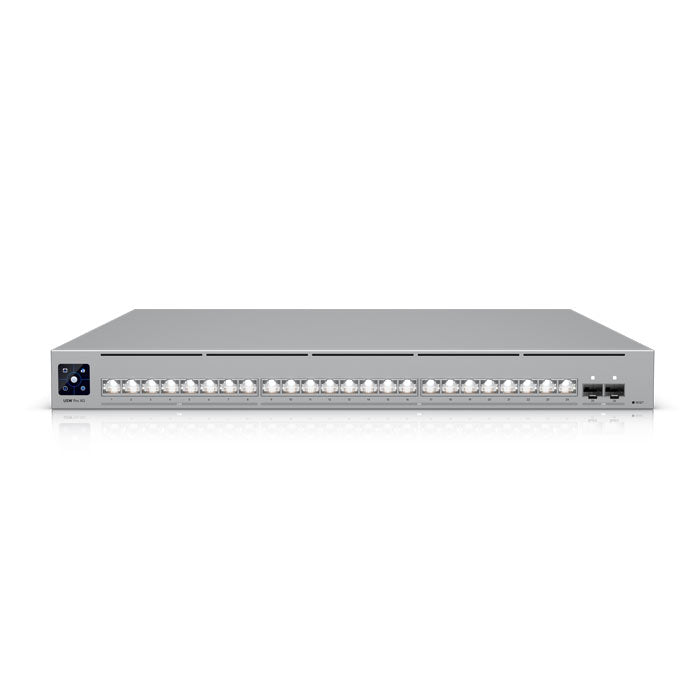

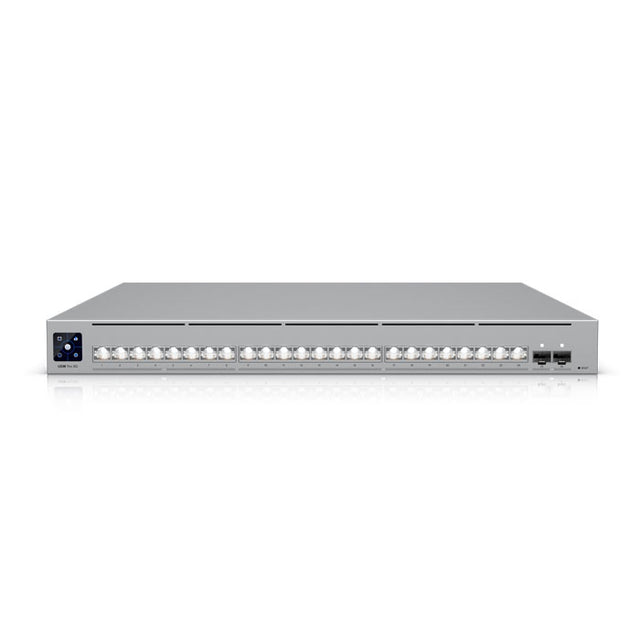

What ports does the USW-Pro-XG-24 have?
It has 16 x 10 GbE RJ45 ports, 8 x 2.5 GbE RJ45 ports and 2 x 25G SFP28 ports. The 10 GbE ports support 10G/5G/2.5G/1G/100M/10M, and the SFP28 ports support 25G/10G/1G.
Does this switch provide PoE?
No, this is the non-PoE model of the Pro XG 24. It is a Layer 3 switch with a 200W internal AC/DC power supply and a maximum power consumption of 150W.

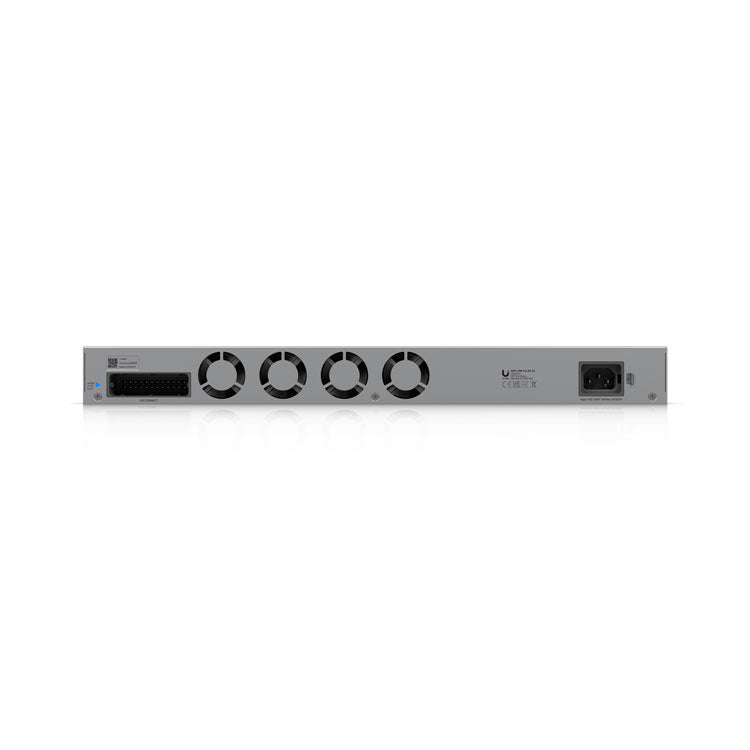

How is the USW-Pro-XG-24 powered, and does it support redundant power?
It has a universal 100–240V AC input (50/60 Hz) and an internal 200W AC/DC power supply. Redundancy is provided through a USP RPS DC input for DC power backup.
What are the switch's performance figures?
It offers 460 Gbps switching capacity, 230 Gbps total non-blocking throughput and a 342 Mpps forwarding rate. It also supports 1,000 VLANs, a 32,000-entry MAC address table, 512 IPv4 static routes and an 8 MB packet buffer.

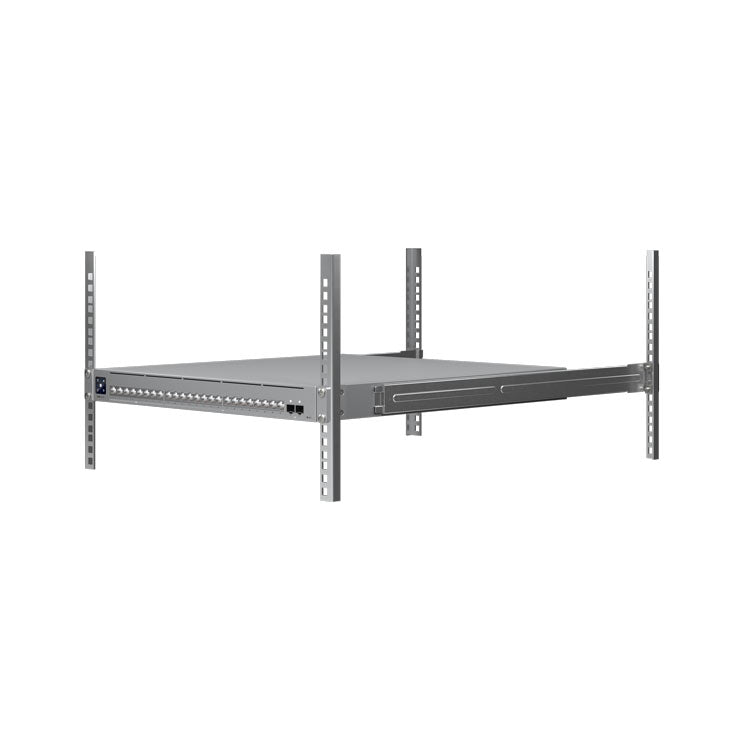

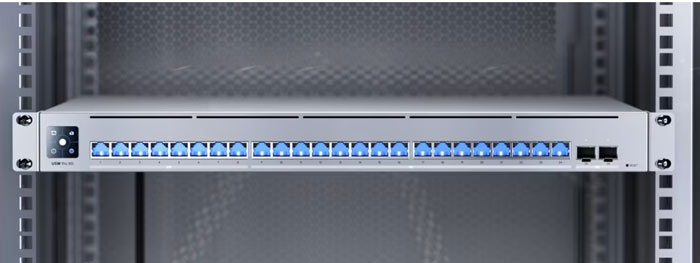

What are the size and rack-mounting details?

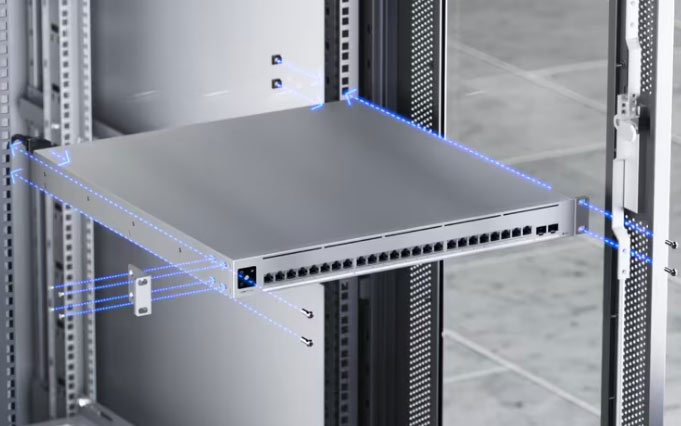

It is a 1U rack-mount switch measuring 442 x 480 x 44 mm and weighing 7.3 kg with mounting brackets. It suits four-post racks with post depths from 600 to 1,066 mm.
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 480 x 44 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 2.5 GbE RJ45 | 8 / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 16 / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| Max. Power Consumption | 150W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Weight | Without mounting brackets: 7.2 kg (15.9 lb) / With mounting brackets: 7.3 kg (16.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06464-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-XG-24 · Ubiquiti's spec sheet
