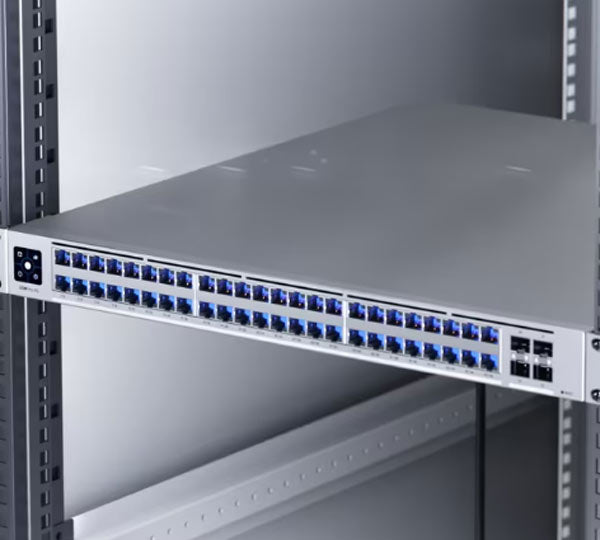

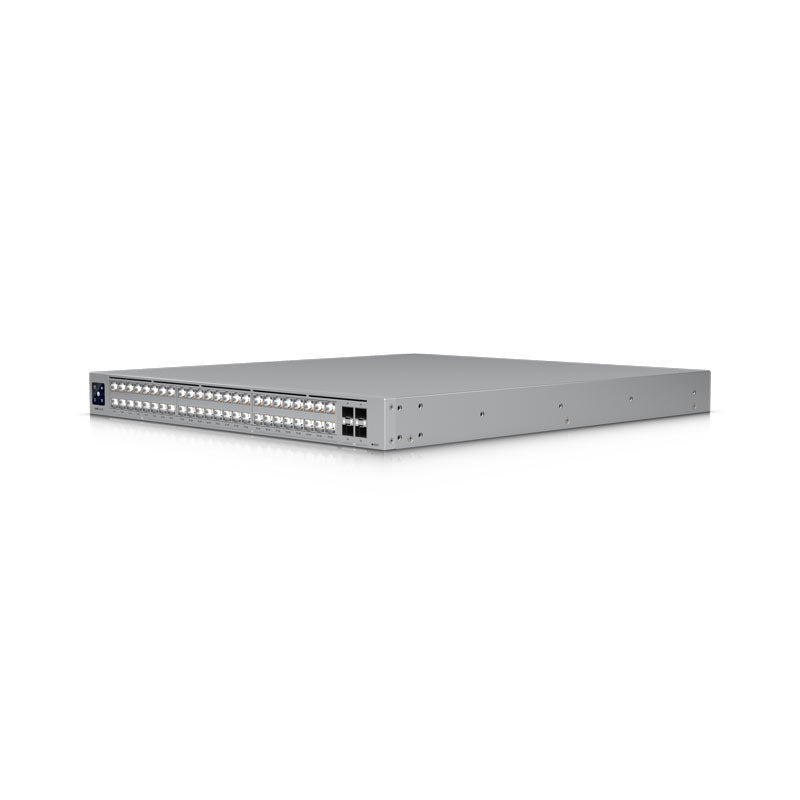

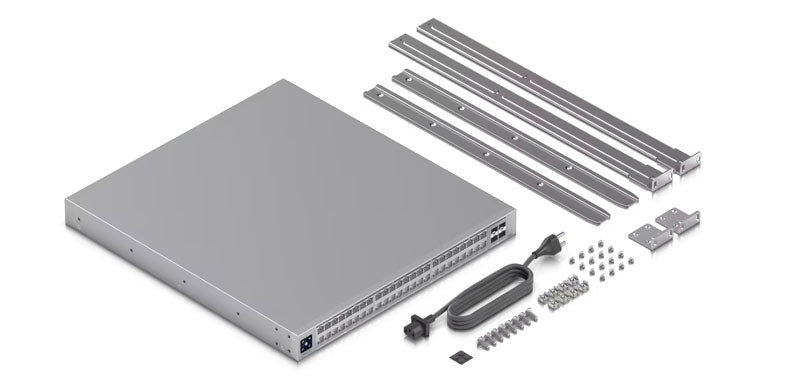

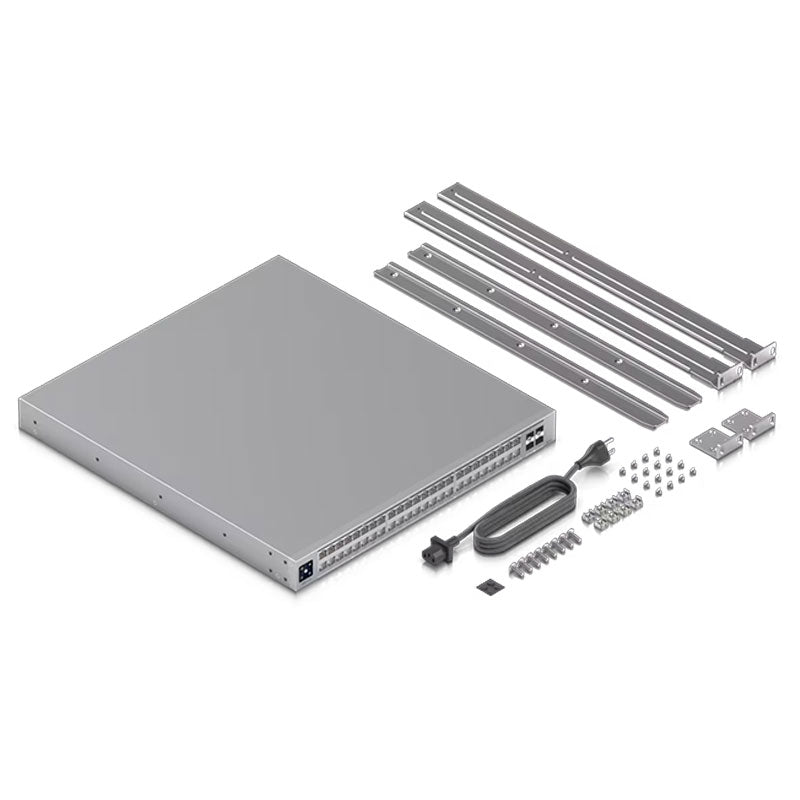

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-XG-48
USW-Pro-XG-48 Ubiquiti UniFi Switch Pro XG 48 non-PoE
$3,958.90 AUD
Unit price
/
Unavailable
11 in stockShips from the warehouse closest to you
Brisbane (none in stock)SydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

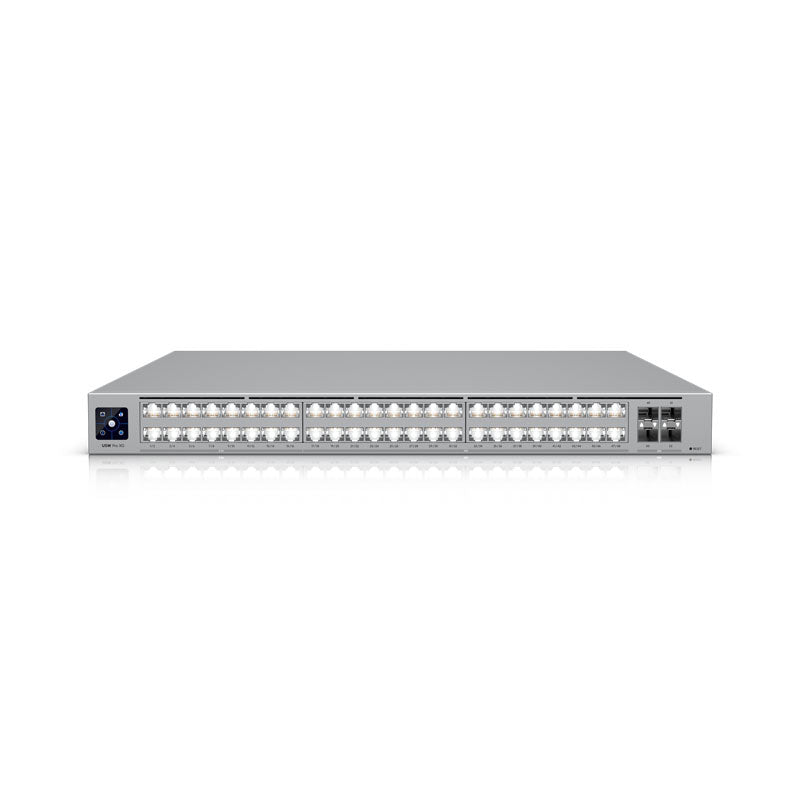

Part of the Pro XG Switching Family, the UniFi Pro XG 48 is a professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Features:
Port Count: 48 + 4 SFP28
Downlink Speed: Up to 10 Gbps
Uplink Speed: 25 Gbps
Layer 3 Etherlighting™
Pro A/V Support
Frequently asked questions5 questions
What ports does the USW-Pro-XG-48 have?
It has 32 10 GbE RJ45 ports, 16 2.5 GbE RJ45 ports and 4 25G SFP28 ports. The 10 GbE ports support 10G/5G/2.5G/1G/100M/10M, and the SFP28 ports support 25G/10G/1G.
Does this switch provide PoE?
No, this is the non-PoE model, so it does not supply power over Ethernet to connected devices.
How is the USW-Pro-XG-48 powered, and does it support power redundancy?
It has an internal 300W AC/DC power supply with a universal 100–240V AC, 50/60 Hz input. It also has a USP RPS DC input for DC power backup, and maximum power consumption is 250W.
What are the switch's performance figures?
It offers 920 Gbps switching capacity, 460 Gbps total non-blocking throughput and a 684 Mpps forwarding rate. It also supports 1,000 VLANs and a 32,000-entry MAC address table.
Will it fit a standard rack, and what are its dimensions?
Yes, it is a 1U rack-mount switch measuring 442 x 480 x 44 mm. It suits four-post racks, with a supported post depth of 600 to 1,066 mm.
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 480 x 44 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 2.5 GbE RJ45 | 16 / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 32 / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 4 / (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| Max. Power Consumption | 250W |

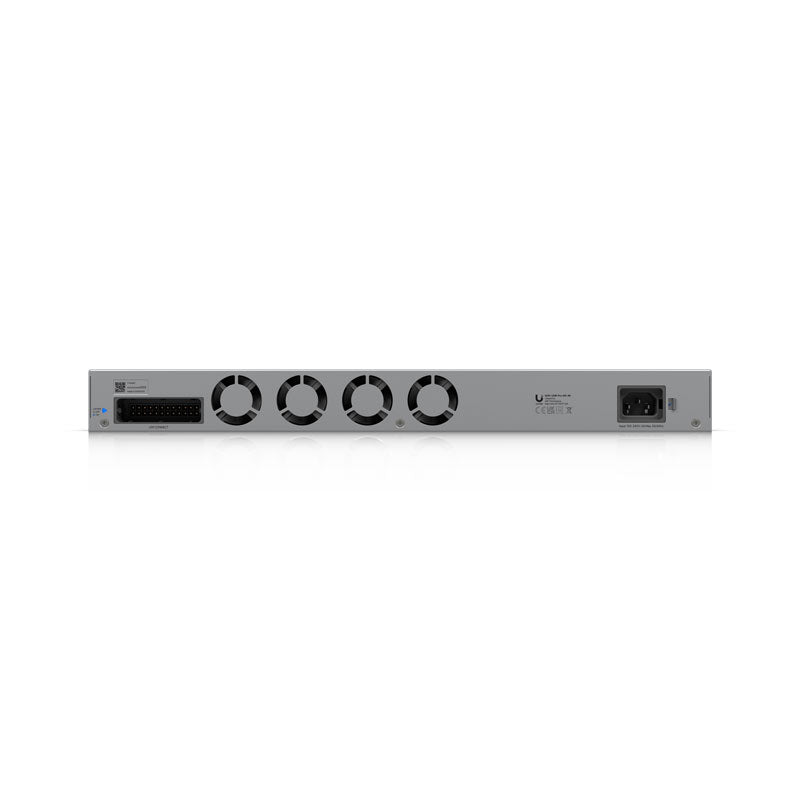

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 300W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Weight | Without mounting brackets: 7.5 kg (16.5 lb) / With mounting brackets: 7.6 kg (16.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

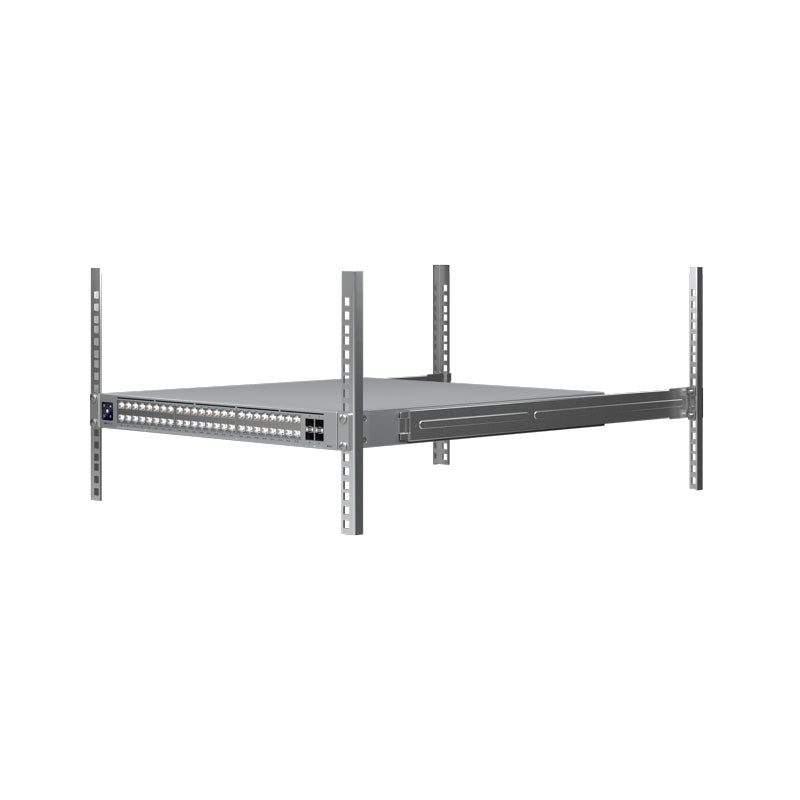

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 14kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06464-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model USW-Pro-XG-48 · Ubiquiti's spec sheet
