USW-Pro-XG-48-PoE (1080W) Ubiquiti UniFi Switch Pro XG 48 PoE

Q: What power options and redundancy does it have?

It has an internal 1,350W AC\/DC power supply with universal 100-240V AC input at 50\/60 Hz. It also has a USP RPS DC input for DC power backup.

$5,207.66 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

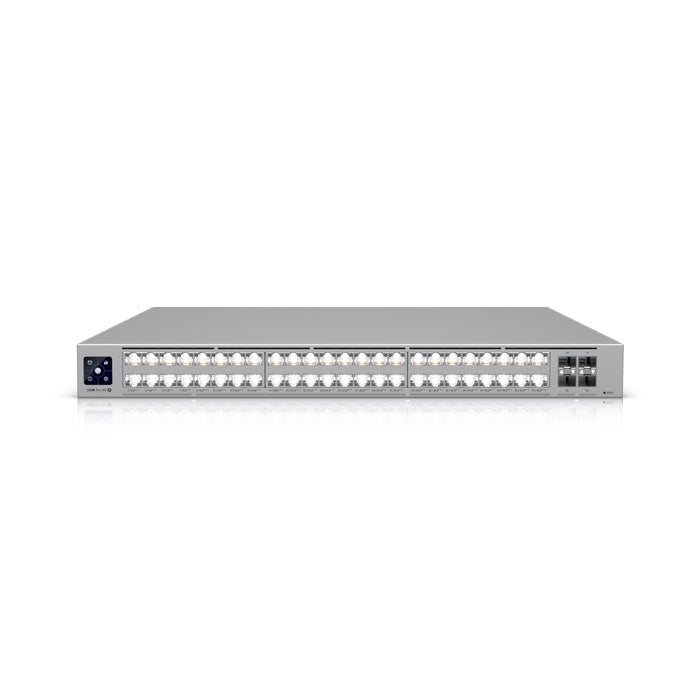

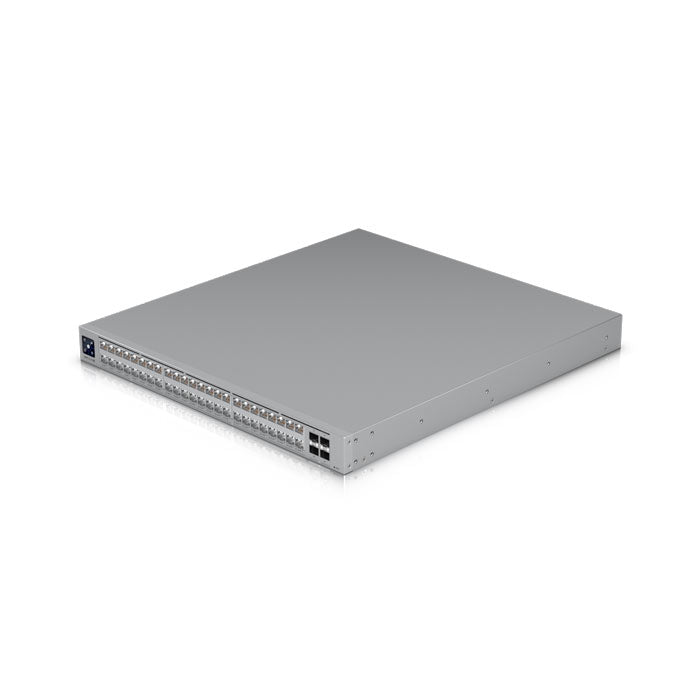

Part of the new Pro XG Switching Family, the Pro XG 48 PoE is a professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

Features:

Port Count: 48 + 4 SFP28

Downlink Speed: Up to 10 Gbps

Uplink Speed: 25 Gbps

PoE Output: PoE+++

PoE Availability: 1080 W

Pro A/V Support

Frequently asked questions5 questions

What ports does the USW-Pro-XG-48-PoE have?

It has 32 x 10 GbE RJ45 ports, 16 x 2.5 GbE RJ45 ports and 4 x 25G SFP28 ports. All 48 RJ45 ports support PoE+++.

How much PoE power does this switch provide?

Total PoE availability is 1080 W on 200-240V AC and 972 W on 100-120V AC. Each of the 48 PoE+++ ports can deliver up to 90 W.

Is this a Layer 3 switch, and what are its performance figures?

Yes, it is a Layer 3 switch. It offers 920 Gbps switching capacity, 460 Gbps total non-blocking throughput, a 684 Mpps forwarding rate and supports 1,000 VLANs.

What power options and redundancy does it have?

It has an internal 1,350W AC/DC power supply with universal 100-240V AC input at 50/60 Hz. It also has a USP RPS DC input for DC power backup.

What are the physical size and mounting details?

It is a 1U rack-mount switch measuring 442 x 480 x 44 mm and weighing 8.8 kg with mounting brackets. It suits four-post racks with post depths from 600 to 1,066 mm.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications38 specifications · 4 sections

Overview
Dimensions	442 x 480 x 44 mm / (17.4 x 18.9 x 1.7")
Port Layout · 2.5 GbE RJ45	16 (All PoE+++) / (2.5G/1G/100M/10M)
Port Layout · 10 GbE RJ45	32 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M)
Port Layout · 25G SFP28	4 / (25G/10G/1G)
Max. PoE Output	Up to PoE+++
Total PoE Availability	200-240V AC: 1080W / 100-120V AC: 972W
Redundancy	DC Power Backup
Form Factor	Rack mount (1U)
Performance
Switching Capacity	920 Gbps
Total Non-Blocking Throughput	460 Gbps
Forwarding Rate	684 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
IPv4 Static Routes	512
Packet Buffer Size	8 MB
Access Lists · IPv4	256
Access Lists · MAC	256
Hardware
PoE Ports · PoE+++	48
Max. PoE Wattage per Port by PSE · PoE	15.4W
Max. PoE Wattage per Port by PSE · PoE+	30W
Max. PoE Wattage per Port by PSE · PoE++	60W
Max. PoE Wattage per Port by PSE · PoE+++	90W
Max. Power Consumption	200W (Excluding PoE Output) / / 200-240V: 1,280W / / 100-120V AC: 1,172W (Including PoE Output)

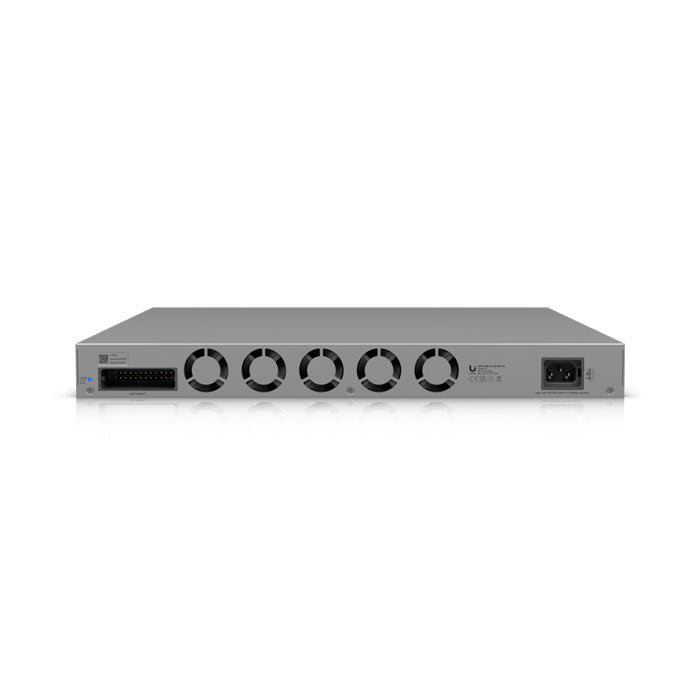

Power Method	(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 1,350W
Supported Voltage Range	100–240V AC
Management	Ethernet / AR
Weight	Without mounting brackets: 8.7 kg (19.2 lb) / With mounting brackets: 8.8 kg (19.4 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel

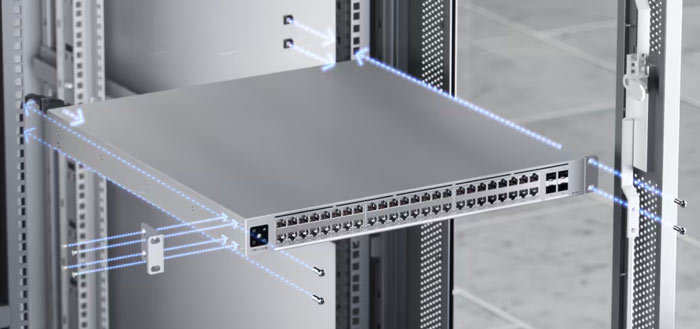

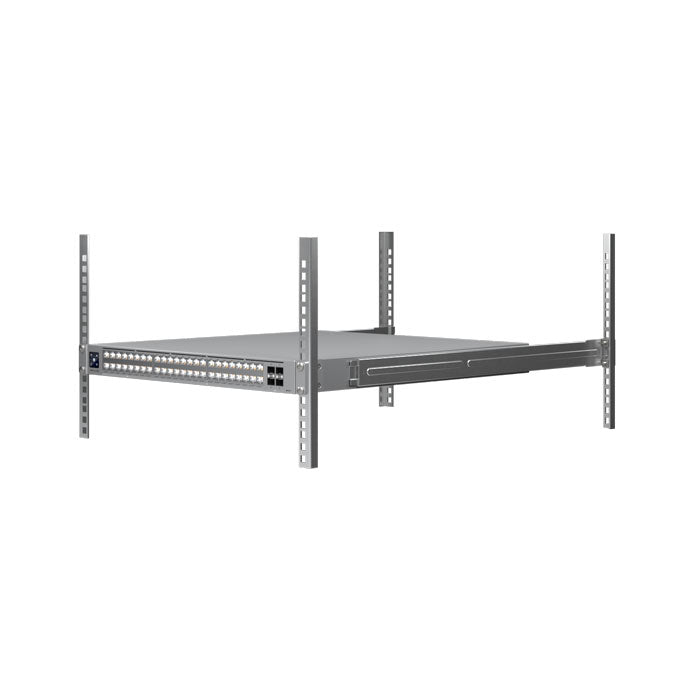

Supported Rack Depth	482.6 mm (19") four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC, Anatel: 04322-25-08356
Software
Application Requirements · UniFi Network	Version 9.1.120 and later
