Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Pro-XG-Aggregation

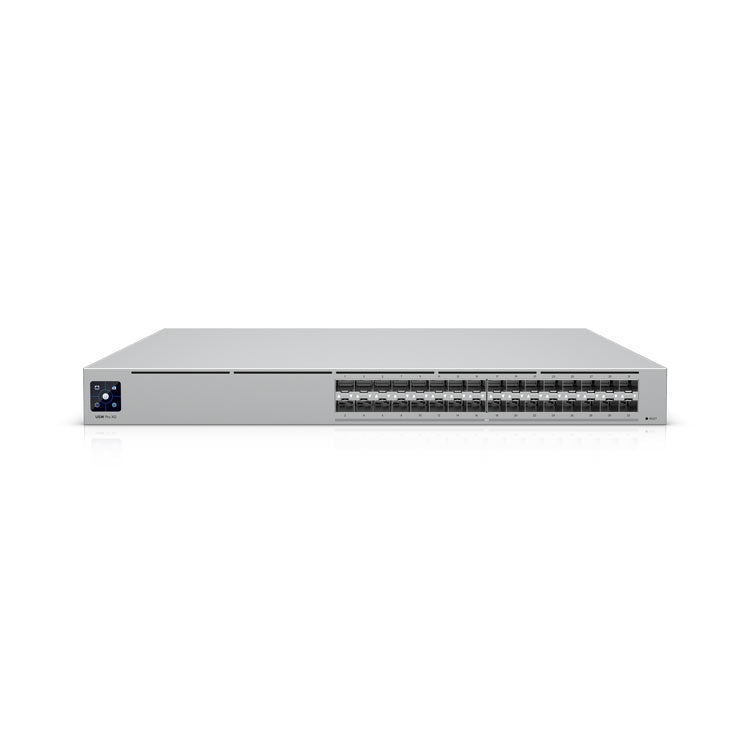

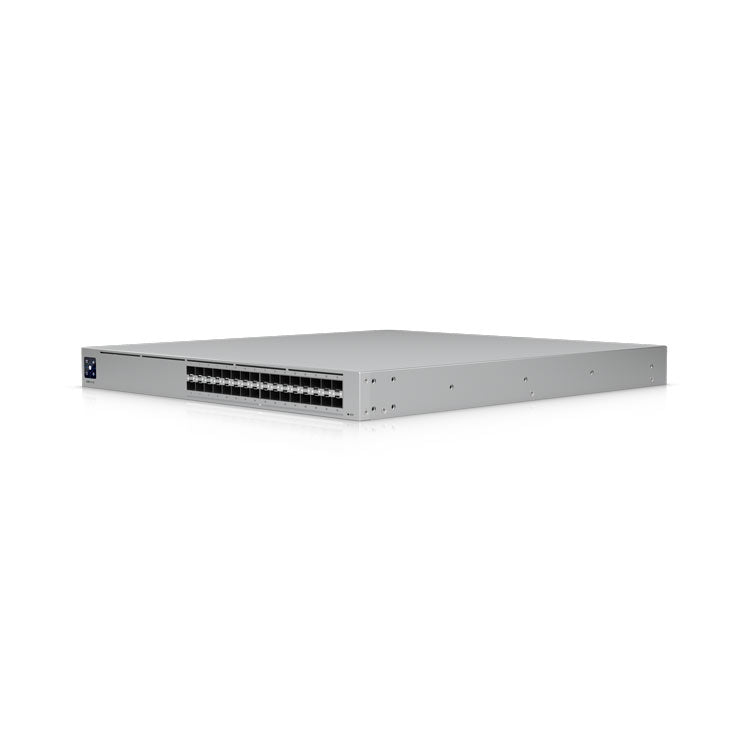

USW-Pro-XG-Aggregation Ubiquiti Pro XG Aggregation Switch
$4,527.49 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Frequently asked questions5 questions
How many ports does the USW-Pro-XG-Aggregation have and what speeds do they support?
It has 32 SFP28 ports. Each port supports 25G, 10G and 1G speeds.
What are the switching and throughput figures?
Switching capacity is 1.6 Tbps, with total non-blocking throughput of 800 Gbps and a forwarding rate of 1.2 Bpps. The packet buffer is 8 MB.
How is the switch powered, and does it support power redundancy?
It has an internal 200W AC/DC power supply with universal 100–240V AC, 50/60 Hz input. It also has a USP RPS DC input for DC power backup.
What are the physical size and rack requirements?

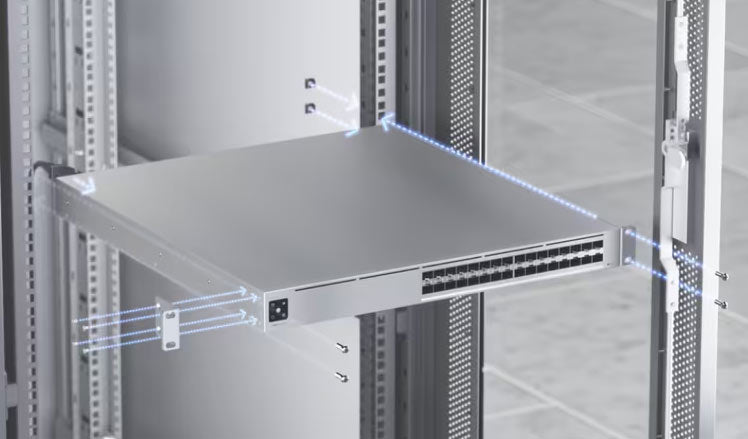

It is a 1U rack-mount unit measuring 442.4 x 43.7 x 480 mm and weighing 7.1 kg without the mounting bracket (7.2 kg with it). It suits four-post racks with post depths from 600 to 1,066 mm.
Is it a Layer 3 switch, and what routing and VLAN limits apply?
Yes, it is a Layer 3 switch. It supports 1,000 VLANs, 512 IPv4 static routes and a MAC address table of 32,000 entries.
Specifications29 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 480 mm / (17.4 x 1.7 x 18.9") |
| Port Layout · 25G SFP28 | 32 / (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack Mount (1U) |
| Performance | |
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| Max. Power Consumption | 200W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 682 BTU/hr |
| Weight | Without mounting bracket: 7.1 kg (15.7 lbs) / With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05977-25-08356 |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-Pro-XG-Aggregation · Ubiquiti's spec sheet
