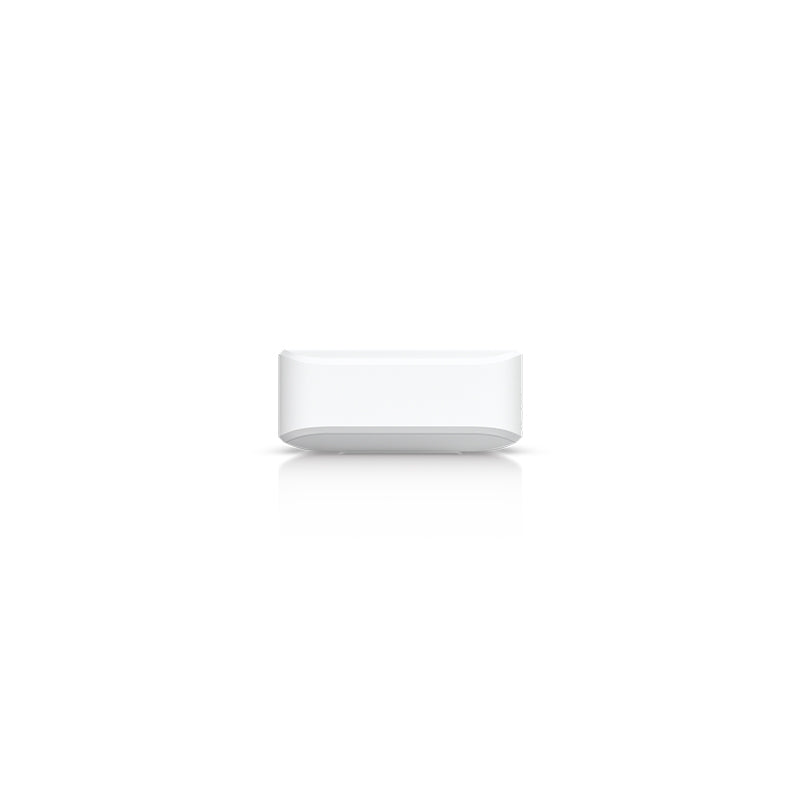

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-Ultra-210W
USW-Ultra-210W Ubiquiti Unifi Ultra 8 Port 210W PoE Switch
$420.11 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
In stock in
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

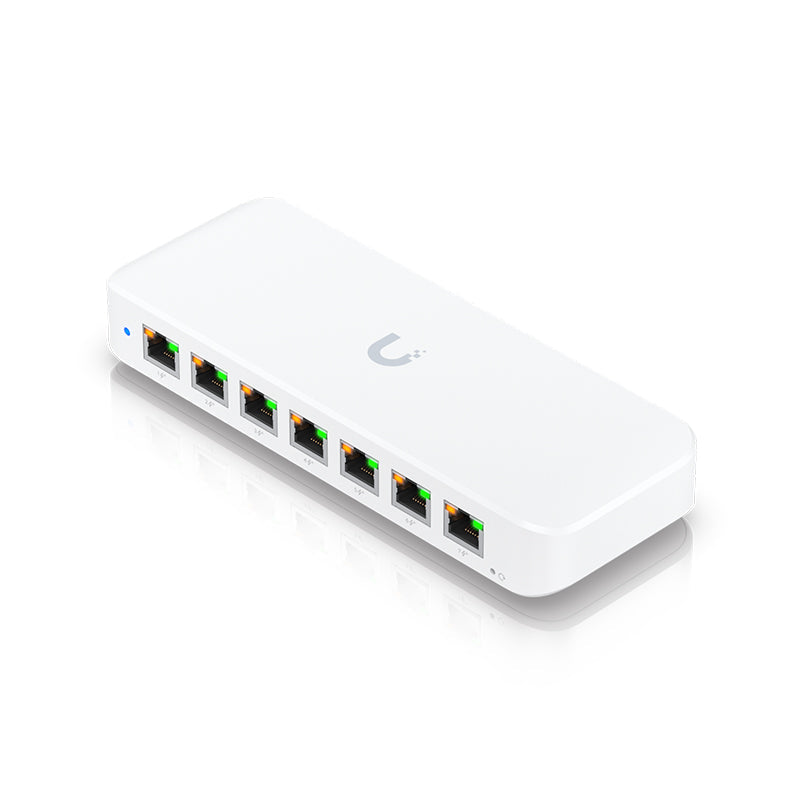

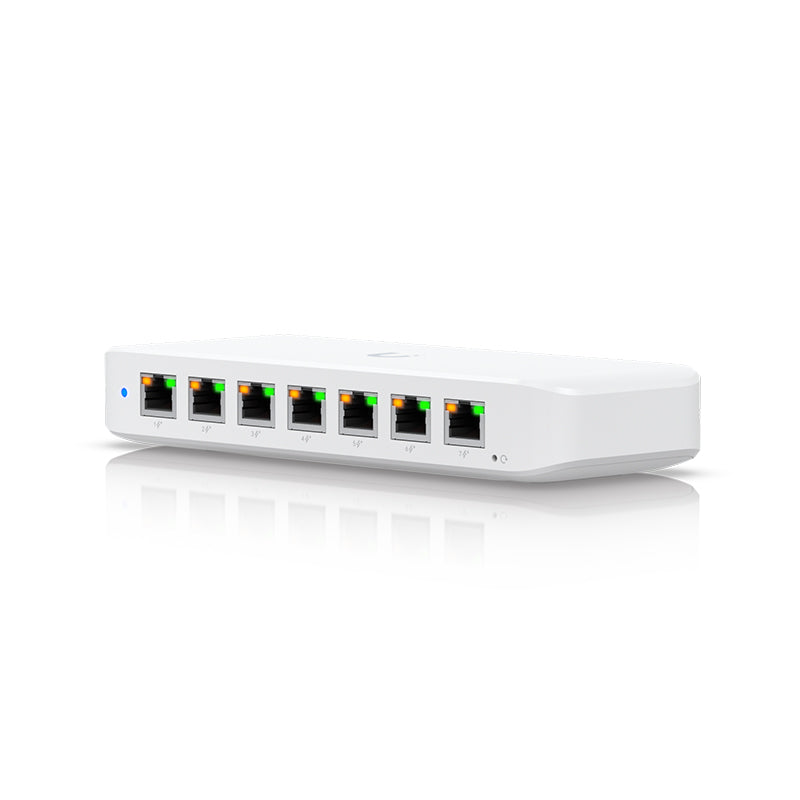

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Features:
USW-Ultra-210W(202W)

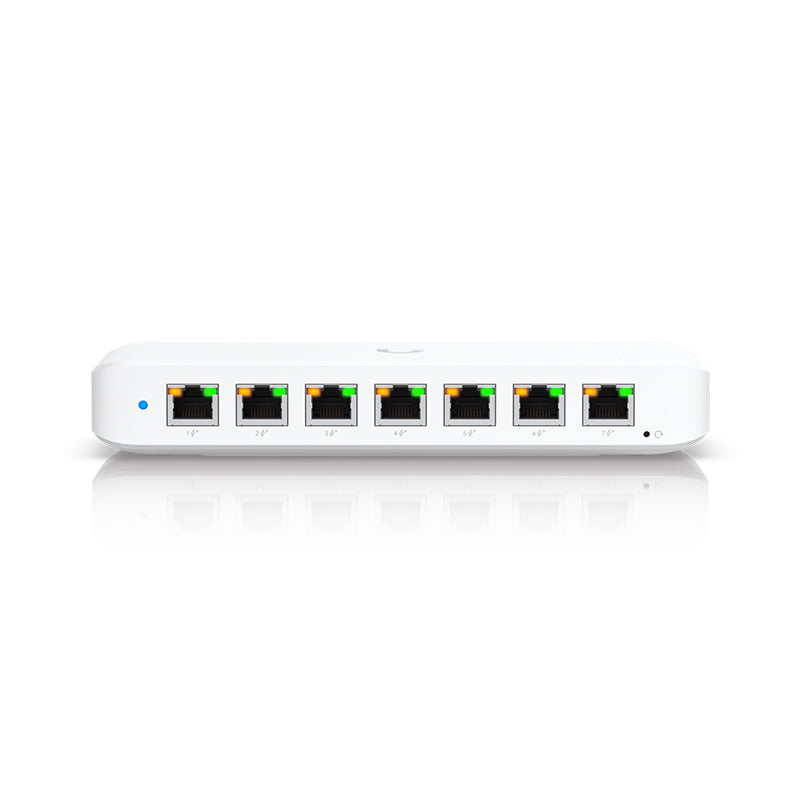

(7) GbE PoE+ output ports

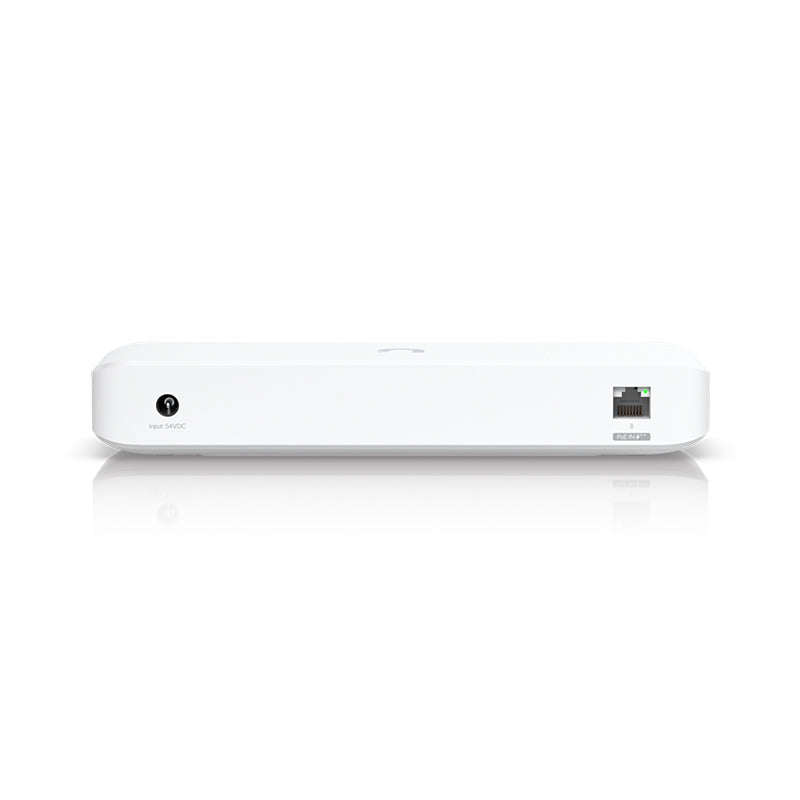

(1) GbE port with optional PoE++ input*
— 202W PoE availability with the included AC power adapter
— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
Frequently asked questions5 questions
How many ports does the USW-Ultra-210W have, and which support PoE?
It has eight Gigabit Ethernet RJ45 ports. Seven are PoE+ output ports, and the eighth is a GbE port that can optionally accept PoE++ input. Ports run at 1G, 100M or 10M.
How much PoE power is available in total?
With the included AC power adapter, 202W of PoE is available. This drops to 42W with PoE++ input and 16W with PoE+ input. PoE+/PoE++ input or AC power is required for PoE output.
Can the switch be powered over PoE instead of the AC adapter?
Yes. The eighth port supports optional PoE++ input, and PoE input is supported for switch operation. A power adapter can also be used as the power source, and an AC/DC adapter is included.
What is the maximum PoE output per port?
The seven PoE-capable output ports support PoE+, which is up to 30W per port. The eighth port is a PoE++ input port rather than a PoE output port.
What software does it work with, and how is it mounted?

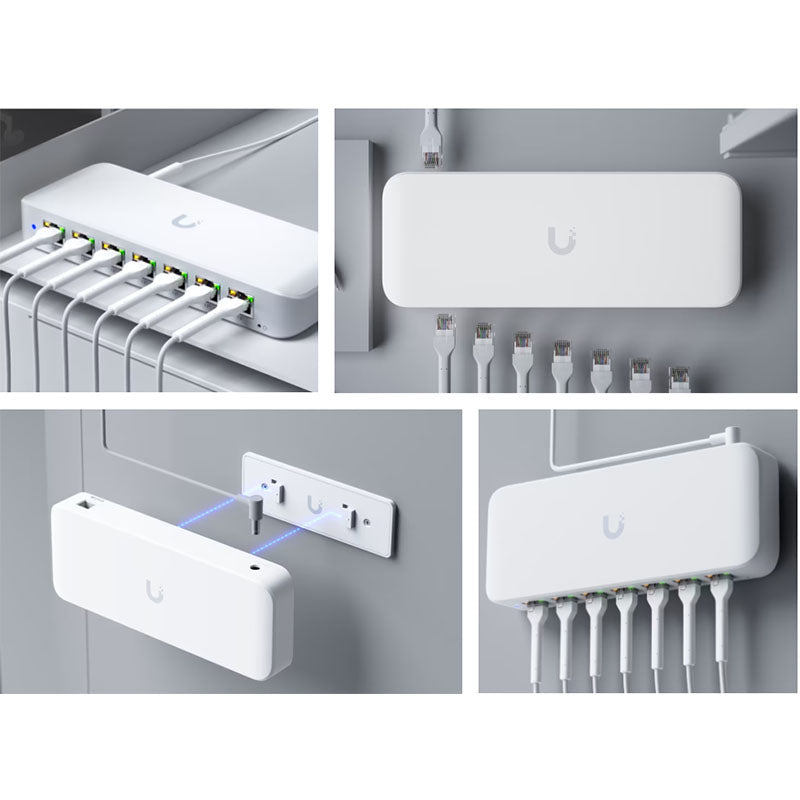

It works with UniFi Network version 8.0.7 and later. It is a compact Layer 2 switch with desktop, wall and magnetic mounting options, and a wall mount accessory is listed in the weight specifications.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Jun 2024
Great form factor and does the job well.
DionSpecifications26 specifications · 4 sections
| Overview | |
|---|---|

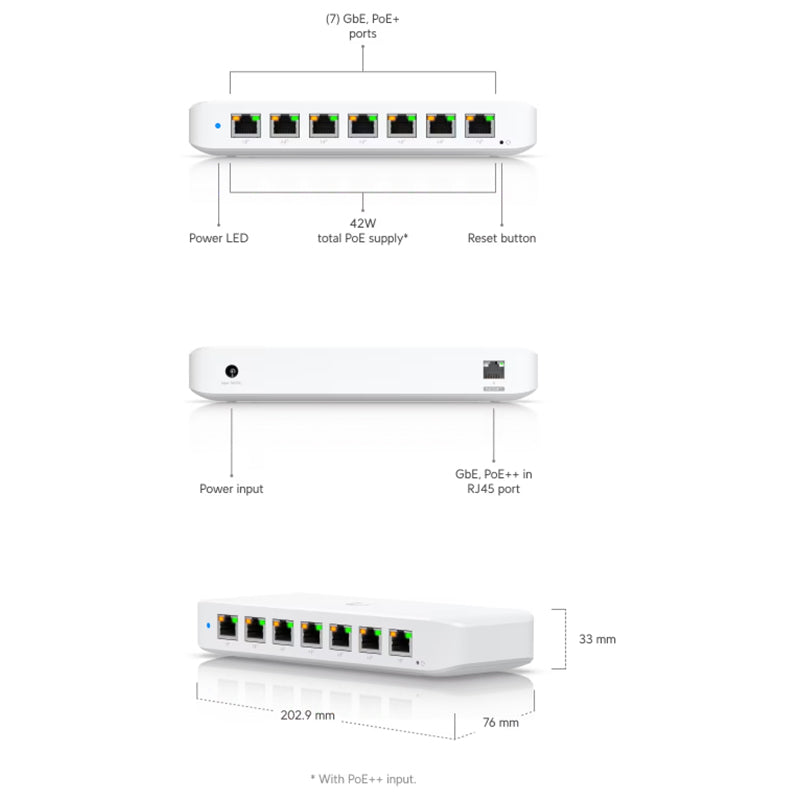

| Dimensions | 203 x 76 x 33 mm / (8 x 3 x 1.3") |
| Port Layout · 1 GbE RJ45 | 8 (7 PoE+; 1 PoE++ input) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W |
| Form Factor | Compact desktop, wall, magnetic |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Hardware | |
| PoE Ports · PoE+ | 7 |
| PoE Ports · PoE++ | 1 |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. Power Consumption | 9W (Excluding PoE Output) with PoE input / 8W (Excluding PoE Output) with adapter input / 210W (Including PoE Output) with 210W AC adapter input |
| Power Method | (1) AC/DC adapter (Included) / (1) PoE++ |
| Power Input Method | DC Input / PoE |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–57V DC/PoE |
| Management | Ethernet |
| Heat Dissipation | 31 BTU/hr (Excluding PoE Output) |
| Weight | Device: 320 g (11.3 oz) / Wall mount: 45 g (1.6 oz) / Adapter: 770 g (1.7 lb) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60° C (-22 to 140° F) / 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06367-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.7 and later |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model USW-Ultra-210W · Ubiquiti's spec sheet
