UTP-G3-Touch-Wall Ubiquiti Unifi Talk G3 Touch Wall (Unlocked)

Q: What connectivity does it offer?

It has two GbE RJ45 ports, 802.11 a\/b\/g\/n\/ac WiFi and NFC support. Bluetooth 4.2 is provided for general use, and Bluetooth 5.2 applies to the Ubiquiti G3 Wireless Handset only.

$800.80 AUD

7 in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

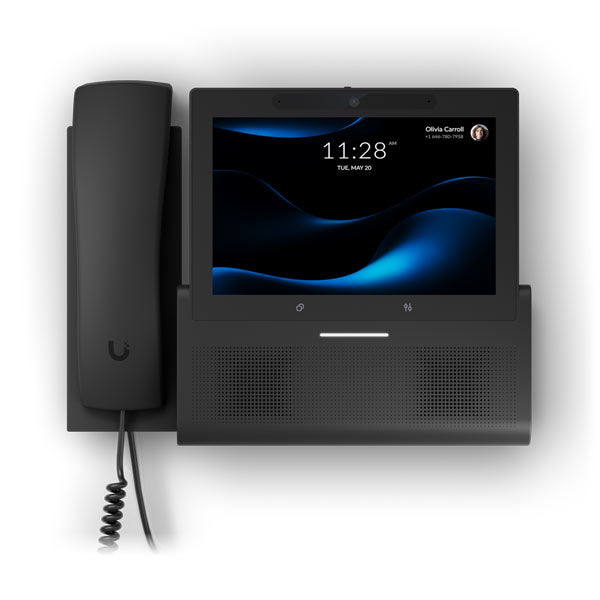

Next-generation wall-mountable smartphone for UniFi Talk, featuring a 7" touch display and seamless integration with UniFi applications.

Features:

Easily integrates with 3rd party PBX platforms using Talk Relay

High-performance speakerphone for clear audio

Ergonomic handset with a mute button

Bluetooth connectivity for added versatility

Wall-mountable

Frequently asked questions5 questions

What is the UniFi Talk G3 Touch Wall used for?

It is a wall-mountable smartphone for UniFi Talk with a 7" multi-touch display, a speakerphone and a handset with a mute button. It integrates with UniFi applications and can work with third-party PBX platforms using Talk Relay.

How is the G3 Touch Wall powered?

It can be powered by PoE or by USB-C (5V DC, 3A). Maximum power consumption is 11W.

What connectivity does it offer?

It has two GbE RJ45 ports, 802.11 a/b/g/n/ac WiFi and NFC support. Bluetooth 4.2 is provided for general use, and Bluetooth 5.2 applies to the Ubiquiti G3 Wireless Handset only.

What are the display and camera specifications?

The 7" (178 mm diagonal) screen has a 1280 x 800 HD resolution, multi-touch input and an anti-glare coating. The 5MP camera (2592 x 1944) includes an embedded privacy shutter.

What are its dimensions and operating conditions?

It measures 254.4 x 202.5 x 70.1 mm and weighs 1.1 kg. It is designed for ambient temperatures of 0 to 40°C and 10 to 90% non-condensing humidity.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications27 specifications · 3 sections

Overview
Dimensions	254.4 x 202.5 x 70.1 mm / (10 x 8 x 2.8”)
Mounting	Wall
Touch Screen Technology	Multi-Touch
Available Colors	Black
Mechanical
Weight	1.1 kg (2.5 lb)
Enclosure Material	Polycarbonate, aluminum alloy (base)
Hardware
Connectivity	(2) GbE RJ45 ports / 802.11 a/b/g/n/ac WiFi / Bluetooth® 4.2 (General use) / Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only) / NFC support
Power Method	USB type-C / PoE
Max. Power Consumption	11W
Processor	Octa-core ARM® Cortex®-A53
Memory	Storage: 32 GB / RAM: 2 GB
Camera	2592 x 1944, 5MP / (Embedded Privacy shutter)
Display · Screen Surface Treatments	Anti-Glare Coating
Display · Size	178 mm (7") diagonal
Display · Resolution	1280 x 800 HD
Audio · Hands-Free Microphone	Dual omnidirectional MEMS microphone
Audio · Hands-Free Speaker	Dual 3W speaker
Audio · Handset Microphone	Omnidirectional electret condenser microphone
Audio · Handset Dynamic Receiver	Standard wideband-capable audio
Buttons	(1) Mute Button
LED	R/G/B/W
NFC Frequency	13.56 MHz
NFC Read Range	< 10 mm
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
