UVC-AI-Theta-Hub Ubiquiti UniFi AI Theta Hub
- Order today · 5 NovAdded to our next Ubiquiti order
- Ship date confirmedBy email once Ubiquiti allocates stock
- Delivered · by 25 Nov – 4 DecOur aim: 14–21 working days from your order
Confirmation now, tracking the moment it ships.
How pre-orders work
How pre-orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description

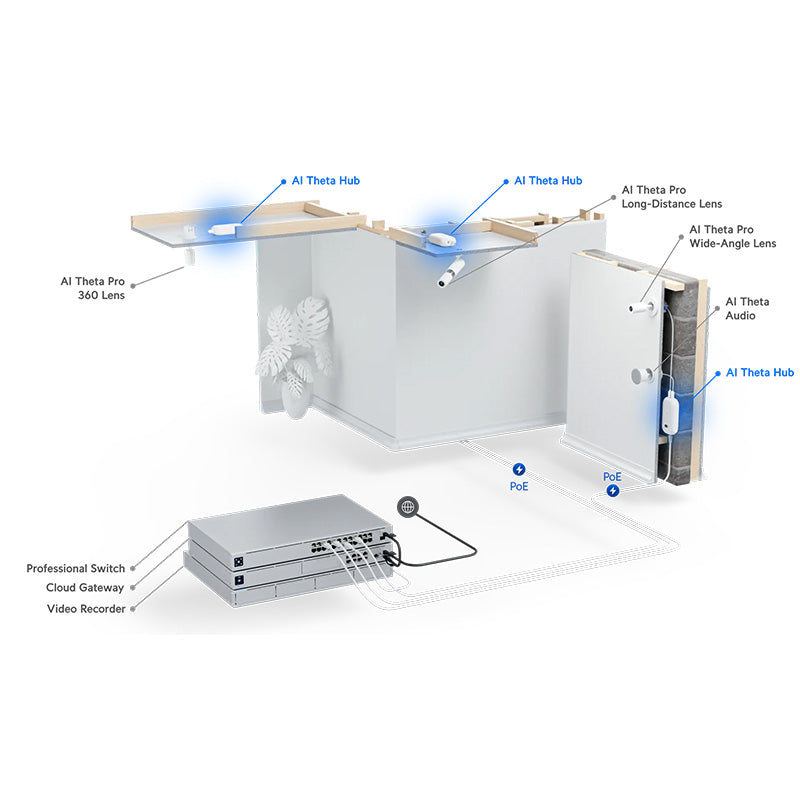

Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.
Features:

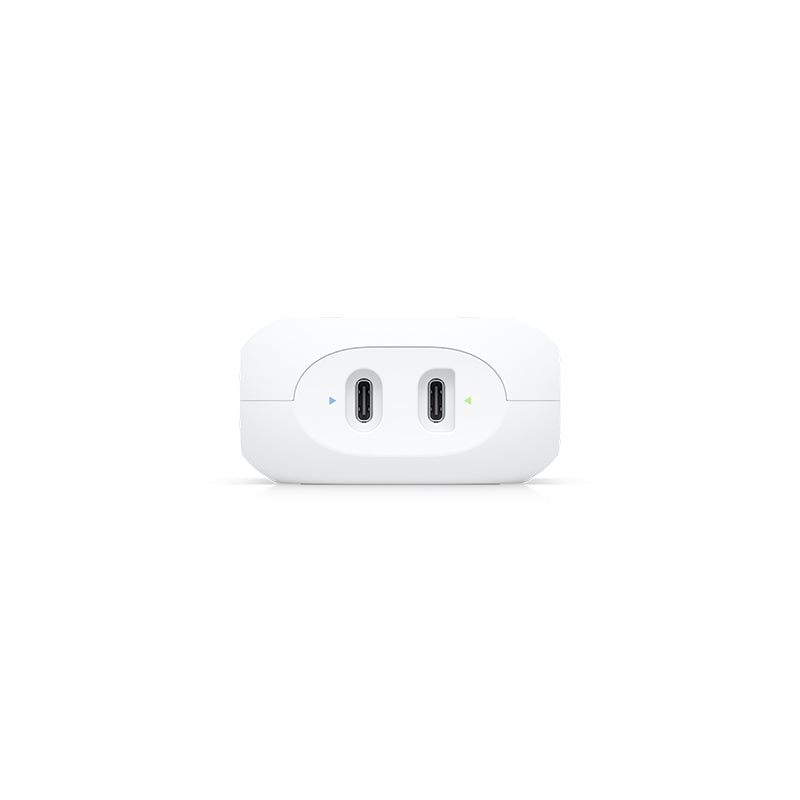

(1) video and (1) audio port for connecting a lens and audio module
Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
Advanced AI: Detect people, read license plates, and more*

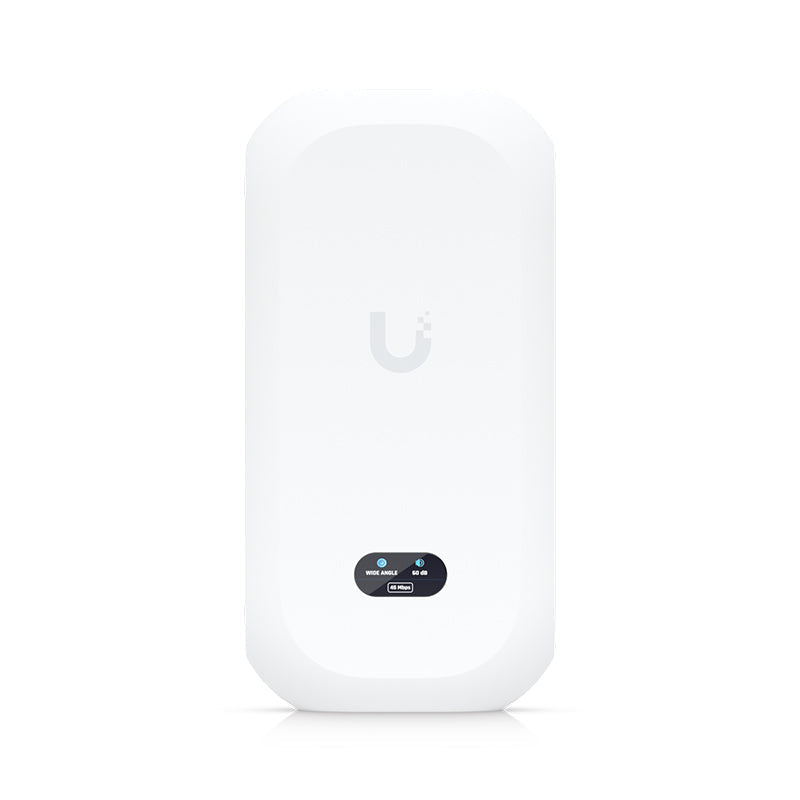

0.96" colour display for device status and configuration
Connect and power using PoE
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Frequently asked questions5 questions
What is the UniFi AI Theta Hub used for?
Which lenses and accessories does the Theta Hub work with?
How is the Theta Hub powered?
What ports does the Theta Hub have?

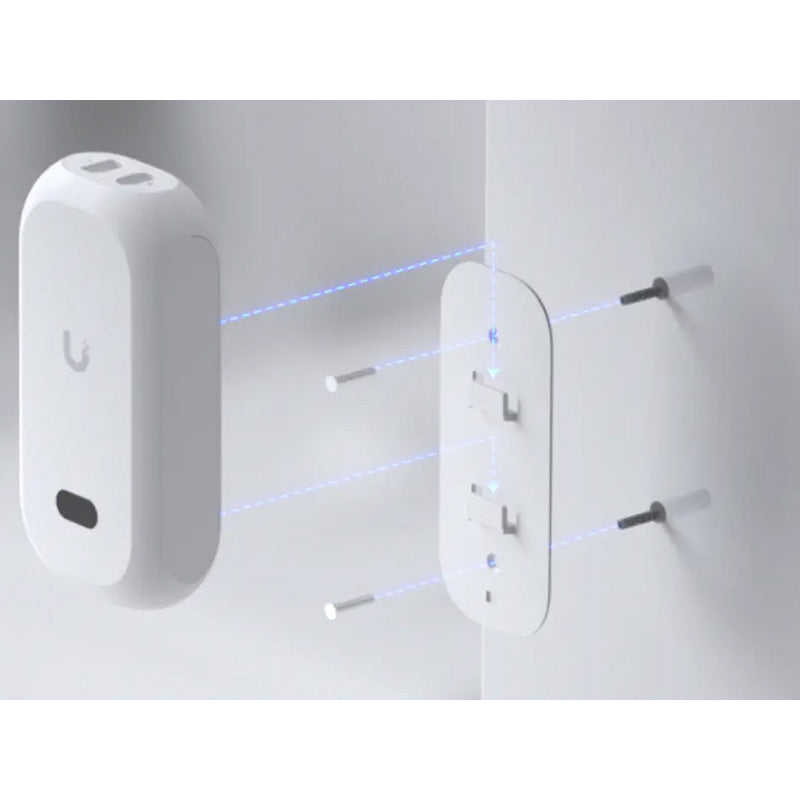

How can the Theta Hub be mounted, and what are its dimensions?
Click HERE to access the Installation Guide
Specifications17 specifications · 3 sections
| Overview | |
|---|---|

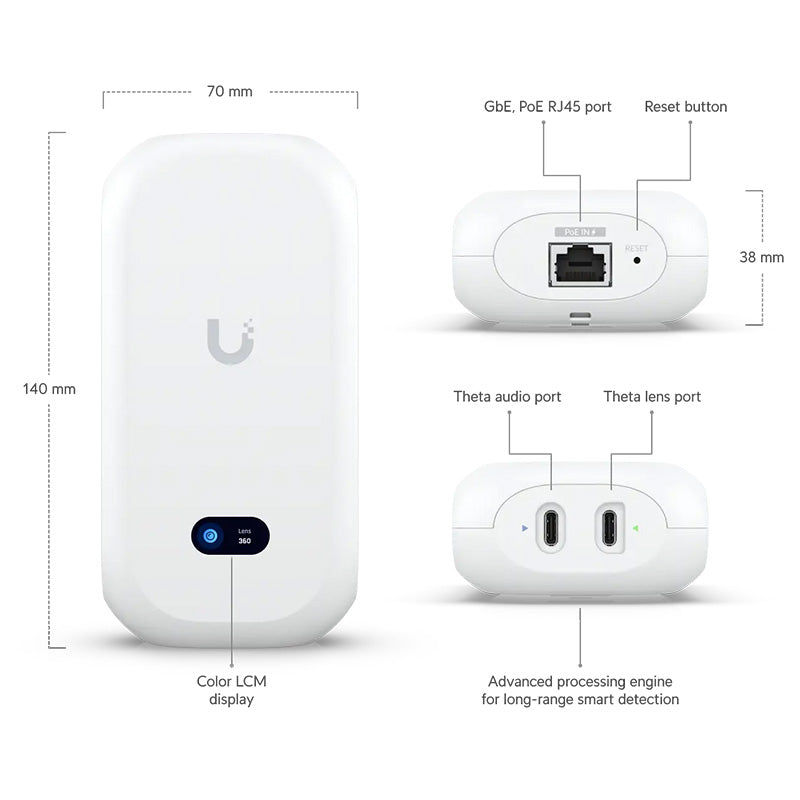

| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |
| Mounting | Wall, ceiling mount (Included) |
| Performance | |

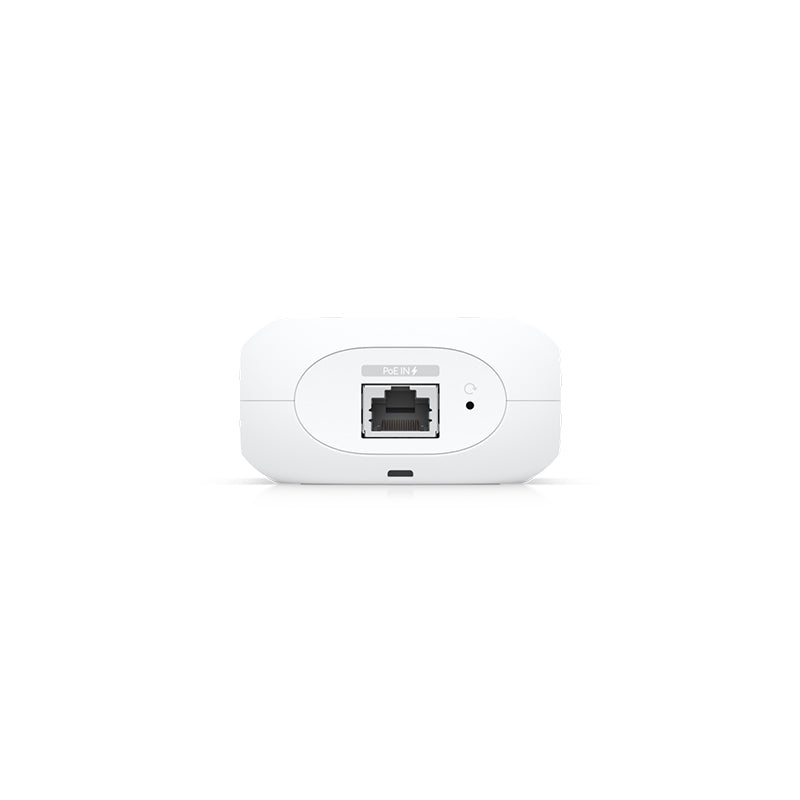

| Networking Interface | GbE RJ45 port / Theta audio port / Theta lens port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Hardware | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) / UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Max. Power Consumption | 12.5W |
| Power Output | 5V DC, 1A per port |
| LCM Display | 0.96" display |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
