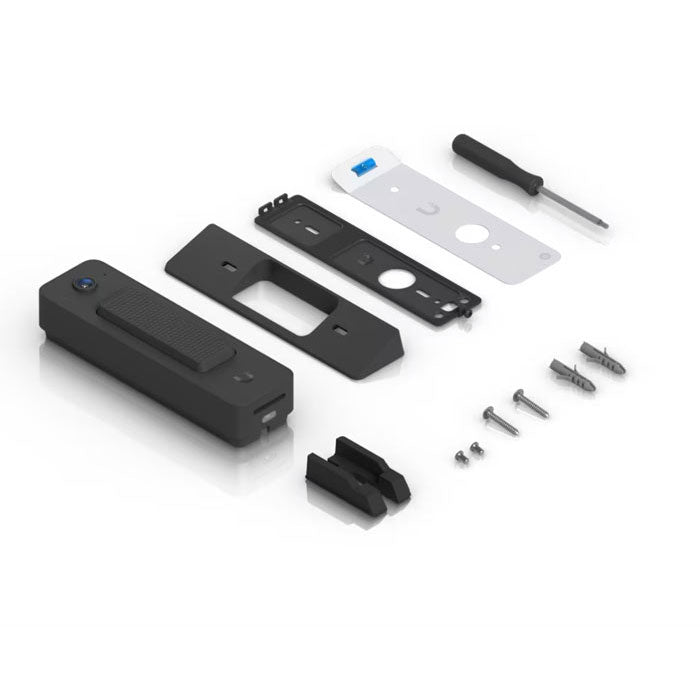

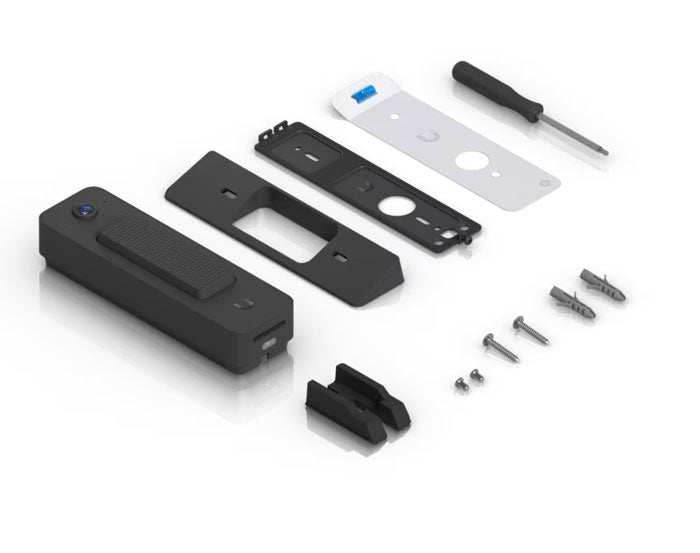

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

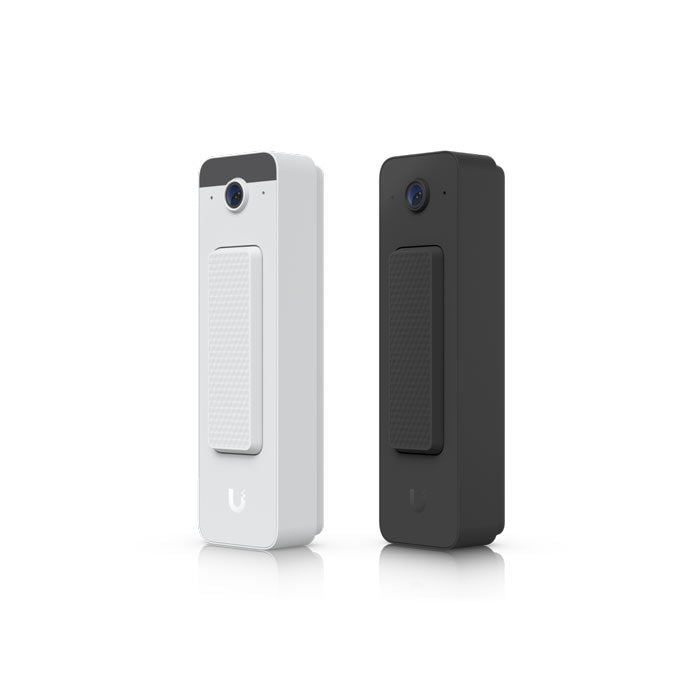

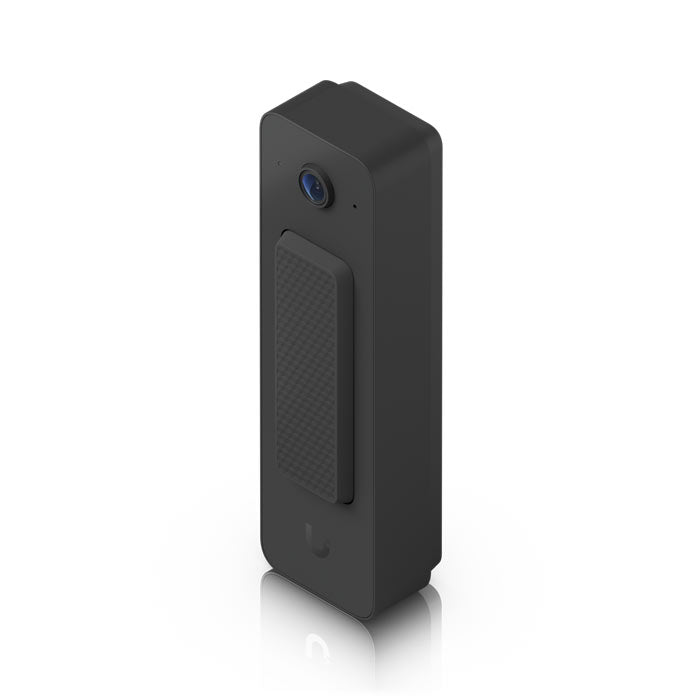

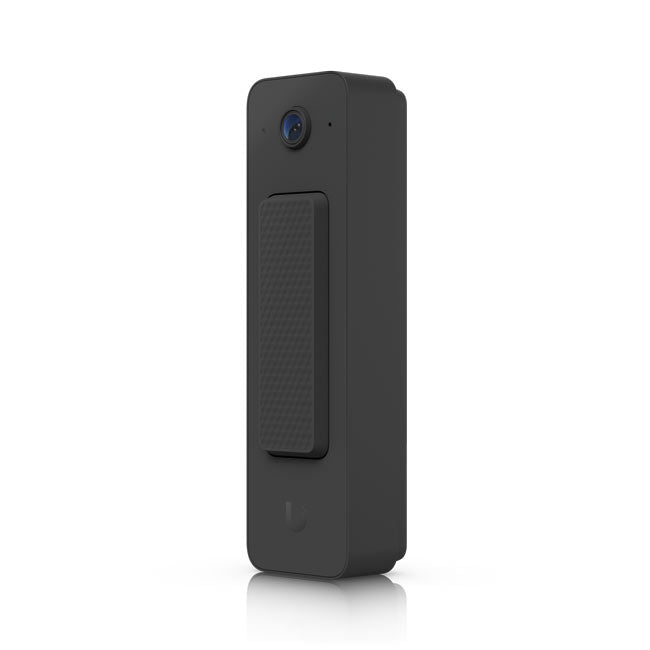

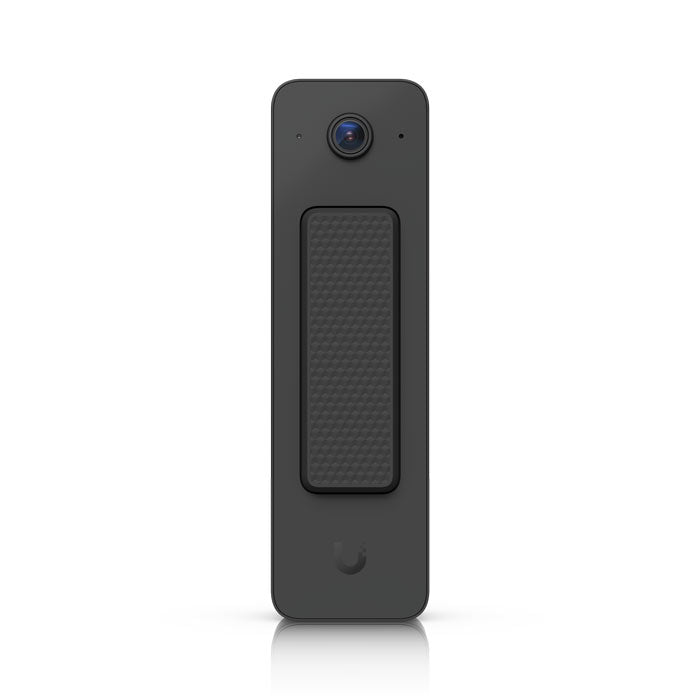

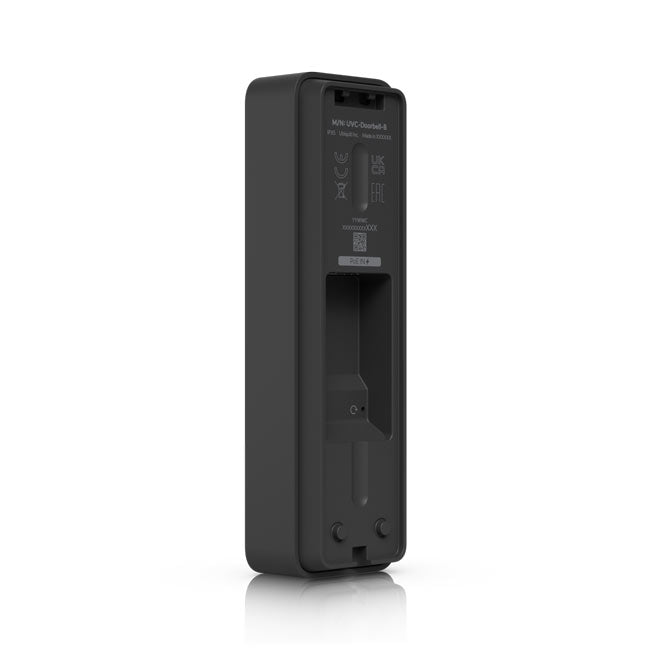

UVC-Doorbell-B Ubiquiti UniFi Protect Doorbell Lite (Black)
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Compact PoE video doorbell with two-way audio and versatile mounting options.
Colour: Black
Upgrade your home or business security with the Ubiquiti UVC-Doorbell Lite, a sleek and powerful video doorbell designed for seamless integration with the UniFi Protect ecosystem. Featuring a 5MP sensor and 1920×2560 resolution at 24fps, it delivers crystal-clear video for ultimate peace of mind. The 175.9° diagonal field of view ensures wide coverage, while IR night vision up to 16 ft keeps your entryway visible even in complete darkness.
Frequently asked questions5 questions
What is the Ubiquiti UVC-Doorbell Lite?
What video quality does it offer?
Can it see at night?
How is it powered?
Does it support two-way audio?
Click HERE to access the Datasheet
Specifications25 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 137 x 40 x 26.4 mm / (5.4 x 1.6 x 1") |
| IR Night Vision | 5 m (16 ft) |
| Resolution | 5MP |
| Field of View | H: 95.8°, V: 131.2°, D: 175.9° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |

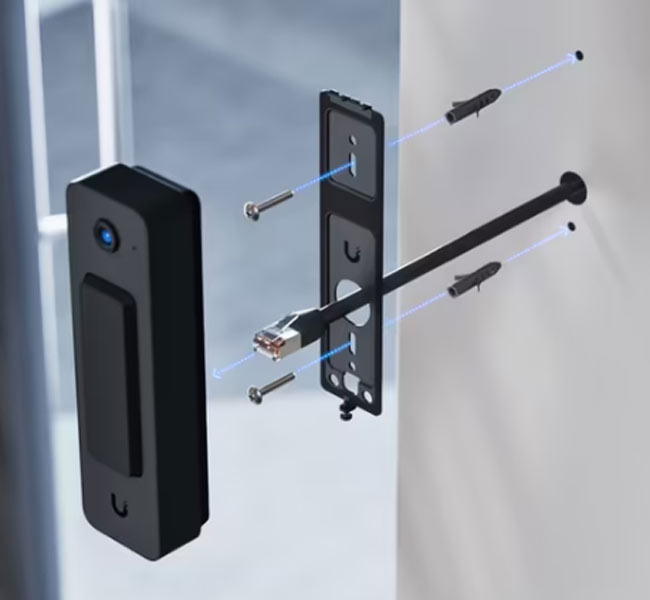

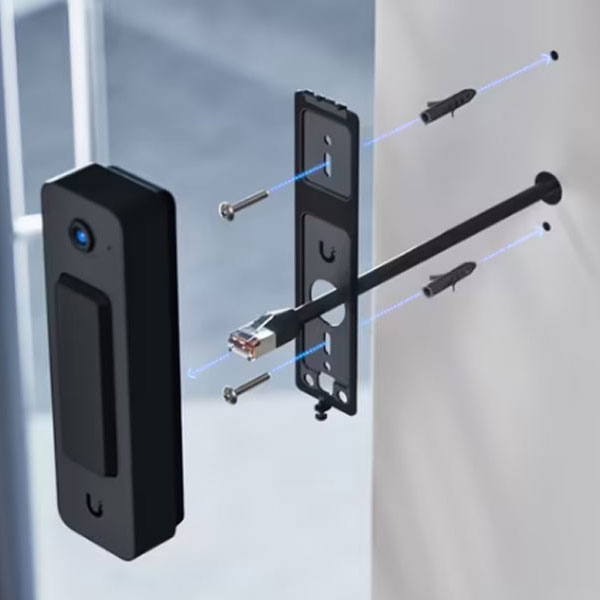

| Mounting | Wall, 20° wedge (Included) / Gang box, junction box (Optional) |
| Performance | |

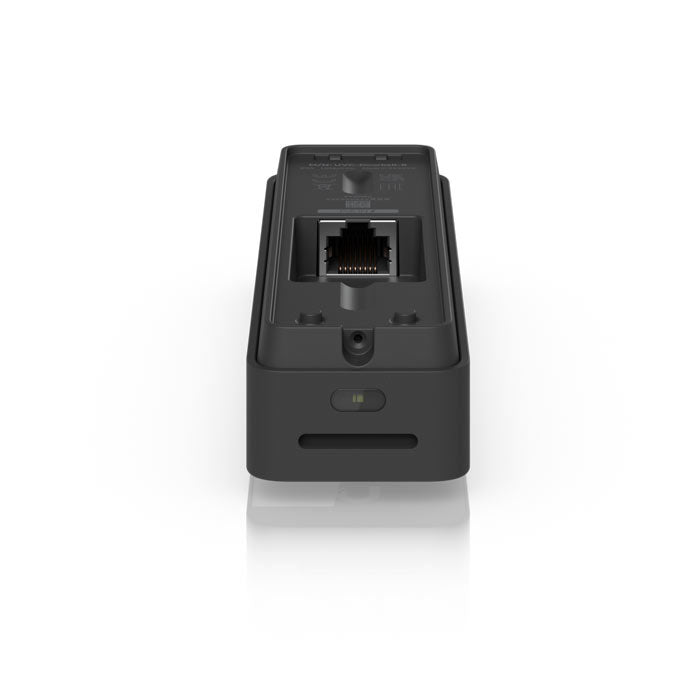

| Networking Interface | 10/100 MbE port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video · Max. Frame Rate | 24 FPS |
| Video · Resolution | 5MP 1920 x 2560 (3:4) |
| Optics · Sensor | 1/2.7" 5MP |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | Device: 142 g (5 oz) / With flat wall mount: 165 g (5.8 oz) / With 20° wedge mount: 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Formed sheet metal |
| Button | (1) Ring button / (1) Factory reset |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
