Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

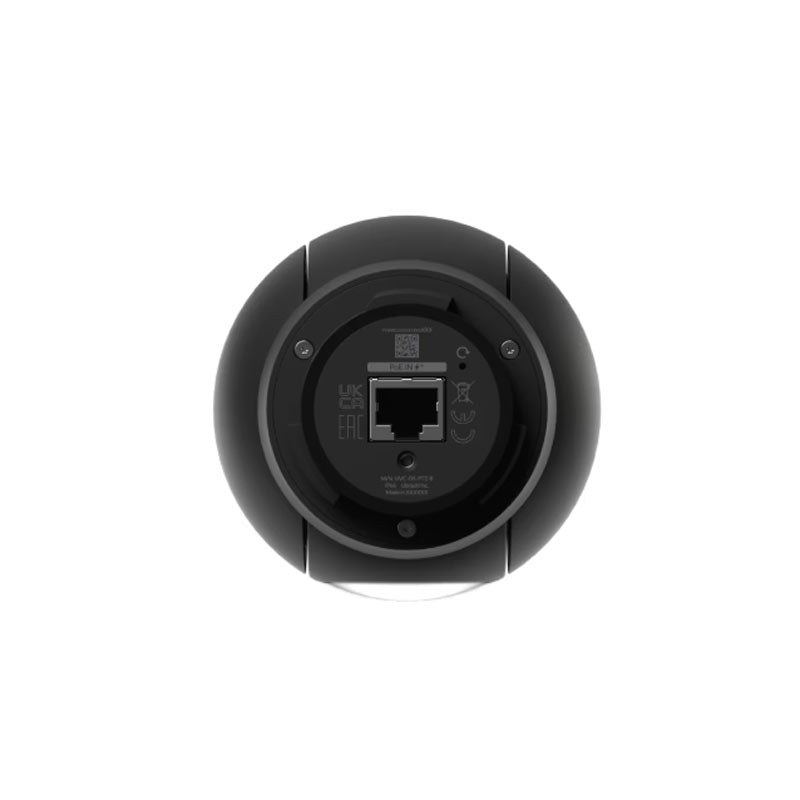

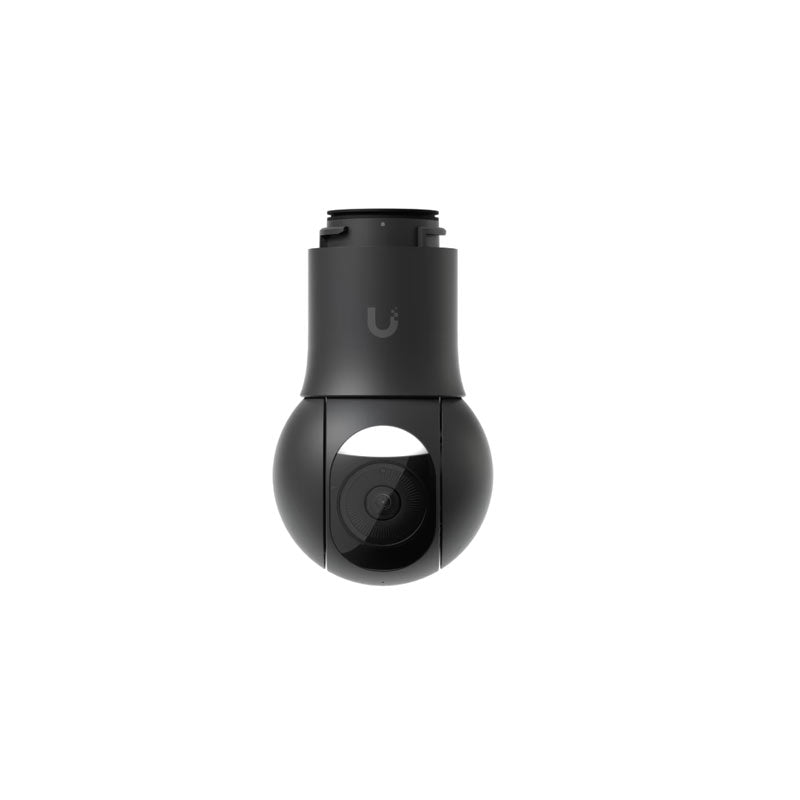

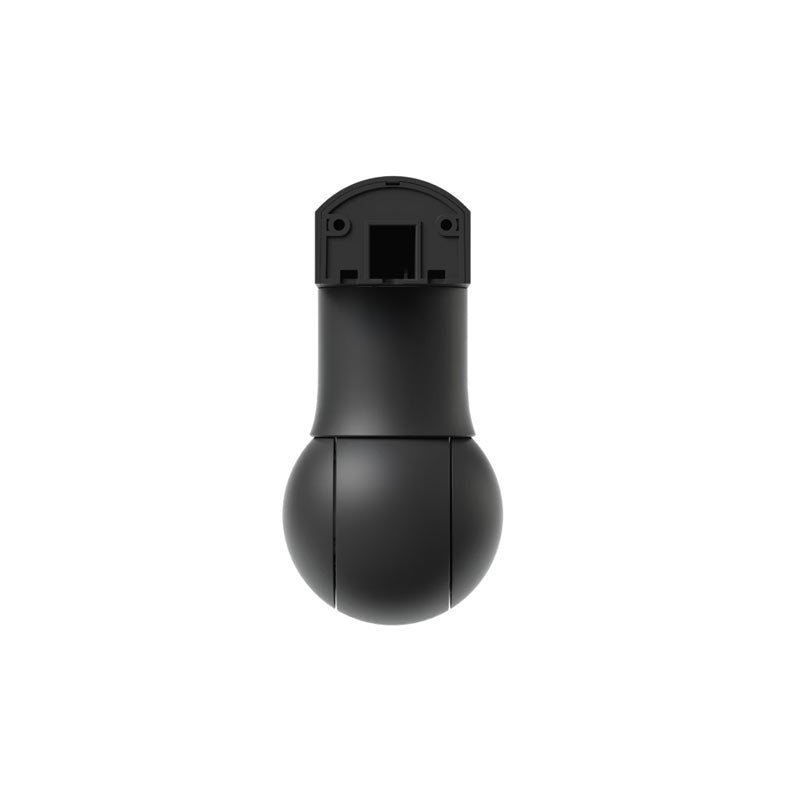

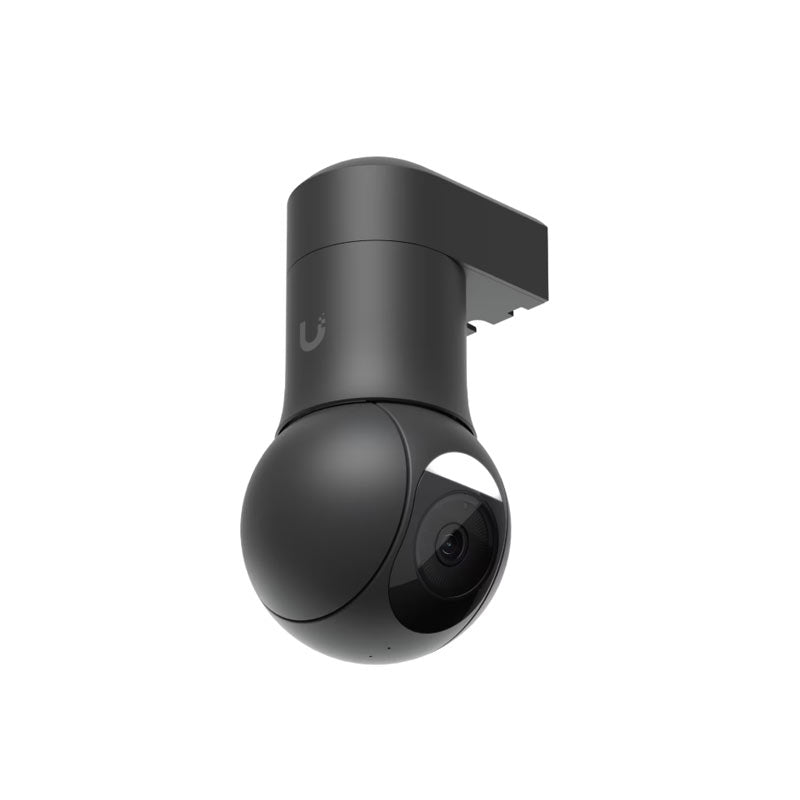

UVC-G5-PTZ-B Ubiquiti UniFi Protect Camera G5 PTZ (Black)
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
UVC-G5-PTZ-B, a black version of the compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
The UVC-G5-PTZ-B is engineered for resilience and longevity. This camera is compact yet sturdy and built from a durable aluminium alloy and polycarbonate. This construction ensures its robustness against harsh conditions, further reinforced by its IP66 weatherproof rating and IK04 resistance.
Equipped with a 5MP 1/2.7" CMOS sensor and a lens range of F 3.42–6.85 mm, the UVC-G5-PTZ-B offers exceptional image clarity. Night surveillance is enhanced with built-in IR and white LED illumination, providing visibility up to 20 metres. The camera captures video at a resolution of 4MP 2688 x 1512 (16:9) and a maximum frame rate of 30 FPS. These features, coupled with the UniFi Protect software and mobile apps for iOS and Android, make the UVC-G5-PTZ-B a superior choice for both day and night security monitoring.

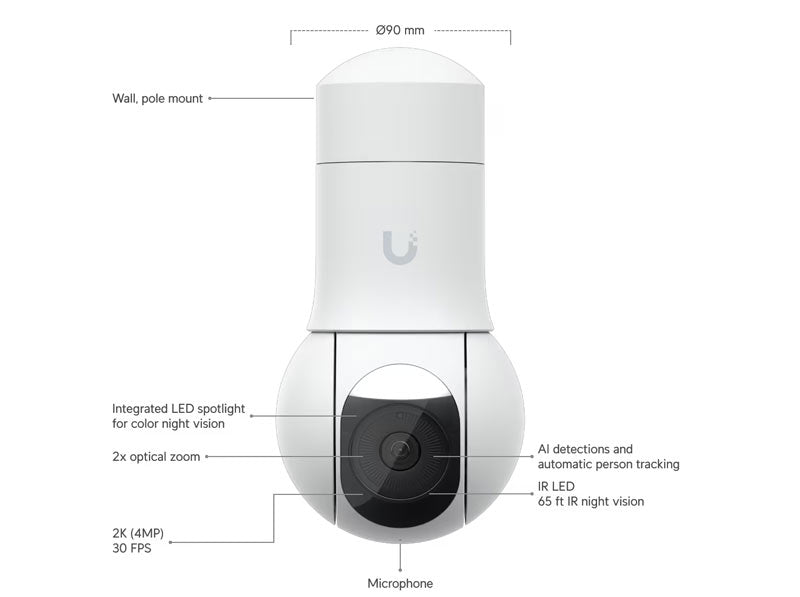

Features:
2K (4MP) video resolution
2x optical zoom
20 m (65 ft) IR night vision
AI event detections and automatic person tracking
Record audio with an integrated microphone
Integrated LED spotlight for colour night vision
Connect and power using PoE+
Weatherproof (outdoor exposed)
Frequently asked questions5 questions
What video resolution and frame rate does this camera record at?
How is the UVC-G5-PTZ-B powered?
Is it suitable for outdoor use?
What night vision does it offer?
What zoom, tracking and audio features does it include?
Specifications27 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | Without mount: ⌀90 x 152.5 mm / (⌀3.5 x 6") / / With mount: 90 x 94 x 179.5 mm / (3.5 x 3.7 x 7") |
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2x Optical |
| Resolution | 2K |
| Field of View | Wide: H: 99.7°, V: 51.9°, D: 121° / Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Pan-Tilt Range | Pan: 350° / Tilt: 100° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

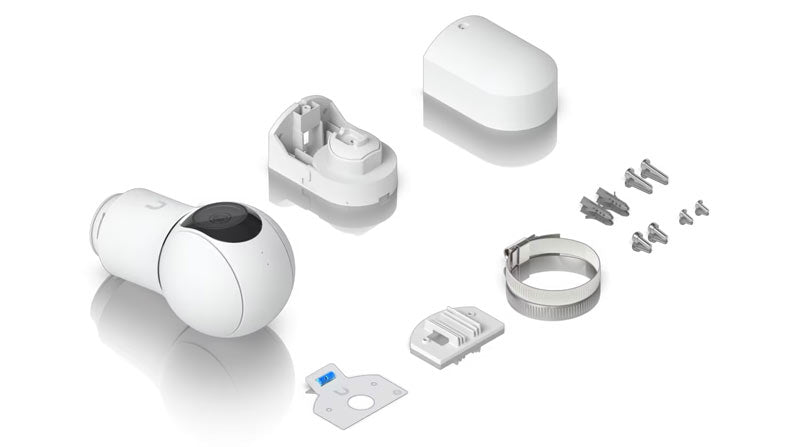

| Mounting | Wall mount, pole mount (Included) / Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
| Performance | |
| Networking Interface | 10/100 MbE RJ45 port |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 4MP 2688 x 1512 (16:9) |
| Optics · Sensor | 5MP 1/2.7" CMOS |
| Optics · Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| Optics · Night Mode | Built-in IR & white LED illumination with IR cut filter |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without mount: 580 g (1.3 lb) / With mount: 650 g (1.4 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Wall mount: polycarbonate / Pole mount: aluminum alloy |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -30 to 45º C (-22 to 113º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
