SKU:
UVC-G6-Entry

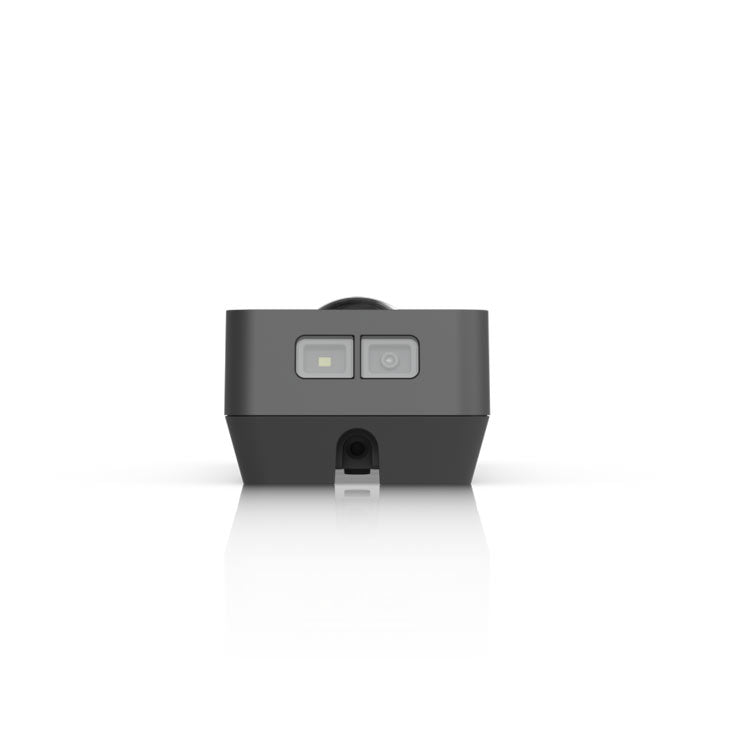

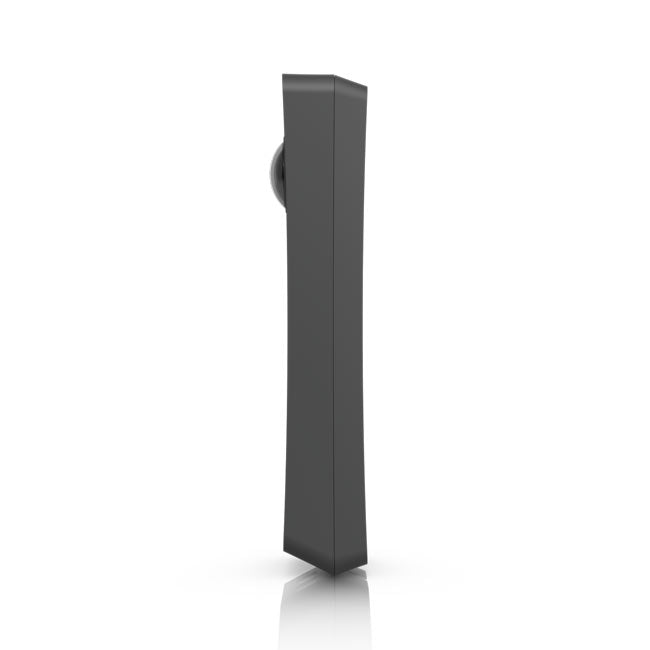

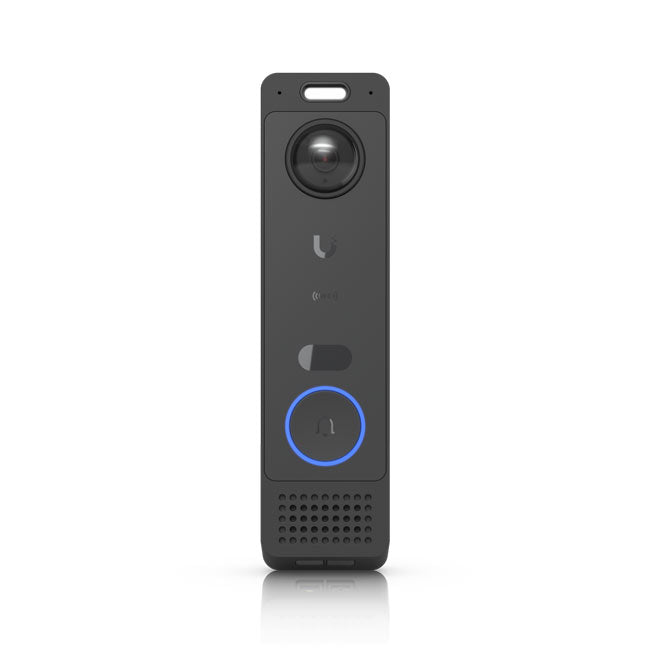

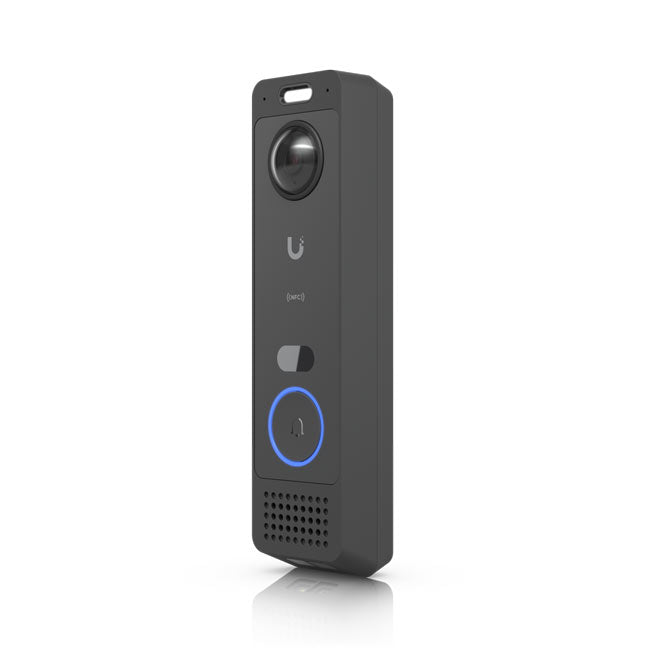

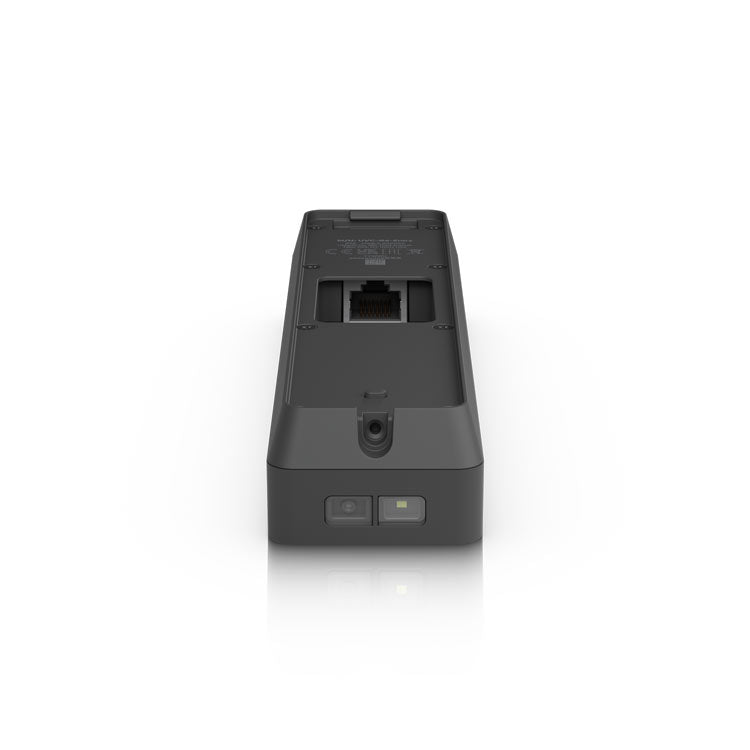

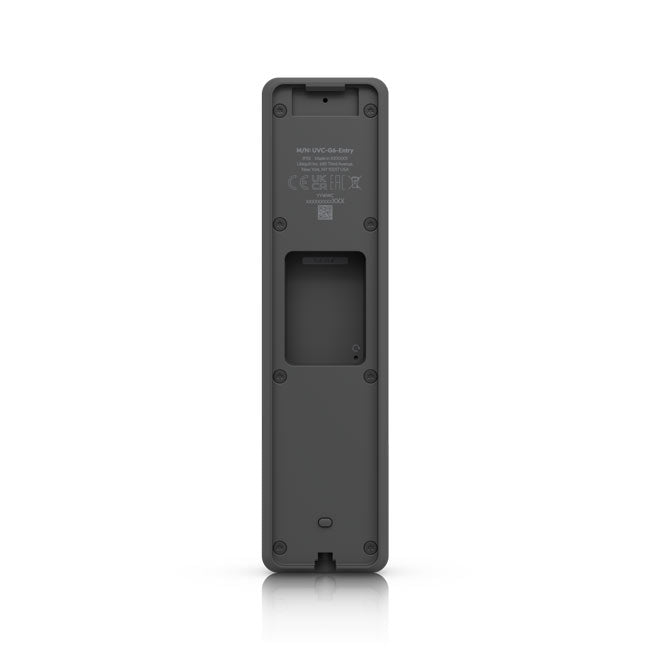

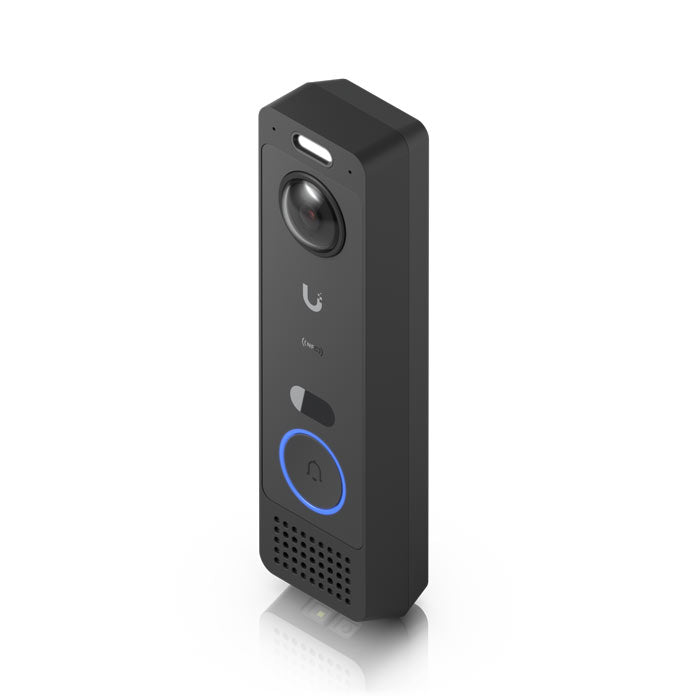

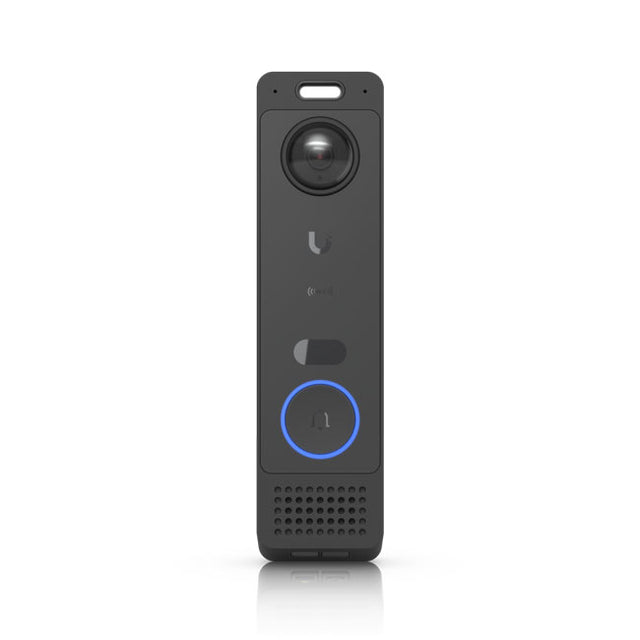

UVC-G6-Entry Ubiquiti UniFi Protect G6 Doorbell
$468.36 AUD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
All-weather, PoE+ Doorbell with enhanced AI detections, two-way audio, a secondary package camera, and integrated Access Reader capabilities.
Click HERE to access the Datasheet
Specifications36 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 176 x 45 x 29.6 mm / (6.9 x 1.8 x 1.2") |
| IR Night Vision | 5 m (16 ft) |
| Resolution | Main camera: 5MP / Package camera: 8MP |
| UniFi Application Suite | Protect / Access |
| Weatherproofing | IP55 |
| Tamper Resistance | IK07 |
| Audio | Two-way audio |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 275 g (9.7 oz) |
| Enclosure Material | Aluminum |
| Mount Material | Wall mount: Stainless steel / Gangbox mount plate: SGCC steel / Gangbox mount cover: Polycarbonate / Wedge mount: Aluminum |
| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount (Included) / Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Networking Interface | GbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE+ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 16W |
| Supported Voltage Range | 42—57V DC |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Video · Max. Frame Rate | Main camera: 30 FPS / Package camera: 3 FPS |
| Video · Resolution | Main camera: 5MP, 1920 x 2560 (3:4) / Package camera: 8MP 3264 x 2448 (4:3) |
| Optics · Resolution | Main camera: 5MP CMOS / Package camera: 8MP CMOS |
| Optics · Field of View | Main camera: H: 100°, V: 135°, D: 180° / Package camera: H: 66°, V: 51.7°, D: 78° |
| Optics · Sensor | Main camera: 5MP CMOS / Package camera: 8MP CMOS |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| LEDs | R/G/B/W / <a href="https://help.ui.com/hc/en-us/articles/25738084762775-Understanding-UniFi-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Ring button / (1) Factory reset / (1) Tamper switch |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UVC-G6-Entry, V01 |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Source: Ubiquiti technical specifications, checked 13 Oct 2026.Model UVC-G6-Entry · Ubiquiti's spec sheet
