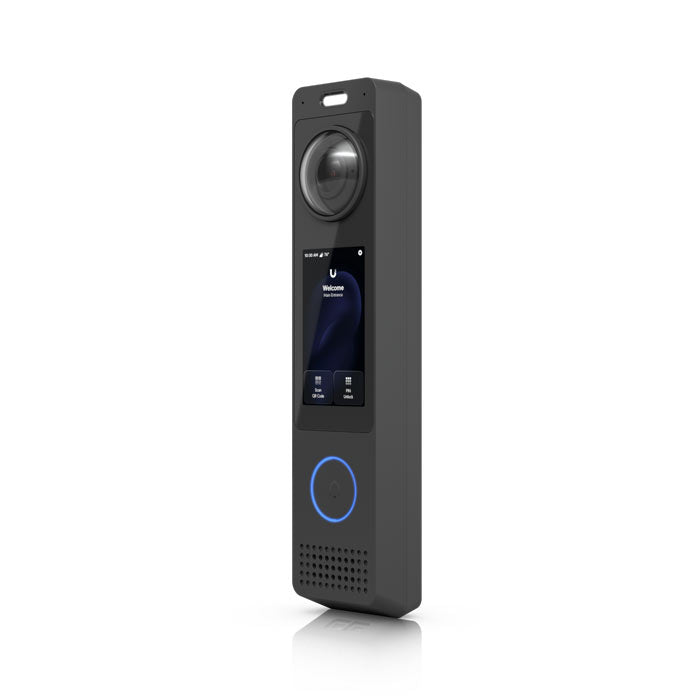

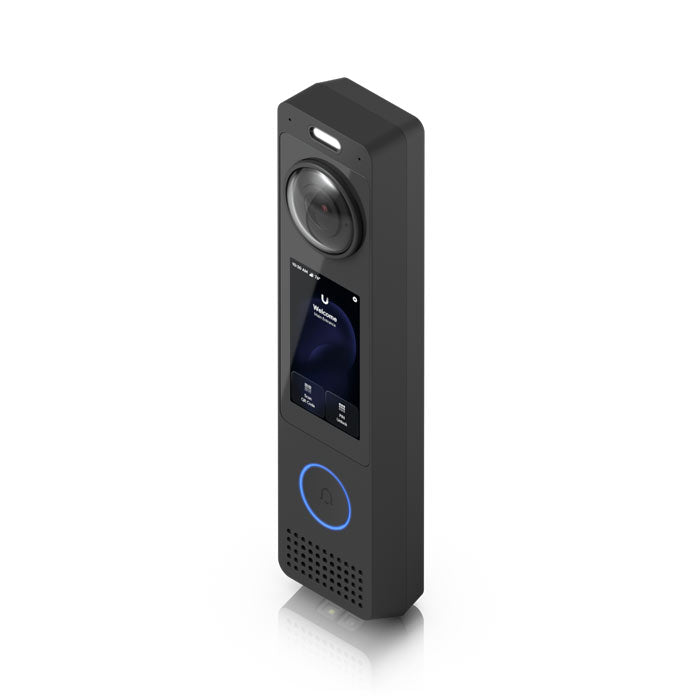

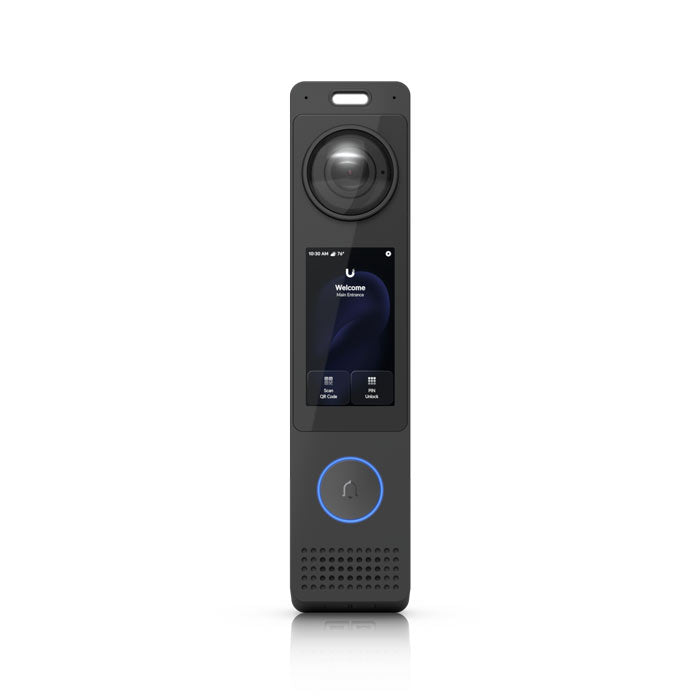

UVC-G6-Pro-Entry Ubiquiti UniFi Protect G6 Doorbell Pro
Description
Description
The Ubiquiti UVC‑G6‑Pro‑Entry is a next‑generation, all‑weather 12MP PoE+ doorbell and entry security camera designed for modern access control and intelligent surveillance. Built to integrate seamlessly with UniFi Protect and UniFi Access, it delivers enterprise‑grade security, advanced AI analytics, and a premium user experience for residential and commercial entryways.
Equipped with a powerful 12‑megapixel image sensor, the UVC‑G6‑Pro‑Entry provides exceptional video clarity, enabling precise identification of people, packages, and activity at the door. Enhanced AI detections intelligently distinguish between people, vehicles, and packages, significantly reducing false alerts. A secondary package camera ensures clear visibility of deliveries left below the primary field of view, improving package monitoring and security.
The integrated two‑way audio system allows clear, real‑time communication with visitors, while the built‑in 3‑inch touch display provides an intuitive interface for greetings, system status, and access prompts. With integrated UniFi Access Reader capabilities, the UVC‑G6‑Pro‑Entry supports keycards, mobile credentials, Apple Touchpass and other access methods, combining video intercom, doorbell, and access control in a single device.
Designed for durability, the weather‑resistant enclosure is suitable for outdoor installations, while PoE+ support enables streamlined, single‑cable installation. Managed through UniFi Protect, users benefit from centralized control, secure local recording, and remote access—without ongoing license fees.
The UVC‑G6‑Pro‑Entry is an ideal solution for secure, intelligent, and fully integrated entryway management within the UniFi ecosystem.
To enable door access features such as NFC, Face ID, and Interface Designer configuration, an Access Hub is required, and both UniFi Protect and UniFi Access applications must be installed.
Specifications41 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 220 x 49.3 x 29.6 mm / (8.7 x 1.9 x 1.2") |
| IR Night Vision | 5 m (16 ft) |
| Resolution | Main camera: 12MP / Package camera: 8MP |
| UniFi Application Suite | Protect / Access |
| Weatherproofing | IP55 |
| Tamper Resistance | IK07 / LCM IK04 |
| Audio | Two-way audio |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 360 g (12.7 oz) |
| Enclosure Material | Aluminum |
| Mount Material | Wall mount: Stainless steel / Gangbox mount plate: SGCC steel / Gangbox mount cover: Polycarbonate / Wedge mount: Aluminum |

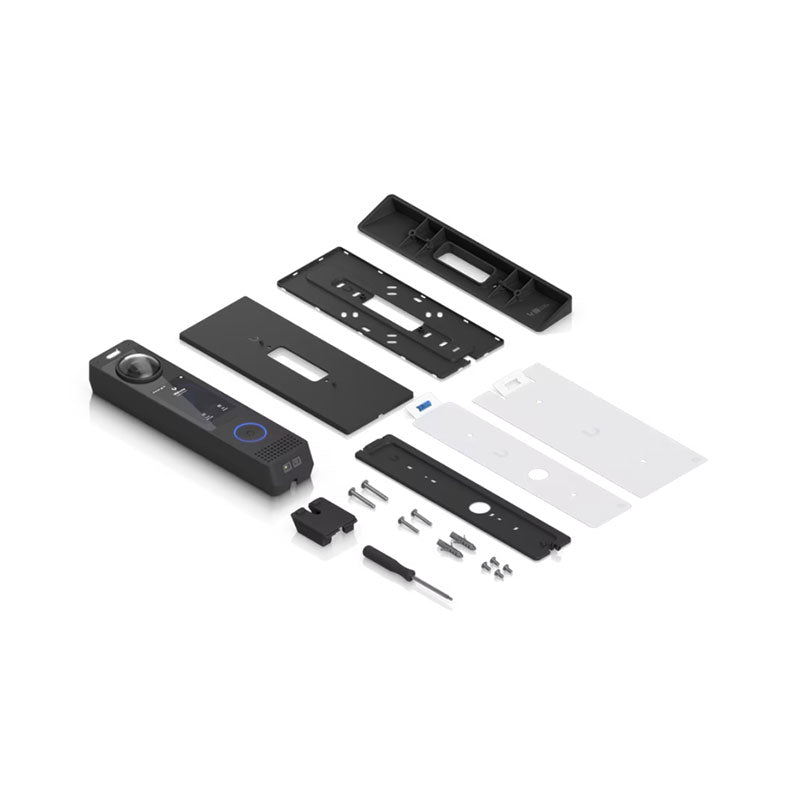

| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount (Included) / Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Networking Interface | GbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE+ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 18W |
| Supported Voltage Range | 42—57V DC |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Video · Max. Frame Rate | Main camera: 12MP, 20 FPS or / 8MP, 30 FPS / Package camera: 3 FPS |
| Video · Resolution | Main camera: 12MP, 3024 x 4096 (3:4) or / 8MP, 2160 x 3840 (9:16) / Package camera: 8MP, 3264 x 2448 (4:3) |
| Optics · Resolution | Main camera: 12MP or 8MP / Package camera: 8MP |
| Optics · Field of View | Main camera: / H: 100°, V: 136.3°, D: 176.4° (12MP) / H: 70.9°, V: 127.5°, D: 147.4° (8MP) / Package camera: H: 66°, V: 51.7°, D: 78° |
| Optics · Sensor | Main camera: 12MP CMOS / Package camera: 8MP CMOS |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| Display · Size | 75 mm (3") diagonal |
| Display · Screen Technology | Capacitive multi-touch |
| Display · Luminance | Max. 1000 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 480 x 854 px |
| LEDs | R/G/B/W/Amber / <a href="https://help.ui.com/hc/en-us/articles/25738084762775-Understanding-UniFi-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Ring button / (1) Factory reset / (1) Tamper switch |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UVC-G6-Pro-Entry, V01 |
| Ambient Operating Temperature | Device: -30 to 50° C (-22 to 122° F) / Display: -25 to 50° C (-13 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
