Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UXG-Fiber
UXG-Fiber(30W) Ubiquiti UniFi Gateway Fiber
$579.21 AUD
Unit price
/
Unavailable
17 in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Pickup may be possible in Melbourne
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Features:
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
Frequently asked questions5 questions
What ports does the UXG-Fiber have?

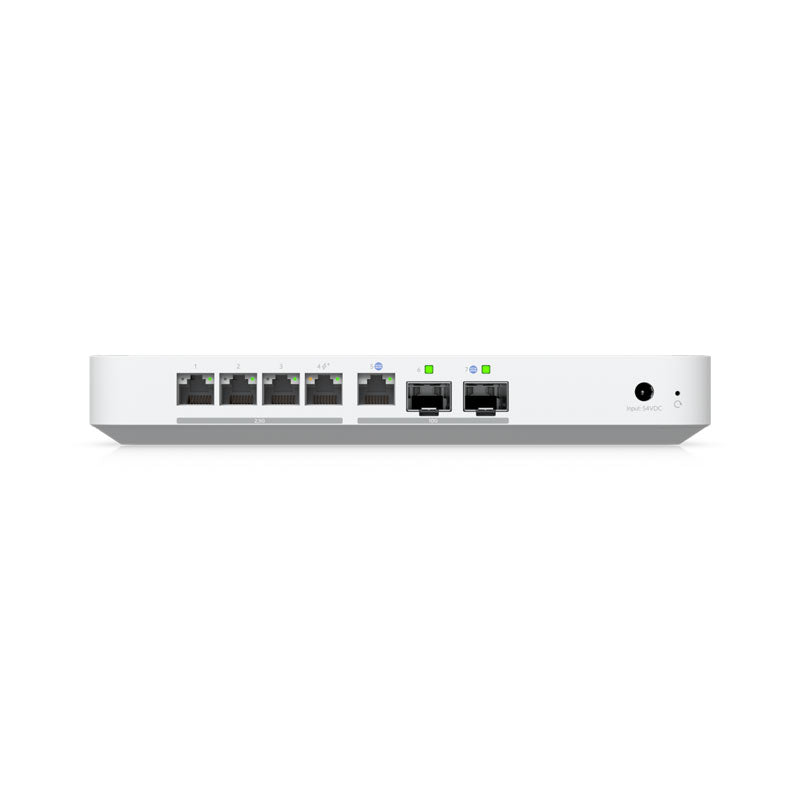

It has one 10G SFP+ and one 10 GbE RJ45 as default WAN ports, plus a 10G SFP+ LAN port. An integrated switch adds four 2.5 GbE RJ45 ports, one of which is PoE+.
What routing and security performance can I expect?
It delivers 5 Gbps routing with IDS/IPS enabled. With CyberSecure it uses more than 55,000 IDS/IPS signatures.
Can it power other devices over PoE?
Yes, one of the four 2.5 GbE ports is a PoE+ port, with a total PoE budget of 30W. Maximum consumption is 25W excluding PoE output.
How is the UXG-Fiber powered and managed?

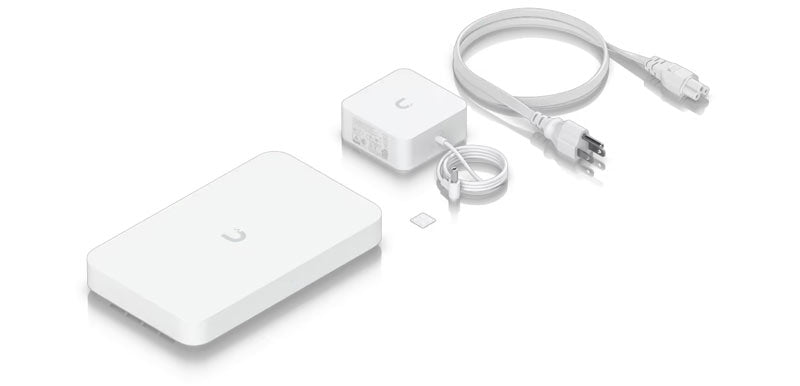

It is powered through a DC jack using the included 54V DC/1.1A adapter, which accepts 100–240V AC. It can be managed with a CloudKey, Official UniFi Hosting or a UniFi Network Server, and supports Ethernet and Bluetooth management.
What are its physical dimensions and operating conditions?
It is a compact desktop unit measuring 212.8 x 127.6 x 30 mm and weighing 605 g, with a polycarbonate enclosure. It operates in ambient temperatures of 0 to 40° C and 5 to 95% noncondensing humidity.
Specifications28 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 212.8 x 127.6 x 30 mm / (8.4 x 5 x 1.2") |
| Max. WAN Port Count | 6 |
| Default WAN Ports | (1) 10G SFP+ / (1) 10 GbE RJ45 |
| Port Layout · 2.5 GbE RJ45 | 4 / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 1 / (10G/2.5G/1G) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
| Security | |
| IDS/IPS Signatures | 55,000+ / With CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Hardware | |
| PoE Budget | 30W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Voltage Range PoE Mode | 50–57V |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A / (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 85 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 2 GB |
| Weight | 605 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04395-25-08356 |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UXG-Fiber · Ubiquiti's spec sheet
