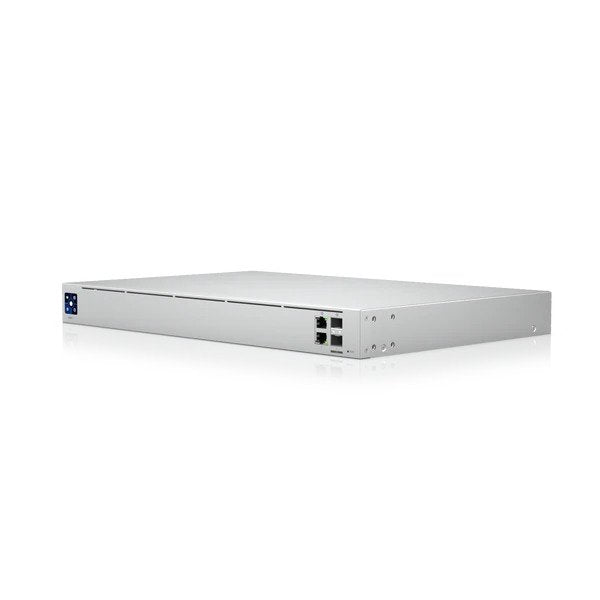

UXG-Pro Ubiquiti Next-Generation Gateway Pro
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications.
It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Gen 2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Features:
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
SmartPower outlet (200~240VAC/1.25A) for an external modem
1U-sized, rack-mountable device
Managed with the UniFi Network application: Version 5.14.11 and later
Frequently asked questions5 questions
What is the UXG-Pro designed for?
What ports does the UXG-Pro have?
What IDS/IPS performance does it offer?
Can the UXG-Pro be rack mounted?
How is the UXG-Pro managed and powered?
Specifications25 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2") |
| Max. WAN Port Count | 3 |
| Default WAN Ports | (1) 10G SFP+ / (1) GbE RJ45 |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | DC Power Backup |
| Security | |
| IDS/IPS Signatures | 55,000+ / With CyberSecure |
| Hardware | |
| Max. Power Consumption | 30W |
| Power Method | US: / (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz / (1) RPS DC input, 11.5V DC, 2.87A / / Worldwide: / (1) Universal AC input, 200-240V AC, 1.7A Max., 50/60 Hz / (1) RPS DC input, 11.5V DC, 2.87A |
| Power Supply | AC/DC, internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 102 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 3.4 kg (7.5 lb) |
| Enclosure Material | Front panel: Aluminum CNC / Top cover/base: SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 19089-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.3.32 and later |
