Full Fibre – 12-Port 10GbE SFP+ L2+ Web Smart Managed Switch

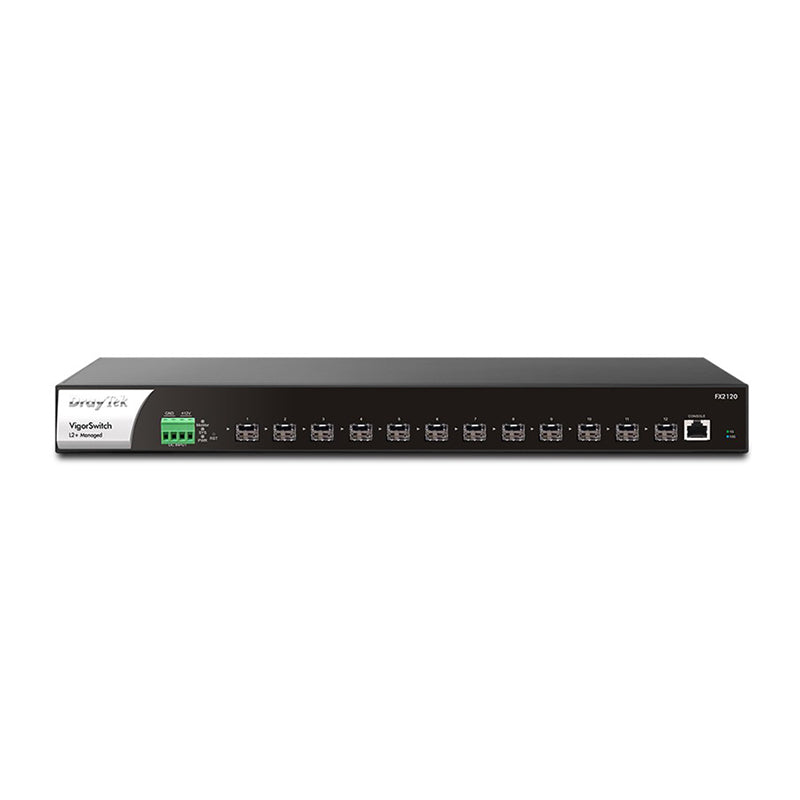

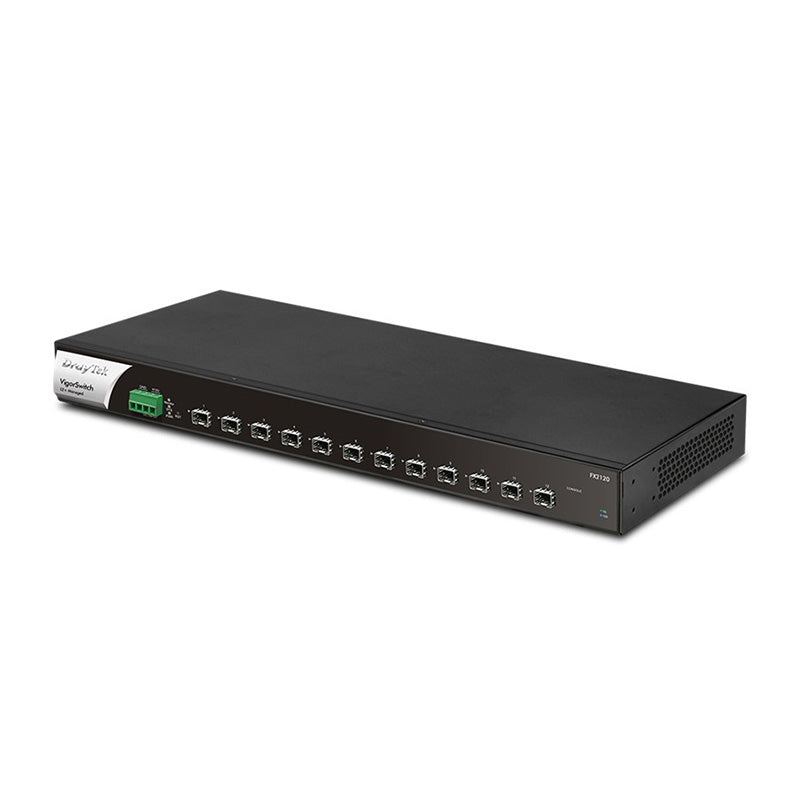

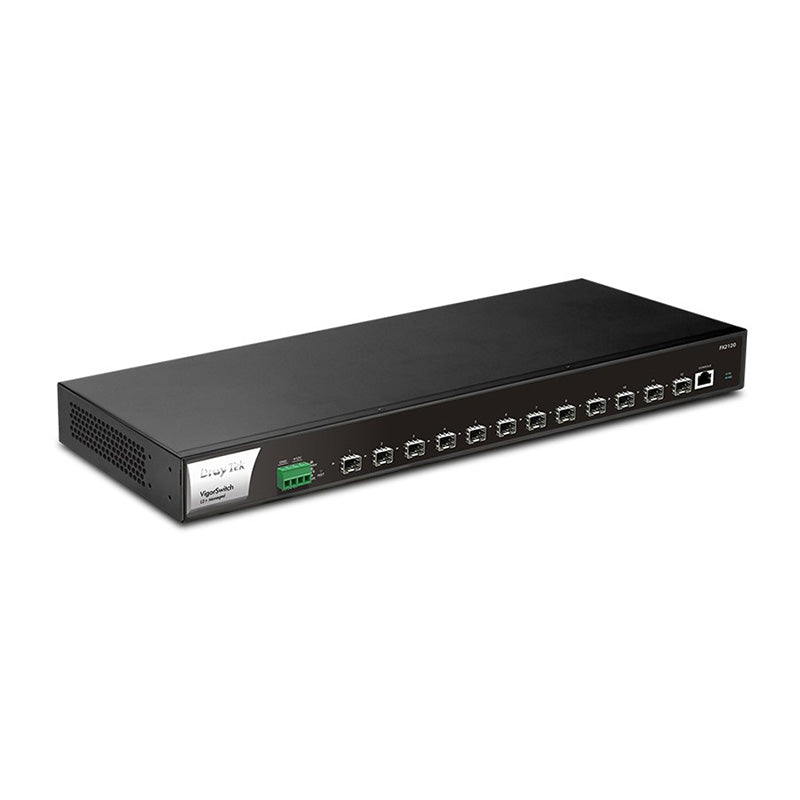

DrayTek VigorSwitch FX2120 is a full 10 Gigabit switch with 12x SFP+ ports for uplink/downlink and 1x console port. It is well-suited for ISP and enterprise network with intensive data transmission.



Supporting OpenFlow 1.3, it’s also a future-proofed switch that can be operating in either traditional switch or SDN switch mode.



Equipped with Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch FX2120 improves local network sustainability and efficiency regardless of the gateway. Furthermore, with IP Conflict Detection & Prevention, ONVIF Surveillance and a lot more, this is the balanced switch that brings advanced features into mid-sized environments.



Features:


Layer 2+ Managed 10GbE Switch: 12 x 10 Gigabit SFP+ Ports & Up to 240 Gbps switching capacity
1 x RJ45 Console Port
DC power input in addition to AC input power
Port based and 802.1q tagged VLANs
Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
ONVIF (Open Network Video Interface Forum) compliant
QoS with 8 queues for traffic prioritisation
IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts
Secure local network by 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
Authentication by local database, multiple RADIUS, and TACACS+ server
IEEE 802.3az (Energy-Efficient Ethernet) Compliant
Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
Port Mirroring & Link Aggregation
OpenFlow Version 1.3 (SDN model)*
OpenFlow Table Size: 1920 (SDN model)*
Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
Compliant with VigorConnect free software for local network management
Supports VigorACS 3 Central Management Software for remote management
2 years back to base warranty



*The OpenFlow functionality is project-based and must be activated by DrayTek HQ. Please contact our sales team for further inquiries.

  • Datasheets and Guides
  • View the Ports

Click HERE to access the Datasheet

Click HERE to access the User Guide

Click HERE to access the Installation Guide
