DSP1282 DrayTek VigorSwitch P1282



SKU: DSP1282

Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote

PoE+ (400W) Web Smart Managed Switch with 4 x SFP/GbE Combo ports, 24 x GbE ports, Auto Surveillance & Voice VLAN, ONVIF-Friendly, Energy-Efficient Ethernet, and Central Switch Management

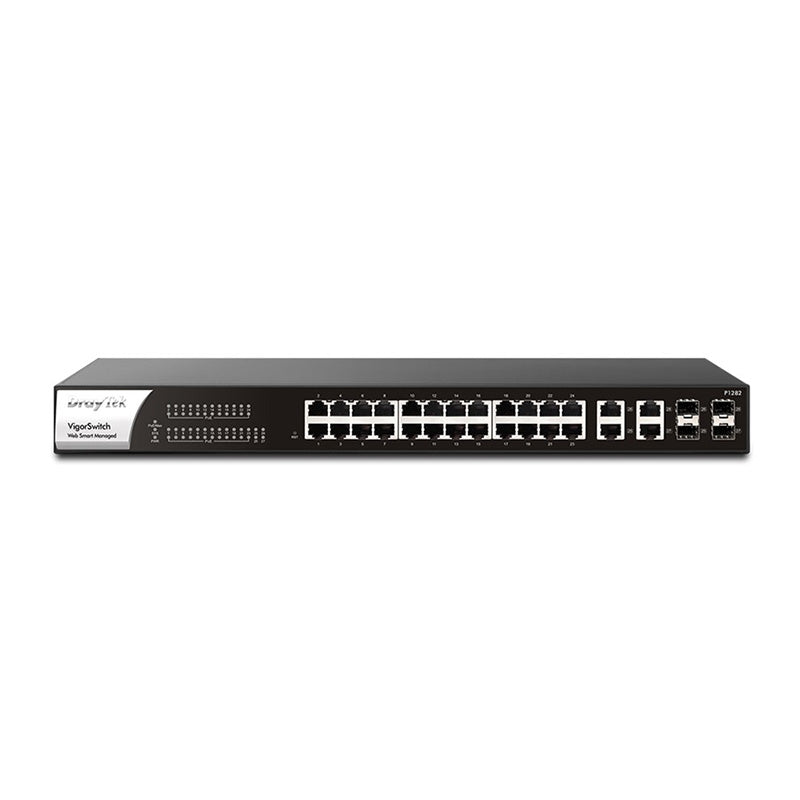

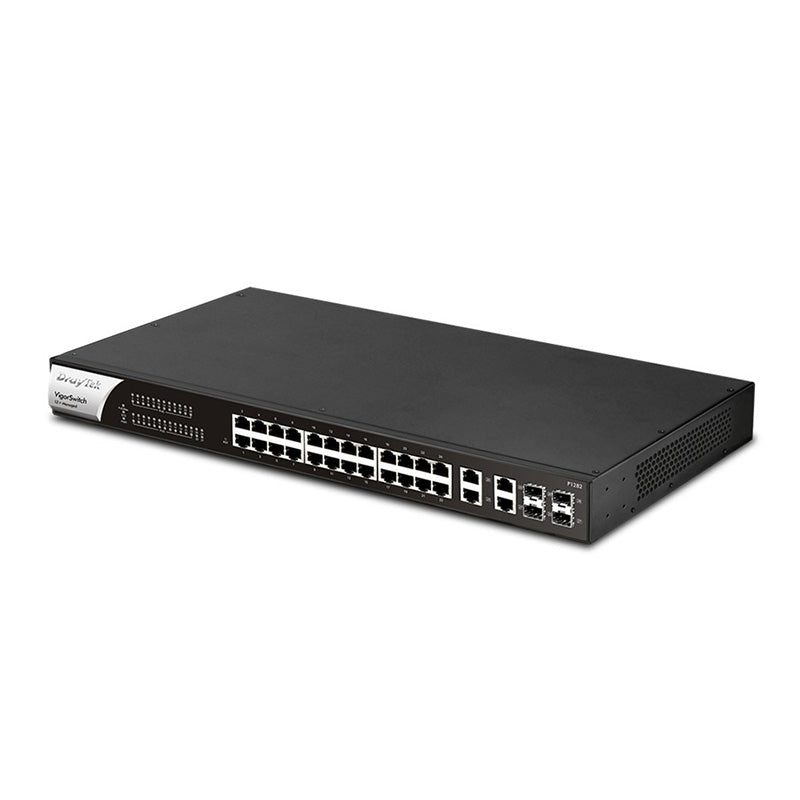

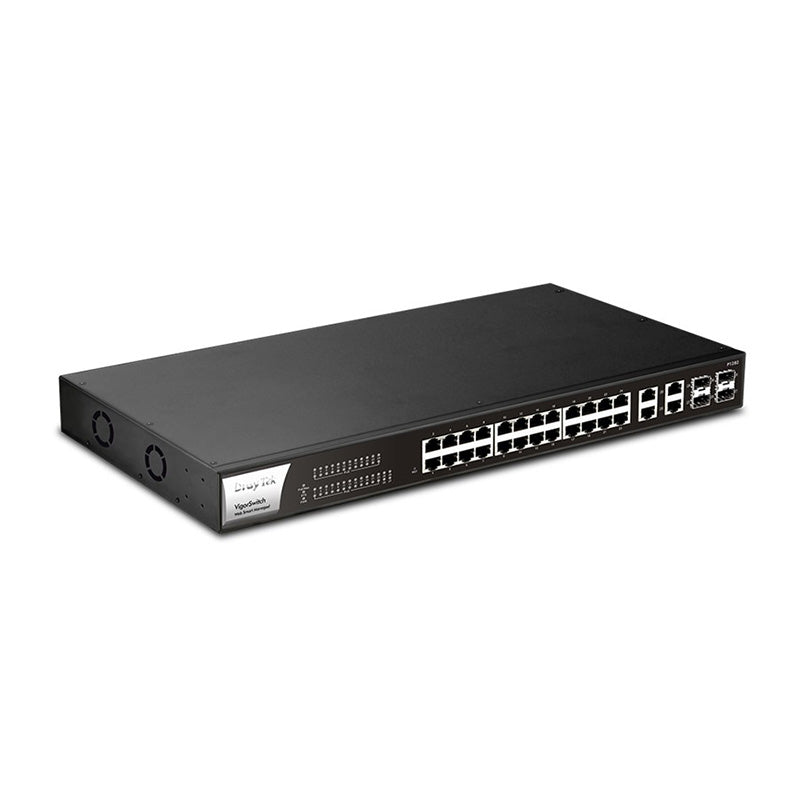

The VigorSwitch P1282 is a Web Smart Managed PoE+ Switch with 24 x Gigabit Ethernet PoE/PoE+ ports and 4 x SFP/GbE Combo ports for optic fibre modules or DAC cables.


Each of the 24 PoE/PoE+ Gigabit Ethernet ports supports the 802.3at and 802.3af PoE standards, providing up to 30W per port (with a total of 400 watts power budget). This provides power for devices such as wireless Access Points, IP phones, and IP cameras, without needing to install additional adapters.


The VigorSwitch P1282 integrates with many network functions of DrayTek routers, including QoS, Port Mirroring, VLAN network security, Spanning Tree Protocol, and SNMP. This switch is fully compliant with IEEE 802.3az Energy-efficient Ethernet protocol and can be configured from DrayTek routers that support Central Switch Management. The Voice VLAN feature automatically identifies VoIP traffic and assigns it to the designated VLAN, and provides the best possible call quality.



28 port Web Smart Gigabit Switch: 24 x Gigabit Ethernet Ports with PoE+ & 4 x Gigabit RJ-45/SFP Combo Ports
PoE ports 802.3at and 802.3af compliant providing up to 30W per port
PoE power budget of 400 watts
PoE Scheduling & Ping watchdog power cycle
Port based and 802.1q tagged VLANs
Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
ONVIF (Open Network Video Interface Forum) compliant
QoS with 8 queues for traffic prioritisation
IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts
IEEE 802.3az (Energy-Efficient Ethernet) Compliant
Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
Port Mirroring & Link Aggregation
Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
Compliant with VigorConnect free software for local network management
Supports VigorACS 3 Central Management Software for remote management
2 years back to base warranty
