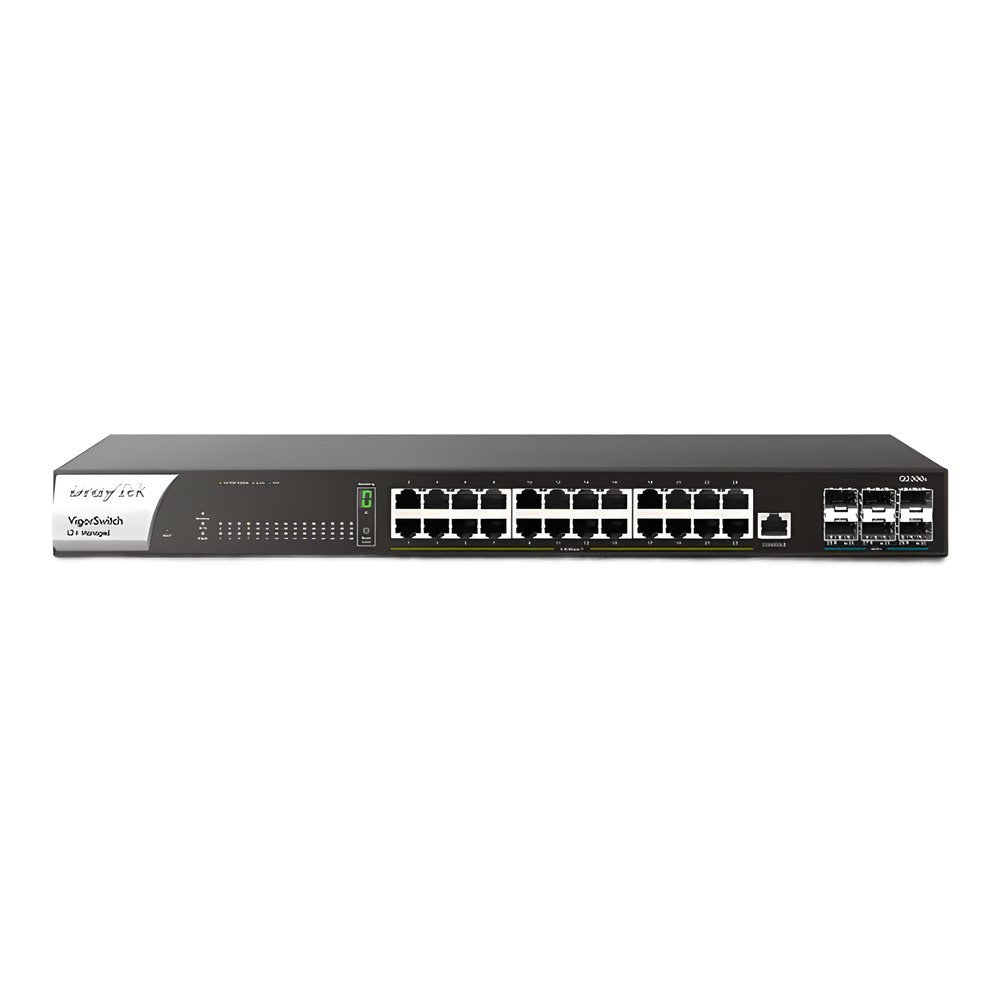

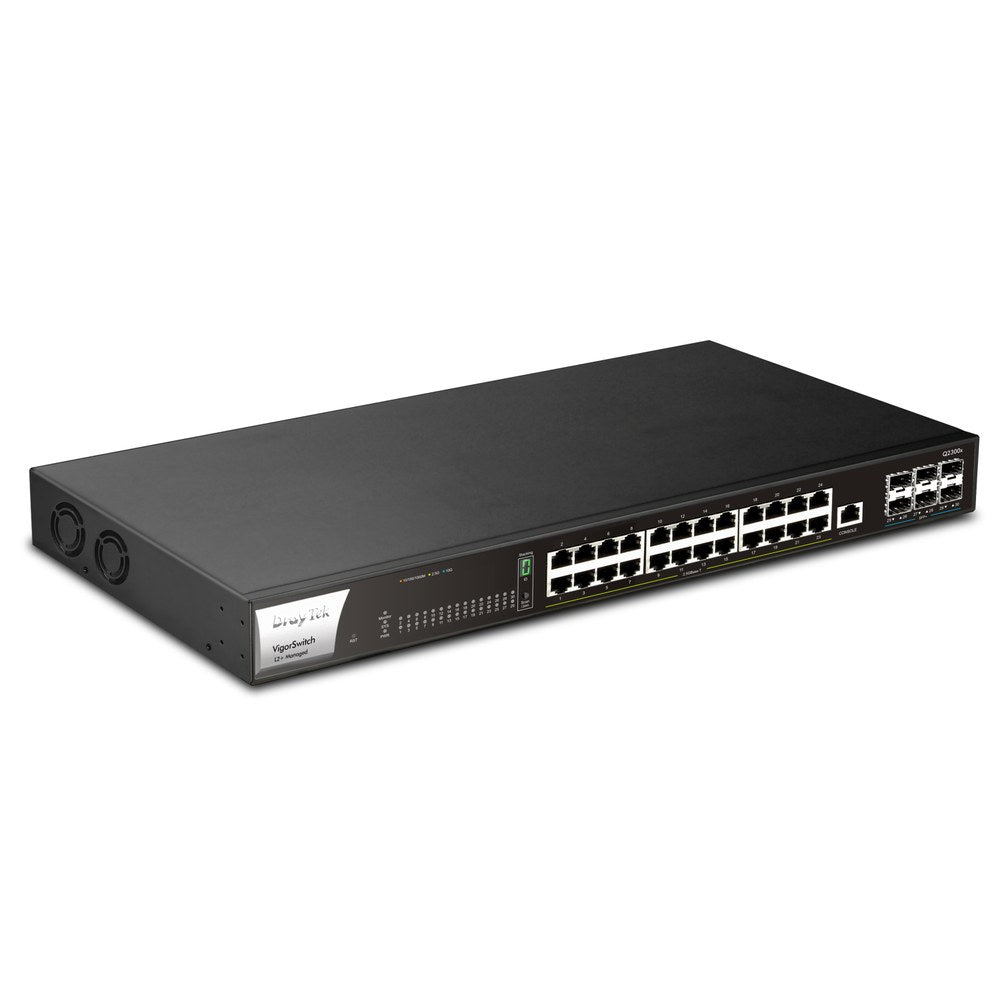

The VigorSwitch Q2300x (SKU: DSQ2300x) is a 30-port 2.5GbE L2+ managed switch built for modern business networks. It combines 24 x 2.5 Gigabit Ethernet ports with 6 x 10G SFP+ slots, delivering 240 Gbps switching capacity for demanding Wi-Fi 6 access point, VoIP and IP camera deployments.

Advanced VLAN support, QoS with 8 traffic queues and enterprise-level network security help keep critical traffic prioritised and your network protected. The switch can run standalone or be managed centrally through a supported Vigor router, VigorConnect or VigorACS 3.

Key Features

• 24 x 2.5GbE RJ-45 ports plus 6 x 10G SFP+ slots for aggregation or uplinking to core switches
• 240 Gbps switching capacity with a 178.56 Mpps forwarding rate (64 bytes)
• Up to 512 VLANs, including 802.1q tag-based, MAC-based, protocol-based, management, Voice VLAN and Surveillance VLAN
• QoS with 8 queues, using Strict Priority Queuing or Weighted Round Robin
• Enterprise security: 802.1x port access control, ACLs, IP Source Guard, Dynamic ARP Inspection, DHCP Snooping, Storm Control and DoS Defense
• RADIUS and TACACS+ authentication, plus IPv6 support with MLD Snooping, IPv6 ACL and IPv6 DNS Resolver
• ONVIF-friendly: detects ONVIF devices, displays surveillance topology and sends email alerts with a snapshot if a camera stops responding
• Link Aggregation (static and LACP) with up to 8 groups of up to 8 ports each
• Stackable: up to four units can stack as one logical switch (from firmware v2.10.2)
• IEEE 802.3az Energy-Efficient Ethernet compliant
• Monitoring via SNMP v1/v2c/v3, RMON, Syslog and Port Mirroring
• 16 Mbit buffer, 32k MAC address table and jumbo frames up to 12KB

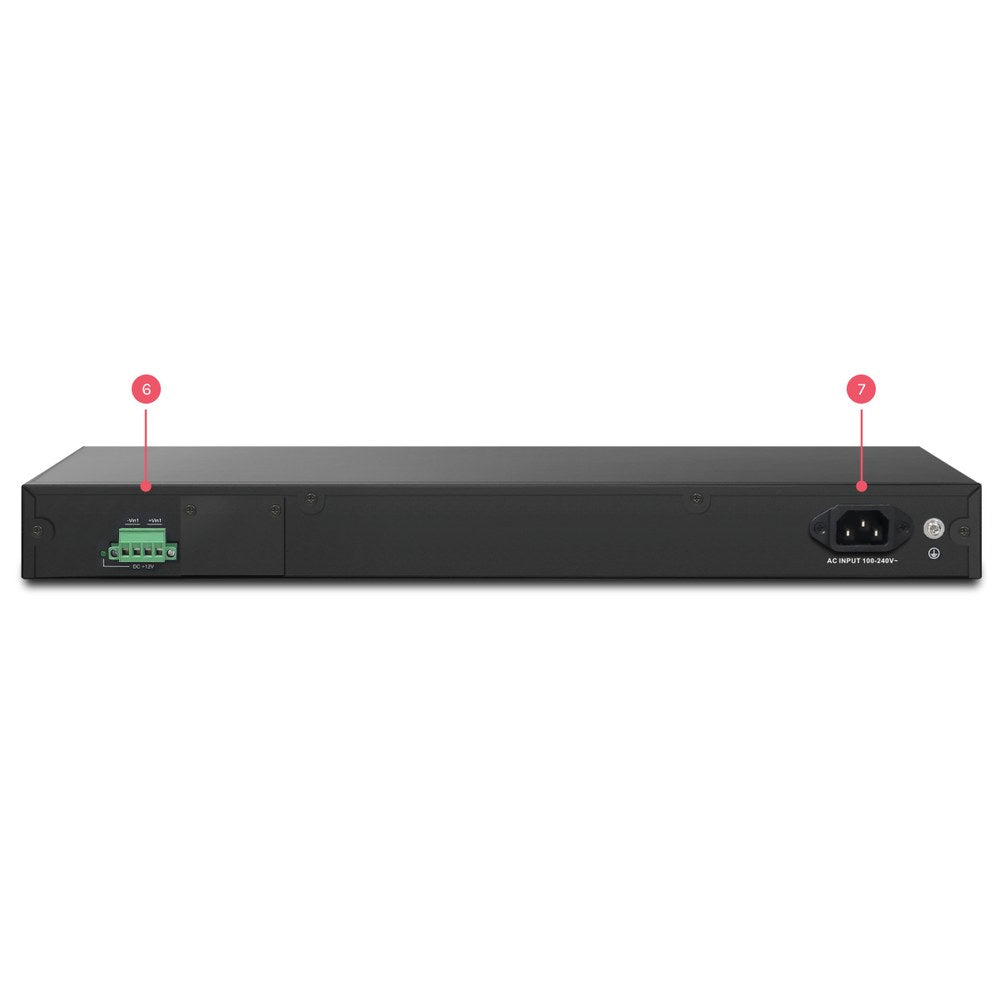

• 1U rack-mountable, with DC 12V redundant power input and RJ-45 console port
• 2 years back-to-base warranty

Specifications at a glance

Dimensions: 440 (W) x 281 (D) x 44 (H) mm. Weight: 3.83 kg. Power input: AC 100-240V. Maximum power consumption: 60 watts. Operating temperature: 0 to 50°C.

Ideal for: SMBs, enterprise LANs, IT administrators, and installers building high-speed networks with Wi-Fi 6 access points, IP phones and IP cameras that need centralised management.

Compatible Products

Compatible with DrayTek Vigor routers that support Central Switch Management, plus VigorConnect (firmware v2.9.4 or later) and VigorACS 3 (firmware v2.9.4 or later). Stacking is supported with VigorSwitch models that have identical port configurations, such as the VigorSwitch PQ2300xb.

FAQs

How many ports does the VigorSwitch Q2300x have?
It has 24 x 2.5GbE RJ-45 ports and 6 x 10G SFP+ slots, giving 30 ports in total.

Can I stack multiple switches?
Yes. Since firmware v2.10.2, up to four units can stack as one logical switch with a single IP address for management. Stacking is only supported between models with identical port configurations.

How can I manage the switch?
It can run standalone, or be managed centrally via the Central Switch Management feature of a Vigor router, VigorConnect or VigorACS 3.

Does it support IP cameras and VoIP phones?
Yes. Auto Surveillance VLAN and Auto Voice VLAN identify traffic from IP cameras and IP phones automatically, and the switch is ONVIF-friendly.

Does the switch provide PoE?
No. The Q2300x is a non-PoE model. DrayTek offers the VigorSwitch PQ2300xb as the 30-port PoE++ variant.
