Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
Wave-AP-Gen2
Wave-AP-Gen2 Ubiquiti UISP Wave AP Gen2
$1,209.93 AUD
Unit price
/
Unavailable
16 in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane and Melbourne
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.
Frequently asked questions5 questions
What is the Wave-AP-Gen2 used for?
It is a 60 GHz and 5 GHz point-to-multipoint base station operating as a PtMP access point in bridge mode. It offers 90-degree sectoral coverage, supports up to 31 clients and delivers 2.7 Gbps symmetrical speed.
How far can it reach, and which devices can it connect to?
Range depends on the client device: up to 6 km to a Wave Pro or Wave Long-Range, up to 4 km to a Wave Nano, and up to 0.9 km to a Wave Pico.

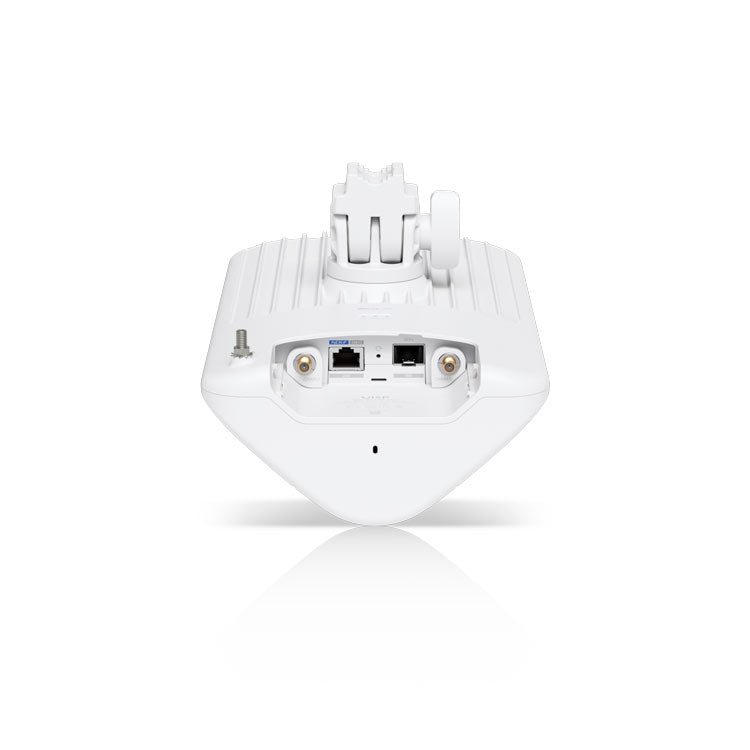

What ports does it have?
It has one 2.5 GbE RJ45 port and one 10G SFP+ port. The Ethernet LED flashes white for Ethernet traffic and flashing blue for SFP+ traffic.
How is it powered?
It is powered over passive PoE (4-pair or 2-pair, 44–54V DC only) and draws up to 24W maximum. A 48V DC, 0.65A 2.5 GbE PoE adapter is included.

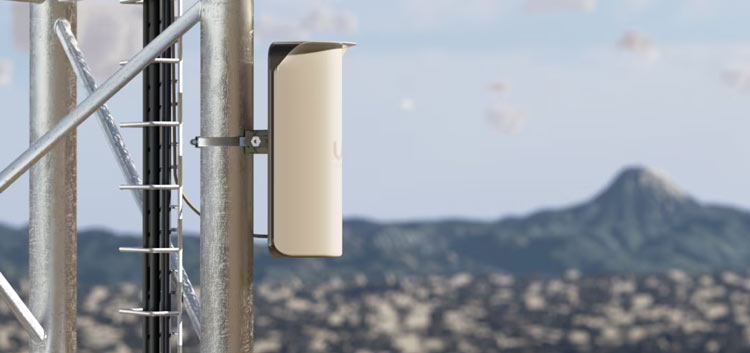

Is it suitable for outdoor installation?

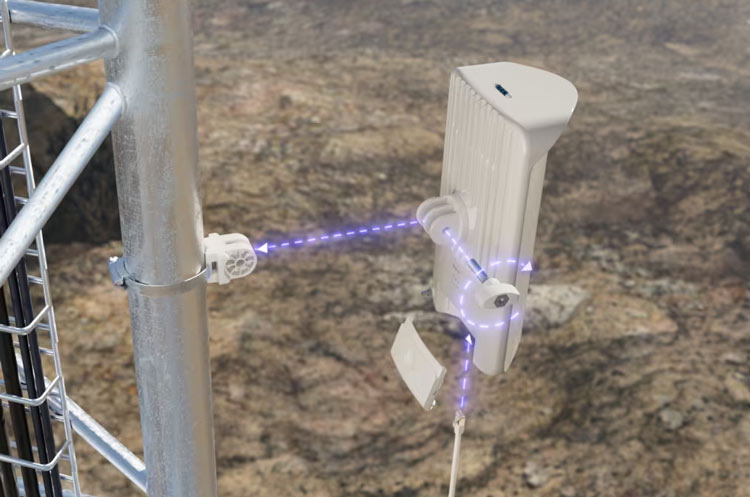

Yes. It has an IPX6 weatherproof rating, a UV-stabilised polycarbonate and aluminium alloy enclosure, and an operating range of -40 to 60° C. It mounts on poles from 25.4 to 60 mm in diameter.
Specifications45 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 158.3 x 286.8 x 100.2 mm / (6.2 x 11.3 x 3.9") |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | UV stabilized polycarbonate, aluminum alloy |
| Pole Mount Diameter | 25.4 to 60 mm (1 to 2.4") |
| Wind Loading | 109.8 N at 200 km/h (25 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 2.5 GbE RJ45 port / (1) 10G SFP+ port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A 2.5 GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing white: Ethernet traffic detected / Flashing blue: SFP+ traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtMP access point |
| Network | Bridge Mode |
| Application Requirements · UISP | Version 2.4.205 and later |
| System | |
| Total Throughput | 5.4 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 6 km / Connecting to a Wave Long-Range: up to 6 km / Connecting to a Wave Nano: up to 4 km / Connecting to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 20 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 90° / Elevation: 3 dB 7° |
| Electrical Downtilt | 0° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 13 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 6 dB 95° / Elevation: 6 dB 25° |
| Cross-Pol Isolation | 18 dB |
| Electrical Downtilt | 0° |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model Wave-AP-Gen2 · Ubiquiti's spec sheet
