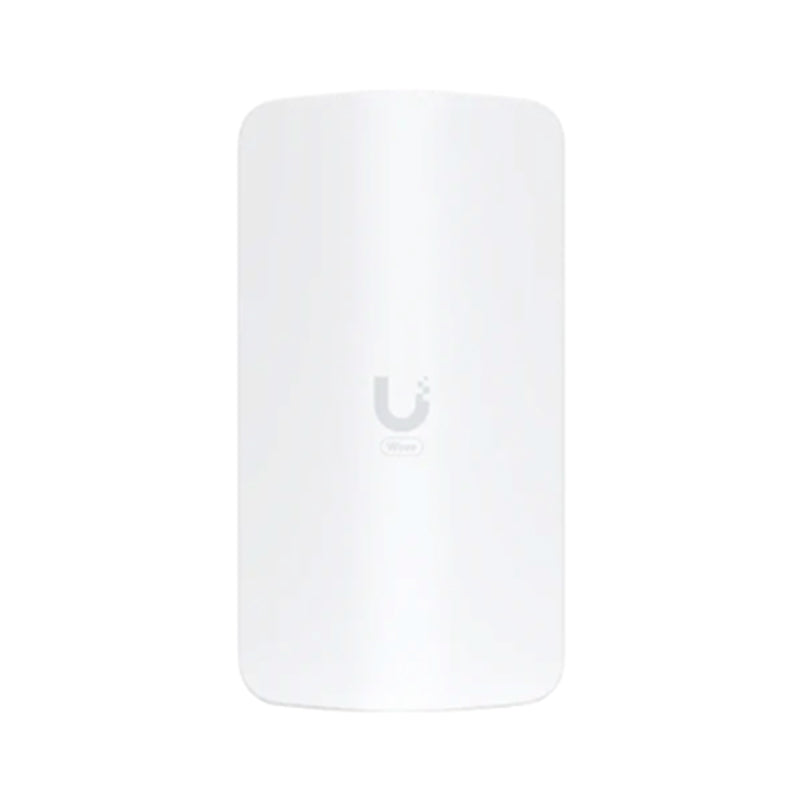

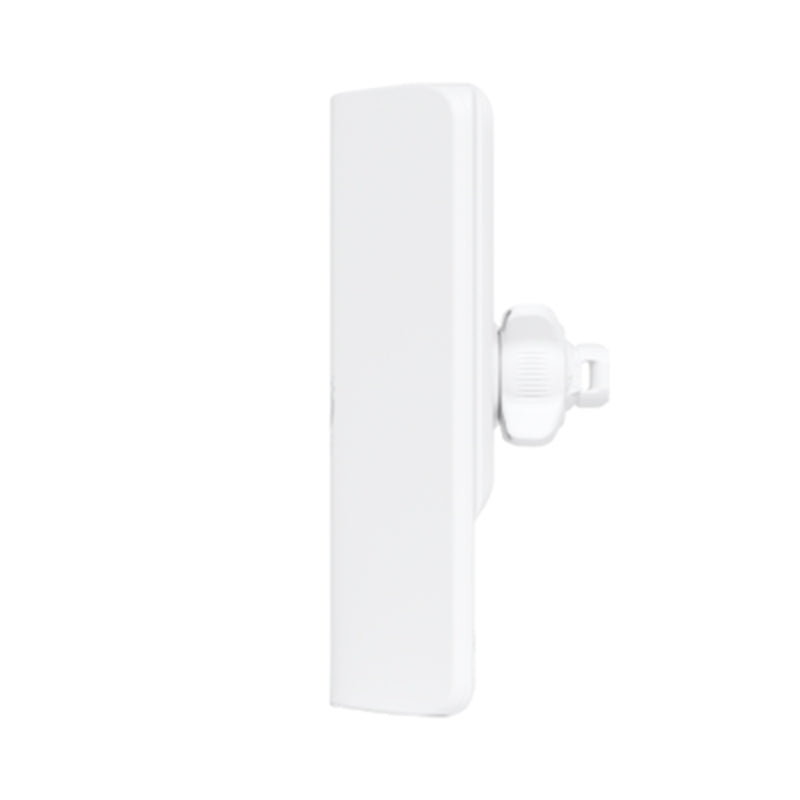

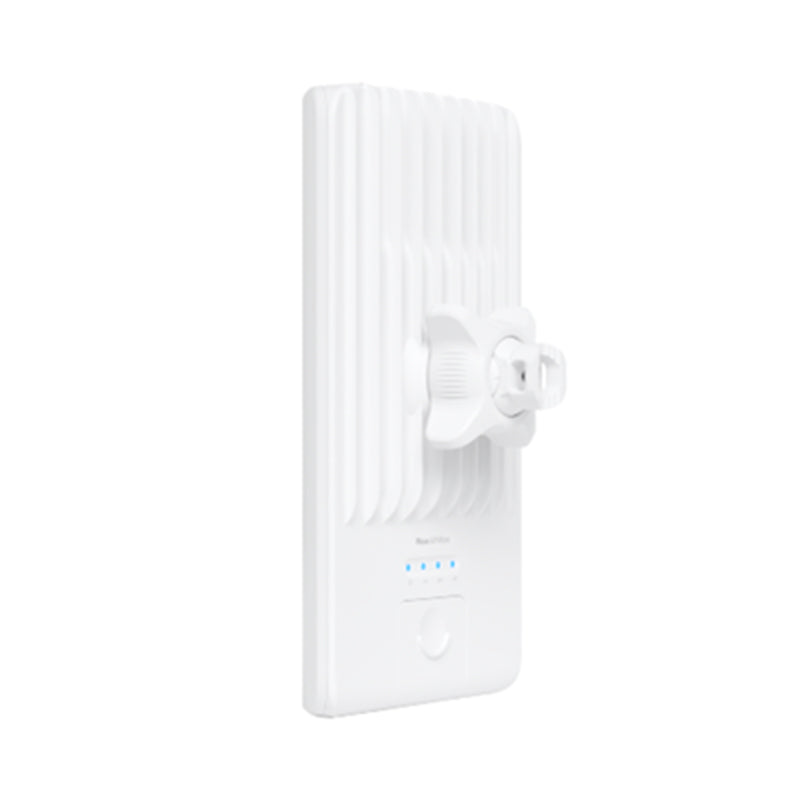

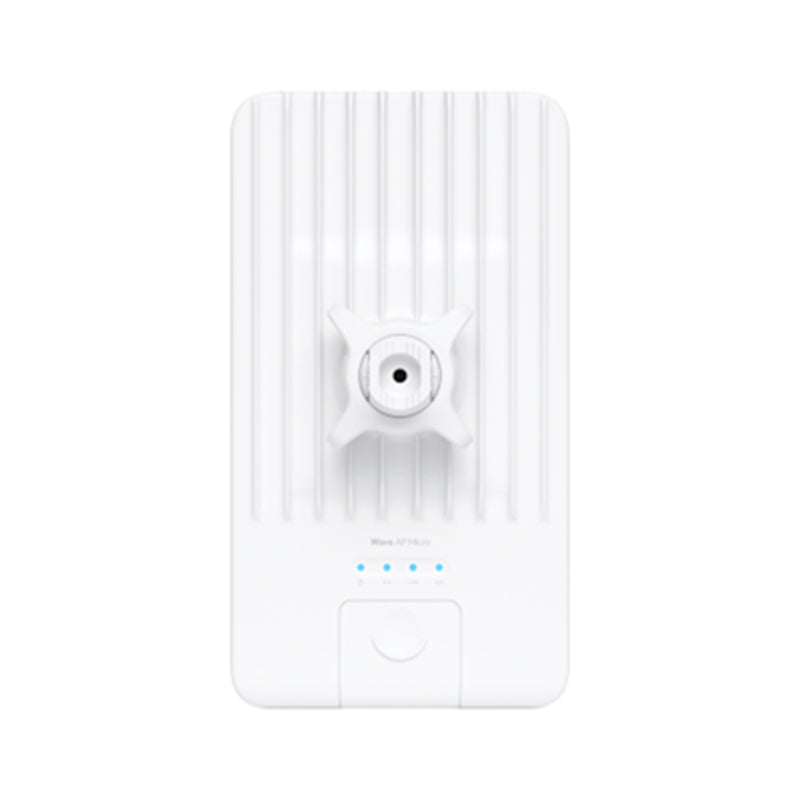

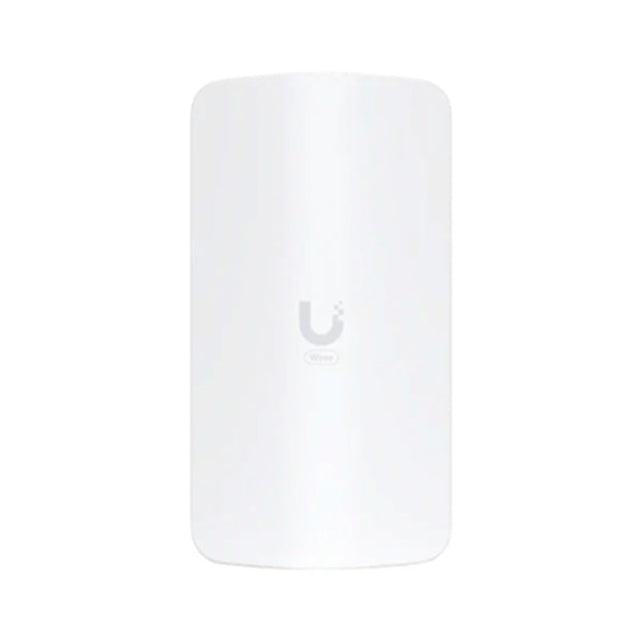

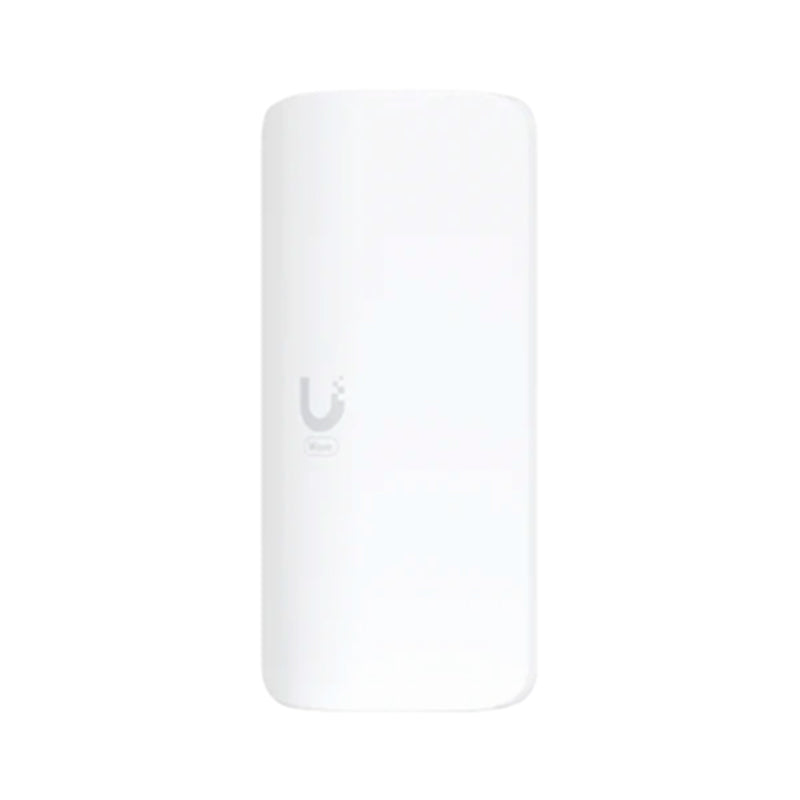

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
WAVE-AP-MICRO
WAVE-AP-Micro Ubiquiti UISP Wave AP Micro
$996.76 AUD
Unit price
/
Unavailable
6 in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
The Ubiquiti Wave AP Micro Outdoor 60GHz 20dBi WiFi 6 PtMP Access Point delivers 5 Gbps total throughput (2.5 Gbps duplex) and can connect up to 15 stations. It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connectivity and a Bluetooth radio to simplify setup via the UISP Mobile app.
Features:
60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio
90° sector coverage
5 GHz 800+ Mbps weather-resilient backup radio
(1) 2.5 GbE WAN port
15 client capacity:
— Wave Long-Range (6 km link range)
— Wave Nano (4 km link range)
Integrated GPS & Bluetooth
Frequently asked questions5 questions
What is the Wave AP Micro used for?
It is a 60 GHz point-to-multipoint (PtMP) access point with 90° sector coverage and 5 Gbps total throughput (2.5 Gbps duplex). It also includes a 5 GHz WiFi 6 backup radio to keep links connected.
How far can the Wave AP Micro link to a client device?
Range depends on the station: up to 6 km to a Wave Pro or Wave Long-Range, up to 4 km to a Wave Nano, and up to 0.9 km to a Wave Pico.
How is the Wave AP Micro powered, and is a power supply included?
It is powered by passive PoE and a 48V DC, 0.65A, 2.5 GbE PoE adapter is included. Maximum power consumption is 24W, and the supported voltage range is 44–54V DC or 22–27V DC.
What network port does the Wave AP Micro have?
It has one 1/2.5 GbE RJ45 port, which handles both data and passive PoE power. The unit operates in bridge mode as a PtMP access point.
Is the Wave AP Micro suitable for outdoor installation?
Yes, it is rated IPX6 for weatherproofing and operates in ambient temperatures from -40 to 60° C. It mounts on poles 35 to 60 mm in diameter and is set up using the UISP Mobile app over Bluetooth.
Specifications49 specifications · 6 sections
| Mechanical | |
|---|---|

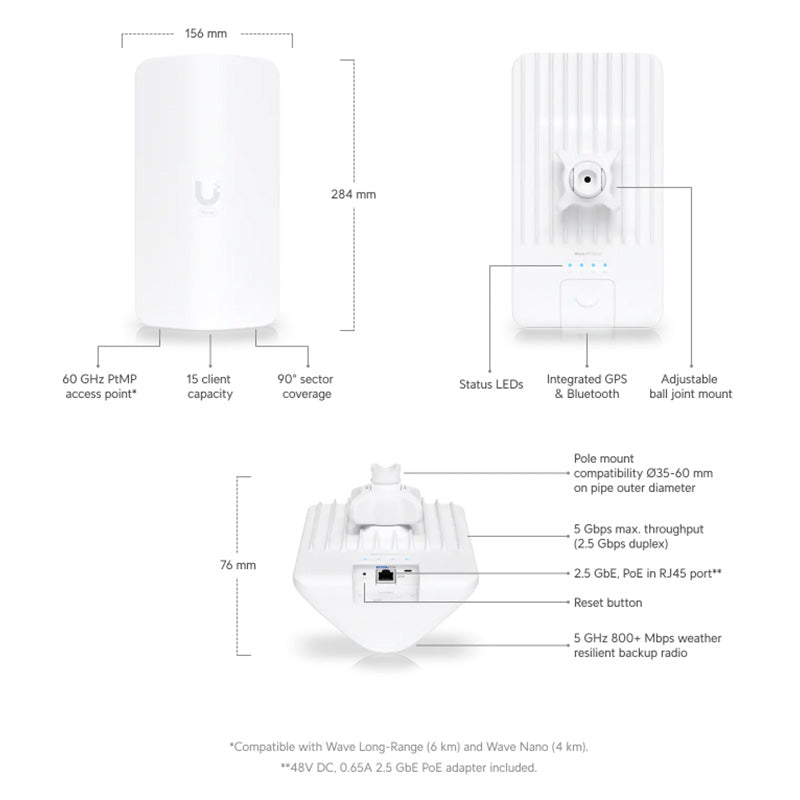

| Dimensions | 284 x 156 x 76 mm / (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Mount Material | Stainless steel, UV stabilized polycarbonate |
| Pole Mount Diameter | 35 to 60 mm (1.4 to 2.4") |
| Wind Loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing blue: Ethernet traffic detected |
| LEDs · GPS | Blue: receiving at least(4) GPS satellite signal |
| LEDs · Link | Blue: 60 GHz link / White: 5 GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtMP access point |
| Network | Bridge Mode |
| Application Requirements · UISP web | Version 2.2.11 and later |
| Application Requirements · UISP mobile iOS™ | Version 2.25.1 and later |
| Application Requirements · UISP mobile Android™ | Version 2.27.5 and later |
| System | |
| Total Throughput | 5 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 6 km (3.7 mi) / Connecting to a Wave Long-Range: up to 6 km (3.7 mi) / Connecting to a Wave Nano: up to 4 km (2.5 mi) / Connecting to a Wave Pico: up to 0.9 km (0.6 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 20 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 90° / Elevation: 3 dB 7° |
| Electrical Downtilt | 0° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 13.5 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 6 dB 90° / Elevation: 6 dB 25° |
| Cross-Pol Isolation | 10 dB |
| Electrical Downtilt | 0° |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model WAVE-AP-MICRO · Ubiquiti's spec sheet
