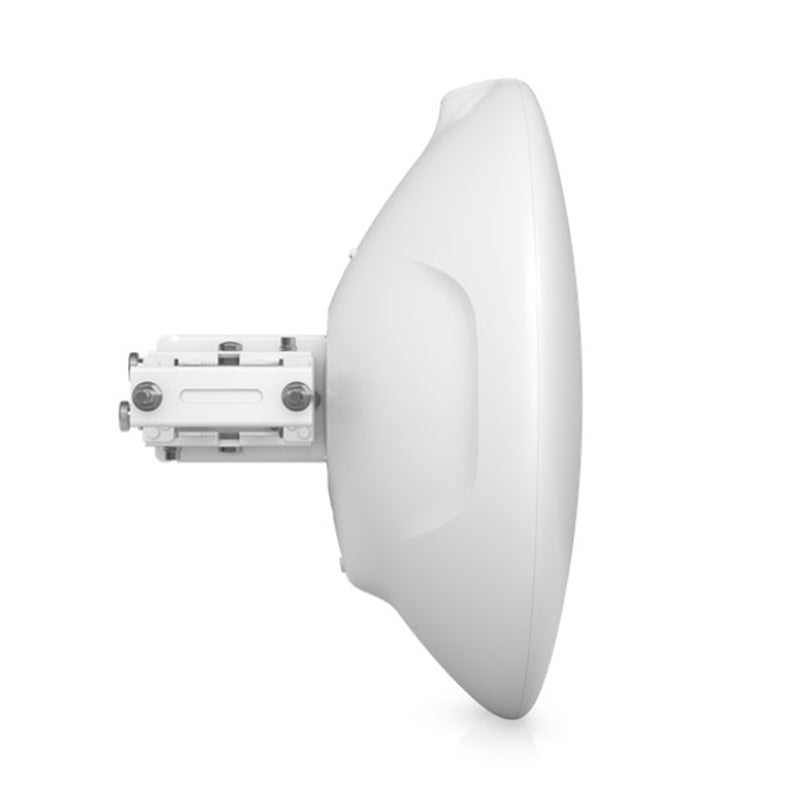

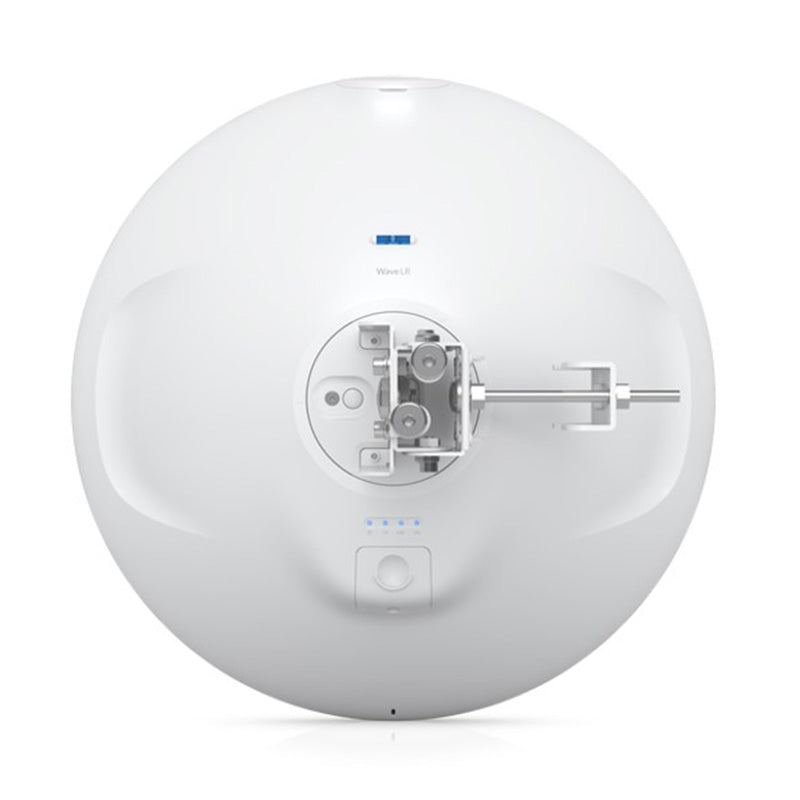

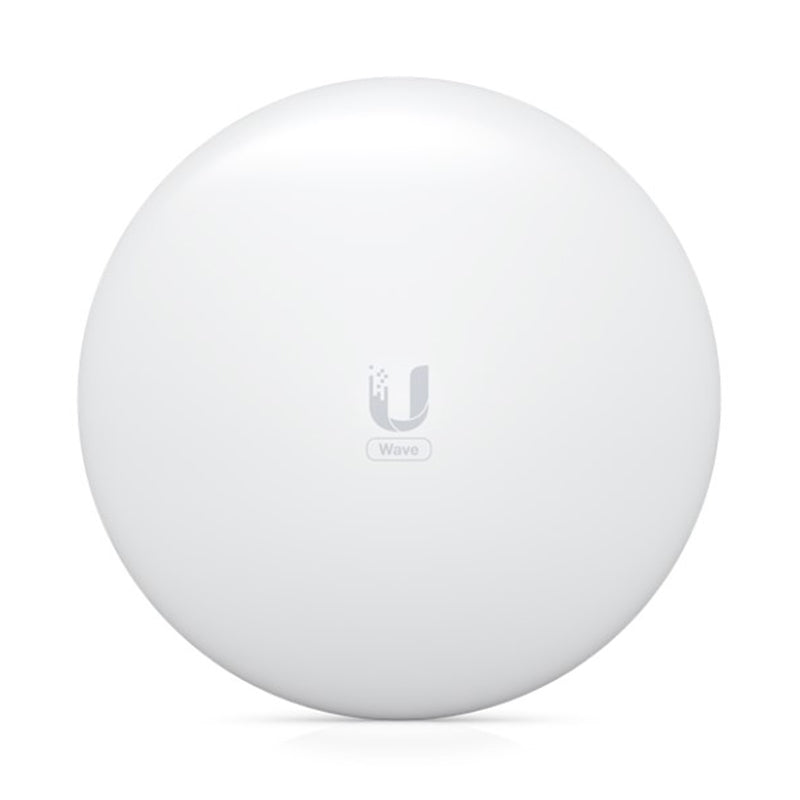

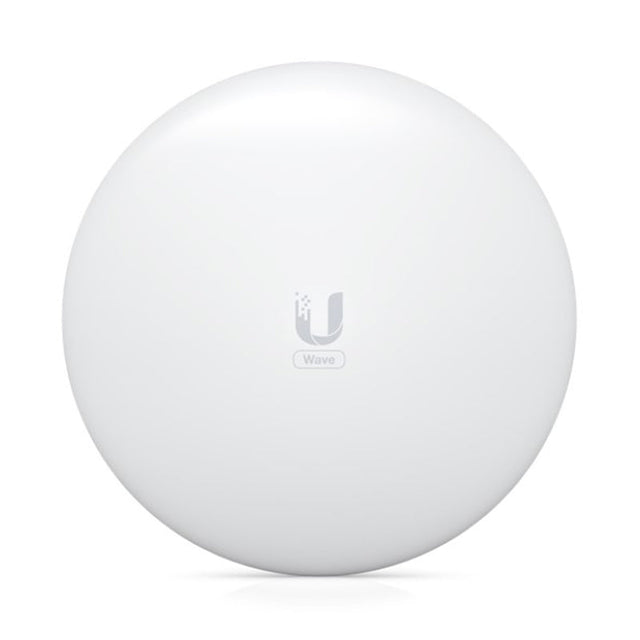

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
WAVE-LR Ubiquiti UISP Wave Long Range
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
60 GHz PtMP station powered by Wave Technology.
The Ubiquiti Wave Long-Range Outdoor 60GHz 46dBi WiFi PoE Access Point can connect to a Wave AP (sold separately) and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection, and a Bluetooth radio to simplify setup via the UISP Mobile app.
Features:

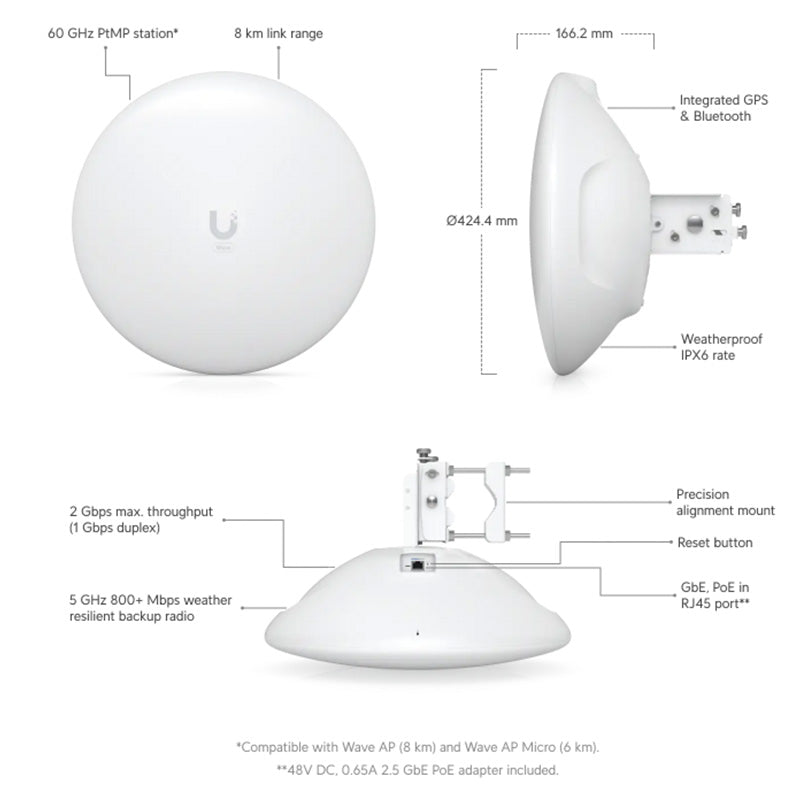

Compatibility and supported distances:
— Wave AP - 8 km link range
— Wave AP Micro - 6 km link range
2 Gbps max. throughput (1 Gbps duplex)
5 GHz 800+ Mbps weather-resilient backup radio
(1) GbE RJ45 port

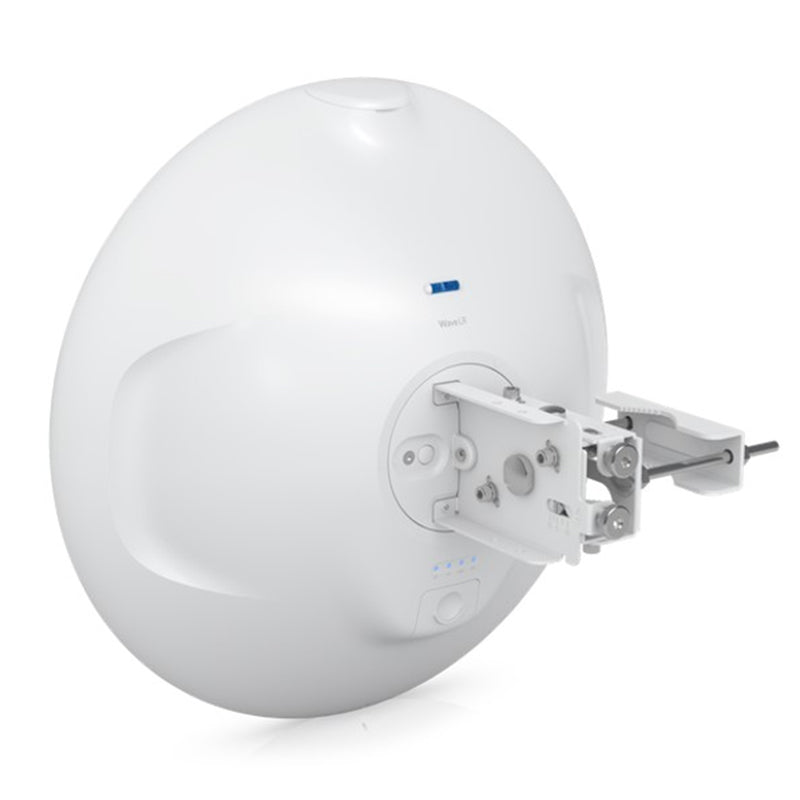

Precision alignment mount
Integrated GPS & Bluetooth
Frequently asked questions5 questions
What is the WAVE-LR used for?
What link range does it support?
Does it have a backup connection if the 60 GHz link drops?
How is the WAVE-LR powered?
How is it mounted and set up?
Specifications44 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀424.4 x 166.2 mm / (⌀16.7 x 6.5") |
| Weight | Without mount: 2.6 kg (5.7 lb) / With mount: 3.8 kg (8.4 lb) |
| Enclosure Material | UV stabilized polycarbonate |
| Mount Material | Stainless steel |
| Mounting | Pole Mount |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") |
| Wind Loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory | 512 MB |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing blue: Ethernet traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| LEDs · Link | White: 5GHz link / Blue: 60GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP / PtMP Station |
| Network | Bridge/Router mode |
| Application Requirements · UISP | Version 1.4.5 and later |
| System | |
| Total Throughput | 2 Gbps |
| Max. Range | 8+ km (5 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 46 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 1° / Elevation: 3 dB 1° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 3 dB 8° / Elevation: 3 dB 8° |
| Cross-Pol Isolation | 20 dB |
