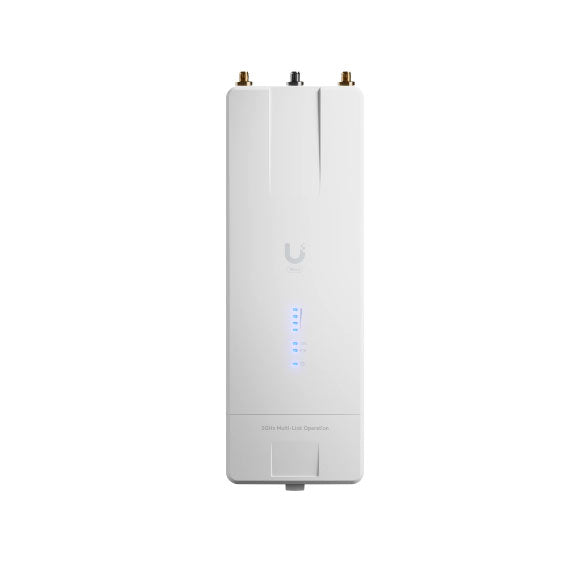

Wave-MLO5 Ubiquiti UISP Dual 5 GHz WiFi 7-based Radio

$788.48 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Features:

5 GHz, 100+ km link range

5+ Gbps throughput

Dedicated spectral analysis radio

Channel puncturing

(1) 10 GbE and (1) SFP+ port

Integrated Bluetooth

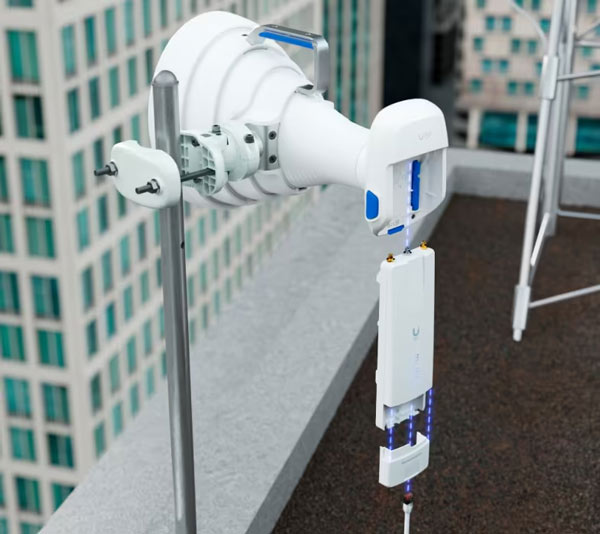

Compatible with airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn

_{Note. MLO operation is limited to 20 km, with longer ranges coming soon via future firmware updates.}

Frequently asked questions5 questions

What is the Wave-MLO5 designed for?

It is a dual 5 GHz WiFi 7-based radio with Multi-Link Operation (MLO) for point-to-point (PtP) links, running in bridge mode. It offers 5+ Gbps total throughput and a maximum range of 100 km.

Is there a range limit when using MLO?

Yes. MLO operation is currently limited to 20 km, with longer ranges coming via future firmware updates. The radio's maximum range is 100 km.

What ports and power options does it have?

It has one 10 GbE RJ45 port and one 10G SFP+ port. It is powered by passive PoE (4-pair or 2-pair, 44–54V DC), and a 54V DC, 0.56A 10 GbE PoE adapter is included. Maximum power consumption is 20W.

Which antennas is it compatible with?

It is compatible with airMAX antennas, airFiber X antennas, UISP Dish and UISP Horn. It connects through two waterproof RP-SMA RF connectors and has one waterproof GPS connector.

Is it suitable for outdoor installation?

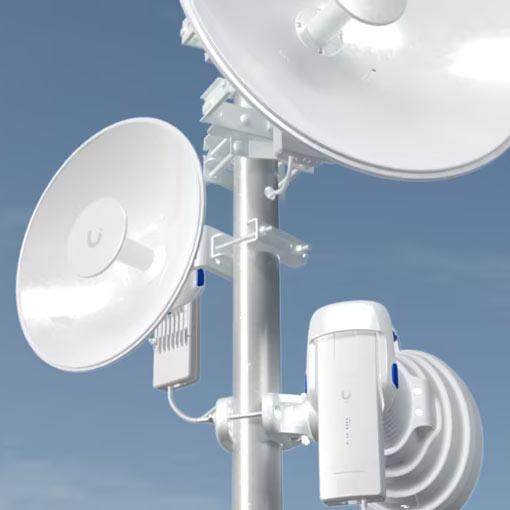

Yes. It has IPX6 weatherproofing and an operating temperature range of -40 to 60° C. It mounts to a 1–2" (25.4–50.8 mm) pole using the stainless steel strap and universal bracket.

Click HERE to access the Datasheet

Specifications33 specifications · 5 sections

Mechanical
Dimensions	249.3 x 82 x 47.6 mm / (9.8 x 3.2 x 1.9")
Weight	575 g (1.3 lb)
Enclosure Material	Aluminum alloy, UV-resistant polycarbonate
Mount Material	Strap: stainless steel / Universal bracket: UV-resistant polycarbonate
Mounting	Pole Mount
Pole Mount Diameter	1—2" (25.4—50.8 mm)
Weatherproofing	IPX6
Hardware
Processor	Quad-core IPQ5322 at 1.5 GHz
Memory	DDR4 1 GB

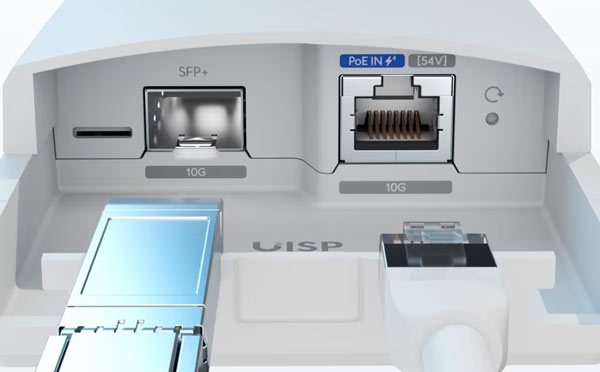

Networking Interface	(1) 10 GbE RJ45 port / (1) 10G SFP+ port
Max. Power Consumption	20W
Power Method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range	44–54V DC / 22–27V DC
Power Supply	54V DC, 0.56A, 10 GbE PoE adapter (Included)
MIMO · 5 GHz	(2) 2 x 2
Max. TX Power · 5 GHz	24 dBm
RF Connections	(2) RP-SMA (Waterproof) / (1) GPS (Waterproof)
Buttons	(1) Factory reset
LEDs · Power	(1) Blue
LEDs · Ethernet	(1) Blue
LEDs · GPS	(1) Blue
LEDs · Signal Strength	(4) Blue
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating Modes	PtP
Network	Bridge Mode
System
Total Throughput	5+ Gbps
Max. Range	100 km (62.1 mi)
Encryption	WPA3-PSK (AES)
Radio Frequency
Operating Frequency · Worldwide	5180 – 5320 MHz / 5500 – 5700 MHz / 5745 – 5825 MHz
Channel Bandwidth	Radio 1: 20, 40, 80, 160 MHz / Radio 2: 20, 40, 80, 160, 240 MHz
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)
