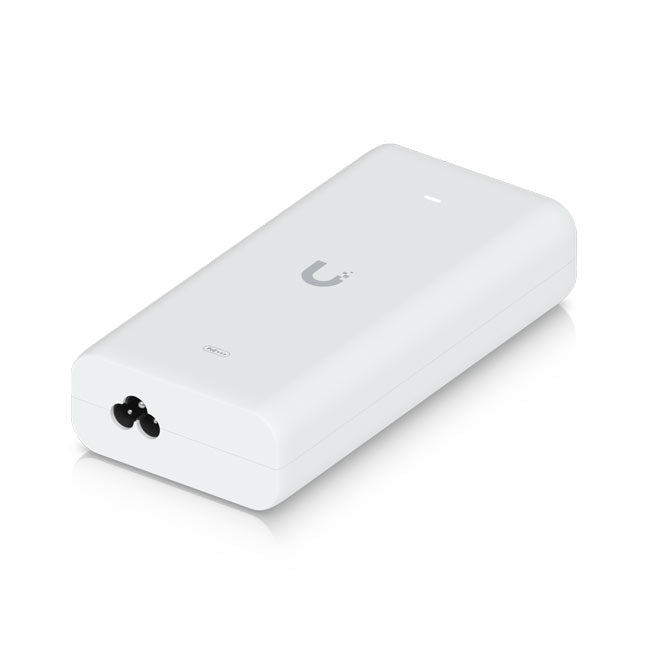

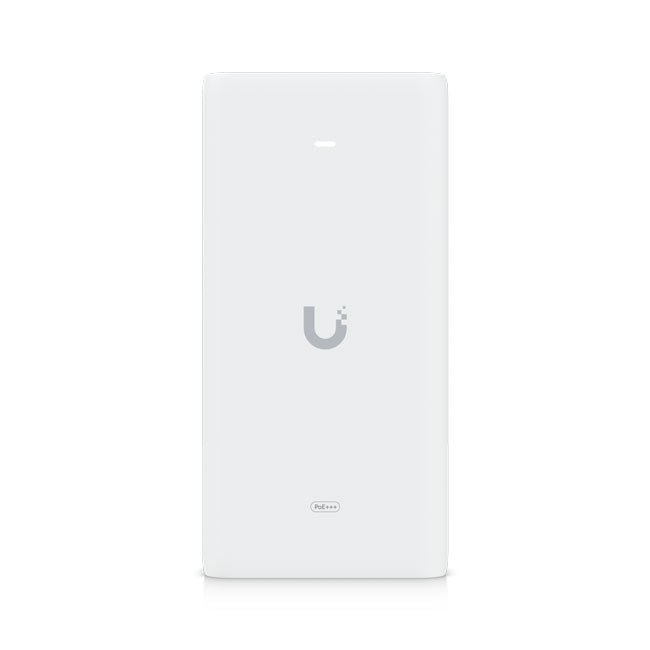

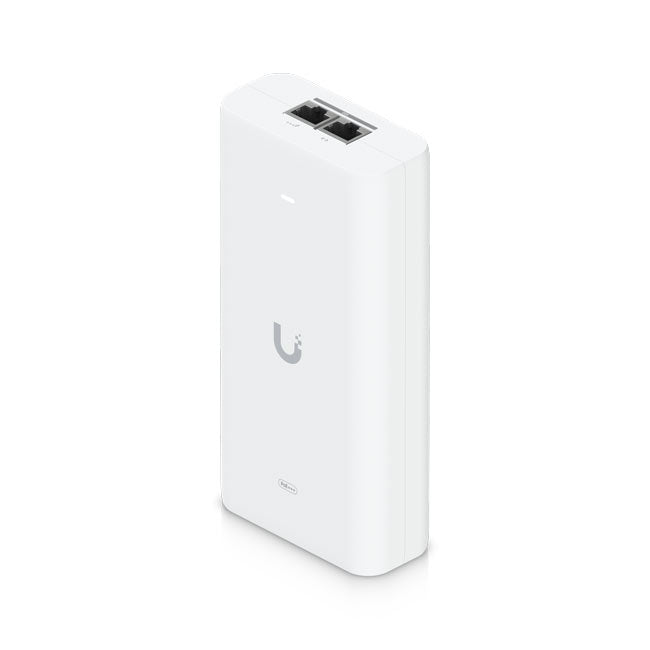

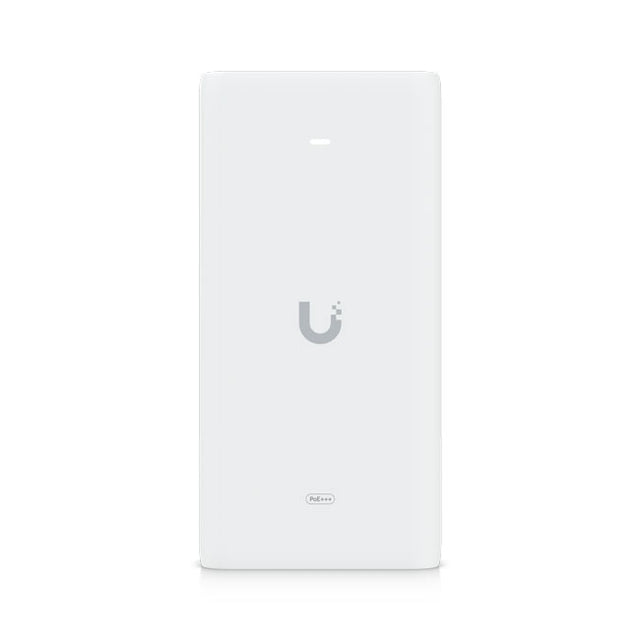

UACC-PoE+++-10G Ubiquiti UniFi 10G PoE+++ Adapter (90W)
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 90W of PoE+++
Surge, peak pulse, and overcurrent protection

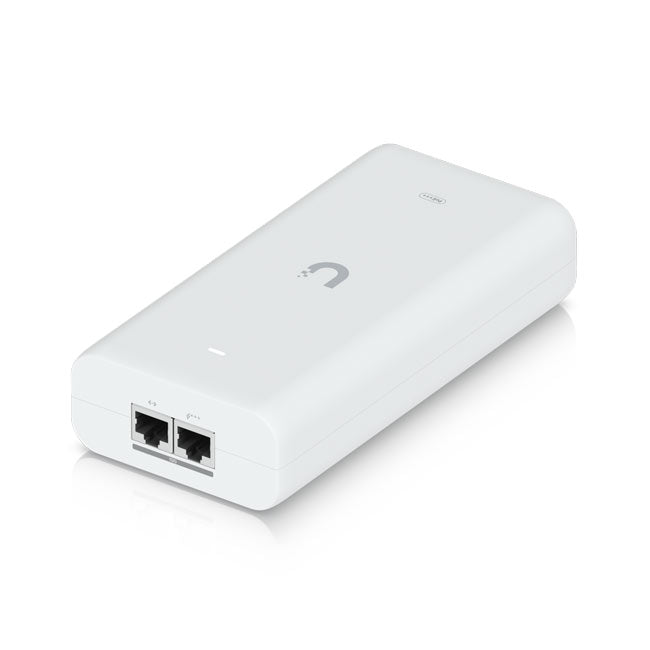

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
LED indicator for status monitoring

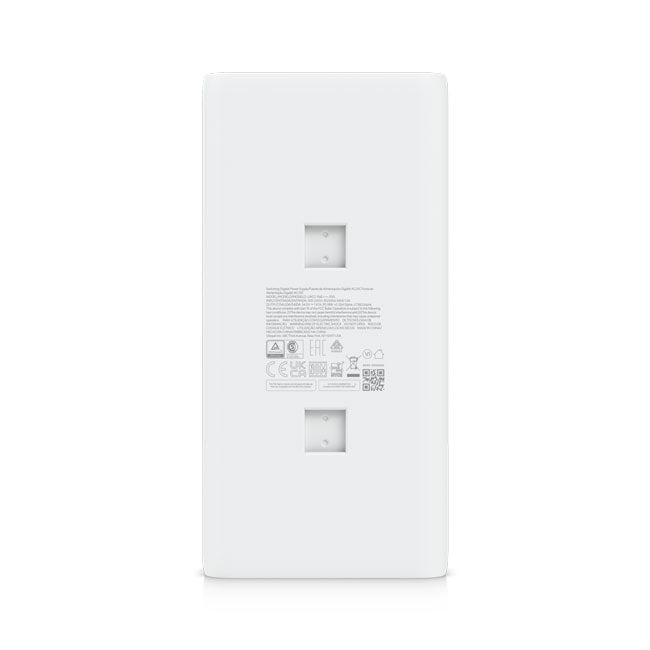

Supports wall mount, DIN rail and floating mount*
*DIN rail and Floating Mount sold separately
Specifications25 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 164.5 x 81 x 42 mm (6.5 x 3.2 x 1.7") |
| Weight | 372 g (13.1 oz) |
| Power Cable | Included |
| Output Voltage | 54V DC @ 1.67A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A Max. |
| Inrush Current | <120A peak @ 230V AC |
| Efficiency | >88% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| Max. PoE+ Wattage per Port by PSE | 90W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
