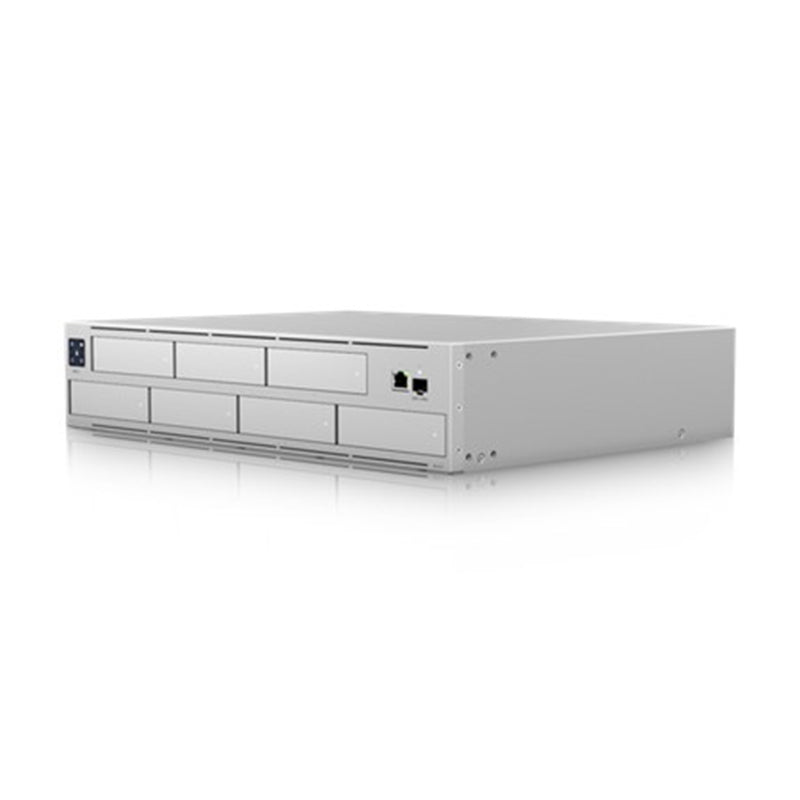

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console.
The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.
Features:
(7) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port
2U-sized, rack-mountable console (kit Included)
1.3" touchscreen with video event previewing*
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Connect a SmartPower Redundant Power System to create an uninterruptible network
Everything is top grade as for most Unifi products.
I have 84Tb configured as RAID 5 and 18 G5 cameras hanging off it.
Integrates perfectly with the Unifi network, the Protect software is fantastic.
I bought this one because the UNVR I bought the four bay one) went so well we expanded the system.
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 87 mm / (17.4 x 12.8 x 3.4") |
| Managed Cameras | (70) HD / (35) 2K / (24) 4K |
| Managed Access Hubs | 150 |
| Storage Capacity | (7) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ port / (1) GbE RJ45 port |
| Form Factor | Rack mount (2U) |
| Management Application | UniFi Protect / UniFi Access / UniFi Connect |
| Hardware | |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad ARM® Cortex®-A57 cores at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) / With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06697-21-08356 |
