ES-8-150W Ubiquiti UISP EdgeSwitch 8 PoE



SKU: ES-8-150W

Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $20 or Express - $30

Want The Best Prices?

Request a quote

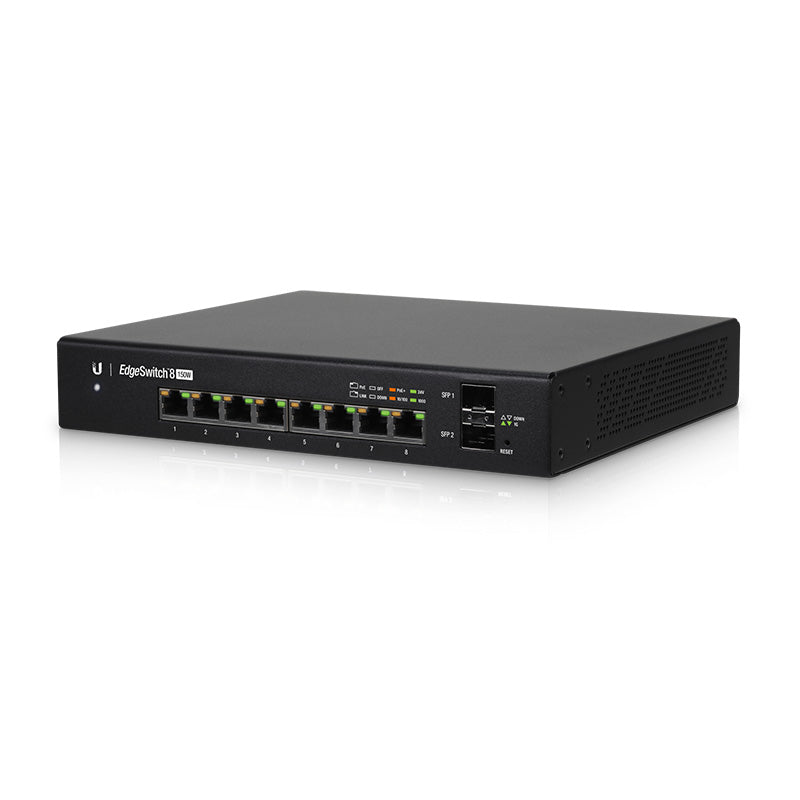

The Ubiquiti ES-8-150W UISP EdgeSwitch 8-Port Layer 2 Managed Gigabit PoE+ Switch is a fully managed, high-performance switch that delivers powerful performance and intelligent switching with its eight independent switching ports. A DC input option is included for flexibility.


This Ubiquiti ES-8-150W includes 24V Passive PoE to simplify your infrastructure and by default, automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

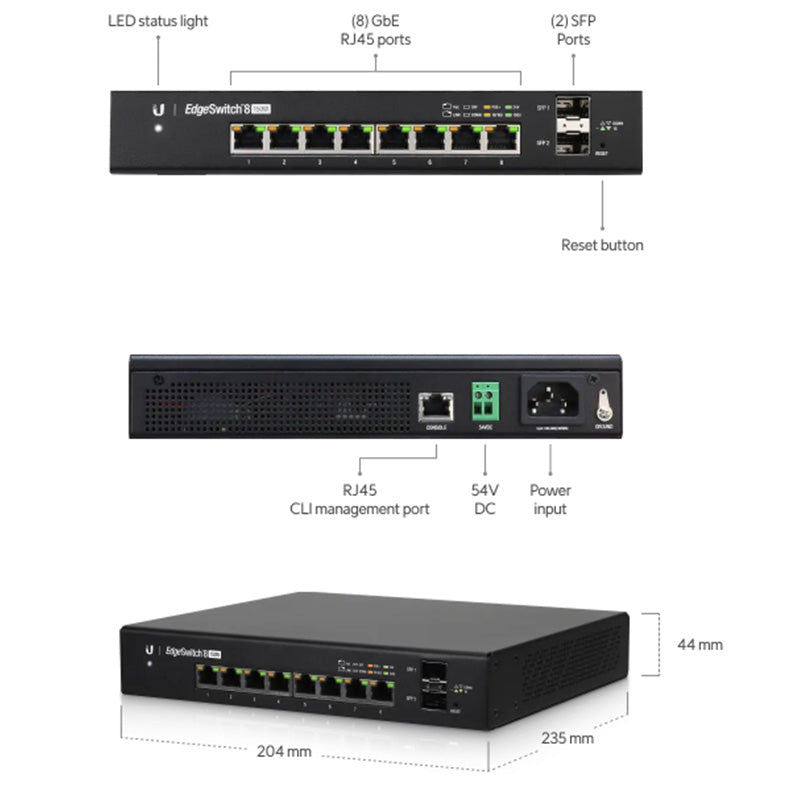

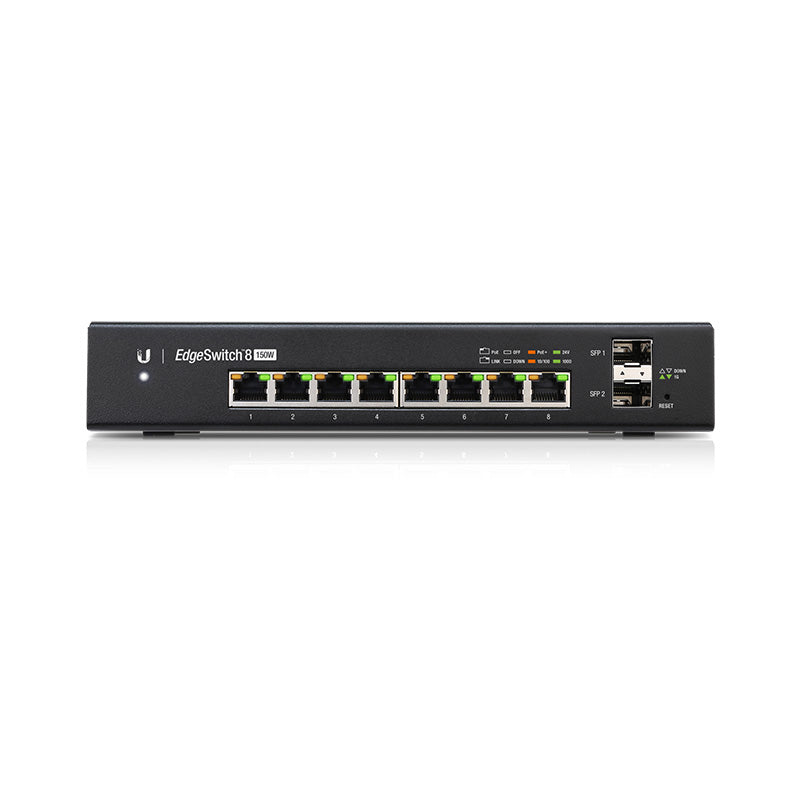

Eight (8) Gigabit RJ45 Ports and two (2) SFP Ports
Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
Maximum of 30W per port, total PoE budget 150W

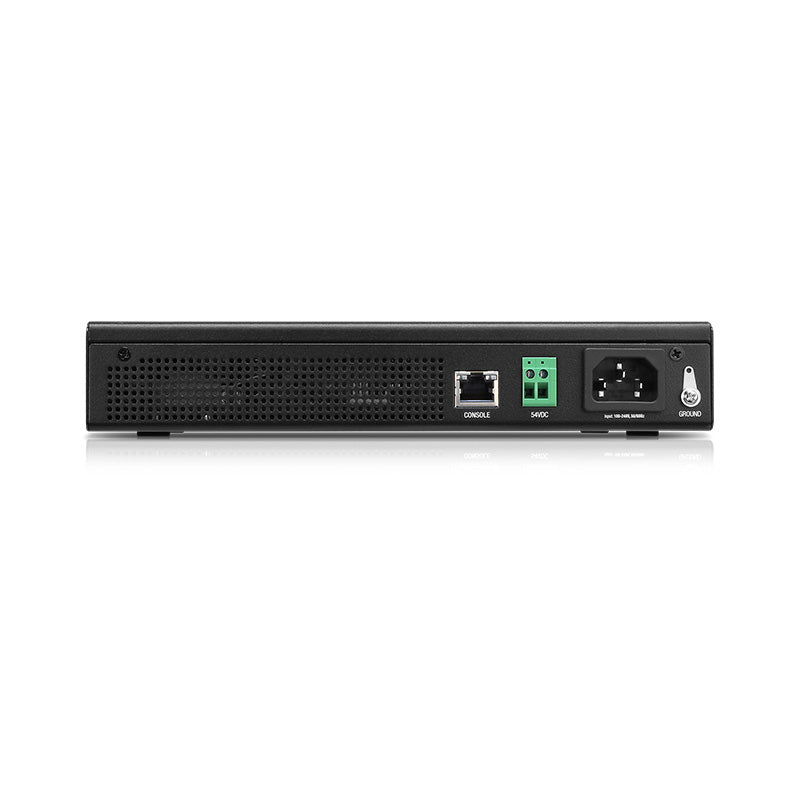

One (1) Serial Console Port
Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Wall mountable with Mount Brackets (Included)
Desktop-Mountable (Do not physically stack the ES-8-150W.)
DC Input Option (Redundant or Stand-Alone)

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
