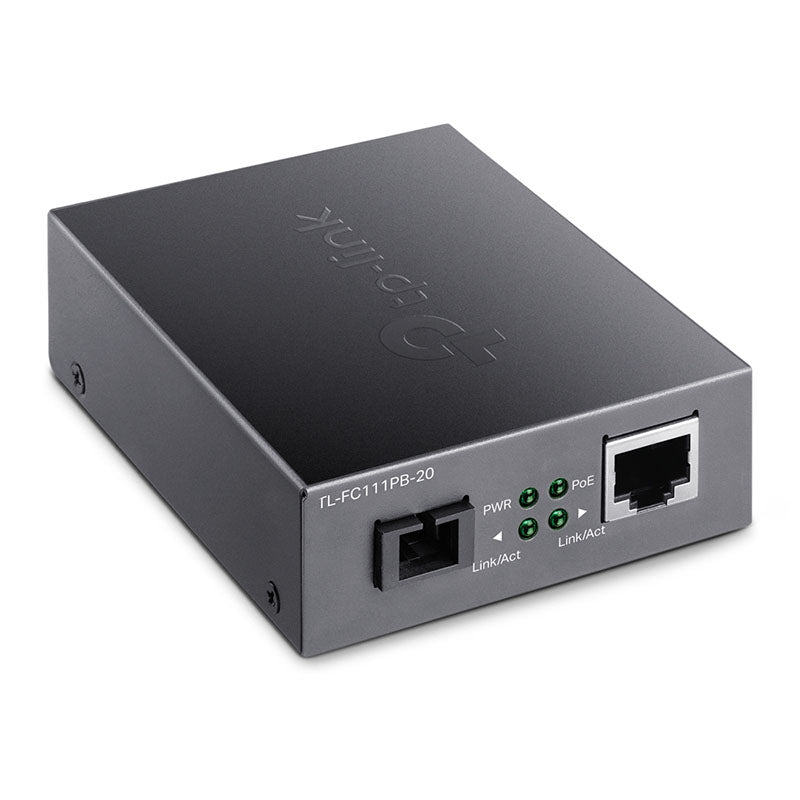

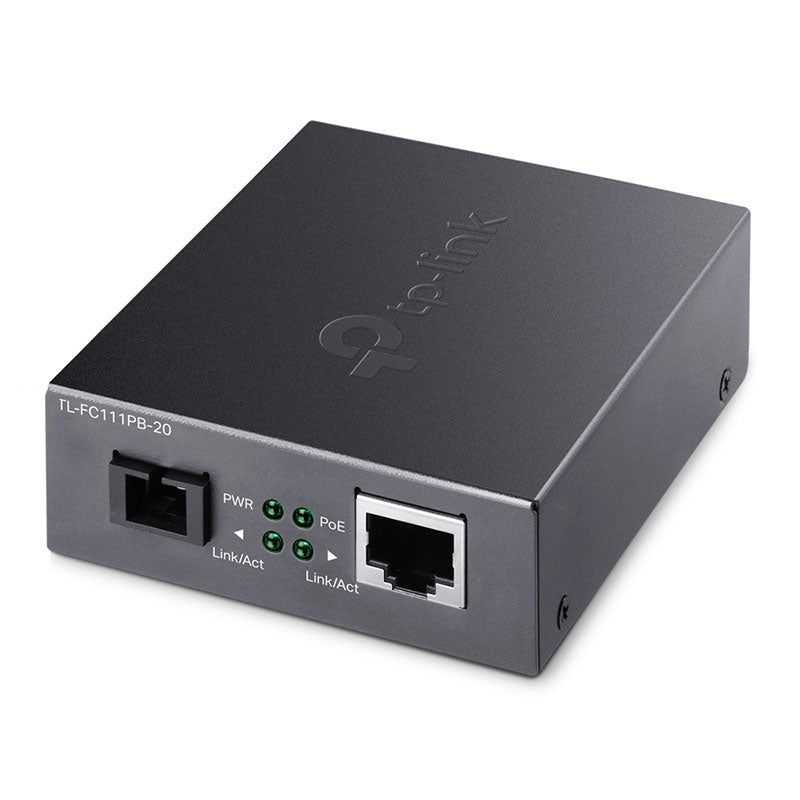

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE - IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX

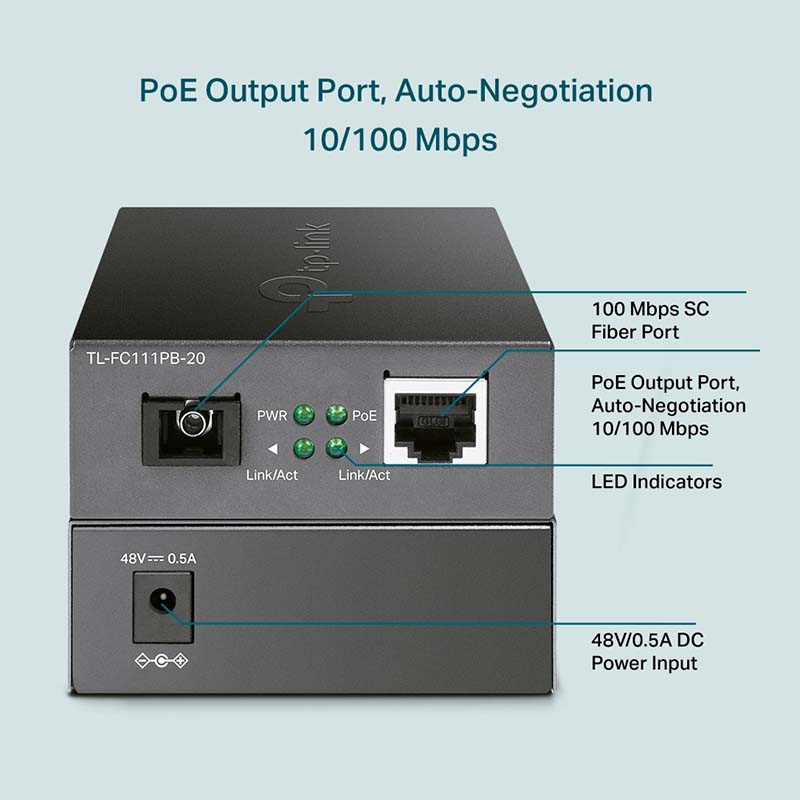

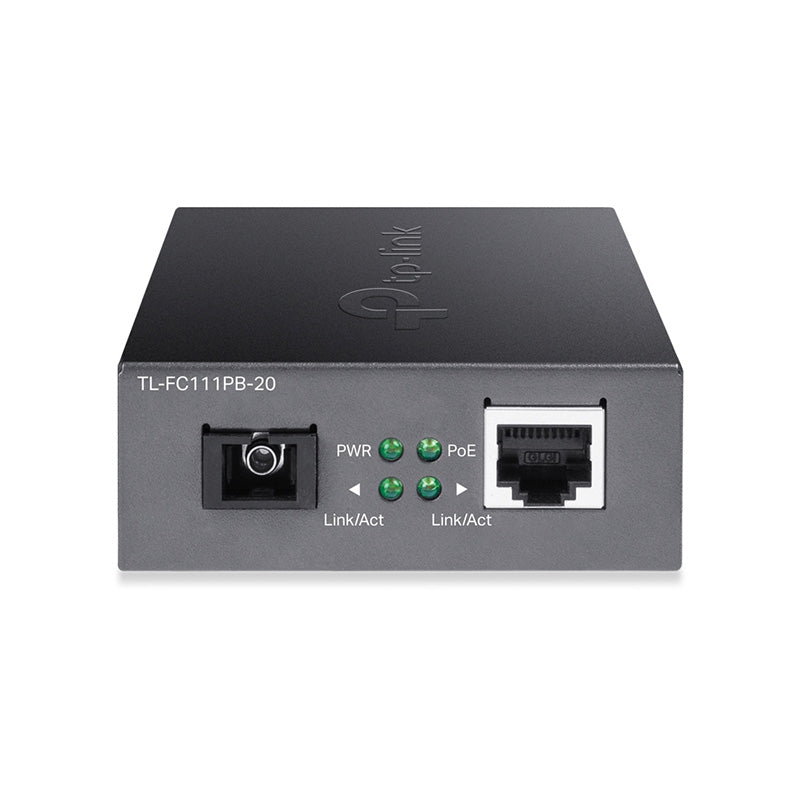

The TP-Link TL-FC111PB-20 100Base-TX to 100Base-FX Singlemode Fibre Media Converter is a 10/100 Mbps media converter with 802.3af PoE output, providing one (1) 10/100 Mbps PoE RJ45 port and one (1) 100 Mbps SC fibre port, which can convert between electrical and optical signals.

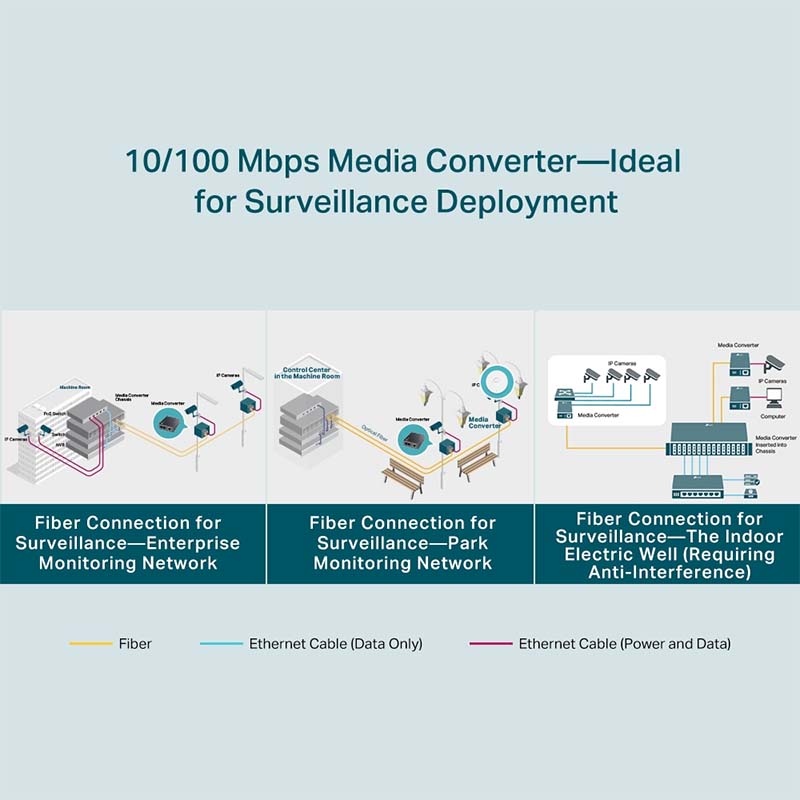

With up to 20 km fibre transmission distance and 802.3af PoE output, this media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibres. It provides an economical path towards extending the distance of an existing network.

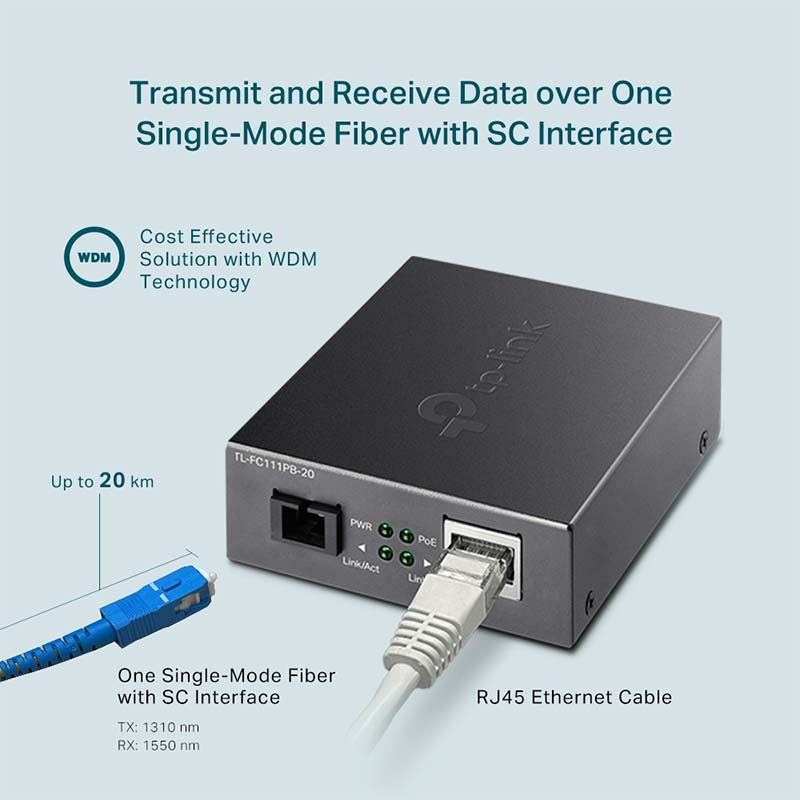

TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers.



TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm.



TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.



Features:


Converts the data between fibre (optical signal) and copper (electric signal).
Extends fibre distance up to 20 km.

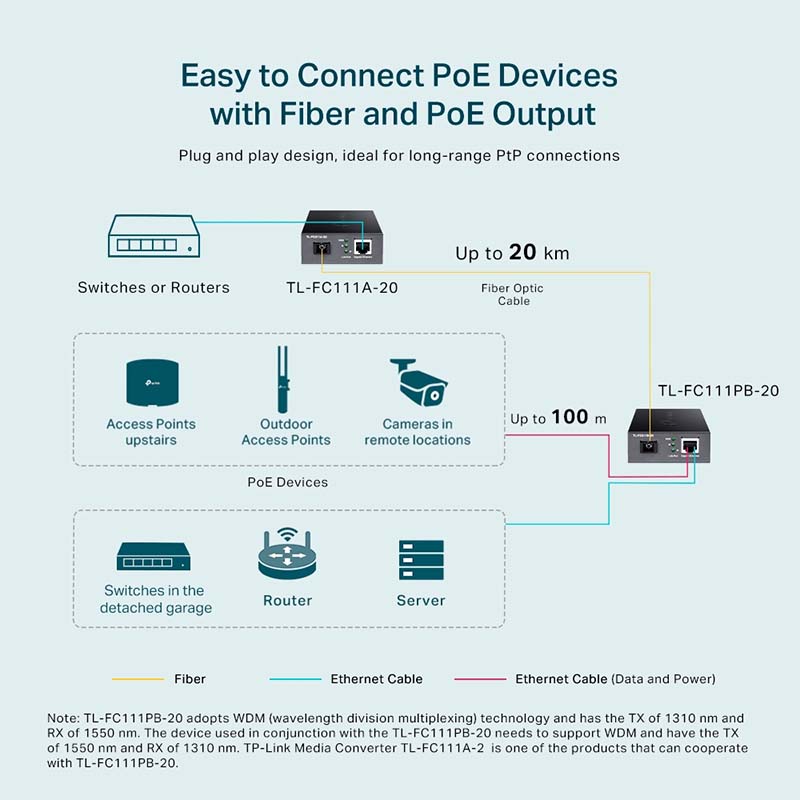

The 802.3af PoE output makes remote camera deployment easier and more convenient.
WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fibre strand instead of two.
Wide operating temperature (0°C – 50°C) with reliability.
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
