TL-FC311B-20 TP-Link Gigabit WDM Media Converter



SKU: TL-FC311B-20

Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $20 or Express - $30

Want The Best Prices?

Request a quote

TP-Link TL-FC311B-20 Gigabit WDM Media Converter - IEEE 802.3u 1550nm 20KM 9/125 μm Single-Mode Fiber (Compatible with TL-FC311A-20)

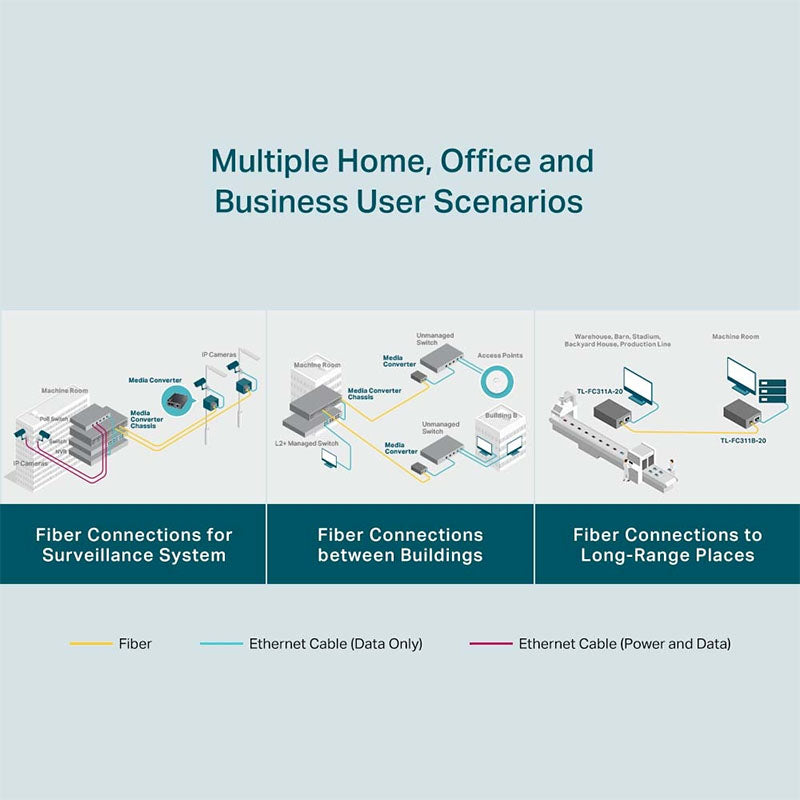

The TP-Link TL-FC311B-20 is a gigabit media converter that provides a gigabit RJ45 port and a gigabit SC fibre port, which can convert between electrical and optical signals. Long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking.


TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single-mode fibre, which saves half of the cable deployment cost for customers.

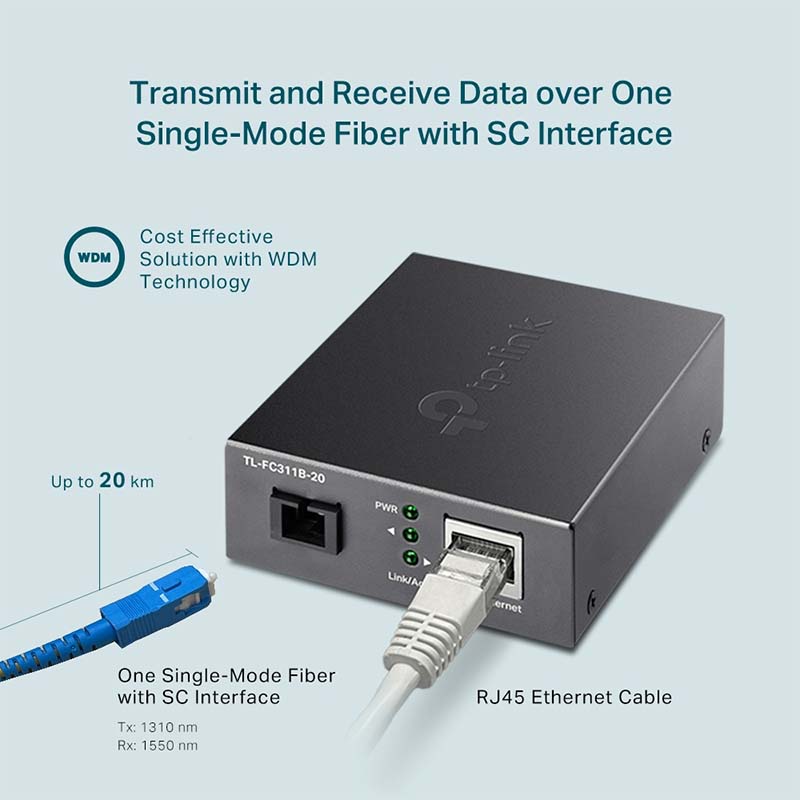

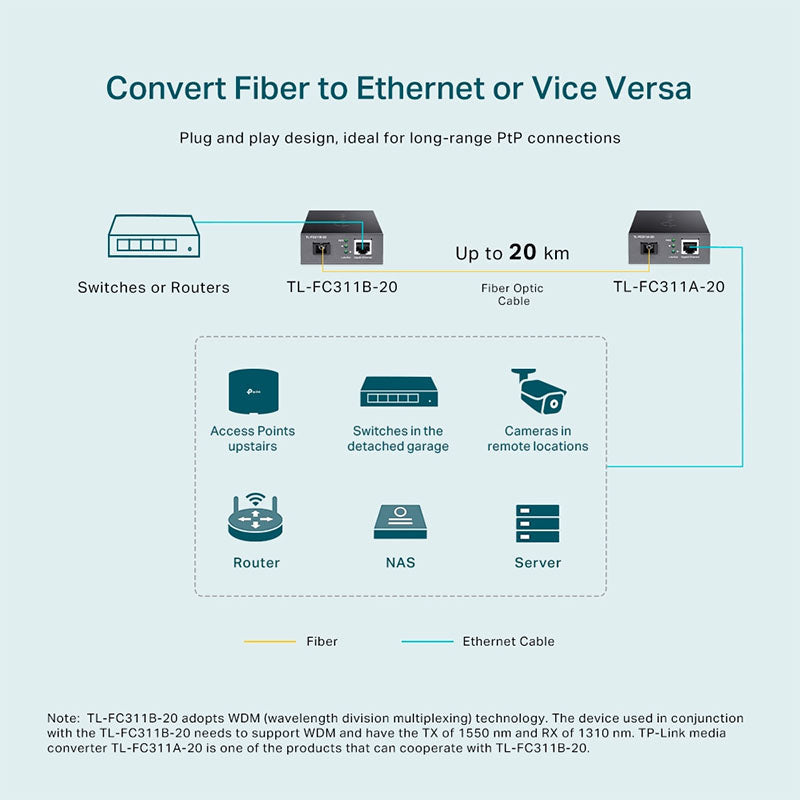

TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fibre. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm.


TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.

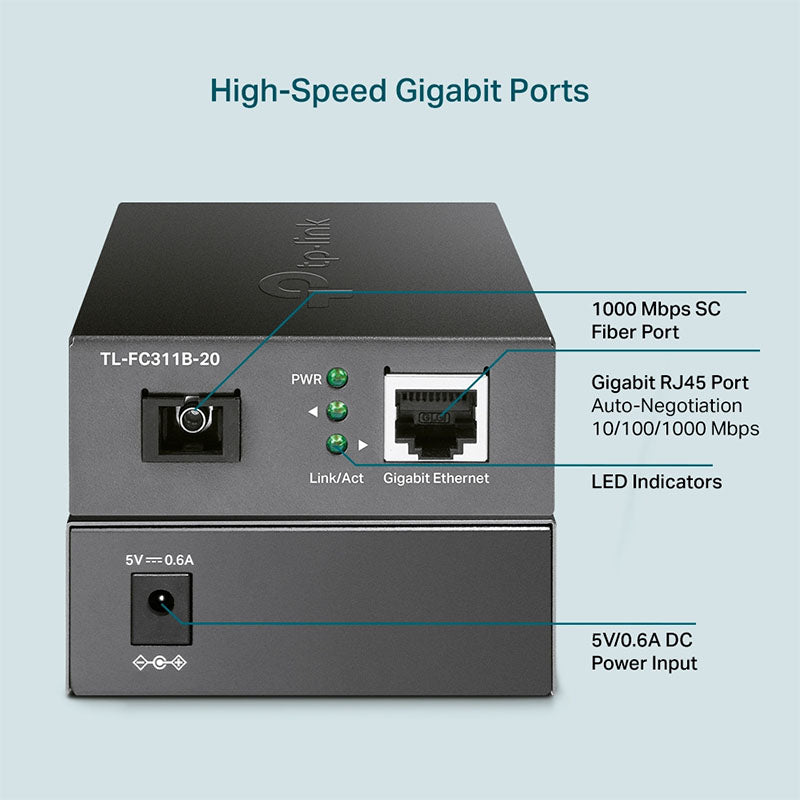

One (1) 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fibre
Extends fibre distance up to 20 km

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
