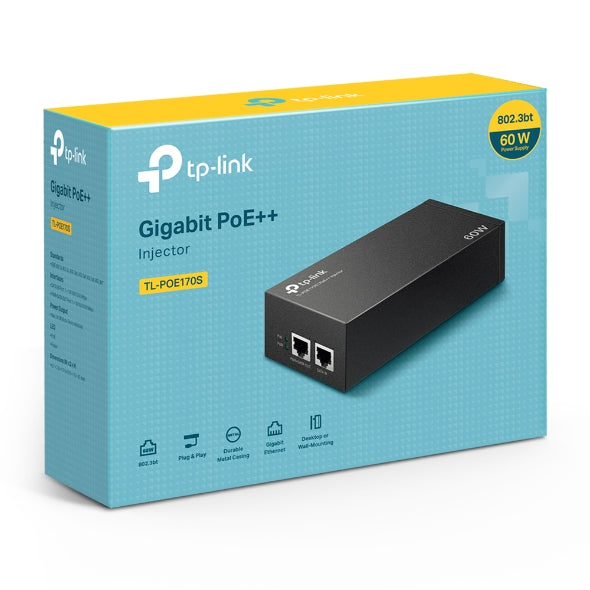

TP-Link TL-POE170S PoE++ Injector



2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at/bt standards, supplies up to 60 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation requires no configuration

Integrated power supply

Durable metal casing



NETWORK

Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt



HARDWARE FEATURES

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports 1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port

1 AC socket

Power Consumption Input: 100-240 V, 50/60 Hz, 1.6A

Output: Auto-determine the necessary power requirements (max. 60 W)

Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD

Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play



Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
