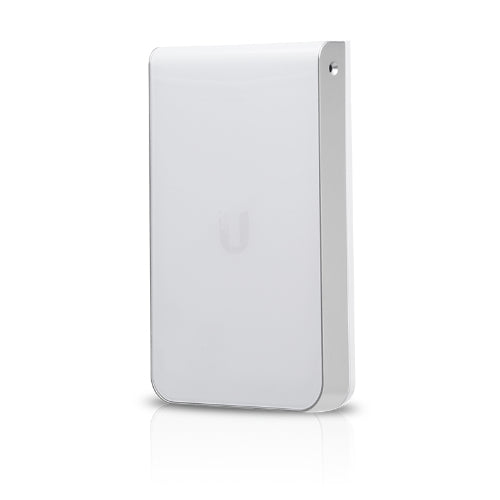

UAP-IW-HD Ubiquiti UniFi Access Point In Wall HD

Price:

$297.42

SKU: UAP-IW-HD


Chat 7am to 10pm - 7 days a week

We love what we do!

Flat Rate Shipping Costs

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote


The Access Point In-Wall HD (UAP IW HD) is a dual-band, 802.11ac WiFi access point that can be plugged into any non-AC wall outlet.



The UAP IW HD can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 200 concurrently connected clients. This access point is powered by 802.3af PoE* and is equipped with (5) GbE RJ45 ports, including one for configurable 48V PoE passthrough.



The UAP IW HD is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.



Features:


5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
200+ concurrent client capacity
Powered by 802.3af PoE*

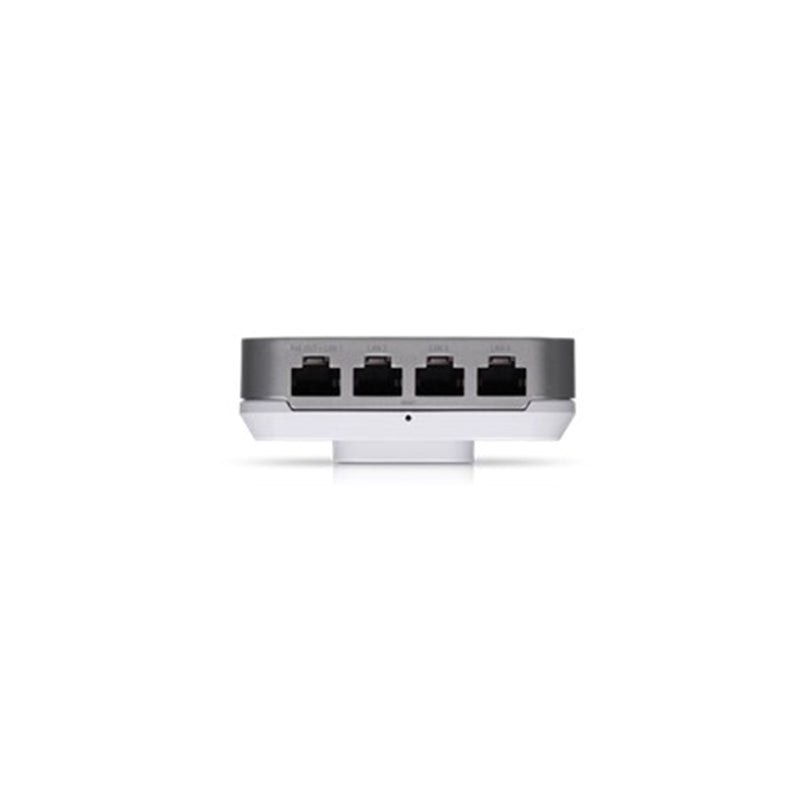

(5) GbE RJ45 ports, including (1) for configurable PoE passthrough (Port 1)

  • What's in the Box
  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide



Create your perfect UniFi Network or UniFi Protect solution in these 6 easy steps.

Step One - Get to know how UniFi Network or UniFi Protect works


Step Two - Choose your Ubiquiti UniFi OS Console

Each Unfi Network Switch, Access Point, Router or Camera needs to be connected to a UniFi OS Console.  The UniFi OS Console provides remote access, management and recording features.   Please note that the UDM Unifi Dream Machine, only supports Unifi Network and not Unifi Protect.  The Unifi Cloud Key Gen 2 is the only device that already includes a harddrive for data storage.  The others will need additional harddrives or memory cards to allow them to record footage.  There is also a software version of the Unifi Network controller if you only want to manage routers, access points and switches.  This can be found on Ubiquiti's website here.


Step Three - Choose your Ubiquiti UniFi Network Gateway

This is an optional step and is not needed if you have already chosen the UDR, UDM, UDM-Pro or UDM-SE or you don't need a router


Step Four - Choose your Ubiquiti UniFi Network Switch

Please note this is not a full list of all UniFi Switches, but a selection of the most common.  A full list can be found here


Step Five - Choose your Ubiquiti UniFi Network Access Point

Ubiquiti have a large number of wireless access points options and some of the most common are listed below.   A full list can be found here


Step Six - Choose your Ubiquiti UniFi Protect Camera

If you are looking to add on cameras and create a Unifi Protect solution, then optionally choose a camera from the options below
