UAP-AC-HD Ubiquiti UniFi AC Wave 2 AP




Chat 7am to 10pm - 7 days a week

We love what we do!

Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote

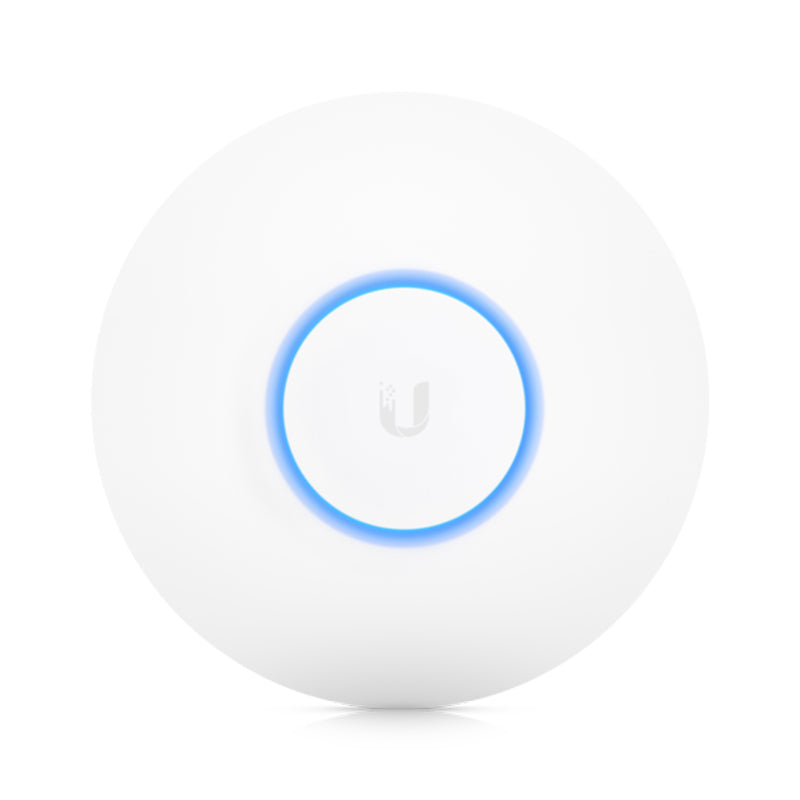

The Access Point AC HD (UAP AC HD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (4x4 MIMO) bands.


The UAP AC HD also has a focused antenna pattern to enhance your network's capacity and reduce interference from neighbouring access points.

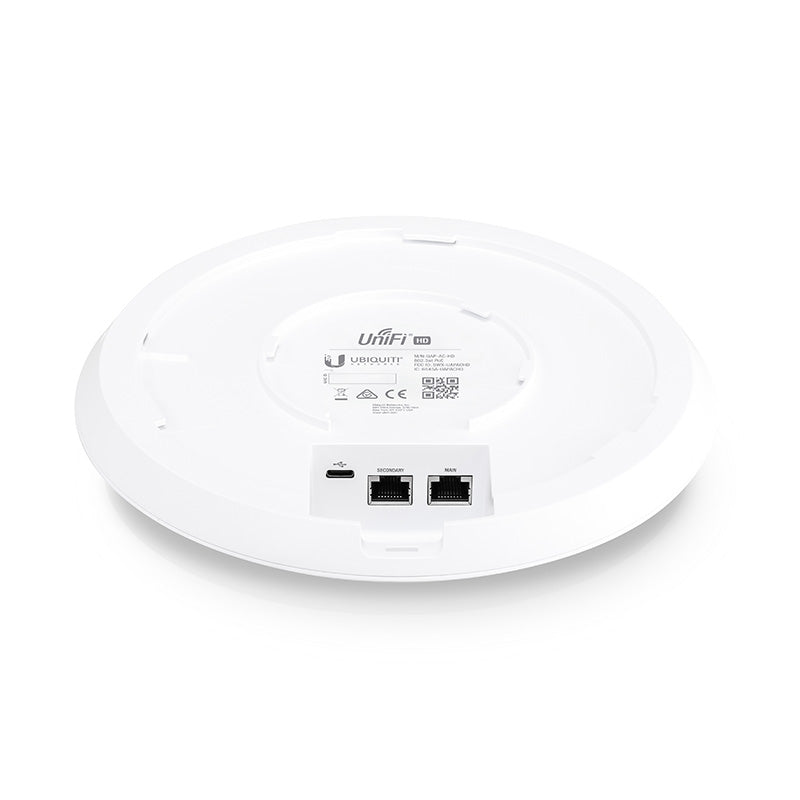

This access point is powered with PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.



802.11ac Wave 2 WiFi technology
5 GHz (4x4 MU-MIMO) band with a 1.7 Gbps throughput rate
2.4 GHz (4x4 MIMO) band with a 800 Mbps throughput rate
Powered with PoE+*
(2) GbE RJ45 ports
(1) USB port

    • What's in the Box
    • How to Configure
    • Ceiling Mount your AP
    • Datasheets and Guides

    Click HERE to access the Datasheet

    Click HERE to access the Installation Guide

    Create your perfect UniFi Network or UniFi Protect solution in these 6 easy steps.

    Step One - Get to know how UniFi Network or UniFi Protect works

    Step Two - Choose your Ubiquiti UniFi OS Console

    Each Unfi Network Switch, Access Point, Router or Camera needs to be connected to a UniFi OS Console.  The UniFi OS Console provides remote access, management and recording features.   Please note that the UDM Unifi Dream Machine, only supports Unifi Network and not Unifi Protect.  The Unifi Cloud Key Gen 2 is the only device that already includes a harddrive for data storage.  The others will need additional harddrives or memory cards to allow them to record footage.  There is also a software version of the Unifi Network controller if you only want to manage routers, access points and switches.  This can be found on Ubiquiti's website here.


    Step Three - Choose your Ubiquiti UniFi Network Gateway

    This is an optional step and is not needed if you have already chosen the UDR, UDM, UDM-Pro or UDM-SE or you don't need a router


    Step Four - Choose your Ubiquiti UniFi Network Switch

    Please note this is not a full list of all UniFi Switches, but a selection of the most common.  A full list can be found here

    Step Five - Choose your Ubiquiti UniFi Network Access Point

    Ubiquiti have a large number of wireless access points options and some of the most common are listed below.   A full list can be found here

    Step Six - Choose your Ubiquiti UniFi Protect Camera

    If you are looking to add on cameras and create a Unifi Protect solution, then optionally choose a camera from the options below
