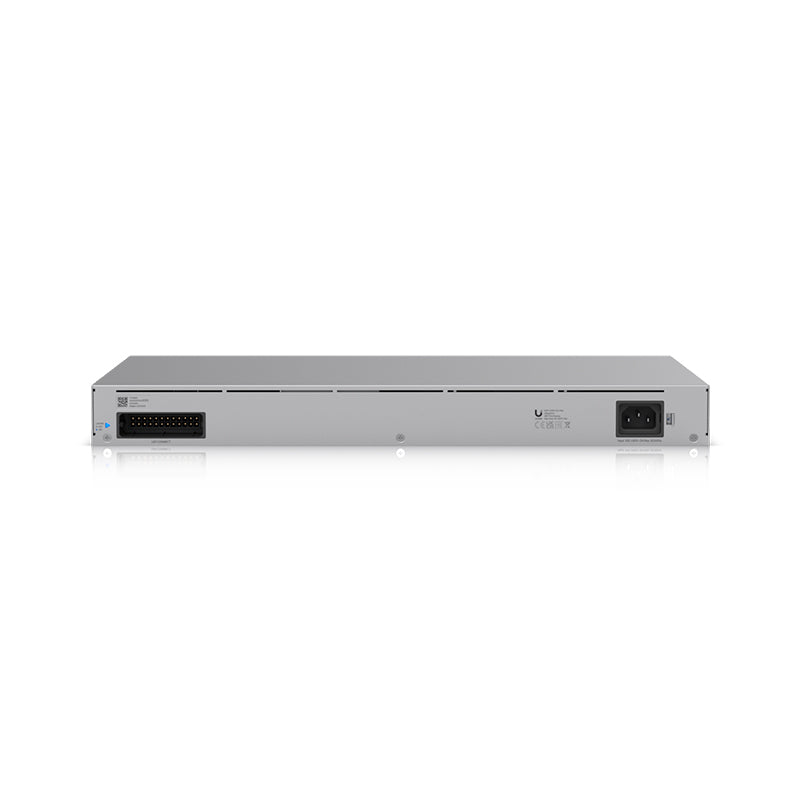

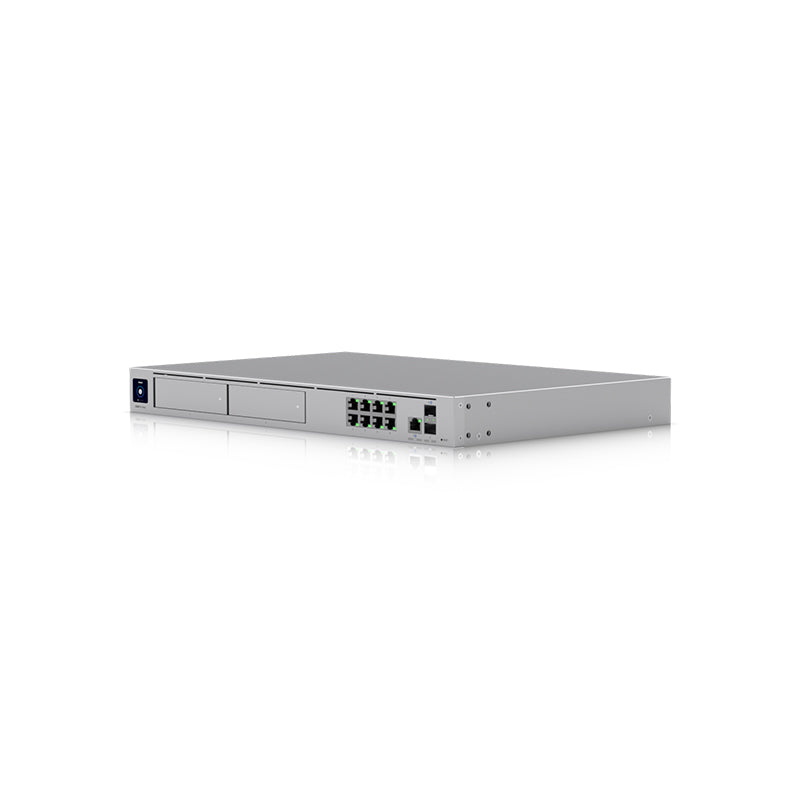

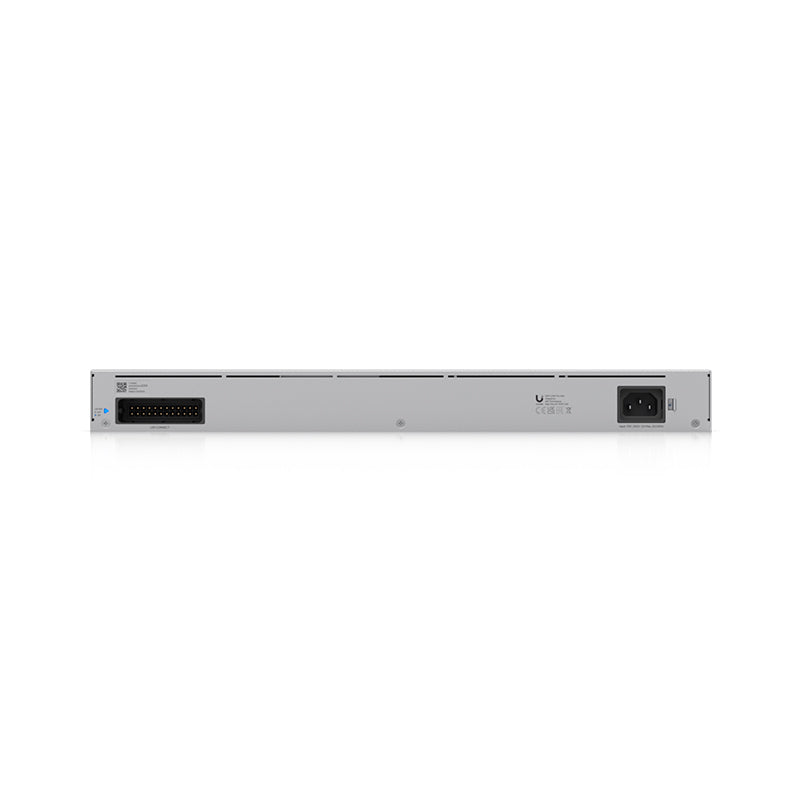

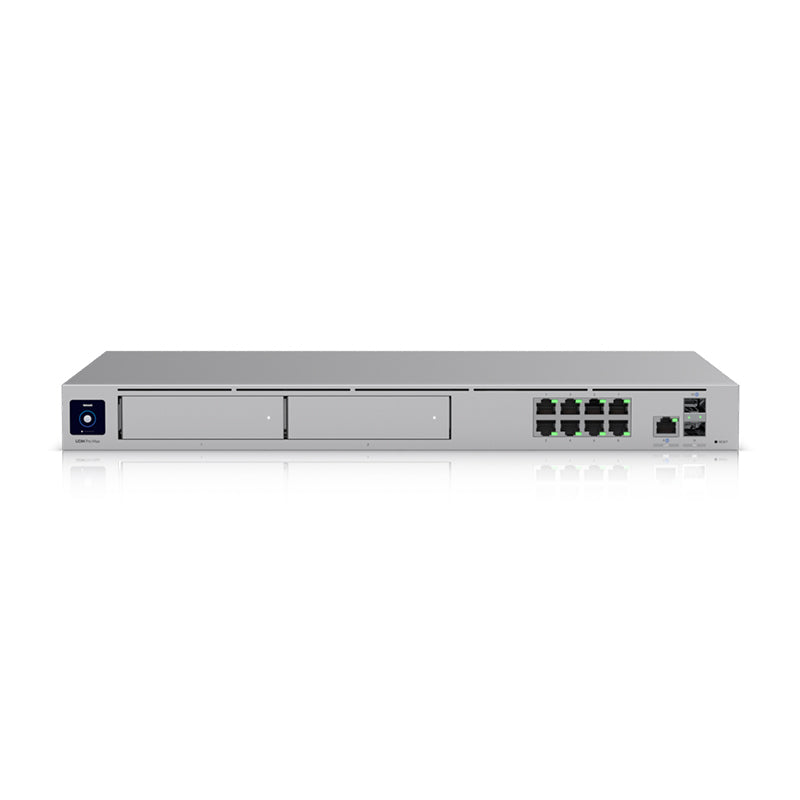

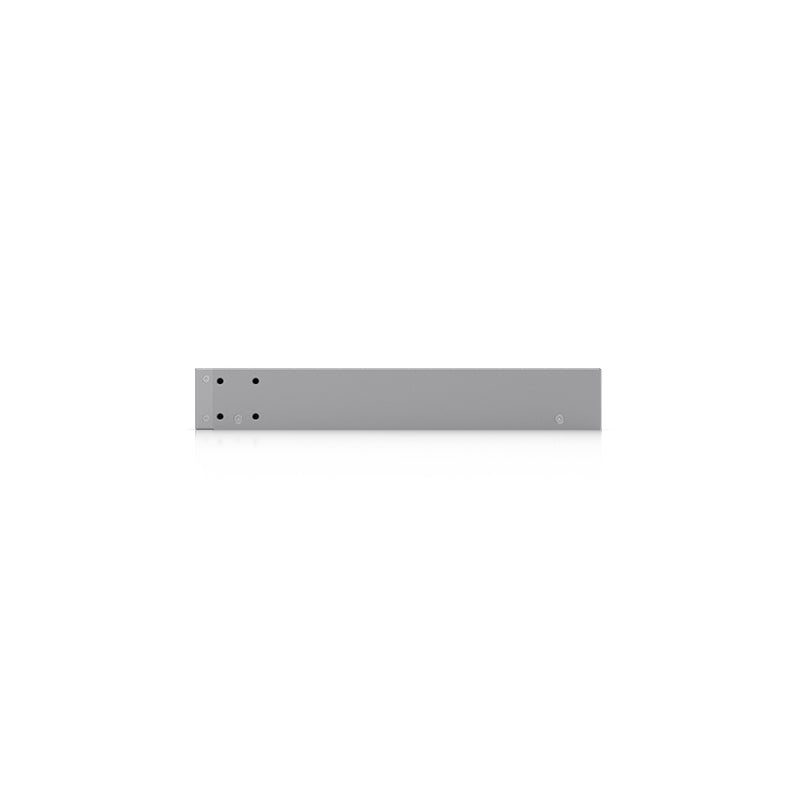

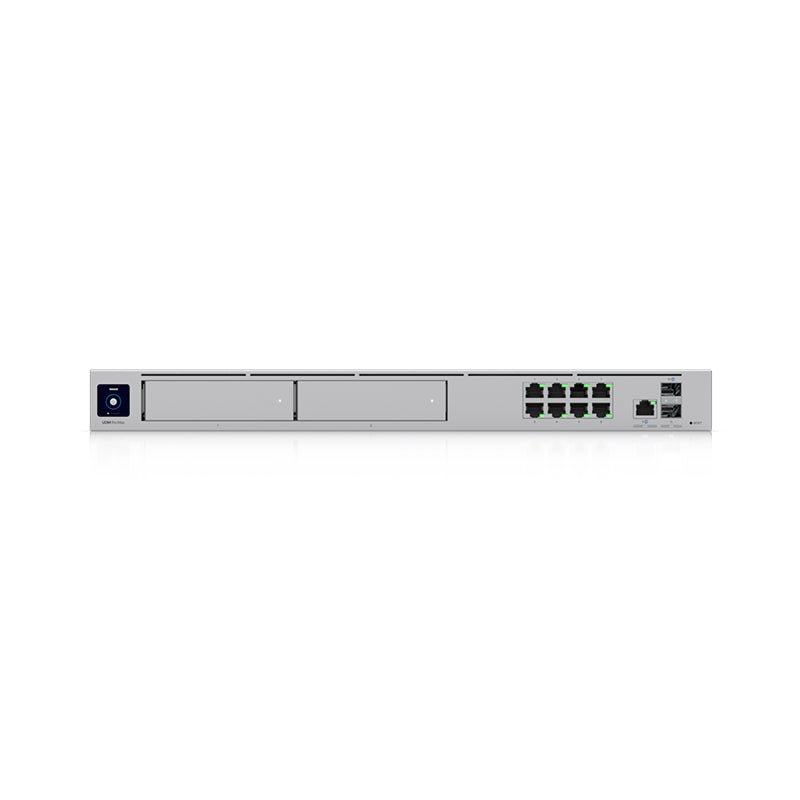

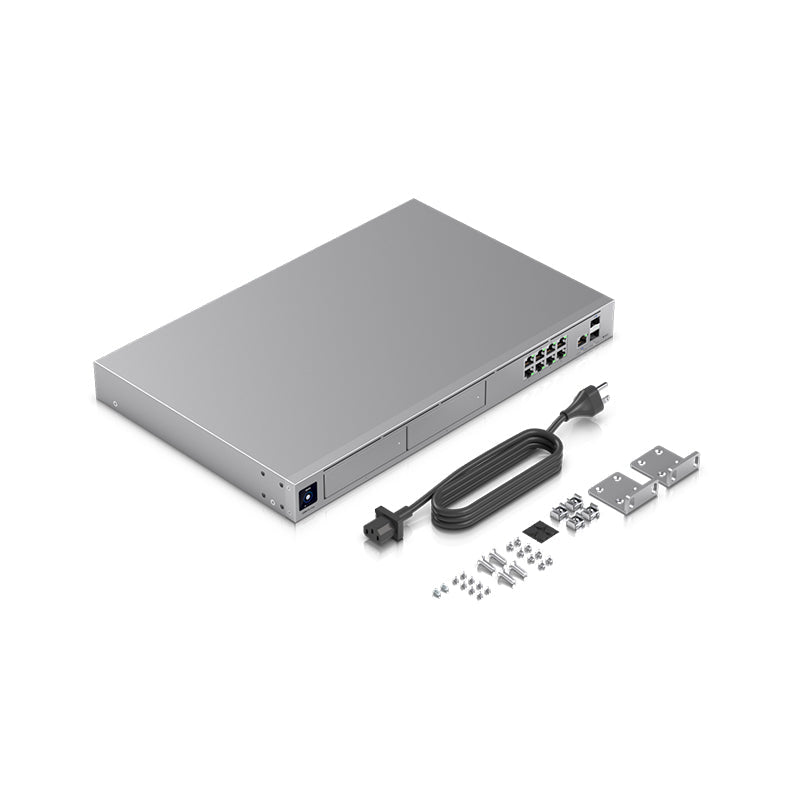

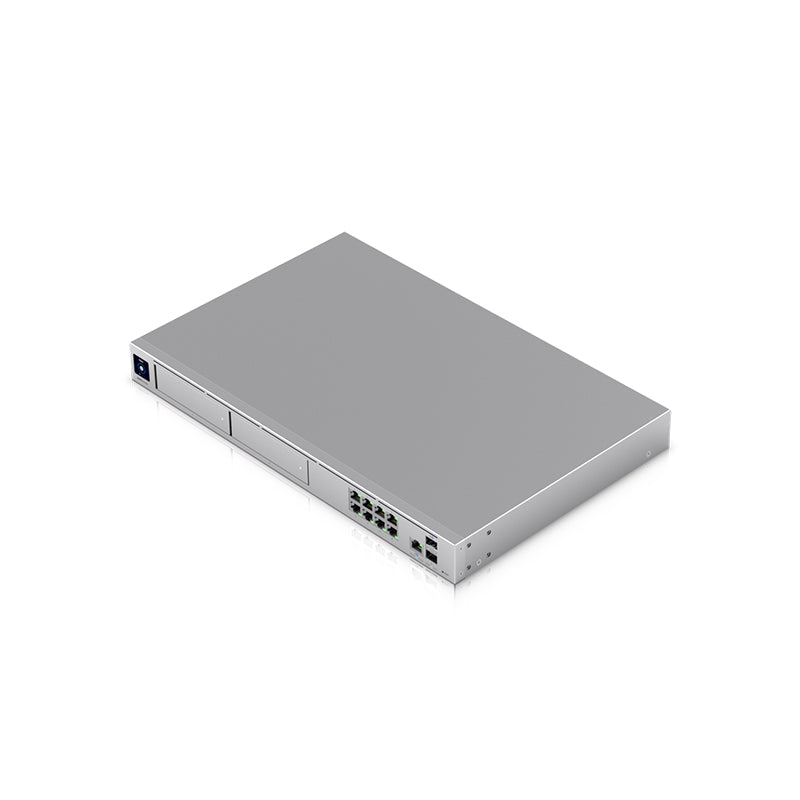

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

SKU: UDM-Pro-Max

UDM-Pro-Max Ubiquiti UniFi Dream Machine Pro Max

Q: What routing and security performance does it offer?

It delivers 5 Gbps routing with IDS\/IPS, with 55,000+ IDS\/IPS signatures when used with CyberSecure. It also supports Shadow Mode (VRRP) gateway failover for redundancy.

$1,248.96 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

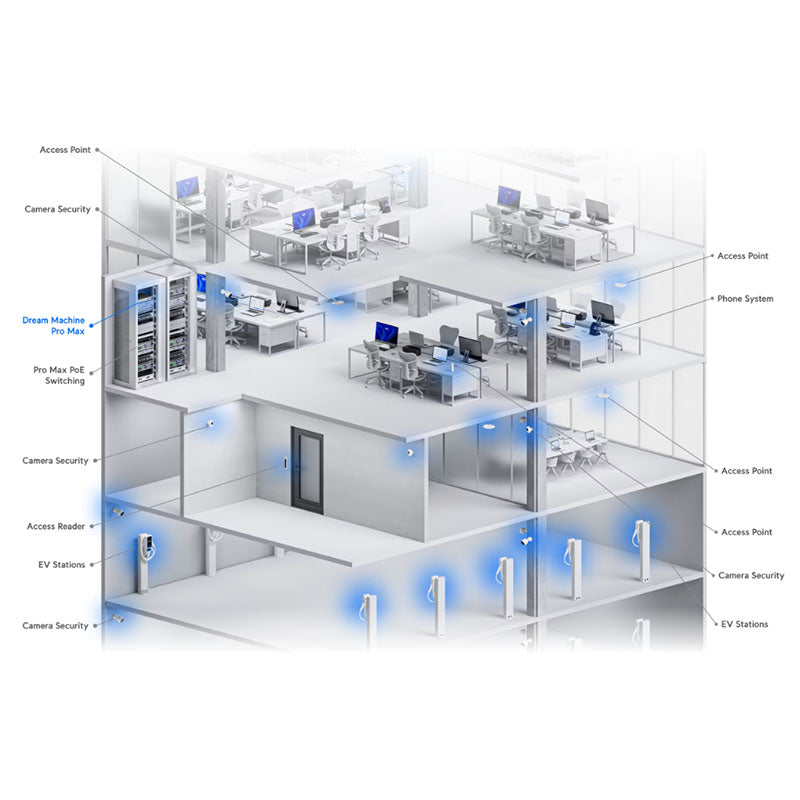

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

Features:

Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE

Includes full UniFi application suite for device management

5 Gbps routing with IDS/IPS

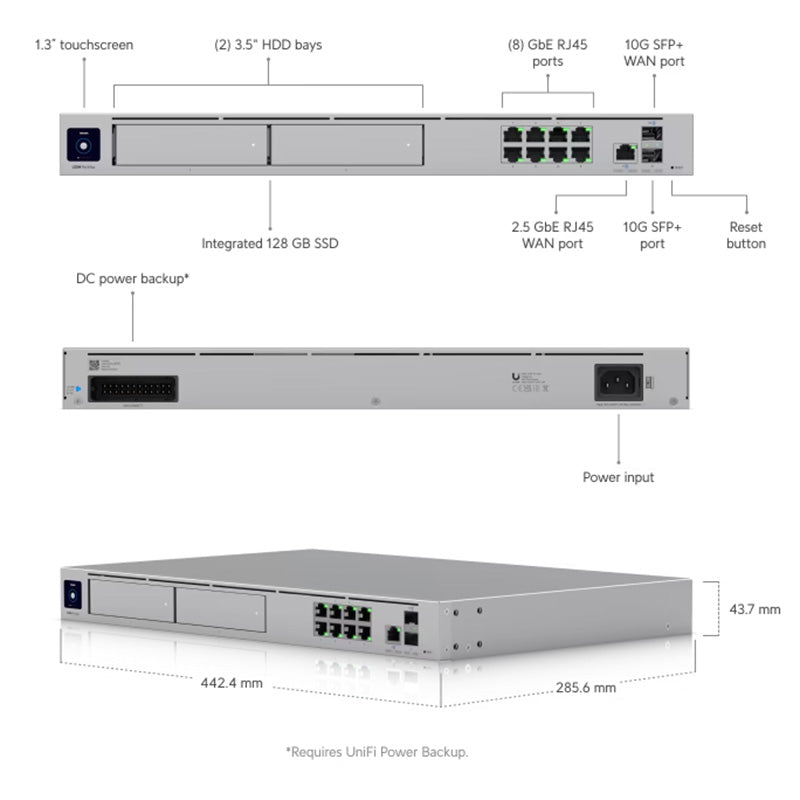

(1) 10G SFP+*, (8) GbE RJ45 LAN ports

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(2) 3.5" NVR HDD bays with RAID data protection

Built-in 128 GB SSD for NVR detection recordings

1.3" touchscreen

_{*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.}

Frequently asked questions5 questions

What is the UDM-Pro-Max designed for?

It is a 1U rack-mount Cloud Gateway built for large-scale, multi-application UniFi sites. It includes the full UniFi application suite for device management, multi-WAN load balancing and two NVR drive bays.

How many devices, cameras and users can it manage?

It manages 200+ UniFi devices, 150 access hubs and 2,000+ simultaneously connected users. For cameras, it handles 50 HD, 25 2K or 15 4K.

What ports does it have?

It has eight 1 GbE RJ45 ports, one 2.5 GbE RJ45 port and two 10G SFP+ ports. The default WAN ports are one 10G SFP+ and one 2.5 GbE RJ45, and up to 8 WAN ports are supported.

What routing and security performance does it offer?

It delivers 5 Gbps routing with IDS/IPS, with 55,000+ IDS/IPS signatures when used with CyberSecure. It also supports Shadow Mode (VRRP) gateway failover for redundancy.

What storage does it have for camera recordings?

It has two 3.5" NVR HDD bays with RAID data protection and a built-in 128 GB SSD for NVR detection recordings. Drives are not stated as included.

Customer reviews

5.0 · 4 reviews

Write a review

5 ★ 44 ★ 03 ★ 02 ★ 01 ★ 0

★★★★★Collected by reviews.io · Nov 2024

Half a month of use and so far this UDM Pro Max has been very easy to setup and manage via the phone app and laptop interface. It has given me added parental controls and security I didn’t have with my last ASUS mesh system so I feel safer using it. I love how expandable the UniFi ecosystem is. It had all the accessories one needs to rack it. I have yet to test it’s Protect hdd features but I’m sure they will be fine. I wish the 8-port switch in it was POE++, 2.5Gb and the ports could be aggregated. But that’s just icing on a very nice cake.

★★★★★Collected by reviews.io · Oct 2024

Super easy to program and get up and running. Seems to be rock solid based on a half a week so far with the unit.

Tim

★★★★★Collected by reviews.io · Oct 2024

This made our IT guys very happy.

David

★★★★★Collected by reviews.io · Jun 2024

The UDM Pro Max arrived quickly & was simple to setup. Within minutes I was up & running connected to my internet & already able to setup VLANS for my network.

The UDM Pro Max has an SFP+ and 2.5Gbps port on the WAN side, along with another SFP+ and eight Gigabit ports on the LAN side. I have the LAN SFP+ connected to a UniFi Aggregation Switch which we will soon be connecting our NAS to.

The UDM Pro Max is a robust UniFi controller with enhanced storage options (2 Drive Bays) and improved performance. It can route at 5Gbps with full DPI (Deep Packet Inspection) and IPS (Intrusion Prevention System) features enabled. If you’re looking for a high-end solution, it’s worth considering!

Luke

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications34 specifications · 4 sections

Overview
Dimensions	442.4 x 43.7 x 285.6 mm / (17.4 x 1.7 x 11.2")
Managed UniFi Devices	200+
Managed Cameras	(50) HD / (25) 2K / (15) 4K
Managed Access Hubs	150
Simultaneous Users Connected	2,000+
Max. WAN Port Count	8
Default WAN Ports	(1) 10G SFP+ / (1) 2.5 GbE RJ45
Port Layout · 1 GbE RJ45	8 / (1G/100M/10M)
Port Layout · 2.5 GbE RJ45	1 / (2.5G/1G/100M/10M)
Port Layout · 10G SFP+	2 / (10G/1G)
IDS/IPS Throughput	5 Gbps
Form Factor	Rack mount (1U)
Redundancy	Shadow Mode (VRRP) Gateway Failover / DC Power Backup
Security
IDS/IPS Signatures	55,000+ / with CyberSecure
Networking
MAC Address Table Size	4,000
Hardware
NVR Storage	(2) 3.5" NVR HDD bays / Built-in 128 GB SSD for Faster Experience
Max. Power Consumption	60W
Power Method	(1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100–240V AC
Heat Dissipation	205 BTU/hr
Processor	Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory	8 GB
On-board Storage	32 GB eMMC / 128 GB SSD (Integrated)
Weight	4.7 kg (10.4 lb)
Enclosure Material	Aluminium CNC, SGCC steel
Mount Material	SGCC steel
LCM Display	1.3" touchscreen
Management	Ethernet / Bluetooth
Button	(1) Factory reset
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 06369-24-08356, SRRC
