L2+ Managed Gigabit Switch with 6 x 10GbE SFP+ slots, 48 x GbE ports, 1 x console port, Auto Surveillance & Voice VLAN, ONVIF-Friendly, Energy-Efficient Ethernet, and Central Switch Management

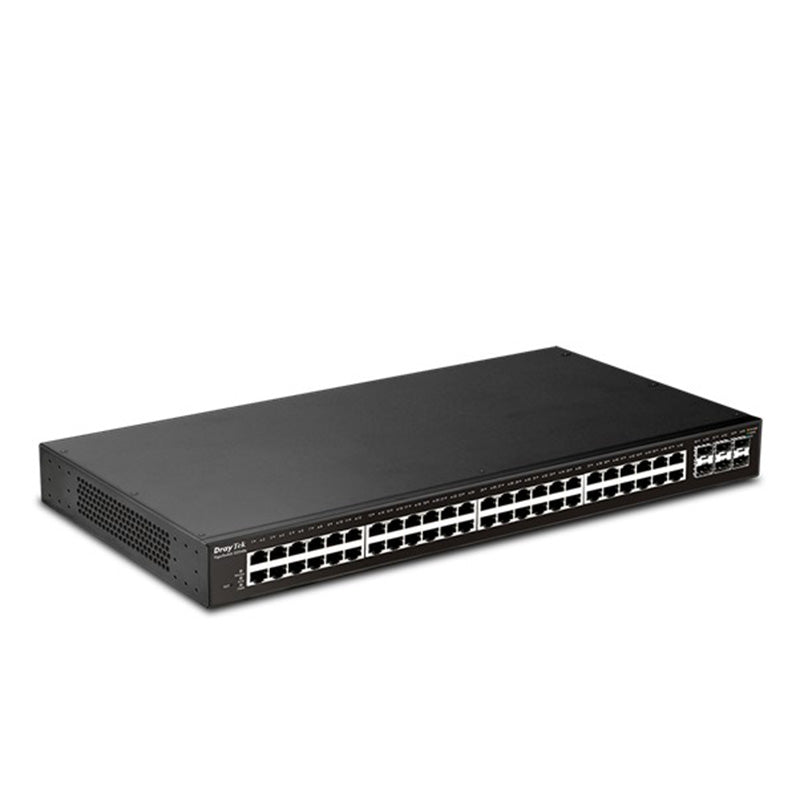

The DrayTek VigorSwitch G2540x is a Layer 2+ Managed 10GbE switch.
It has 48 x GbE ports and 6 x 10GbE SFP+ slots. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, the VigorSwitch G2540x improves network efficiency and helps your network to work continuously even when the gateway is offline, making it ideally utilised as the core switch in SME/SMB.
Features:
Layer 2+ Managed 10GbE Switch: 48 x GbE ports; 6 x 10GbE SFP+ slots& Up to 216 Gbps switching capacity
802.1q tagged VLANs (MAC address, and protocol)
Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
ONVIF (Open Network Video Interface Forum) compliant
QoS with 8 queues for traffic prioritisation
Enterprise-Level security features: 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping & Access Control (IPv4, IPv6 and MAC address)
Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
Authentication by local database, multiple RADIUS, and TACACS+ server
IEEE 802.3az (Energy-Efficient Ethernet) Compliant
Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
Port Mirroring & Link Aggregation
1 x RJ-45 console port
Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
Compliant with VigorConnect free software for local network management
Support VigorACS 2 Central Management System for remote network management
2 years back to base warranty
